The blind actuator REG-K/4x24/6 with manual mode
(referred to below as the actuator) can control up to
four blind drives with limit switch independently of one
another.
You can switch the actuator to manual operation and
check that it works even without ETS programming, and
you can control the connected loads directly at the
actuator in the event of a bus failure.
For your safety
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR
ARC FLASH
Safe electrical installation must be carried out only by
skilled professionals. Skilled professionals must prove
profound knowledge in the following areas:
• Connecting to installation networks
• Connecting several electrical devices
• Laying electric cables
• Connecting and establishing KNX networks
• Safety standards, local wiring rules and regulations
Failure to follow these instructions will result in
death or serious injury.
RISK OF FATAL INJURY FROM ELECTRIC SHOCK
The output may carry electrical current even when the
load is switched off.
• When working on the device: Always disconnect the
device from the supply by means of the fuse in the in-
coming circuit.
• Even if the manual switch is in the „OFF“ position, a
KNX telegram can switch the connections to being
live at any time. Before working on the device, always
diconnect the fuse in the incoming circuit from the
supply.
Failure to follow these instructions will result in
death or serious injury.
The device may be damaged!
• Always operate the product in compliance with the
specified technical data.
• Only connect one motor per channel.
• Only install devices with at least basic insulation next
to the device.
Failure to follow these instruction can result in
equipment damage.
Blind actuator introduction
The actuator has a bus coupler. It is installed on a DIN
rail, with the bus connection made via a bus connecting
terminal. It is supplied with power from the bus voltage.
A data rail is not required.
AProgramming button and programming LED (red)
BUnder the cable cover: Bus connecting terminal
COperating LED "RUN" (green)
DManual operation LED "Manual" (red)
EManual operation key "Manual"
FChannel terminals for loads
GSupply voltage for loads
HChannel keys for manual control of the
corresponding channel, only respond when manual
operation is switched on
IChannel status LEDs (yellow) for the corresponding
channel
When and how the LEDs light up
1Set the actuator onto the DIN rail.
Connections, displays and operating
elements
RUN (green) lights up during normal operation
Manual (red) lights up during manual operation
Channel (yellow) lights up during movement
Mounting the actuator
The device may be damaged!
• Connect the bus connection and the supply voltage
with correct polarity.
• Connect the bus voltage first and only then the load
voltage.
• Protect the switch contacts with a series-connected 6
A circuit breaker.
• Only install devices with at least basic insulation next
to the device.
Failure to follow these instruction can result in
equipment damage.
1 2
1 2
1 2
1 2
Hand
3 4
3 4
3 4
3 4
1 / 3
2 / 4
1
2
3
4
+ + - -
+ + - -
B
C
D
E
I
H
G
A
F
2
1
3
2Connect KNX.
3Connect the bus voltage.
4Wait at least 30 seconds.
After the bus voltage has been switched on, all the
actuator relays are moved to a predefined position
(factory setting: "Off").
5Connect the load.
6Connect the load voltage.
Now you can check the functionality of the actuator and
the connected loads without having to load the
application from the ETS. (See the "Manual operation"
section.)
1Press the programming button.
The programming LED lights up.
2Load the physical address and application into the
device from the ETS.
The programming LED goes out.
The operating LED lights up: The application was loaded
successfully, the device is ready for operation.
Normally, you control the blinds using push-buttons or
by remote control. However, you can also switch the
actuator to manual operation and then raise or lower
each blind manually using its channel keys. In order to
be able to do this, the ETS parameter "Manual operation
enabled" must be set to "enabled" and bus voltage must
be present.
Manual operation before downloading the
application for the first time
Immediately after the initial installation, you can switch
the actuator to manual operation, e.g. in order to test
the drives.
Manual operation with the ETS setting "Bus and
manual operation"
In manual operation, the actuator also responds to KNX
telegrams. The command last received is given priority.
If the toggle times are too short, the blind motor
could be damaged.!
• The toggle time at the factory setting is 500 ms. A
longer toggle time may be necessary for other mo-
tors. Refer to the manufacturer's specifications in the
data sheet for the motor.
Failure to follow these instruction can result in
equipment damage.
Putting the actuator into operation
Manual operation
5 mm
1 2
3 4
KNX
1 2
24 V
+ + - -
1 / 3
+ + - -
2 / 4
6A 6A 6A
+
-
SpaceLogic KNX
Blind actuator REG-K/4x24/6 with manual
mode
Operating instructions
Art. no. MTN648704
en
Hand
Exception: Safety alarms (e.g. weather) always have
priority with this setting.
Manual operation with the ETS setting "Manual
operation only"
In manual operation, the actuator does not respond to
KNX telegrams, nor to safety alarms. This setting can be
useful when carrying out maintenance, for example.
½CAUTION
Loads could be damaged. When operating
loads in "Manual operation only" using the
channel keys, prioritised safety functions (e.g.
weather alarm position, disable position) no
longer work. To prevent damage, you should
therefore be very careful when operating
manually.
|Make sure that the ETS parameter "Manual
operating mode" is set to "Bus and manual
operation" (not "Manual operation only"), when
you hand over the system to the operator.
Time-limited manual operation is another function that
can be set in the ETS. With this function, you can set a
time period after which manual operation (including
"Manual operation only") is cancelled automatically. The
actuator then responds to KNX telegrams again.

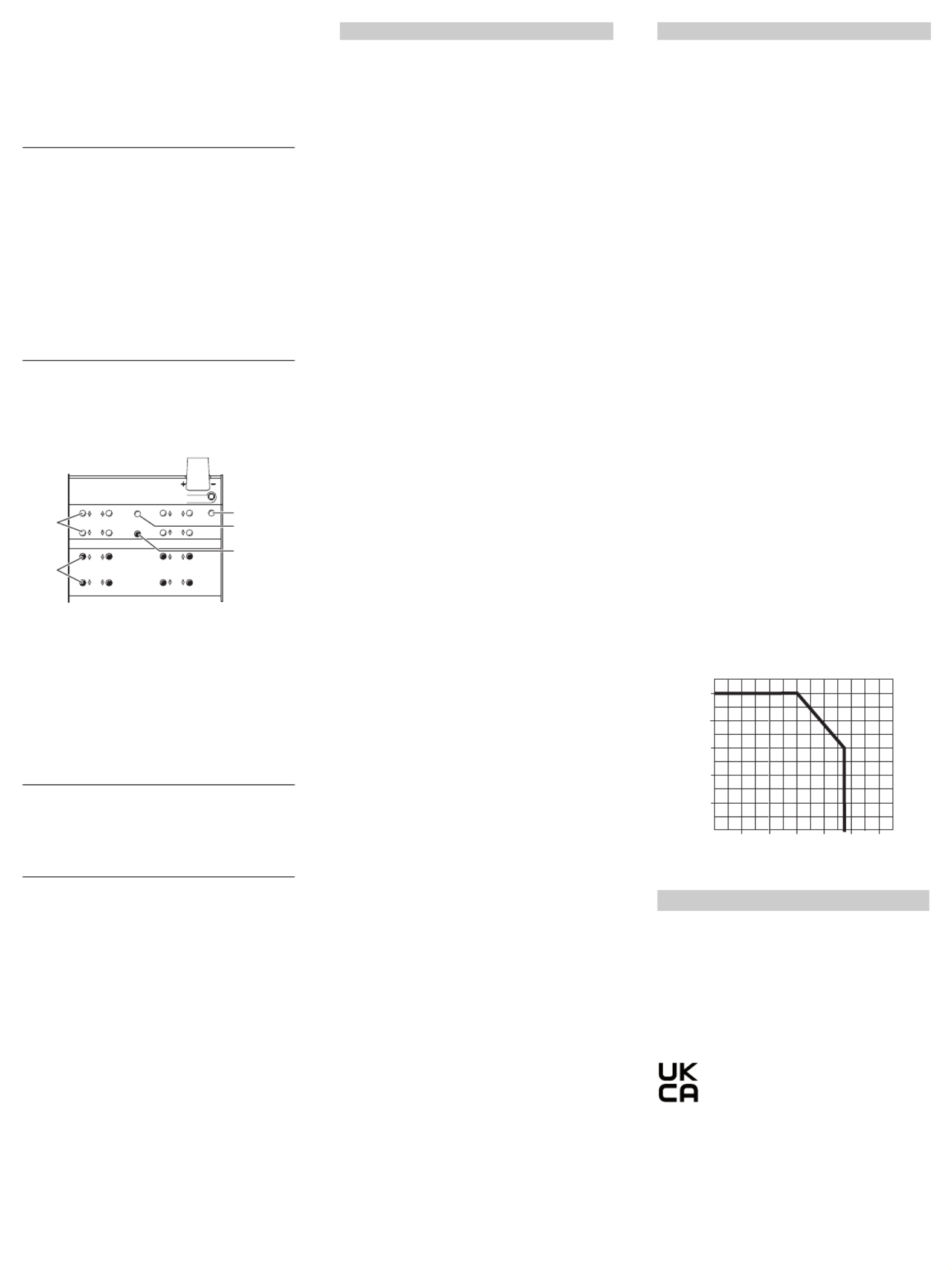

Change the actuator over to manual operation
1Press the manual operation key E.
The red manual operation LED D lights up. The
actuator is in manual operation.
– The green operating LED C goes out when
"Manual operation only" is set in the ETS.
– The green operating LED C remains on when
"Bus and manual operation" is set in the ETS.
Controlling the blinds in manual operation
½WARNING
Blinds can cause injury when they are
moving. If you are operating blinds/roller
shutters using channel keys, make sure that no
people are in the range of movement.
1To raise (arrow up) or lower (arrow down) the blind:
press the corresponding channel key H.
2To halt the movement of travel: press the channel
key H again.
The corresponding channel status LED I lights up
during movement.
Exit manual operation
1Press the manual operation key E again.
The red manual operation LED D goes out. The green
operating LED C lights up. The actuator now only
responds to KNX telegrams.
1 2
1 2
1 2
1 2
Hand
3 4
3 4
3 4
3 4 C
D
E
I
H
The red manual operation LED and the green
operating LED are not lit. Manual operation cannot
be activated.
• The bus voltage has failed.
– Check the bus voltage.
• Application was not loaded properly.
– Load it again.
The green operating LED is not lit.
• The bus voltage has failed.
– Check the bus voltage.
• Application was not loaded properly.
– Load it again
• Red manual operation LED is lit: Manual operation is
active and "Manual operation only" is set in the ETS.
Only manual operation is possible. There is no fault.
– Switch off manual operation.
Actuator does not react to the manual operation
key, the red manual operation LED does not light
up, manual operation is not possible.
• ETS parameter "Manual operation enabled" is set to
"blocked". There is no fault.
– Set the "Manual operation enabled" parameter to
"Enabled/enable".
• "Manual operation enabled" is blocked by an object
(value=0), there is no fault.
– Enable manual operation via object.
In manual operation, the actuator does not react to
the activation of the channel keys, the red manual
operation LED lights up, manual mode is not
possible.
• The green operating LED is still lit: ETS parameter
"Manual operation mode" is set to "Bus and manual
operation", a prioritised function (e.g. weather alarm
or lock) is activated, there is no malfunction.
– Wait until the higher-level function has been
completed, or switch the ETS parameter "Manual
operation type" to "Manual operation only".
In manual operation, the actuator controls
connected loads without a channel key being
pressed.
• The ETS parameter "Manual operating mode" is set to
"Bus and manual operation". The control command
for the actuator came via a KNX telegram. There is no
fault.
– Switch the ETS parameter "Manual operating
mode" to "Manual operation only".
What should I do if there is a problem?
Permitted current depending on the connection
voltage:
Schneider Electric Industries SAS
35 rue Joseph Monier
Rueil Malmaison 92500
France
If you have technical questions, please contact the Cus-
tomer Care Centre in your country.
se.com/contact
Technical data
Power supply from
bus: DC 24 V, max. 17.5 mA
Insulation voltage: AC 4 kV between bus and
switch outputs
Nominal voltage: DC 24 V
Nominal current: 6 A
Load type: 24 V direct current drives
Switching frequency: max. 15 times per minute at
nominal load
Fuse: one 6 A circuit breaker
connected upstream per
channel
Ambient temperature
Operation: -5 °C to +45 °C
Storage: -25 °C to +55 °C
Transport: -25 °C to +70 °C
Environment: can be used at up to 2000 m
above sea level (MSL)
Max. humidity: 93 %, no moisture
condensation
Operating elements: 1 programming button,
1 "Manual" manual operation
key,
2 channel keys per channel
Display elements: 1 red LED: programming
check,
1 green LED: ready for
operation, "RUN",
1 red LED: manual operation
status,
2 yellow status LEDs per
channel
KNX connection: two 1 mm pins for bus
connecting terminal
24 V connection: per channel pair one plug-in
4-gang screw terminal for
max. 2.5 mm2
Device width: 4 depth units = approx.
72 mm
Schneider Electric -Contact
10 V 20 V 30 V 40 V
6 A
5 A
4 A
3 A
2 A
48 V
Schneider Electric Limited
Telford, TF3 3 BL, UK
UK Representative
Stafford Park 5
V6487-562-01 11/21

Produkt Specifikationer

Mærke: Schneider
Kategori: Ikke kategoriseret
Model: MTN648704

Har du brug for hjælp?

Hvis du har brug for hjælp til Schneider MTN648704 stil et spørgsmål nedenfor, og andre brugere vil svare dig


Ikke kategoriseret Schneider Manualer

Schneider

Schneider HEPD25 Manual

12 August 2025
Schneider

Schneider CCT15551 Manual

12 August 2025
Schneider

Schneider EasyLogic PM2200 Manual

11 August 2025
Schneider

Schneider EasyLogic DM6000H Manual

11 August 2025
Schneider

Schneider CCT15858 Manual

10 August 2025
Schneider

Schneider VW3A7723 Manual

10 August 2025
Schneider

Schneider EasyLogic PM2100 Manual

10 August 2025
Schneider

Schneider AP5808CH Manual

10 August 2025
Schneider

Schneider IAP05S Manual

9 Juli 2025
Schneider

Schneider PowerLogic HDPM6000 Manual

7 Juli 2025

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

Growatt

Growatt MID 33-50KTL3-X2 Manual

22 August 2025
Hoymiles

Hoymiles HYS-3.0LV-EUG1 Manual

22 August 2025
Advantech

Advantech WISE-3310 Manual

22 August 2025
Advantech

Advantech ADAM-3014 Manual

22 August 2025
AXESS

AXESS AXDSPX-HN3 Manual

22 August 2025
Growatt

Growatt MOD 3-15KTL3-X Manual

22 August 2025
AXESS

AXESS AXI-RGB3 Manual

22 August 2025
Advantech

Advantech DS-980 Manual

22 August 2025
Korona

Korona Warmhalteplatte Manual

22 August 2025
Simrad

Simrad SD10 Manual

22 August 2025
