Features

• HDMI 2.0a compliant

• Supports 4K2K@60 4:4:4 8bits

• Supports HDR

• Supports PoC(Power over Cable)

• HDCP bypass

• Bi-directional IR pass-though

• Supports 7.1 channel audio

• Supports full frequency IR signal from

30KHz to 56KHz

• RS-232 Pass-Thru: Up to 115,200bps

Package contents

• HDMI 2.0 4K HDR over HDBaseT Receiver

• IR Receiver

• Terminal block

• Mounting kit

• Quick Start Guide

Dear Valued Customer

(JUST WANTED YOU TO KNOW)

WE REALLY

APPRECIATE

YOUR PURCHASE

~thank you~

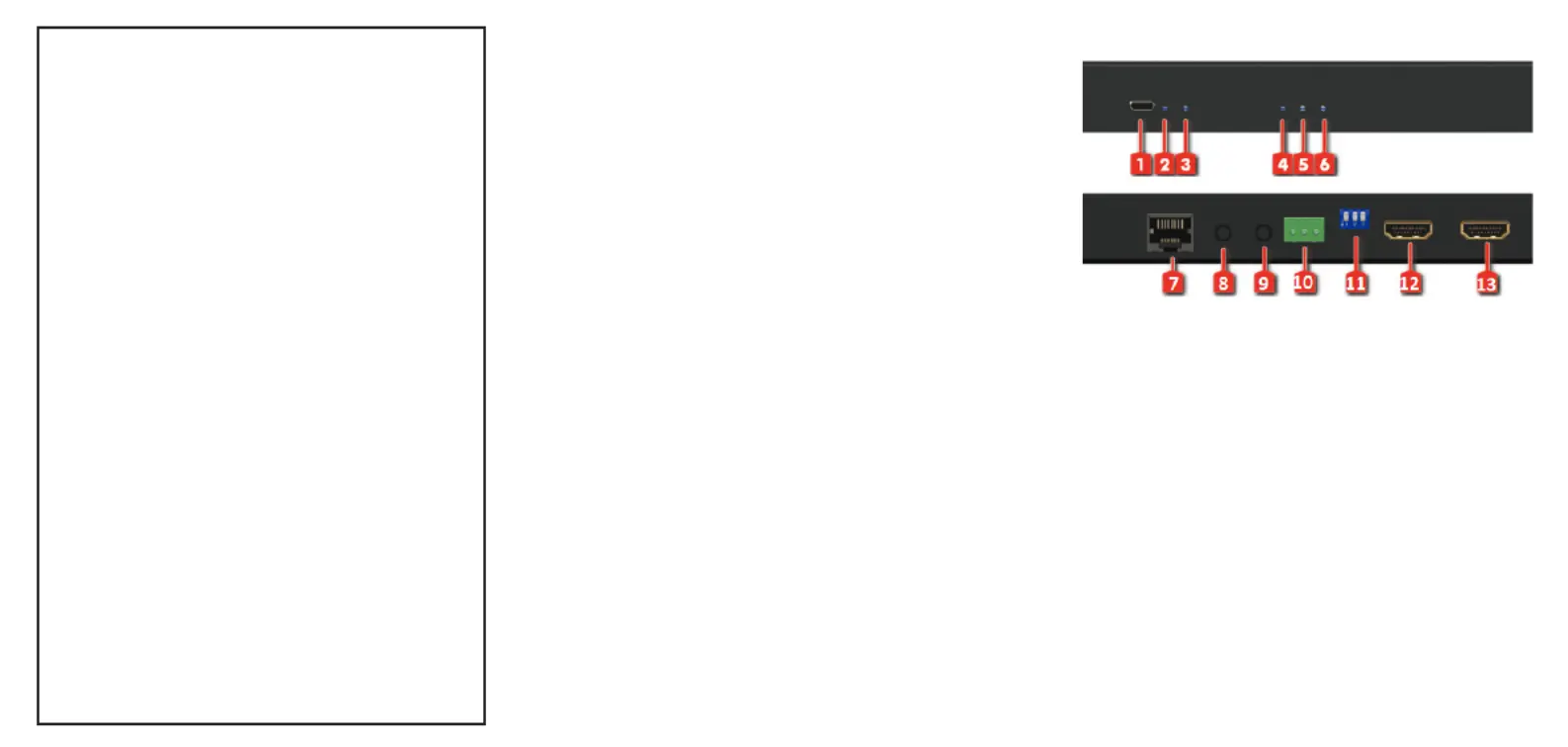

Layout

1. Micro-USB: For rmware update

2. HDMI Signal LED: Output #1 signal LED

3. HDMI Signal LED: Output #2 signal LED

4. Power LED:

5. Link LED:

6. Signal LED: When receive the HDMI

signal, LED light will shine

7. RJ45: Plug in a Cat5e/6 cable that needs

to be linked to the TX

8. IR Receiver: Plugging in the extension

cable of IR receiver

HDMI 2.0 4K HDR

over HDBaseT Receiver

Quick Start Guide

04-1193A

P/N: CE-H24P11-S1

Support

For more info or tech support

http://www.siig.com/support

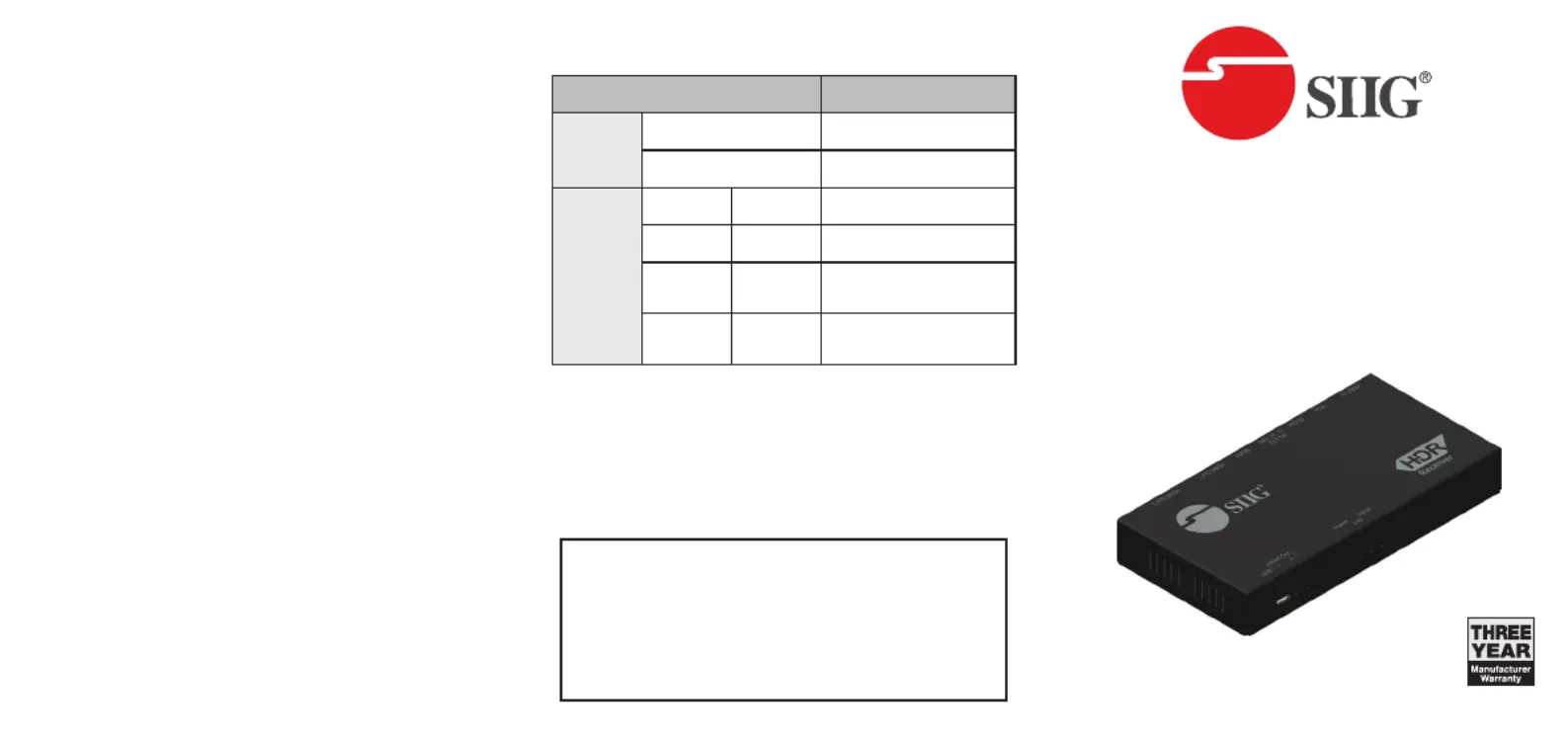

DIP SWITCH SETTING

9. IR Blaster: Plugging in the extension

cable of IR blaster

10. RS-232(terminal block format): The

order of RS-232 pin are TX, RX, GND (from

the left side to the right)

11. Dip Switch: [ON] F/W update Mode;

[OFF] Normal Mode

12. HDMI OUT #1:

Connects to a HDMI display

13. HDMI OUT #2:

Connects to a HDMI display

Position Description

PIN#1

OFF[ ]

Reserved

ON[ ]

Reserved

PIN#2

PIN#3

OFF[ ] OFF[ ] 

Normal use

OFF[ ] ON[ ] 

Reserved

ON[ ] OFF[ ] 

For system

rmware update

ON[ ] ON[ ] 

For HDBaseT

rmware update

NOTICE:

While connecting a new monitor to the

splitter, experiencing a short period of time

without display might be expected. The

splitter will do Automatic EDID learning

which analyzes the newly connected moni-

tor to see if the EDID for the HDMI input is

necessary to update!
