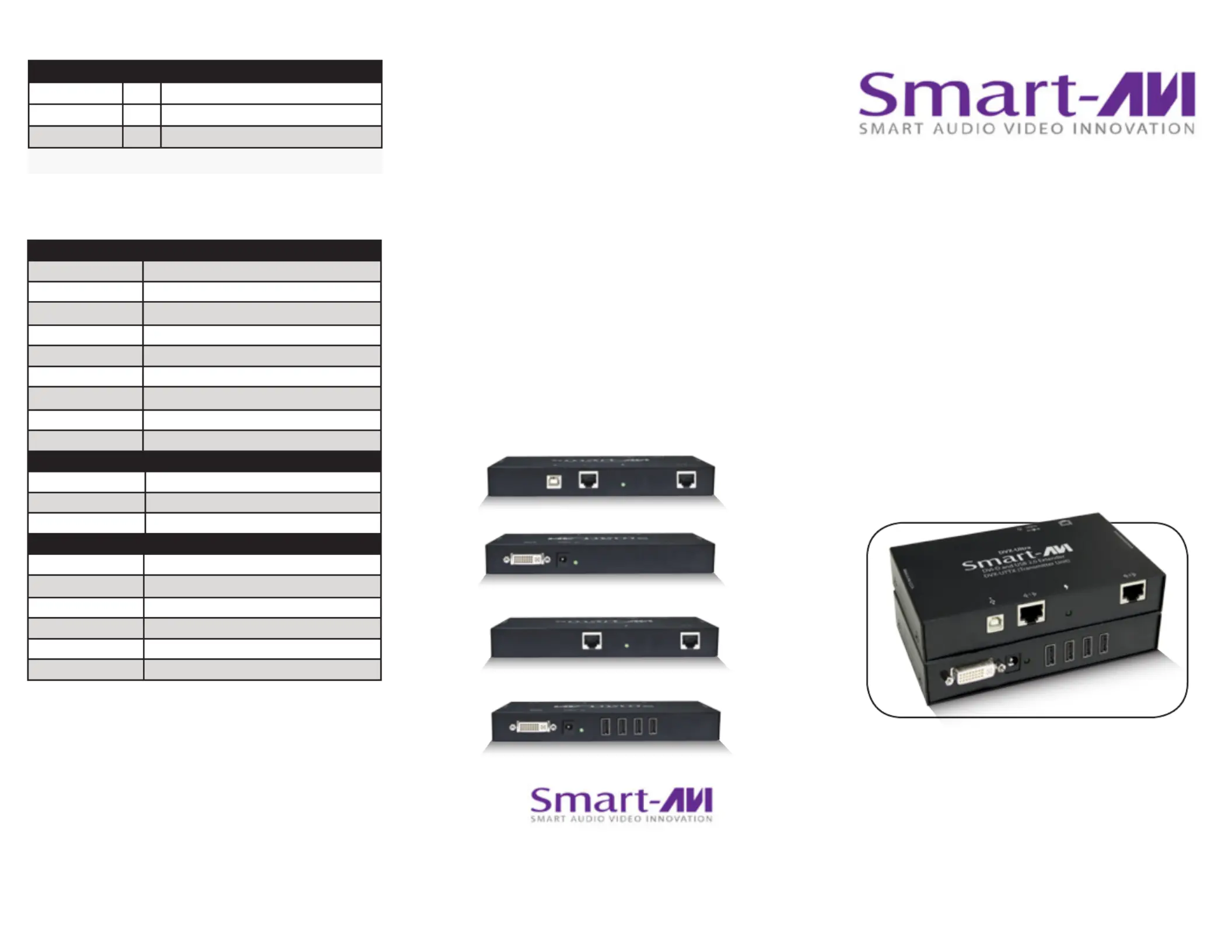

DVI-D and USB 2.0 Extender up to

250 feet over STP Cable

DVX-Ultra

DVI-D and USB 2.0 Extender

over STP

www.smartavi.com

Installation

Manual

Technical Specications

What’s in the Box?

PART NO. QTY DESCRIPTION

DVX-UTTXS 1 DVI-D+USB 2.0 Extender Transmitter

DVX-UTRXS 1 DVI-D+USB 2.0 Extender Receiver

Power Supply 2 PS5VDC4A

VIDEO

Format DVI-D Single Line

Maximum Pixel Clock 165 MHz

Input Interface (TX) DVI-D 29-pin female

Output Interface (RX) DVI-D 29-pin female

Resolution Up to 1920 x 1200 @60Hz

DDC 5 volts p-p(TTL)

Input Equalization Automatic

Input Cable Length Up to 20 ft.

Output Cable Length Up to 20 ft.

USB

Signal Type USB 2.0 (Fully Transparent)

Input Interface (TX) (1) USB Type B (Female)

Output Interface (RX) (4) USB Type A (Female)

OTHER

Power External 100-240 VAC/5VDC4A @20W

Dimensions 6.25 in W x 1 in H x 3.5 in D

Weight 1 lb

Operating Temp. 0-55 °C (32-131°F)

Storage Temp. -20-85 °C (-4-185 °F)

Humidity Up to 95%

NOTICE

T h e i n f o r m at i o n c o nt a i n e d i n t h i s d o c u m e n t

is subject to change without notice. Smart-AVI makes

no warranty of any kind with regard to this material,

including but not limited to, implied warranties of

merchantability and fitness for any particular purpose.

Smart-AVI will not be liable for errors contained herein or for

incidental or consequential damages in connection with the

furnishing, performance or use of this material.

No part of this document may be photocopied, reproduced or

translated into another language without prior written consent

from Smart-AVI.

For more information, visit www.smartavi.com.

SmartAVI, Inc. / Twitter: smartavi

11651 Vanowen St., North Hollywood, CA 91605

Tel: (818) 503-6200 Fax: (818) 503-6208

http://www.SmartAVI.com

DVX-UltraRX Rear

DVX-UltraTX Rear

DVX-UltraRX Front

DVX-UltraTX Front

DVX-Ultra-TX DVX-Ultra-RX

250 ft over 2 CAT6 STP

KEYBOARD

USB 2.0 FLASH DRIVE MOUSE

DVI

USB 2.0

COMPUTER

Introduction

The DVX-Ultra extends DVI-D Video and USB 2.0 up to

250 feet over 2 CAT6 STP Cables.

Connecting the DVX-Ultra

1. Power o all devices.

2. Connect a DVI-D source (computer) to the DVI-D

port of the DVX-Ultra-TX labeled .

3. Connect a USB source to the USB port of the the

DVX-Ultra-TX labeled .

4. Connect the DVX-Ultra-TX to the the DVX-Ultra-RX

with two STP (Sheilded Twisted Pair) cables using

the ports labeled and .

5. Connect a DVI monitor to the port of the DVX-

Ultra-RX labeled .

6. Connect up to 4 USB 2.0 devices to the ports on

the DVX-Ultra-RX labeled .

7. Connect the power supply to the ports labeled

on the DVX-Ultra-TX and DVX-Ultra-RX.

8. Power on the computer, displays and USB 2.0

devices.

Applications

• Medical Applications

• Industrial Work Areas

• Home Theater Integration

• Digital Signage Deployment

• Information Kiosks/Displays

• Film/Recording Studios

Features

• Extends USB 2.0 and DVI-D signals up to 250 feet

from the computer

• Data recovery for digital video

• Supports 1920x1200 digital video resolution

• Fully compliant with USB 1.1 and 2.0 specications

• Supports USB 1.1 (12 Mbps) and USB 2.0 (480

Mbps) data rates

• Integrated Four-Port Hub in the receiver

• Compatible with all operating systems

• External power adapter for transmitter and re-

ceiver unit

• Fully transparent USB (does not use any emula-

tion)

• Plug and play

Product - Installation Diagram

1 2
