Side 1/2

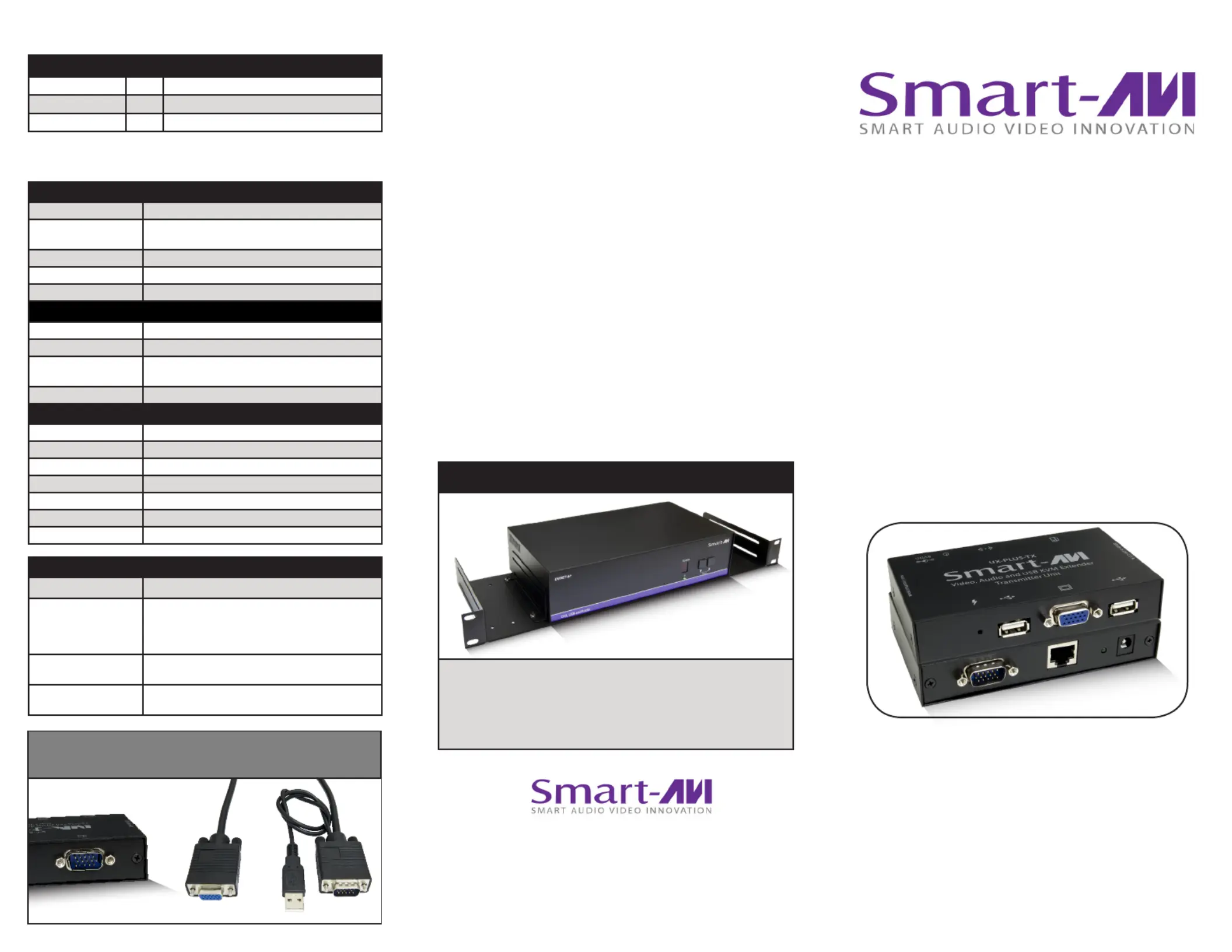

UX-PLUS
USB KVM Extender
with support for Local Displayr
www.smartavi.com
Installation
Manual
PART NO. QTY DESCRIPTION
UX-TXPLUS 1 WUXGA, USB 1.1, CAT5 Transmitter
UX-RXPLUS 1 WUXGA, USB 1.1, CAT5 Receiver
Power Supply 2 PS5VDC2A
© Copyright 2017 SmartAVI, All Rights Reserved
NOTICE
T h e i n f o r ma t i o n c o n t a i n e d i n t h i s d oc u m e nt
is subject to change without notice. Smart-AVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for any particular purpose.
Smart-AVI will not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance or use of this material.
No part of this document may be photocopied, reproduced or
translated into another language without prior written consent
from Smart-AVI.
For more information, visit www.smartavi.com.
SmartAVI, Inc. / Twitter: @smartavi
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
http://www.SmartAVI.com
Extend and Split WUXGA Video
and USB 1.1 Keyboard and Mouse
up to 500 ft over CAT5 Cable
Rack Mountable Option
Our SmartRack is the perfect solution to allow
virtually all SmartAVI devices to be custom mounted
in a standard 19” server rack. The SmartRack is fully
adjustable and can secure/organize several devices.
VIDEO
Format RGBHV, RGsB, YUV, Y/C, CVBS
Resolution Up to 1920 x 1200 VGA, SVGA, XGA, SXGA, UXGA,
WUXGA
Input Interface (TX) (1) HD-15 Male / USB
Output Interface (TX) (1) HD-15 Female (for local display)
Output Interface (RX) (1) HD-15 Female
USB
Signal Type USB 1.1
Input Interface (TX) (1) HD-15 Male / VGA
Output Interface (TX) (2) USB Type A (Female) (for local keyboard and
mouse)
Output Interface (RX) (2) USB Type A (Female)
OTHER
Power External 100-240 VAC/5VDC2A @10W
Dimensions 5” W x 1” H x 3” D
Weight 1 lb
Approvals UL, CE, ROHS Compliant
Operating Temp 32-131°F (0-55 °C)
Storage Temp. -4-185 °F (-20-85 °C)
Humidity Up to 95%
ORDER INFO
Part No. Description
UX-PLUSS WUXGA+USB CAT5 Extender with local monitor
and USB keyboard & mouse output. Includes:
[UX-TXPLUS, UX-RXPLUS, CCKVMUSB06 and
2 x PS5VD2A-WLLMNT]
UX-TXPLUS WUXGA, USB 1.1, CAT5 Transmitter.
Includes: [UX-TXPLUS, PS5VD2A-WLLMNT]
UX-RXPLUS WUXGA, USB 1.1, CAT5 Receiver.
Includes: [UX-RXPLUS, PS5VD2A-WLLMNT]
What’s in the Box?
Technical Specications*
We have simplied the output of the UX-PLUS by
consolidating the VGA and USB input into one cable.
Introduction
The UX-PLUS is a cross-platform WUXGA and USB KVM
switch capable of sharing one computer between two
consoles, one local and one remote.
In the medical or industrial eld, where it may not be
practical (or safe) to have one or more CPUs in the
general vicinity, SmartAVI’s VNET Switch Series is the
perfect solution, allowing for either PC or Mac signals
to be extended from computer to the display

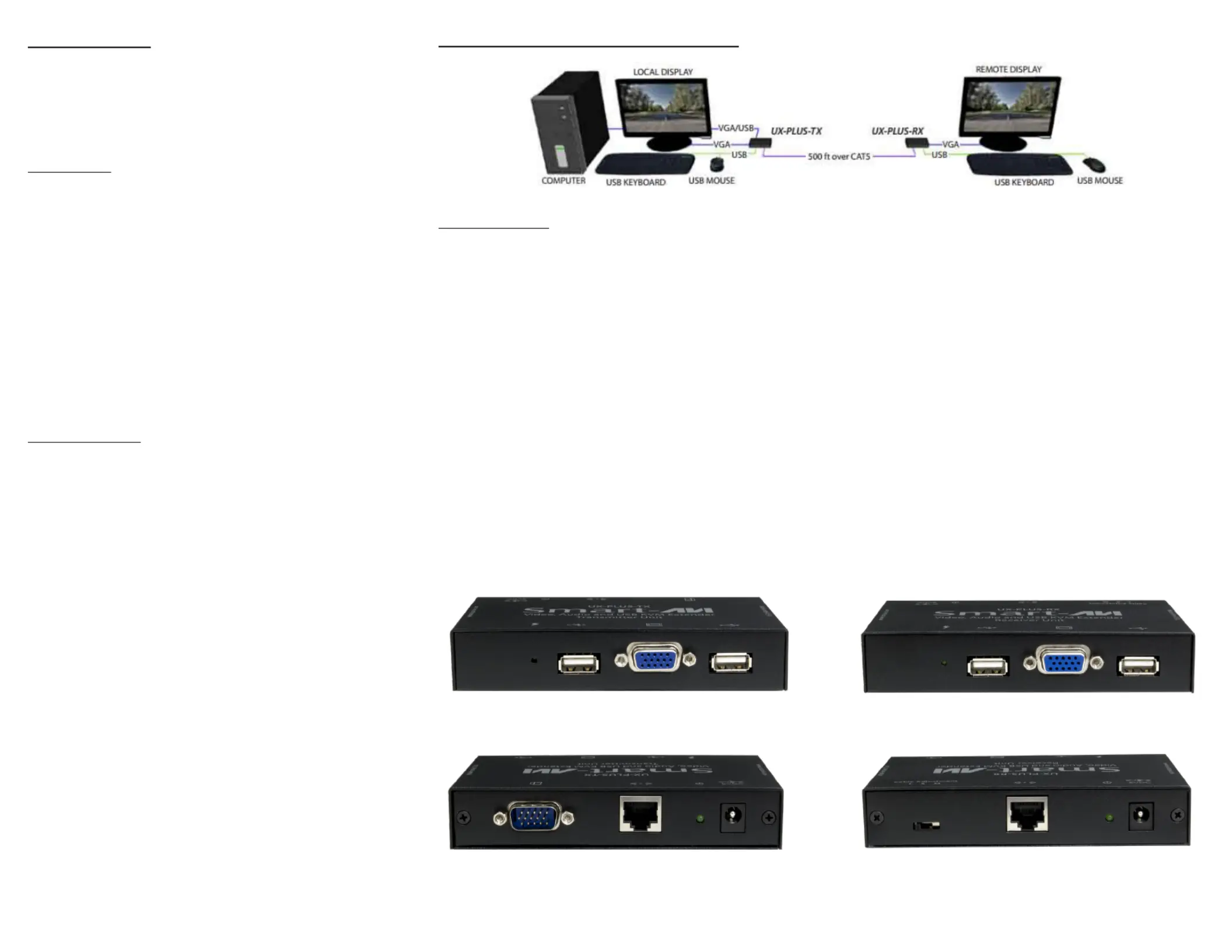

Product - Installation Diagram
Installation
1. Turn o the computer and displays
2. Connect the VGA/USB cable from the computer into the VGA/USB connector on the UX-PLUS transmitter
3. Connect the local display to the VGA connector on the UX-PLUS transmitter.
4. Connect the local USB keyboard and mouse to the USB connectors on the UX-PLUS transmitter.
5. Connect the remote display to the VGA connector on the UX-PLUS receiver
6. Connect the remote USB keyboard and mouse to the USB connectors on the UX-PLUS receiver.
7. Connect the power cord to both the UX-PLUS transmitter and receiver.
8. Power on the computers and the display.
UX-TXPLUS Front UX-RXPLUS Front
UX-TXPLUS Rear UX-RXPLUS Rear
Features
• Supports WUXGA video extension for resolutions
up to 1920 x 1200
• Local WUXGA output for a local display
• Plug and play, no software required
• Fully compliant with USB 1.1 specications for
Keyboard and Mouse
• Built-in skew compensation
• Uses a single CAT5 UTP cable up to 500 feet
• External power adapter for transmitter and
receiver unit
• Fully transparent (does not use any emulation)
Application
• Security
• PC Networking
• Conference Center Systems
• Point of Sale
• Camera Surveillance
• Video Phone
• Control Room Systems
• Recording Studio
• PC KVM Extension
• MAC Keyboard Mouse Extender
