WARRANTY

WARNING

SolidDrive MSK-1-T/MSK-1SM-T/MSK-1G-T Specications

Type

Construction

Dimensions

Weight

SolidDrive MSK-1-T In-Wall and In-Ceiling

(Required for Drywall Mounting) Mounting Bracket Specications

NOTE: When installed in Canada, this product must be installed in accordance with the

Canadian Electrical Code, C22.1, Part1.

Type

Frequency Response(Hz)

Recommended Amplier Power

MSK-1-T & MSK-1sm-T Dimensions

MSK-1g-T Dimensions

Weight

UL Listing

Full Range Transducer

70 Hz to 15 kHz

10 Watts

2.28'' Diameter x 4.8'' Height

Mounting Foot 3.5'' Diameter

2.28'' Diameter x 4.8'' Height

Mounting Foot 2.0'' Diameter

1.5 lb / .68 kg

1480 & 2043 Pending

Patented balanced cantilever spring bracket

Heavy duty, galvanized steel

12OC – 2.0'' H x 17.5'' W x 5.0'' D

16OC – 2.0'' H x 25.5'' W x 5.0'' D

24OC – 2.0'' H x 13.5'' W x 5.0'' D

1.0 lb / .45 kg

218-2127-T REV-08.14.17

SolidDrives are guaranteed for 7 years from date of purchase. Any misuses or modi-

cations to this equipment in any way will void the warranty.

Read instructions prior to operating. To reduce the risk of re or electric shock, do not

expose this product to rain or moisture. Unplug prior to cleaning and clean with a damp

cloth. There are no user-serviceable parts in this product, please refer all servicing to

qualied personnel.

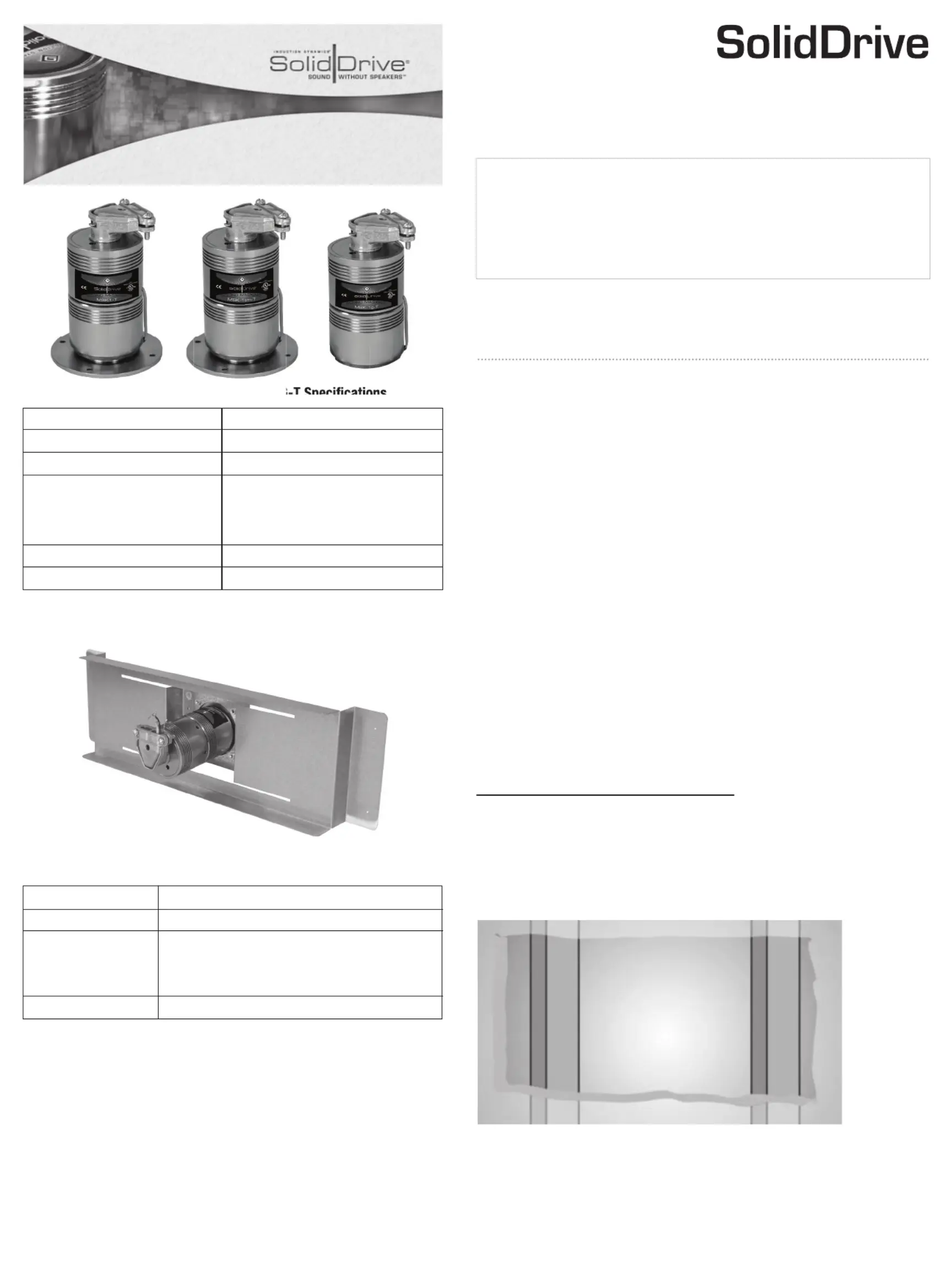

INSTALLATION & USE GUIDE

for MSK-1-T, MSK-1sm-T & MSK-1g-T

Sound Masking Transducer

INSTALLATION OF SOLIDDRIVE MSK-1-T INTO WALLS AND CEILINGS

GETTING STARTED WITH SOLIDDRIVE

Experience Audio Perfection

Induction Dynamics extensive line of audio products makes it easy to create the

ultimate audio system, regardless of installation requirements. Induction Dynamics

builds these products with only the most select components and materials; and

utilizes numerous unique and proven technologies.

By utilizing these basic installation steps, you can install the SolidDrive MSK-1-T into walls

and ceilings for a variety of sound masking applications.

What’s included with the SolidDrive MSK-1-T for installation into walls and ceilings and

what is supplied by the installer —

A SolidDrive MSK-1-T consists of: One (1) SolidDrive MSK-1-T unit with included 10W

transformer, supplied with 4 hard wire leads and one duplex conduit connector. *Additional

mounting materials may need to be ordered with the SolidDrive MSK-1-T or supplied by the

installer depending on the application.

For drywall: For in-wall and in-ceiling installation, you will have ordered one (1) or more

SolidDrive MSK-1-T’s and one (1) or more patented acoustic in-wall mounting brackets (one

(1) bracket per MSK-1-T), which comes with four (4) #8-32 x 5/16'' Phillips at head machine

screws for mounting the drive to the bracket. At the time of the order, you will also have

specied mounting bracket(s) in widths of 12OC, 16OC, or 24OC (ON CENTER of wall studs or

ceiling joists) for proper width. *Installation also requires four (4) 1 3/8'' drywall screws and

one (1) container of 3M

Super 77 Spray Adhesive (supplied by the installer).

EXISTING DRYWALL INSTALLATION NOTE:

For retrotting the SolidDrive MSK-1-T into existing drywall installations, it will be necessary

to remove a portion of the existing drywall before installation and to replace the drywall after

the SolidDrive MSK-1-T is installed. Please refer to the instructions marked with EXISTING

DRYWALL for the steps necessary for the type of installation. If installing the SolidDrive

MSK-1-T in new construction, IGNORE the EXISTING DRYWALL steps.

STEP 1

INSTALLATION INTO EXISTING DRYWALL

For installing the SolidDrive mounting bracket into existing drywall, rst cut a MSK-1-T

rectangular opening in the drywall. The minimum recommended opening size is approximately

fteen inches tall and beyond the width of the adjacent wall studs. This will help in attaching

the mounting bracket, feathering the drywall back in, and getting the drywall to meet at the

seams (Figure 1). This will allow proper distribution of sound and the SolidDrive MSK-1-T will

function with optimum performance.

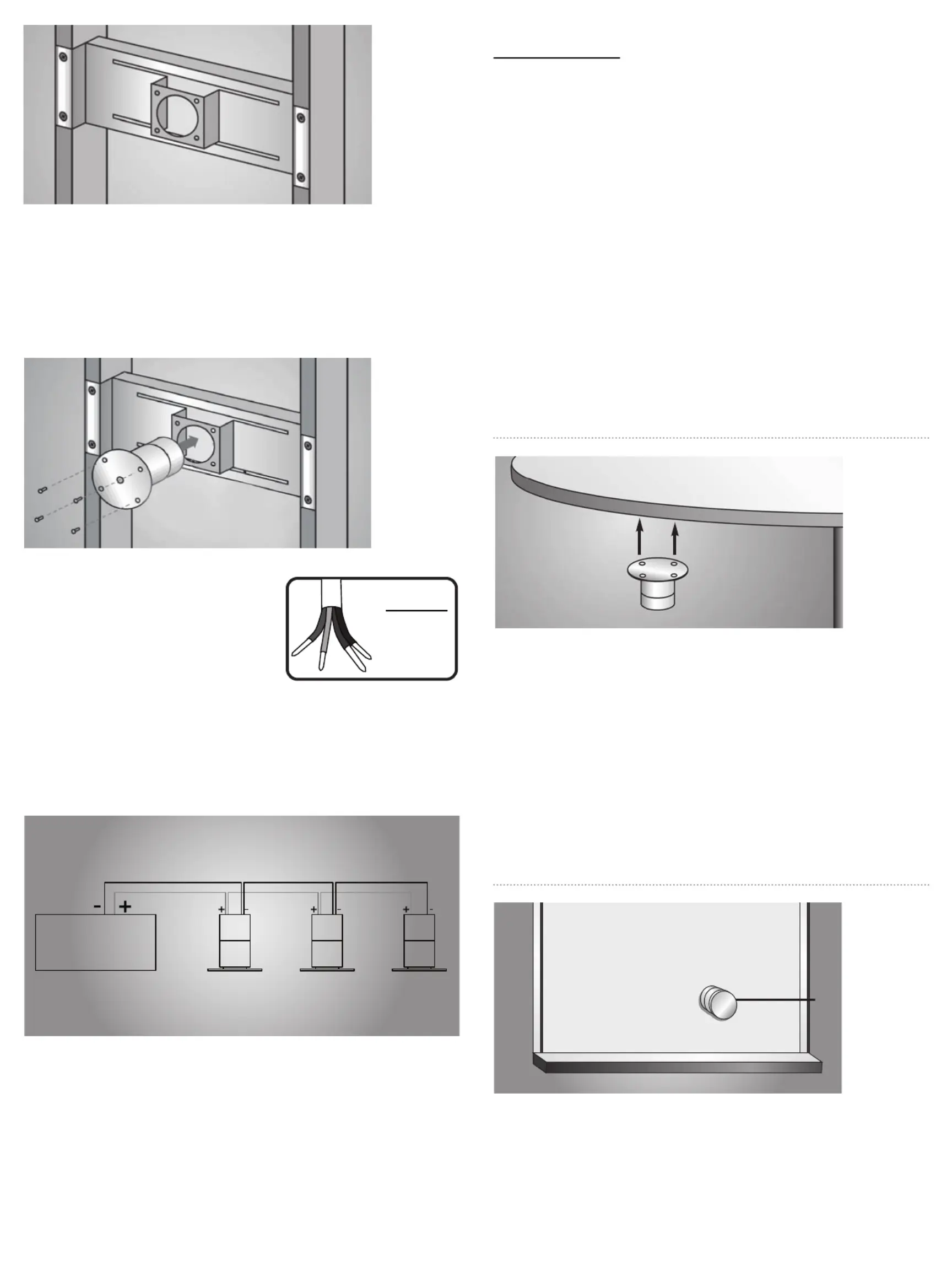

Figure 1

Cut an opening

large enough

to install the

mounting

bracket to the

wall studs

STEP2

Attach the SolidDrive mounting bracket to wall studs or ceiling joists

Place the mounting bracket between the wall studs or ceiling joists and secure with four 1 3/8"

drywall screws. Insert the screws through the four pre-drilled holes in each ange and screw

them into the face of each wall stud or ceiling joist (Figure 2). The drywall screws need to be

driven ush with the surface of the ange so that the drywall sets ush on the bracket ange.

MSE Audio / 8005 W 110th St / Suite 208 / Overland Park, KS 66102 / 855.663.5600 / 913.663.5600 / www.soliddrive.com

Figure 2

SolidDrive

MSK-1-T

mounting

bracket

attached to

the wall studs

STEP7

Install the new drywall

Immediately install the new drywall before the spray adhesive sets up (approximately 10

minutes). This allows adjustment of the panel before the nal location is determined. The

drywall panel is to be tted to the wall studs or ceiling joists and screwed into position.

Apply joint compound in the space between the drywall panels and proceed with the

normal taping, sanding and nishing routine. The joint compound lled between the

panels will improve the distribution of sound as well as overall sound quality.

By utilizing these basic installation steps, you can install the SolidDrive MSK-1sm-T on

wood, laminate, composites, and other porous surfaces. The MSK-1sm-T is commonly

used on desks, conference tables, cabinetry, and other furniture.

INSTALLATION OF SOLIDDRIVE MSK-1sm-T TO WOOD SURFACES

Figure 1

Mounting the

SolidDrive

MSK-1sm-T to

a table.

Once you have determined where to mount the SolidDrive MSK-1sm-T, spray a thin layer

of 3M

Super 77 adhesive on the bottom of the SolidDrive, then use the appropriate length

wood screws to attach it securely to the surface. The adhesive improves the sonic

transmission between the drive and the surface. The best mounting location is typically

out of sight on the underside or back of desks, counter tops, conference tables, or other

ofce/home furniture. The four pre-drilled mounting holes on the SolidDrive MSK-1sm-T

oversized mounting base will hold screws as large as #9.

Some installations may require that pilot holes be drilled into the surface material due to

its hardness, especially if larger, coarse thread screws are used.

For installation on glass surfaces, the SolidDrive MSK-1g-T comes with a VHB

double-sided adhesive disc.

INSTALLATION OF SOLIDDRIVE MSK-1g-T TO GLASS SURFACES

STEP5

Apply adhesive to the drywall surface and base of the SolidDrive

If possible, position the drywall panel so that the SolidDrive MSK-1-T is at the center of the

panel or as far from the edge of the panel as possible. This will allow proper distribution of

sound and the SolidDrive MSK-1-T will function with optimum performance. Prior to

mounting, take measurements of the new drywall panel to determine the exact area that

will come in contact with the base of the SolidDrive MSK-1-T and spray that area liberally

with the 3M

Super 77 contact spray adhesive. Also, liberally spray the surface of the

oversized mounting base of the SolidDrive MSK-1-T (masking around the base is highly

recommended to prevent overspray). NOTE: Failure to apply the adhesive to both the

drywall surface and oversized mounting base will prevent the system from functioning

properly.

STEP4

Electrical connections

Make the electrical connection between the

SolidDrive MSK-1-T and the speaker cable using

the desired transformer setting. NOTE: When

installed in Canada, this product must be installed

in accordance with the Canadian Electrical Code,

C22.1, Part1.

Black-

Red-

Yellow-

Blue-

10W: 5 wire input

10 W

COM

10 W

5 W

2.5 W

Figure 4 Transformer connections

AMP

SolidDrive SolidDrive SolidDrive

Connecting Multiple SolidDrives

Connect the amplier (–) terminal to all Black (COM) wires for all SolidDrives in the system.

Connect the amplier (+) terminal to the colored wire that corresponds to the desired

power tap for each SolidDrive in the system. Trim off the exposed bare wire on all unused

wires and ensure that they cannot short to each other. Failure to do so may result in

misoperation and place an unexpected load on the amplier.

STEP3

Insert the SolidDrive into the bracket

Feed the SolidDrive MSK-1-T cable through the round opening in the face of the mounting

bracket. Insert the SolidDrive MSK-1-T through the same opening with the oversized

mounting base facing outward toward the side that the drywall will be installed and ush

against the bracket face. Align the pre-drilled holes in the mounting base to the threaded

holes in the bracket face (Figure 3). Attach the SolidDrive MSK-1-T securely to the mounting

bracket using the 4 Phillips at head machine screws.

Figure 3

SolidDrive

MSK-1-T

being installed

into the

mounting

bracket

The SolidDrive MSK-1g-T should be mounted in an inconspicuous location of the window.

Simply apply the VHB pad that comes with the drive to the base of the drive (the side

opposite the label). Remove one side of the protective layers from the VHB disc and apply

to the base of the MSK-1g-T. Then remove the other protective layer and apply to glass

surface with moderate pressure.

When mounting the SolidDrive on the window, keep it about 4 to 6 inches from the window

frame. The SolidDrive MSK-1g-T will have maximum output with at least 20 square feet of

window surface space.

Figure 1

Mounting the

SolidDrive

MSK-1g-T to

glass.

STEP6

EXISTING DRYWALL

Re-install rectangular cutout in wall

For re-installing the rectangle drywall panel that was cut out to install the SolidDrive

MSK-1-T, it is important to create a uniform seal between the cut drywall and the existing

drywall. This will allow proper distribution of sound and the SolidDrive will MSK-1-T

function with optimum performance. Apply fast setting joint compound, not vinyl based, in

the space between the cutout section and the existing drywall panel. Make sure to ll the

space completely with drywall compound then proceed with the normal taping, sanding

and nishing routine.
