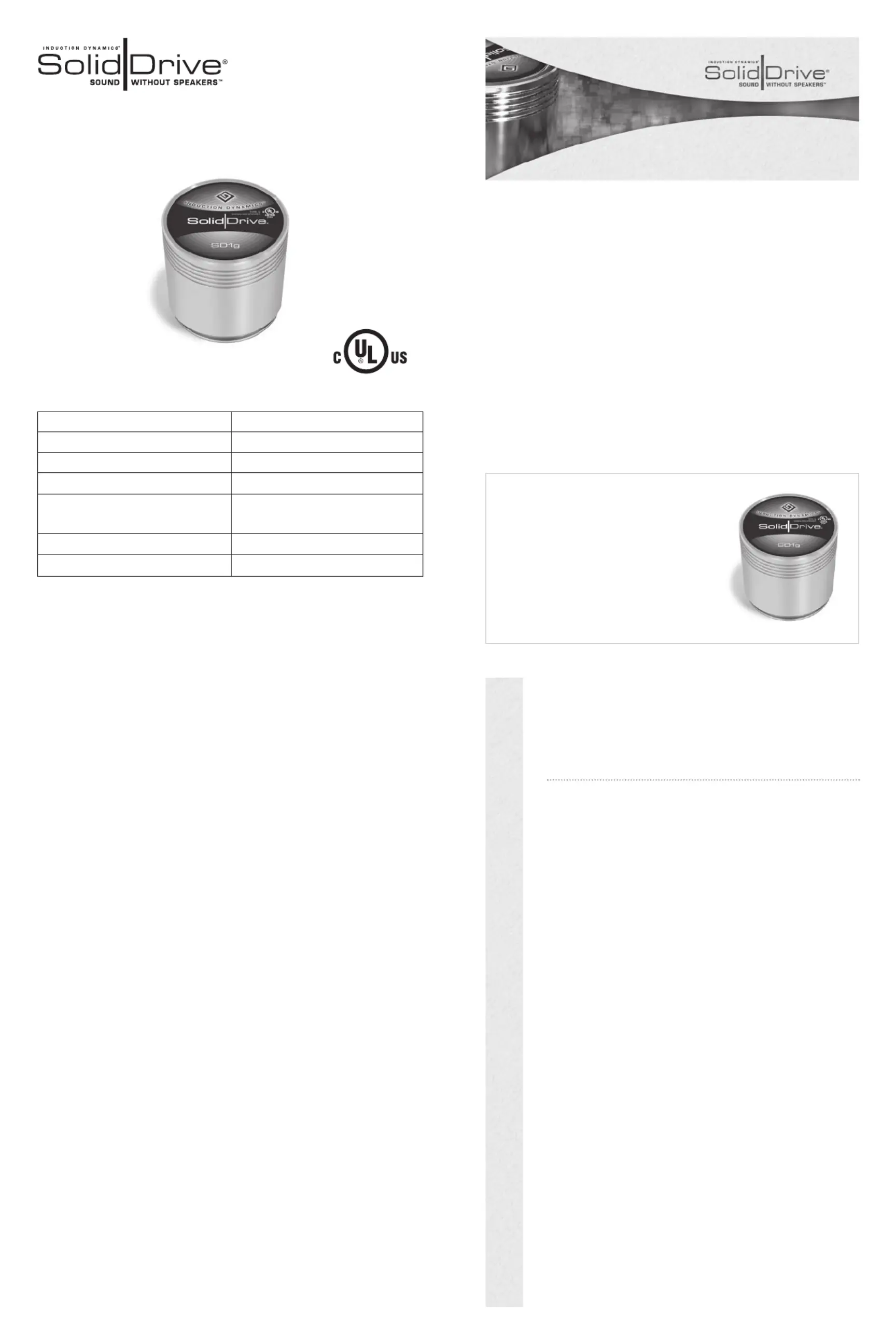

SolidDrive
INSTALLATION & USE GUIDE
for SolidDrive SD1g on glass surfaces
INSTALLATION OF SOLIDDRIVE SD1G ON GLASS
SURFACES
By utilizing these basic installation steps, you can install
the SolidDrive SD1g on glass surfaces to create sound for
boardrooms, home theater, and distributed audio.
GETTING STARTED WITH SOLIDDRIVE
What’s included with the SolidDrive SD1g for installation
A SolidDrive SD1g consists of: One (1) SolidDrive SD1g
unit and attached wiring harness with Eurostyle connector.
The SolidDrive SD1g comes with a VHB double-sided
adhesive disc.
The SolidDrive SD1g can be installed on windows to deliver
sound to glass storefronts and glass reception areas. The
entire windowpane can become a speaker delivering both
interior and exterior sound on single-pane glass. For
double-pane glass, it is important to mount the SolidDrive
SD1g to the side you wish to be audible.
The SolidDrive mounted to glass works great for these
applications:
•Restaurants
•Mall stores
•Auto dealerships
•Department stores
•Stadium sky boxes
•Reception
areas
•Glass atriums
•ANY pane of glass where you want
audio delivered.
WARRANTY
SolidDrives, SolidDrive subwoofers, and A4 amplifiers are guaranteed for 7 years
from date of purchase. Any misuses or modifications to this equipment in any way will
void the warranty.
WARNING
Read instructions prior to operating. To reduce the risk of fire or electric shock, do not
expose this product to rain or moisture. Unplug prior to cleaning and clean with a
damp cloth. There are no user-serviceable parts in this product, please refer all
servicing to qualified personnel.
So SD1g Sp f ti sli rivedD eci ica on
NOTE: When installed in Canada, this product must be installed in accordance
with the Canadian Electrical Code, C22.1, Part1.
Type
Impedance
Frequency Response (Hz)
Recommended Amplifier Power
Dimensions
Weight
UL Listing
Full Range Transducer
8 Ohm
70 Hz to 15 kHz
10 100 Watts–
2.28'' Diameter x 2.08'' Height
Mounting Plate 3.5'' Diameter
1.2 lb / .54 kg
1480 & 2043
Experience Audio Perfection
Induct on yna teni D mics ex sive ioline of aud
pr c makes it y ult eodu ts eas to create the imat
aud te ega es of ta atio sys m, r rdl s ins ll ion
requirements. Induction Dynamics builds
these products with only the most select
components and materials; and utilizes
numerous unique and proven technologies.
8005 W. 110th St., Suite 208 • Overland Park, KS 66210
TEL: 913-663-5600 • FAX: 913-663-3200 • www.SolidDrive.com
REV - 3 / 3 / 11
STEP 1
Mount the SolidDrive SD1g onto the glass surface
The SolidDrive SD1g should be mounted in an inconspicuous location of the
window. Simply apply the VHB pad that comes with the drive to the base of
the drive (the side opposite the label). Remove one side of the protective
layers from the VHB disc and apply to the base of the SD1g. Then remove
the other protective layer and apply to glass surface with moderate pressure.
When mounting the SolidDrive on the window, keep it about 4 to inches6
from the window frame. The SolidDrive SD1g will have maximum output with
at l st s re f ow surface s re 1).ea 20 qua eet of wind pace (Figu
STEP 2
Make the electrical connections
Make the electrical connection between the SolidDrive SD1g and the
speaker cable using the Eurostyle connector attached to the end of the
SolidDrive SD1g audio cable. The polarity of the wiring is clearly indicated
(Figure 2). NOTE: When installed in Canada, this product must be
installed in accordance e Canad n t e, C22.1,with th ia Elec rical Cod
Part1.
NOTE: If inst e SD1g u e i h t nk, slide it overalling th sing th opt onal ea si
the SD1g housing body and tighten with the included mini hex key.
DO NOT OVERTIGHTEN as this could strip the screw.
STEP 3
Equalize the SolidDrive SD1g sound system
The surface material plays a y role in the systemke ’s sound performance.
To ensure an optimal listening experience the installer MUST equalize the
SolidDrive SD1g system. Equalization is accomplished by using the optional
SolidDrive Glass Passive Equalization M le ( UL rov ) or ingodu not app ed us
the auto equalization feature available on some receivers.
INSTALLATION NOW COMPLETE ENJOY THE–
SOLIDDRIVE SD1G SOUND SYSTEM
Now that y ve completed the installation process and equalization, you canou’
enjoy the audio perfection of the Induction Dynamics SolidDrive SD1g sound
system.
HIGH OUTPUT INSTALLATIONS
For
installations ing high output or on y large glass aces requir ver surf two
SolidDrive SD1g for two’s should be used each of the channels with the
SD1g for ’s wired in parallel each channel (Figure When mounting the 3).
SD1g surface, keep drives approximately apart on the glass the 4-6 inches
and window frame. around 4-6 inches from the
HOW THE SOLIDDRIVE SD1G WORKS ON GLASS
With the SolidDrive SD1g you can make any window into a speaker and
increase customer traffic, direct in-store flow and deliver timely sales and
marketing messages.

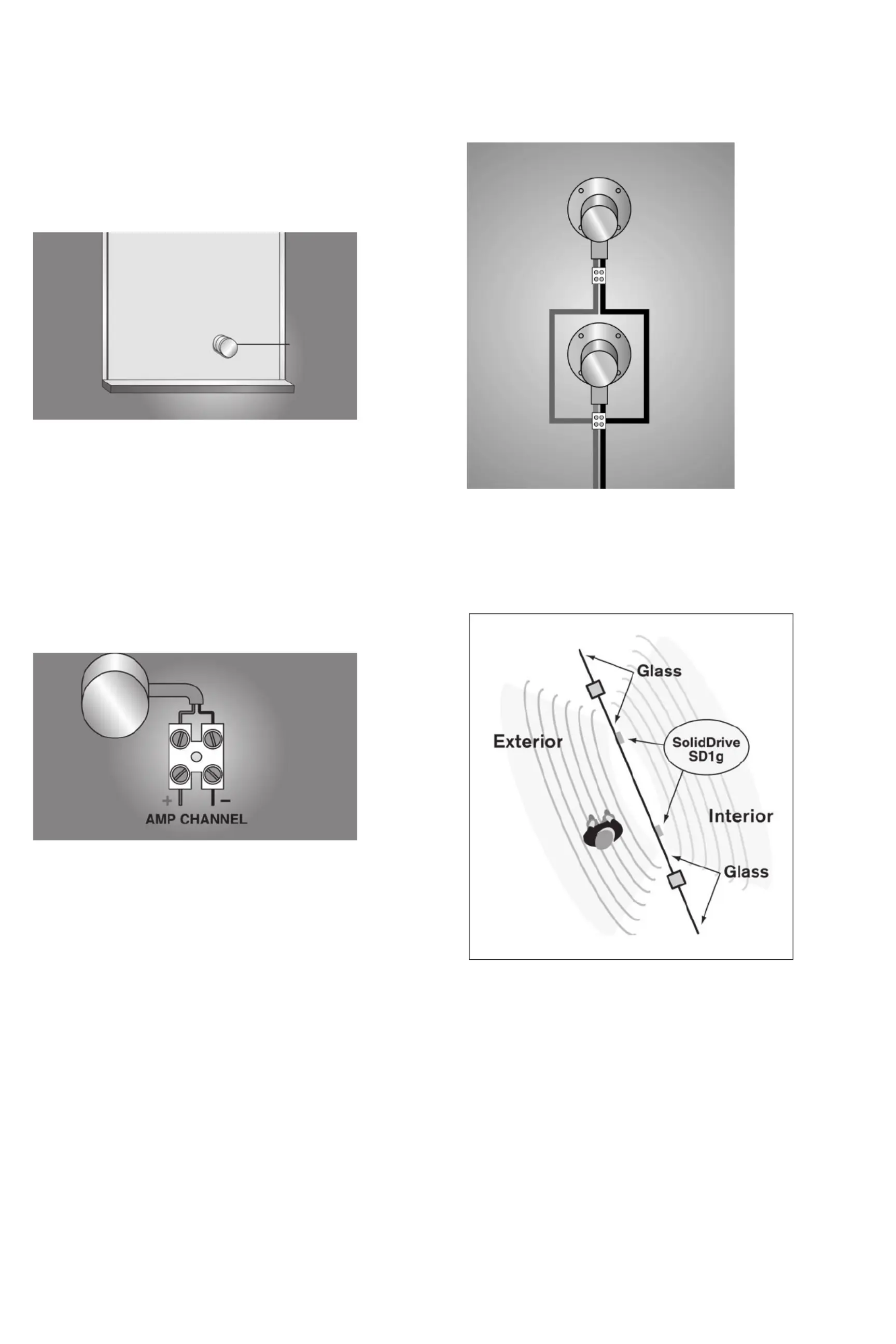

Figure 1
Mounting
the
SolidDrive
SD1g to
glass
Figure 2
Eurostyle
connector
Figure 3
SolidDrive
SD1g’s
wired in
parallel for
high output
ins ita atll ons
Figure 4
How the
SolidDrive
SD1g works
on glass
