Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: June 18, 2024 4:58 PM

Product ID

5G16AINDS-USB-A-HUB

16-Port Industrial USB 3.2 Gen 1 Hub - ESD and Surge Protection - Dual Host

Component Function

1DC Power Input

• Connect a +7~24 V DC Power Source

• 120W or higher recommended for maximum

power performance

2DC 2-Wire Terminal Block Power

Input

• Connect a +7~24 V DC Power Source

• 120W or Higher Recommended for maximum

power performance

3Power LED

• Indicates if the USB Hub is receiving power from either

a USB Host or a DC Power Source

• Solid Green - Receiving Power

• O - Not Receiving Power

4USB Host Port A

(Screw Locking, USB-B)

• Connect to a USB-A Port on a Host Computer

• USB 3.2 Gen 1 (5 Gbps)

5USB Host Port B

(Screw Locking, USB-B)

• Connect to a USB-A Port on a Host Computer

• USB 3.2 Gen 1 (5 Gbps)

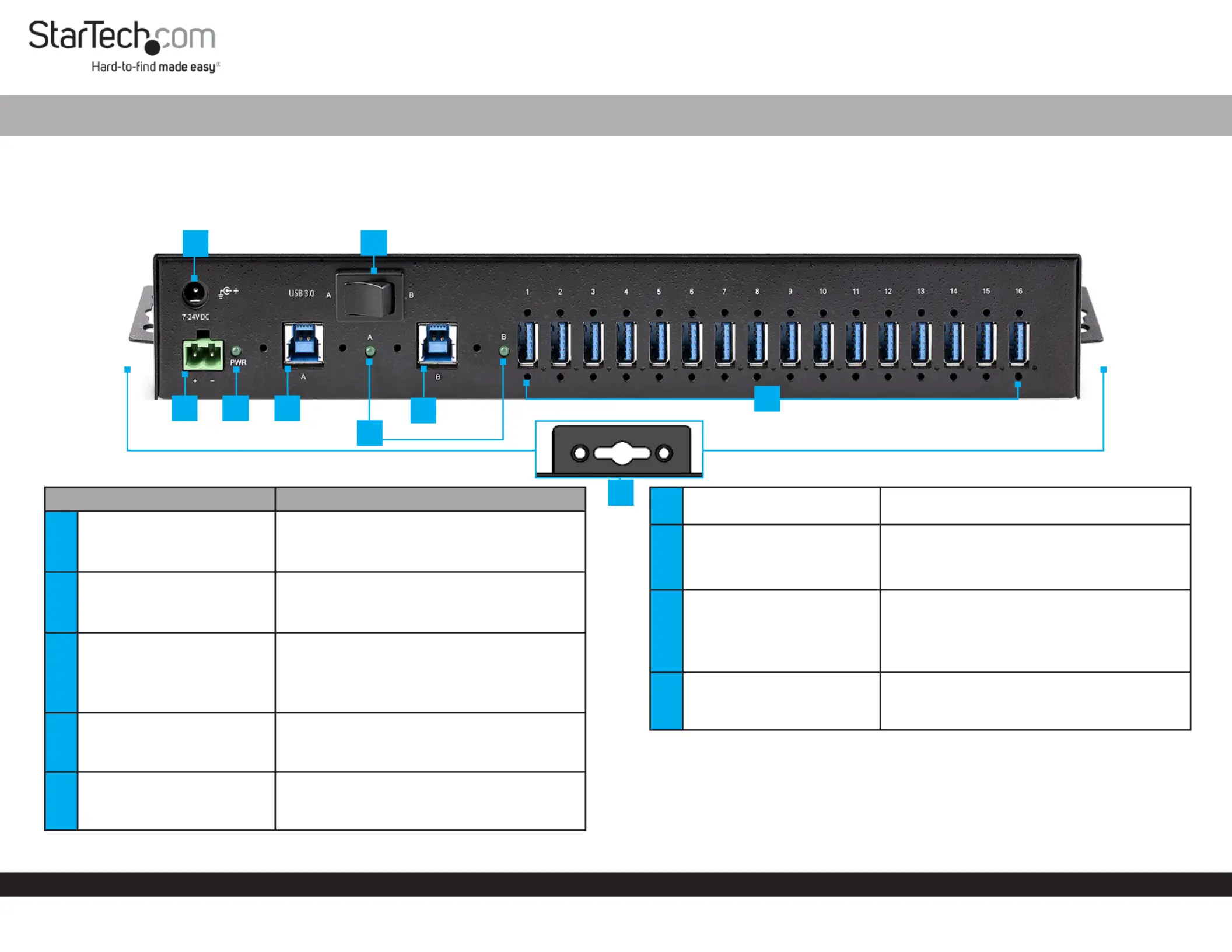

Product Diagram

2 3

6Host Device Port Switch • Switches Hub Connectivity between USB Host Ports

A & B

7USB Host Selection LEDs

• Indicates which Host Device is currently selected

• Solid Green - Host Device Selected

• O - Host Device Not Selected

816x USB Data/Charge Ports

(Screw Locking, USB-A)

• Connect USB Peripherals

• USB 3.2 Gen 1 (5 Gbps)

• BC 1.2 Charging with 5V 2.0A Maximum or 1.5A

Simultaneous

91U Mounting Brackets • Mount the USB Hub into 1U of Rack Space

• Mount the USB Hub to a wall or the side/underside of

a Desk

Package Contents

•USB Hub x 1

•10 ft [3 m] USB-A to USB-B Cable x 1

•Terminal Block Connector (Attached)

•DIN Rail Mounting Brackets (with Mounting Screws) x 2

•Quick-Start Guide x 1

* Product may vary from image

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-

party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which

this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the

property of their respective holders.

Warranty Information

This product is backed by a 2-year warranty.

For further information on product warranty terms and conditions, please refer to .

www.startech.com/warranty

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)

for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of

business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations

or exclusions contained in this statement may not apply to you.

FR: startech.com/fr

DE: startech.com/de

ES: startech.com/es

NL: startech.com/nl

IT: startech.com/it

JP: startech.com/jp

StarTech.com

Ltd.

45 Artisans Cres

London, Ontario

N5V 5E9

Canada

StarTech.com Ltd.

Unit B, Pinnacle 15

Gowerton Rd,

Brackmills

Northampton

NN4 7BW

United Kingdom

StarTech.com LLP

4490 South Hamilton

Road

Groveport, Ohio

43125

U.S.A.

StarTech.com Ltd.

Siriusdreef 17-27

2132 WT Hoofddorp

The Netherlands

Regulatory Compliance

FCC - Part 15

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void

the user’s authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may

cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation

est autorisée aux deux conditions suivantes:

(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,

même si le brouillage est susceptible d’en compromettre le fonctionnement.

Note: Ensure the polarity of the power input is correctly matched with the DC 2-Wire

Terminal Block Pins to function properly and to prevent damage to the USB Hub and

any connected peripherals.

Terminal Block Pins

4. Insert the back into .Terminal Block Connector Housing USB Hub

Power the Hub Using an External Power Adapter

• Connect a (not included) to the located on the Power Adapter Power Input Port,

front of the and to an . USB Hub AC Electrical Outlet

DIN Rail Mounting

Connect the USB Ports

1. Connect up to 16 USB peripherals to the Screw Locking USB Data/Charge Ports,

located on the .USB Hub

2. Use the 2x USB-A to USB-B Cables (1x cable included, second sold separately), to

connect a USB port on each to the Computer USB Host A & B Ports, located on the

USB Hub.

• The will automatically detect the device and install the required drivers Computer

for the . USB Hub

Power the Hub

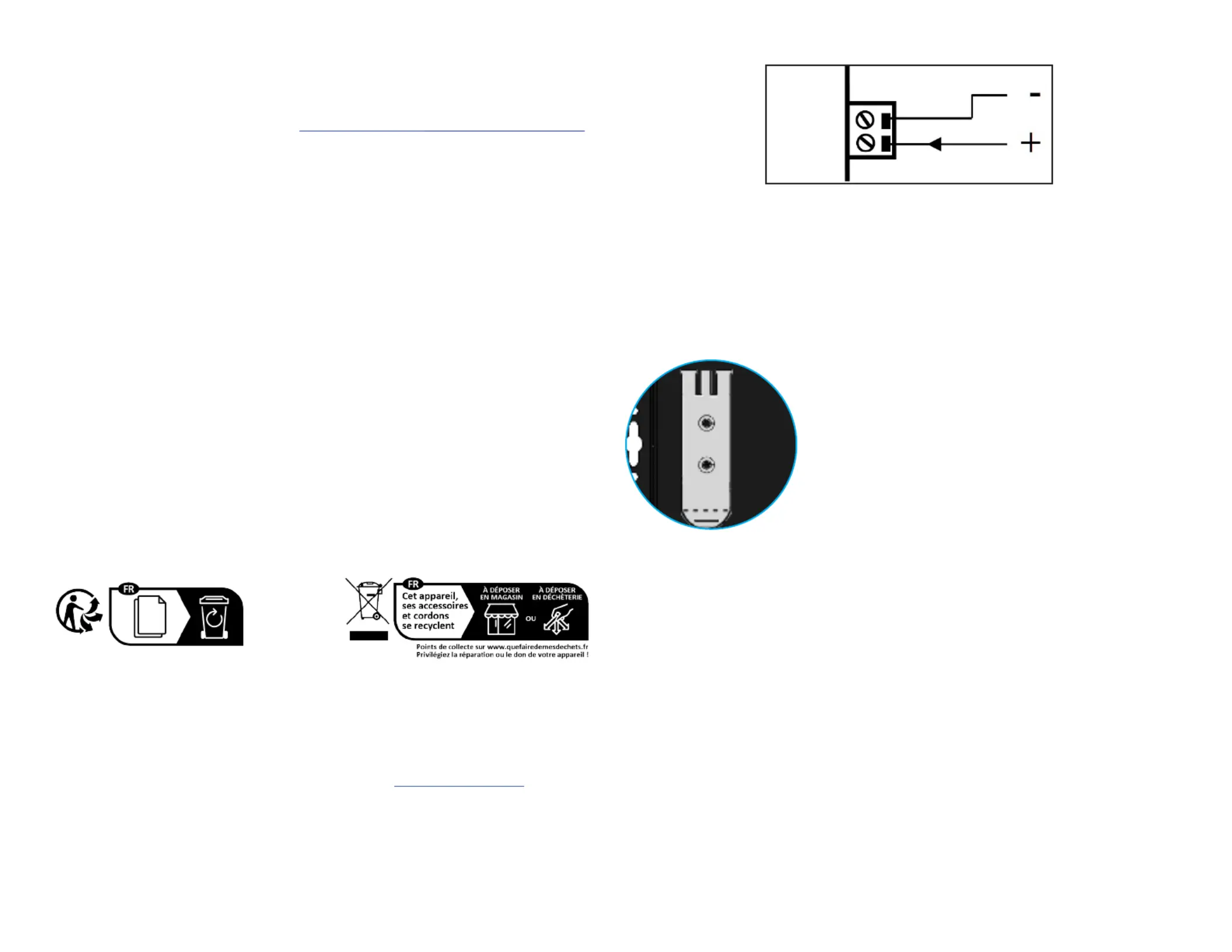

Power the Hub Using the 2-Wire Terminal Block

1. Remove the from the .Terminal Block Connector Housing USB Hub’s Casing

2. Loosen the screws for the located on the , Terminals Terminal Block Connector

using a .Flat Head Screwdriver

3. Connect the and from the (not Positive Negative Wires 7-24V DC Power Source

included) to the Terminals on the . Terminal Block Connector

V- (GND)

V+ (7~24V)

Requirements

• Computer (1 or 2 units)

• USB-A Port

• 7-24V DC Power Source

For the latest drivers, manuals, product information, technical specications, and

declarations of conformance, please visit: www.StarTech.com/5G16AINDS-USB-A-HUB

Installation

Notes:

• Connect the after all the other installation steps have been completed. Power Source

• There are two ways to power the . USB Hub

Using an external or a . DC Power Adapter Terminal Block Power Source Voltage

(+7 - 24 V DC).

This includes that can be used USB Hub DIN Rail Brackets

to horizontally mount the to a DIN Rail. To install USB Hub

the on the : DIN Rail Brackets USB Hub

1. Align the (x 2) with the DIN Rail Din Rail Brackets

Mounting Holes, located on either side at the back of

the .USB Hub

2. Insert the (x 4) through the Mounting Screws DIN Rail

Brackets USB Hub, and into the .

3. Using a Phillips Head Screwdriver tighten the Mounting

Screws Mounting . Be careful not to over-tighten the

Screws.

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	USB HUB
Model:	5G16AINDS-USB-A-HUB
Bredde:	31 mm
Dybde:	13 mm
Højde:	44 mm
Vægt:	1100 g
Produktfarve:	Sort
Pakkevægt:	1800 g
Pakkedybde:	280 mm
Pakkebredde:	130 mm
Pakkehøjde:	43 mm
Formfaktor:	1U
Opbevaringstemperatur (T-T):	-20 - 75 °C
Relativ luftfugtighed ved drift (H-H):	5 - 95 %
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte:	16
Driftstemperatur (T-T):	0 - 60 °C
Husmateriale:	Stål
Strømforsyningstype:	DC
Hurtig start guide:	Ja
Kabler inkluderet:	USB Type-A til USB Type-B
DC-in-stik:	Ja
LED-indikatorer:	Ja
Indgangsspænding:	12 - 24 V
Hovedkassen højde (udvendigt):	313 mm
Hovedkassens længde (udvendigt):	390 mm
Hovedkassens bredde (udvendigt):	515 mm
Værtsgrænseflade:	USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Plug and play:	Ja
Produkter pr. hovedkasse (udvendigt):	5 stk
Gennemsnitstid mellem fejl (MTBF):	122383.8 t
Strømstiktype:	Type M
Monteringsbeslag inkluderet:	Ja
Stativ-montering:	Ja
Dataoverførselshastighed:	5000 Mbit/s
Klemrække port:	Ja
Klemrække inkluderet:	Ja
Porte, antal:	16
Hub-grænseflader:	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Chipsæt:	Genesys Logic - GL3523
DIN skinnesæt inkluderet:	Ja
