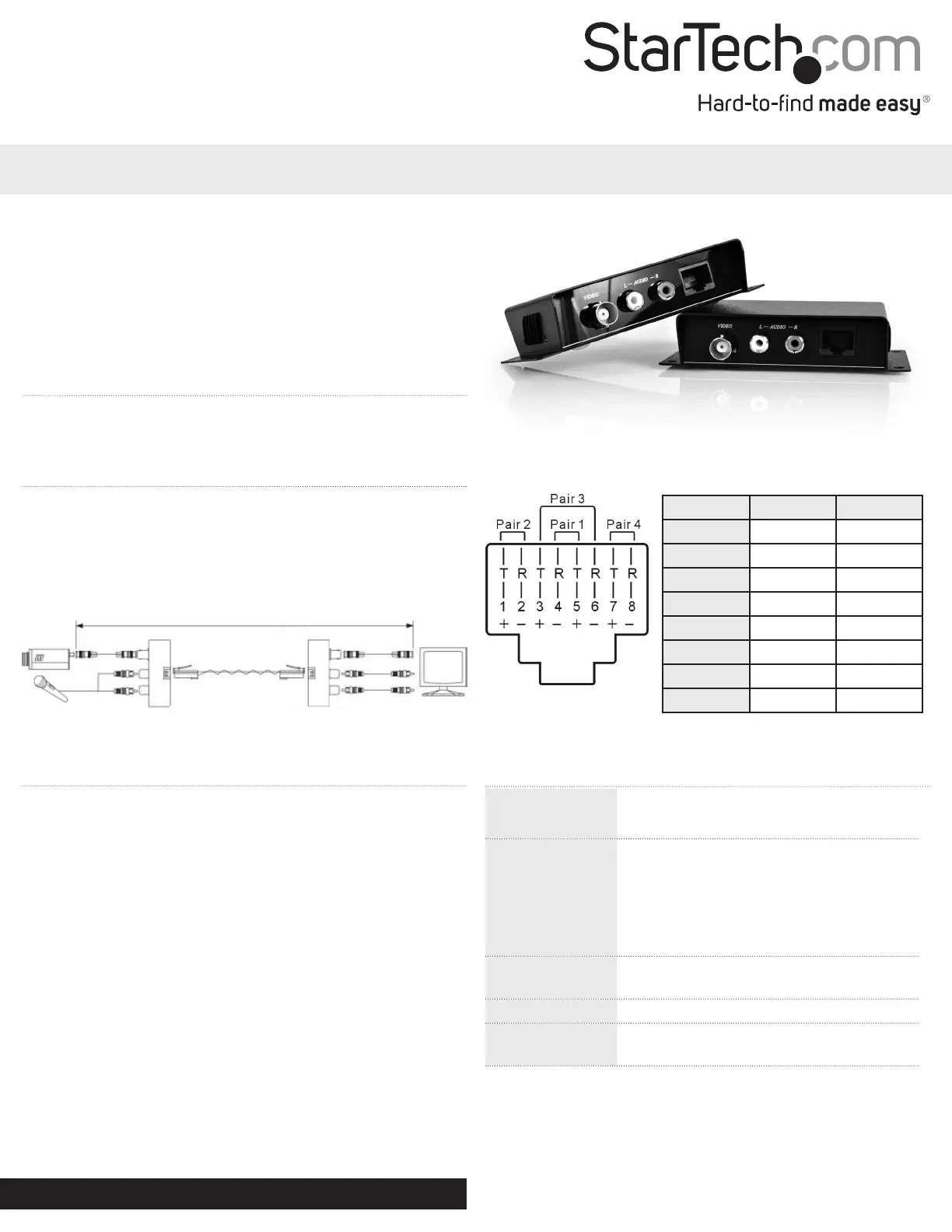

Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 02/23/2012

For the most up-to-date information, please visit: www.startech.com

Pin Colour Function

1W-O S2

2O S1

3W-G Audio +

4BL A1

5W-BL A2

6G Audio -

7W-BR Video +

8BR Video -

Packaging Contents

• Composite Video Extenders (local and remote ends) (2)

• Installation/Mounting Kit (1)

• User Manual (1)

System Requirements

• A Composite Video Source

• An RCA (component) audio source

• Input and output Component Video cables and RCA audio cables

• A display with an available Composite Video input

• RCA (composite) audio playback availability

COMPUTPEXTA

Composite Video Extender over Cat 5 with Audio

*actual product may vary from photos

Basic Setup

1. Connect the Composite Video cable to the output on the back of

the video source.

2. Connect the opposite end of the Component Video cable used in

Step 1 to COMPUTPEXTA local unit.

3. Connect the RCA(composite) audio cable to the RCA audio ports

on the audio source.

4. Connect the opposite end(s) of the RCA audio ports on the

COMPUTPEXTA local unit (marked L-Audio-R)

5. Connect the Cat5 cable to the RJ45 port on the COMPUTPEXTA

local unit.

6. Connect the remaining end of the Cat5 cable to the RJ45 port

located on the COMPUTPEXTA remote unit.

7. Connect the second Composite Video cable to the COMPUTPEXTA

remote unit

8. Connect the remaining end of the Composite Video cable to the

video display (e.g television, VCR, etc.)

9. Connect the second RCA (Composite) audio cable(s) to the

COMPUTPEXTA remote unit.

10. Connect the remaining end of the second RCA (composite) audio

able to the audio output (e.g television, stereo receiver etc.)

COMPUTPEXTA

(Local)

COMPUTPEXTA

(Remote)

Specications

Certications

(Regulatory etc.) FCC, CE, WEEE, RoHS

Connectors

Input: 1 x RJ45

1 x Stereo Audio RCA

1 x BNC female

Output: 1 x RJ45

1 x Stereo Audio RCA

1 x BNC female

Dimensions

(LxWxH) 110 x 77 x 24mm

Weight Weight 460g (1.014 lb)

Maximum

Resolution 480i
