Instruction manual

FR: Guide de l’utilisateur - fr.startech.com

DE: Bedienungsanleitung - de.startech.com

ES: Guía del usuario - es.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

IT: Guida per l’uso - it.startech.com

JP: - jp.startech.com取扱説明書

Manual Revision: 02/28/2018

For the latest information, technical specications, and support for

this product, please visit www.startech.com/HB20A7ME.

Package contents

• 1 x USB 2.0 hub

• 1 x USB-A to USB-B cable

• 1 x DIN rail kit

• 1 x instruction manual

Requirements

• A USB equipped computer

• Up to seven USB peripheral devices with cabling

• A terminal power source (7-48 volts, 3 amps)

• A Phillips type screwdriver (optional for DIN mounting)

Operating system requirements are subject to change. For the latest

requirements, visit www.startech.com/HB20A7AME.

HB20A7AME

7-Port USB 2.0 Hub - Industrial-Grade - ESD and Surge Protection

*actual product may vary from photos

Product diagram

Mounting the USB hub

1. Attach the DIN rail clips to the USB hub, using the DIN rail screws

(provided) and a Phillips type screwdriver (sold separately).

2. Slide the DIN rail clips into the DIN rail on your rack.

Front view

Back view

Power terminal

USB 2.0 host port

USB 2.0 ports

Power LED

DIN rail mounting

holes

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void the user’s authority to operate the

equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders. Phillips is a

trademark of Phillips Screw Company.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and

access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two-year warranty.

StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for

repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not

allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

About the LED indicators

The USB hub features LEDs that indicate the hub’s operating status:

LED indicator Behavior Signicance

Power LED Illuminated The USB hub is powered

on.

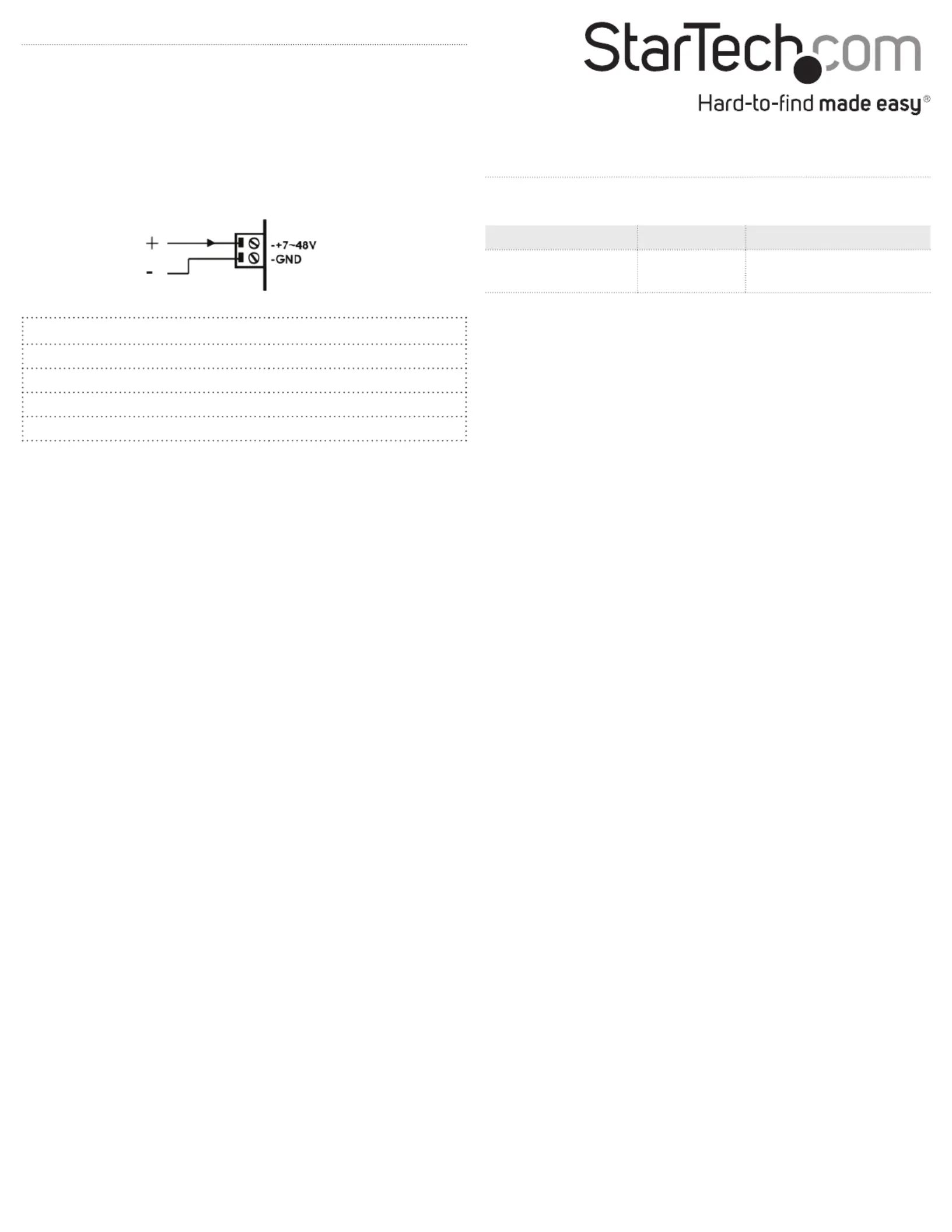

Installation

1. Connect the USB 2.0 host port (PORT 0) on the hub to a USB port

on your computer, using the included USB-A to USB-B cable.

2. Connect your peripherals to the USB 2.0 ports on the USB hub.

3. Connect the positive and negative power pins on your power

source cabling to the corresponding sockets on the power

terminal, along with the grounding wire.

Power requirements

Minimum voltage 7 V

Maximum voltage 48 V

Minimum recommended amperage 4 A (at the minimum 7 V)

Minimum recommended wattage 28 W

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	USB HUB
Model:	HB20A7AME
Bredde:	63 mm
Dybde:	130 mm
Højde:	42 mm
Vægt:	404 g
Brugervejledning:	Ja
Produktfarve:	Sort
Pakkevægt:	600 g
Pakkedybde:	242 mm
Pakkebredde:	166 mm
Pakkehøjde:	55 mm
Opbevaringstemperatur (T-T):	-40 - 85 °C
Relativ luftfugtighed ved drift (H-H):	5 - 95 %
Antal USB 2.0-porte:	7
Strømforbrug (typisk):	28 W
Driftstemperatur (T-T):	-40 - 85 °C
Husmateriale:	Metal
Kabler inkluderet:	USB
Certificering:	CE, FCC, TAA, RoHS, REACH
LED-indikatorer:	Strøm
Harmoniseret systemkode (HS):	84719000
Indgangsspænding:	7 - 48 V
Hovedkassen højde (udvendigt):	260 mm
Hovedkassens længde (udvendigt):	565 mm
Hovedkassens bredde (udvendigt):	435 mm
Værtsgrænseflade:	USB 2.0 Type-B
Plug and play:	Ja
Indgangsstrøm:	4 A
Produkter pr. hovedkasse (udvendigt):	20 stk
Dataoverførselshastighed:	480 Mbit/s
Klemrække port:	Ja
Porte, antal:	7
Beskyttelse ved overspænding:	Ja
Hub-grænseflader:	USB 2.0
Chipsæt:	Genesys Logic - GL852GT
DIN skinnesæt inkluderet:	Ja
