Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support

Manual Revision: February 3, 2023

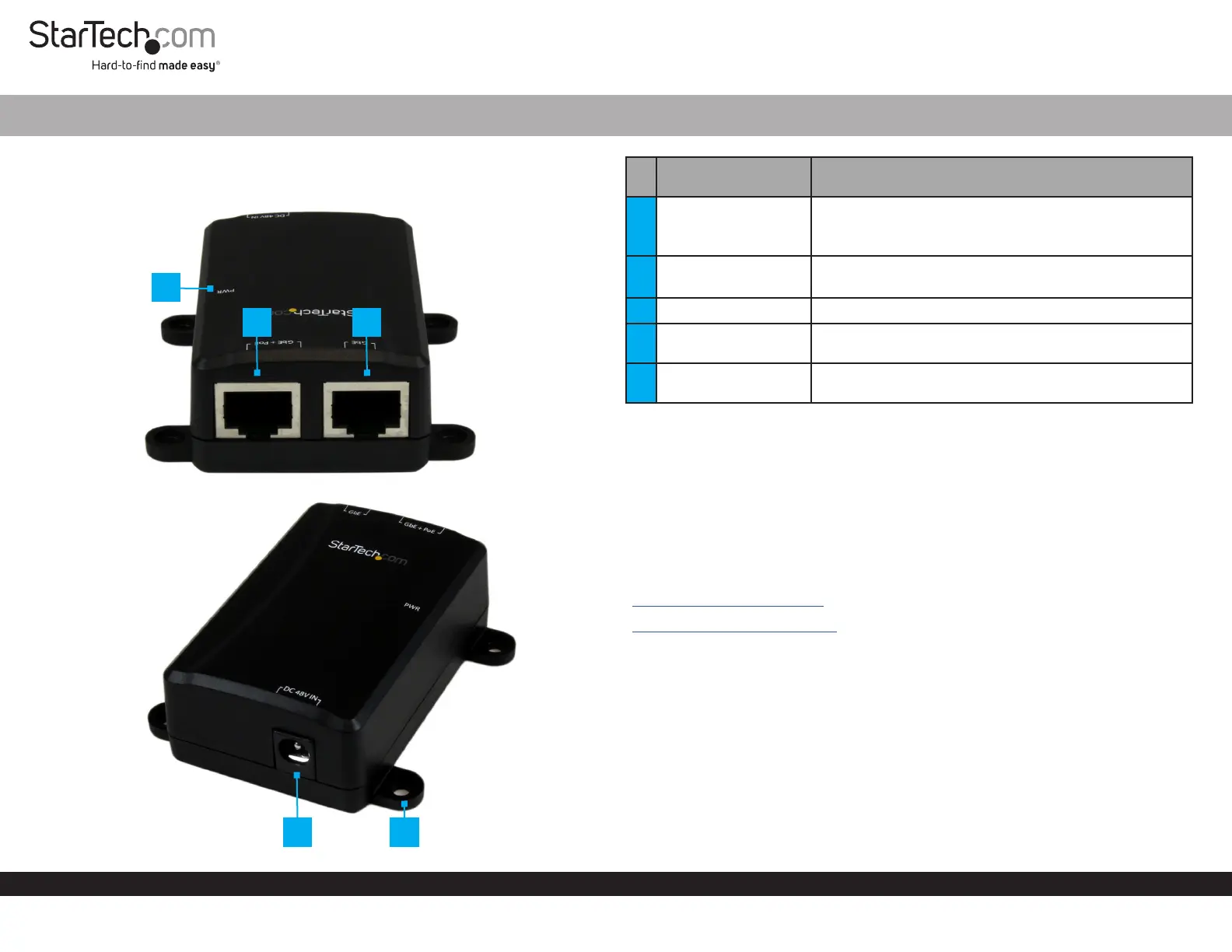

Product Diagram (POEINJ1G / POEINJ1GW)

Front

Back

1-Port Gigabit Midspan PoE+ Injector - 802.3at and 802.3af

Port/LED/Connector Function

1 Power LED

• Indicates if power is being supplied

• Solid Green = On

• O = O

GbE + PoE Port

(Data + Power)

• Connect a Network Cable to a PoE or PoE+ device

• Supports 1 Gbps, 100 Mbps, and 10 Mbps

3 GbE Port (Data) • Connect a Network Cable to the PoE Injector

4 DC Power Port

• Connect the PoE Injector to a Power Source using

the included Power Adapter

5 Mounting Holes

• Allows for a permanent installation to a at and stable

surface

Package Contents

• PoE+ Injector x1

• Mounting Screws x 4

• Power Adapter (NA for POEINJ1G, EU/UK/ANZ for POEINJ1GW) x 1

• Quick-Start Guide x 1

Requirements

For the latest requirements, please visit:

www.startech.com/POEINJ1G

www.startech.com/POEINJ1GW

Installation

Note: Refer to Figure 1 for a typical midspan installation.

1. Connect an Ethernet Cable from the Source Network Device (i.e, computer,

router, non-PoE switch) to the GbE port of the PoE Injector.

2. Connect an Ethernet cable to the GbE + PoE port on the PoE Injector.

3. Connect the other end of the Ethernet Cable used in Step 2 to either a Powered

Device (PD) that is PoE+ or PoE compliant, or to a PoE Splitter to separate Data

and Power.

4. Plug the included Power Adapter to a power source and connect it to the PoE

Injector. Ensure the Power LED is illuminated.

2 3

4 5

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Netværkskort/adapter
Model:	POEINJ1G
Vægt:	52 g
Brugervejledning:	Ja
Produktfarve:	Sort
Pakkevægt:	995 g
Pakkebredde:	230 mm
Pakkehøjde:	76 mm
Opbevaringstemperatur (T-T):	-40 - 85 °C
Relativ luftfugtighed ved drift (H-H):	10 - 90 %
Ethernet LAN-porte (RJ-45):	2
Driftstemperatur (T-T):	0 - 45 °C
Ethernet LAN-datahastigheder:	10,100,1000 Mbit/s
Dimensioner (BxDxH):	63 x 70 x 25 mm
Udgangseffekt:	30 W
Certificering:	RoHS, CE, FCC
Kabelteknologi:	10Base-T, 100Base-TX, 1000Base-T
Netværksstandarder:	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
DC-in-stik:	Ja
LED-indikatorer:	Strøm
Udgangsstrøm:	0.64 A
Harmoniseret systemkode (HS):	85044095
Indgangsspænding:	100 - 240 V
Strømledning inkluderet:	Ja
Plug and play:	Ja
Indgangsstrøm:	0.75 A
Strøm over Ethernet (PoE):	Ja
Maksimal driftstilstand:	100 m
Ethernet-grænsefladetype:	Fast Ethernet, Gigabit Ethernet
Understøttede kabeltyper:	Cat5
Power over Ethernet (PoE) spænding:	48 V
Duplex system:	Fuld
