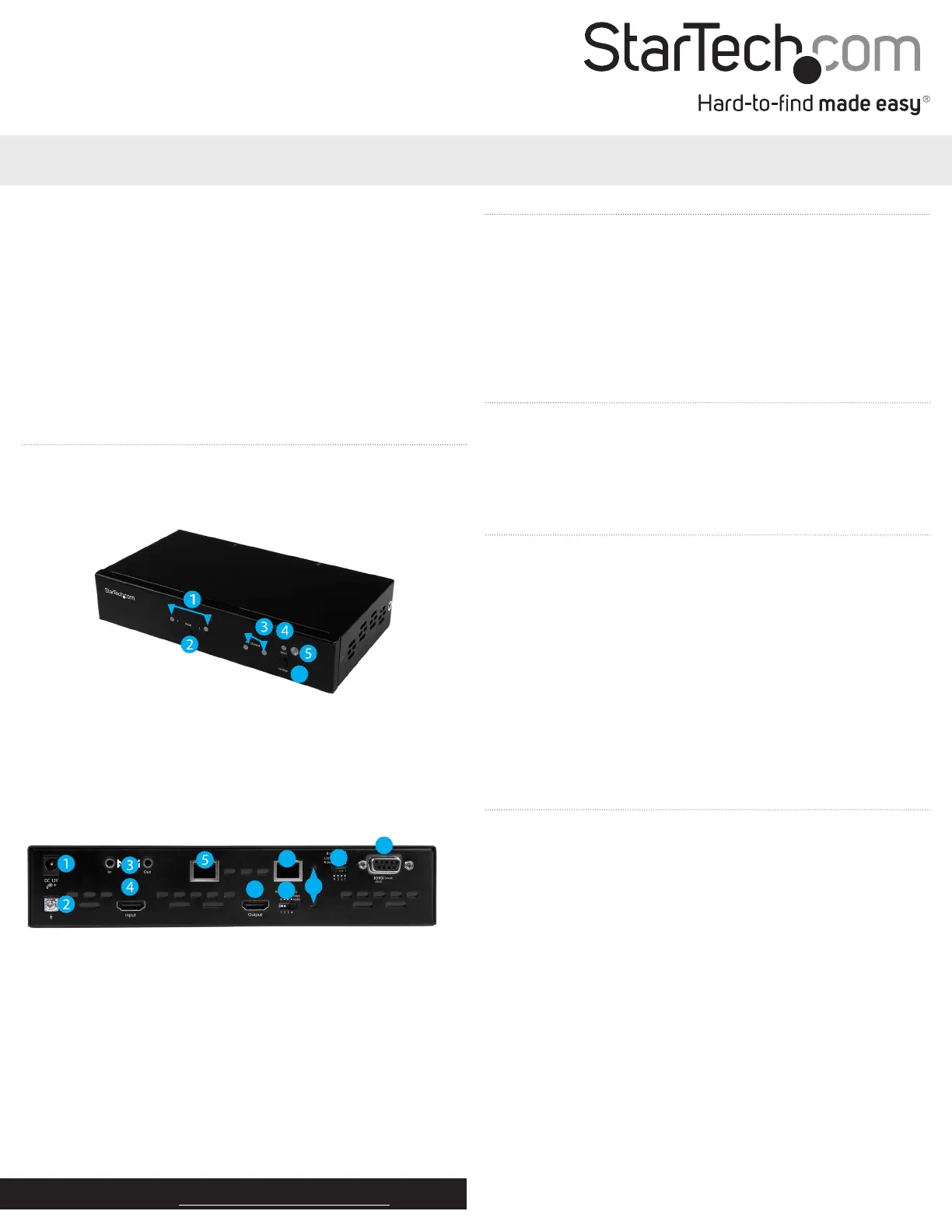

Side 1/2

1. Input selection LEDs

2. Input selection button

3. Output selection LEDs

4. Status LED

5. IR sensor

6. Function button

Quick start guide

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 12/01/2016

For the latest information, technical specications, and support for

this product, please visit www.startech.com/ST121HDBTRP

Packaging contents

• 1 x HDBase-T repeater

• 1 x IR remote control

• 1 x universal power adapter (NA / UK / EU / AU)

• 1 x CAT5e cable

• 1 x mounting kit

• 1 x screw kit

• 1 x rubber foot pad set

• 1 x quick start guide

System requirements

• 1 x local HDBaseT video source or transmitter with cabling

• 1 x HDBaseT display or receiver with cabling

• 1 x HDMI source with cabling

• 1 x HDMI display with cabling

• 1 x remote destination HDBaseT display or receiver

HDBaseT™ Repeater - 4K

*actual product may vary from photos

Product overview

Front View

Rear View

1. Power adapter port

2. Grounding bolt

3. IR extender I/O ports

4. HDMI input port

5. HDBase-T input port

6. HDBase-T output port

7. HDMI output port

789

8. EDID switch

9. EDID copy buttons

10. RS232 switch

11. RS232 port

About this product

HDBaseT is a standardized, zero-latency video technology that’s

revolutionizing HDMI distribution. HDBaseT uses an advanced

method of modulation that enables you to distribute uncompressed

HDMI audio and video over long distances, over standard network

cabling.

This repeater receives your HDBaseT signal, and deploys it to an

additional receiver up to 70 m away, while outputting the HDBaseT

signal to an HDMI display at the repeaters location. The repeater also

enables you to add an HDMI source at the repeater’s location and

switch between sources at each connected HDMI and/or HDBaseT

display.

Preparing your site

1. At the local source, set up your HDBaseT video source, as

instructed by the documentation included with it.

2. Run your CAT5e or CAT6 cable from the RJ-45 output on the

HDBaseT source to the location you’d like to place the repeater.

Note: This needs to be a direct connection. Do not route the cable

through any networking equipment.

3. Set up your HDMI display near the location you’d like to place the

repeater.

4. (Optional) Set up your HDMI source near the location you’d like to

place the repeater.

5. At the remote destination, if you’re connecting to an HDBaseT

display, set up the display appropriately in your desired location.

If you’re connecting to HDBaseT receiver with an HDMI display,

set up the display appropriately in your desired location and

connect your HDBaseT device to the display, as instructed by the

documentation that was included with your HDBaseT receiver.

Notes: Please ensure that the repeater is situated near an

available AC power source. Make sure all devices are turned o

before you begin the installation.

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void the user’s authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this

manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our

comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or

replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from misuse, abuse, alteration, or

normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or

otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow the exclusion or limitation of

incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Hardware installation

1. Connect a CAT5e or CAT6 cable to the HDBaseT source and to the

repeater’s HDBaseT input port.

2. Connect an HDMI cable to your HDMI display and to the

repeater’s HDMI output port.

3. Connect an HDMI cable to your HDMI video source and to the

repeater’s HDMI input port.

4. Connect a CAT5e or CAT6 cable to the HDBase-T output port on

the repeater and run it to the input port on your HDBaseT receiver

or display at the remote destination.

Note: This needs to be a direct connection. Do not route the cable

through any networking equipment.

5. Power up each of your devices to complete the installation steps

for your HDBaseT repeater.

Basic operation

EDID Settings

To maximize compatibility with all connected devices, please begin

operation by conrming the EDID switch is set to position 1. This

is the default setting and will optimize all valid video outputs for

standard video and audio requirements. If you’re experiencing any

trouble, such as poor resolution support, or inconsistent audio or

video output, you can specify EDID settings or copy EDID settings

using this switch.

Input switch operation

You can switch the video source that’s outputted to all connected

displays by pressing the input selection button. This button will

toggle between the HDBaseT video source and HDMI video source.

Turn o remote destination signal

You can switch o the HDBaseT signal deployed to the remote

location in order to place the remote display in standby.

1. Press the Function button two times, to place the unit into

remote standby switch mode.

2. Press the selection button to turn the remote signal on and Input

o.

3. Press the Function button to take the repeater out of remote

standby mode.

Input switch operation using the IR remote control

Press buttons 1 and 2 on the right side of the IR remote control to

switch between the HDBaseT and HDMI video sources respectfully.

Factory reset

If your repeater is not functioning as expected, restoring the

repeater to it’s factory default settings is an ideal troubleshooting

step. To return all settings to the factory state, press and hold the

function and EDID COPY button simultaneously for 9 seconds and

then release after the status LED ashes twice.

right after Status LED ashes green twice.

Important operation note: The resolution performance of this

extender will vary depending on the length of your cabling. Please

review the chart below to determine the best solution for your

setup. For best results, StarTech.com recommends using shielded

CAT6 cable.

Distance Maximum resolution

35 m or less 4K x 2K

Up to 70 m 1080p
