Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: July 26, 2022

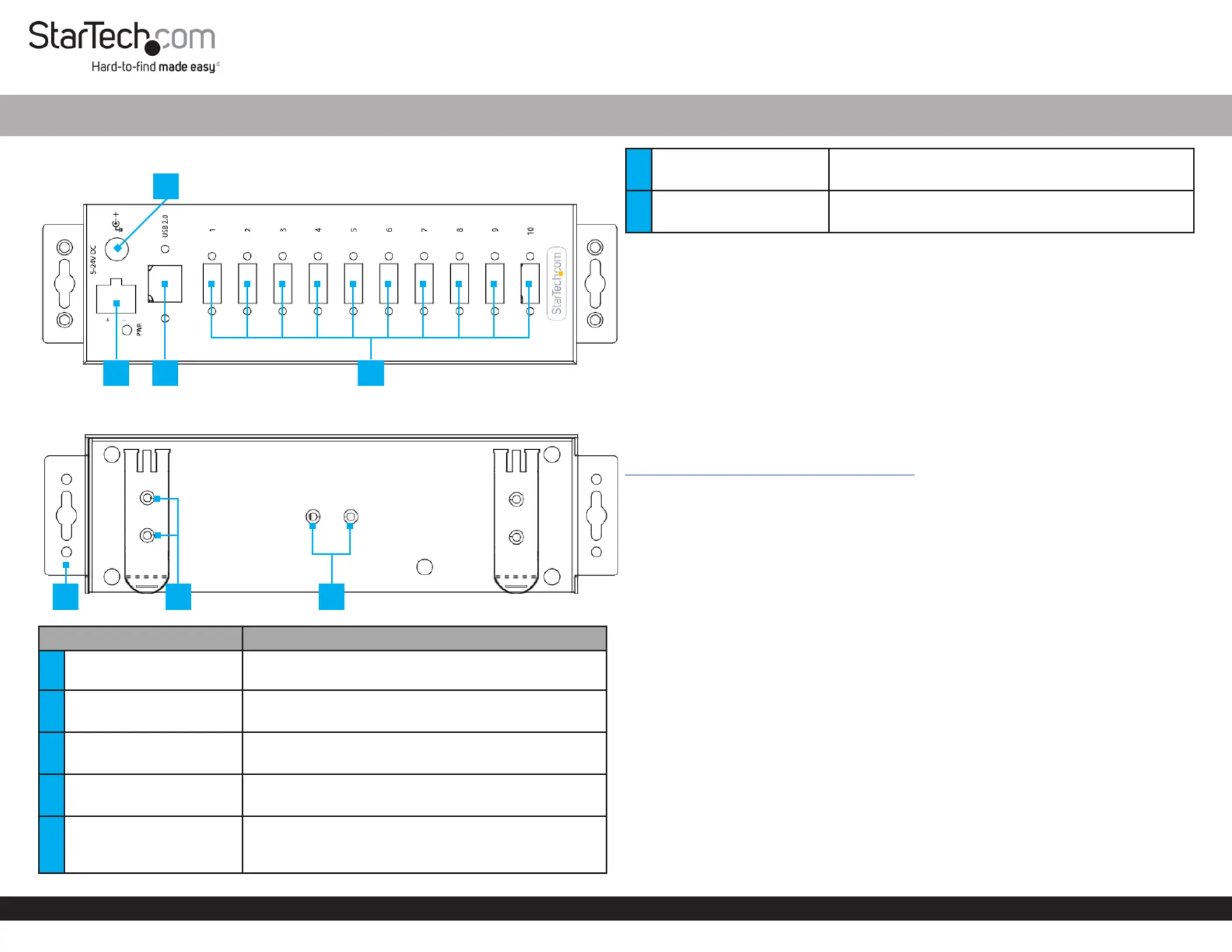

Product Diagram (USB210AIND-USB-A-HUB)

Front View

Rear View

Ports/Parts Function

1DC Power Input 5~24 V • Connect a + DC Power Source

DC 2-Wire Terminal Block

Power Input

• Connect a +5~24 V DC Power Source

3USB Type-B Host Port

• USB Type-B 480 Mbps (USB 2.0)

• Connect the to a USB Hub Host Computer

4USB Type-A Ports (x 10)

• USB Type-A 480 Mbps (USB 2.0)

• Connect up to 10 USB Type A Peripheral Devices

5Mounting Holes

• Wall mount the USB Hub

• Mount the to the side/underside of a USB Hub

Desk

10-Port Industrial USB 2.0 (480 Mbps) Hub - 15 kV/8 kV Air/Contact ESD Protection - Wall/DIN Rail Mountable

DIN Rail Mounting

Holes, Horizontal

• Used to mount the to a DIN Horizontally USB Hub

Rail

DIN Rail Mounting

Holes, Vertical

• Used to Vertically mount the to a DIN RailUSB Hub

Package Contents

• USB 2.0 Hub x 1

• DIN Rail Mounting Brackets x 2

• USB 2.0 Type-A to Type-B Cable x 1

• Screw Kit x 1

• Quick-Start Guide x 1

Requirements

For the latest product information, technical specications, manuals, and declarations of

conformance, please visit:

www.startech.com/USB210AIND-USB-A-HUB

• Flat Head Screwdriver

• Phillips Head Screwdriver

• Writing Utensil

• Level

• DC Power Source

• (Optional) Stud Finder & Electric Driver

Installation

Notes:

• Connect the after all the other installation steps have been completed. Power Source

• There are two ways to power the . USB Hub

Using an external or a . DC Power Adapter Terminal Block Power Source Voltage

(+5 - 24 V DC).

Connect the USB Ports

1. Connect the to the , USB 2.0 Type-A to Type-B Cable USB Type-B Host Port

located on the , and to a , located on the .USB Hub USB-A Port Host Computer

2. The will detect the .Host Computer’s Operating System USB Hub

3. Connect up to 10 to the , located on the USB Peripheral Devices USB Type A Ports

USB Hub.

3 4

5 6 7

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void

the user’s authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may

cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation

est autorisée aux deux conditions suivantes:

(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,

même si le brouillage est susceptible d’en compromettre le fonctionnement.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-

party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which

this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the

property of their respective holders.

PHILLIPS® is a registered trademark of Phillips Screw Company in the United States or other countries.

Warranty Information

This product is backed by a two-year warranty.

For further information on product warranty terms and conditions, please refer to .www.startech.com/warranty

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)

for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of

business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations

or exclusions contained in this statement may not apply to you.

Safety Measures

• If product has an exposed circuit board, do not touch the product under power.

Mesures de sécurité

• Si l’un des circuits imprimés du produit est visible, ne pas touchez le produit lorsqu’il est sous tension.

安全対策

• 製品に露出した状態の回路基盤が含まれる場合、電源が入っている状態で製品に触らないでください。

Misure di sicurezza

• Se il prodotto ha un circuito stampato visibile, non toccare il prodotto quando è acceso.

Säkerhetsåtgärder

• Rör aldrig vid enheter med oskyddade kretskort när strömmen är påslagen.

FR: fr.startech.com

DE: de.startech.com

ES: es.startech.com

NL: nl.startech.com

IT: it.startech.com

JP: jp.startech.com

StarTech.com Ltd.

45 Artisans Cres

London, Ontario

N5V 5E9

Canada

StarTech.com Ltd.

Unit B, Pinnacle 15

Gowerton Rd,

Brackmills

Northampton

NN4 7BW

United Kingdom

StarTech.com LLP

4490 South Hamilton

Road

Groveport, Ohio

43125

U.S.A.

StarTech.com Ltd

Siriusdreef 17-27

2132 WT Hoofddop

The Netherlands

1. (Optional) If mounting onto drywall, use a to locate the on Stud Finder Wall Stud(s)

your wall.

2. Hold the in the desired mounting location, and mark the location of the Hub

Mounting Holes Writing Utensil Mounting , using a (use a level to ensure the two

Holes are level).

3. Using an , drill into each of .Electric Driver Pilot Holes Mounting Hole Marks

4. Hold the in the desired mounting location, aligning the on Hub Mounting Holes

the with the created in Hub Pilot Holes Step 3.

5. Insert the (x 2) through the and into the Mounting Screws Wall Mounting Holes

Wall Mounting Screws Hub, and tighten the until the is securely fastened to the

Wall Phillips Head Screwdriver, using a .

DIN Rail Mounting

Horizontal

1. Align the (x 2) with the (x Din Rail Brackets DIN Rail Mounting Holes, Horizontal

4), located on either side of the (rear).USB Hub

2. Insert the (x 4) through the and into the Mounting Screws DIN Rail Brackets USB

Hub.

3. Using a , tighten the . Be careful not to Phillips Head Screwdriver Mounting Screws

over-tighten the .Mounting Screws

Vertical

1. Align the (x 1) with the (x 2) Din Rail Bracket DIN Rail Mounting Holes, Vertical

located on the (rear).USB Hub

2. Insert the (x 2) through the and into the Mounting Screws DIN Rail Bracket USB

Hub.

3. Using a , tighten the . Be careful not to Phillips Head Screwdriver Mounting Screws

over-tighten.

Power the Hub

Power the Hub Using the 2-Wire Terminal Block

1. Remove the from the .Terminal Block Connector Housing USB Hub’s Casing

2. Loosen the screws for the located on the , Terminals Terminal Block Connector

using a .Flat Head Screwdriver

3. Connect the and from the (+5 - 24 V DC) Positive Negative Wires DC Power Source

to the on the , the are marked on Terminals Terminal Block Connector Terminals

the . USB Hub’s Casing

Note: Ensure the polarity of the power input is correctly matched with the DC 2-Wire

Terminal Block Pins to function properly and to prevent damage to the USB Hub and

any connected peripherals.

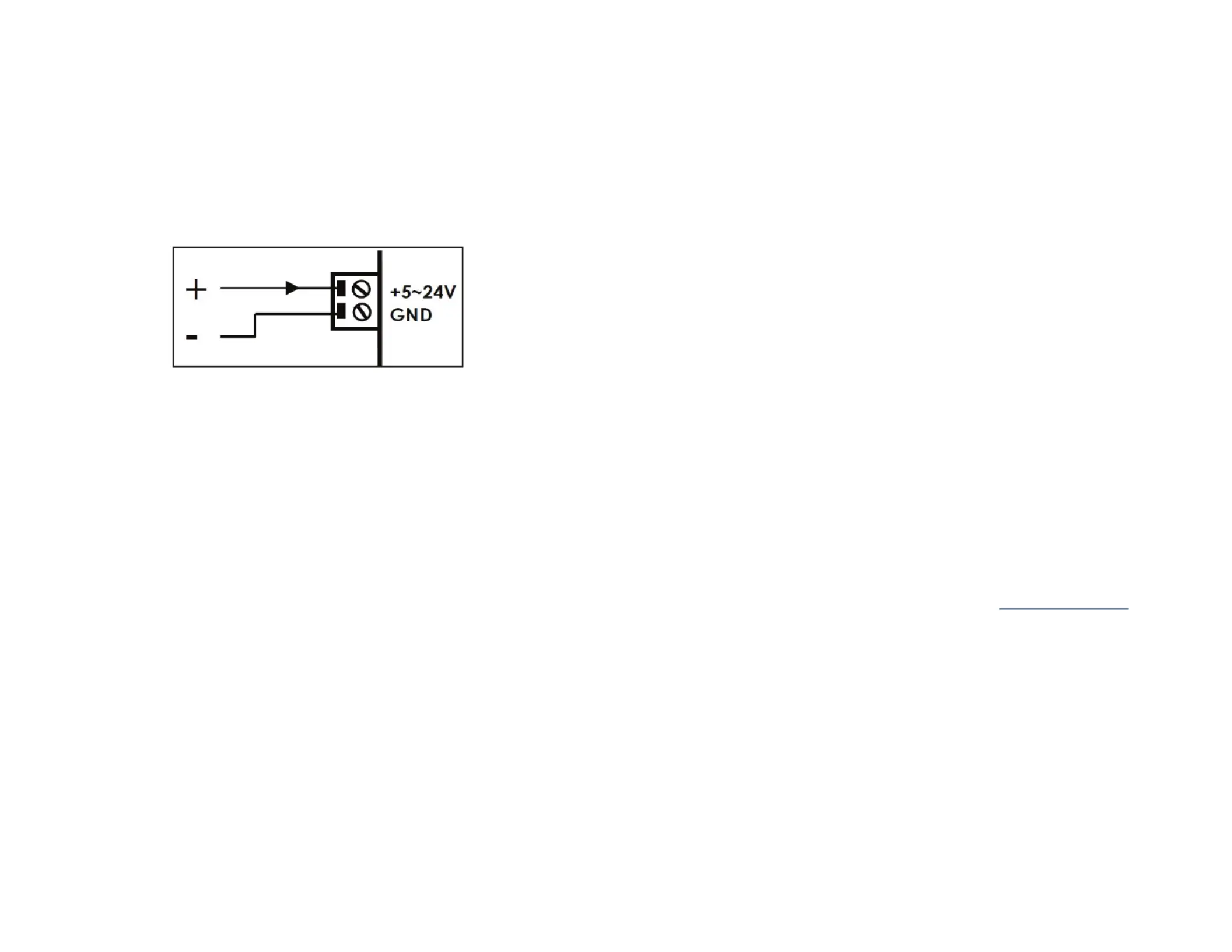

Terminal Block Pins

4. Insert the back into .Terminal Block Connector Housing USB Hub

Power the Hub Using an External Power Adapter

• Connect the to the located on the front of thePower Adapter Power Input Port,

USB Hub AC Electrical Outletand to an .

Surface Mounting

Note: Always mount onto , when installing the onto drywall. Wall Studs USB Hub

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	USB HUB
Model:	USB210AIND-USB-A-HUB
Bredde:	56 mm
Dybde:	198 mm
Højde:	31 mm
Vægt:	340 g
Produktfarve:	Sort
Pakkevægt:	600 g
Pakkedybde:	168 mm
Pakkebredde:	245 mm
Pakkehøjde:	55 mm
Opbevaringstemperatur (T-T):	-20 - 75 °C
Relativ luftfugtighed ved drift (H-H):	5 - 95 %
Antal USB 2.0-porte:	10
Driftstemperatur (T-T):	0 - 60 °C
Hurtig start guide:	Ja
Kabler inkluderet:	USB Type-A til USB Type-B
DC-in-stik:	Ja
Hovedkassen højde (udvendigt):	340 mm
Hovedkassens længde (udvendigt):	440 mm
Hovedkassens bredde (udvendigt):	530 mm
Værtsgrænseflade:	USB 2.0 Type-B
Plug and play:	Ja
Produkter pr. hovedkasse (udvendigt):	25 stk
Dataoverførselshastighed:	480 Mbit/s
Klemrække port:	Ja
Porte, antal:	10
Hub-grænseflader:	USB 2.0
Chipsæt:	Terminus Tech - FE2.1
DIN skinnesæt inkluderet:	Ja
