Side 1/2

Congratulations on your purchase of this product. Please read this user manual carefully.

Features

New generation chip-array LED technology, outputs bright but soft & glareless light;

60 wide beam angle, equally spread light, no visible lighting edge and single shadow;

13W lower power consumption, 800Lux @ 1meter, equivalent to 70W halogen bulb, 10%-100% dimmer

5000K output, 5600K/3200K filter;

6V-17V wide voltage input , support D-tap power, standard DV battery and special slim battery;

High intensity and toughness glass fiber housing, cool-touch, and both screw and cold shoe install.

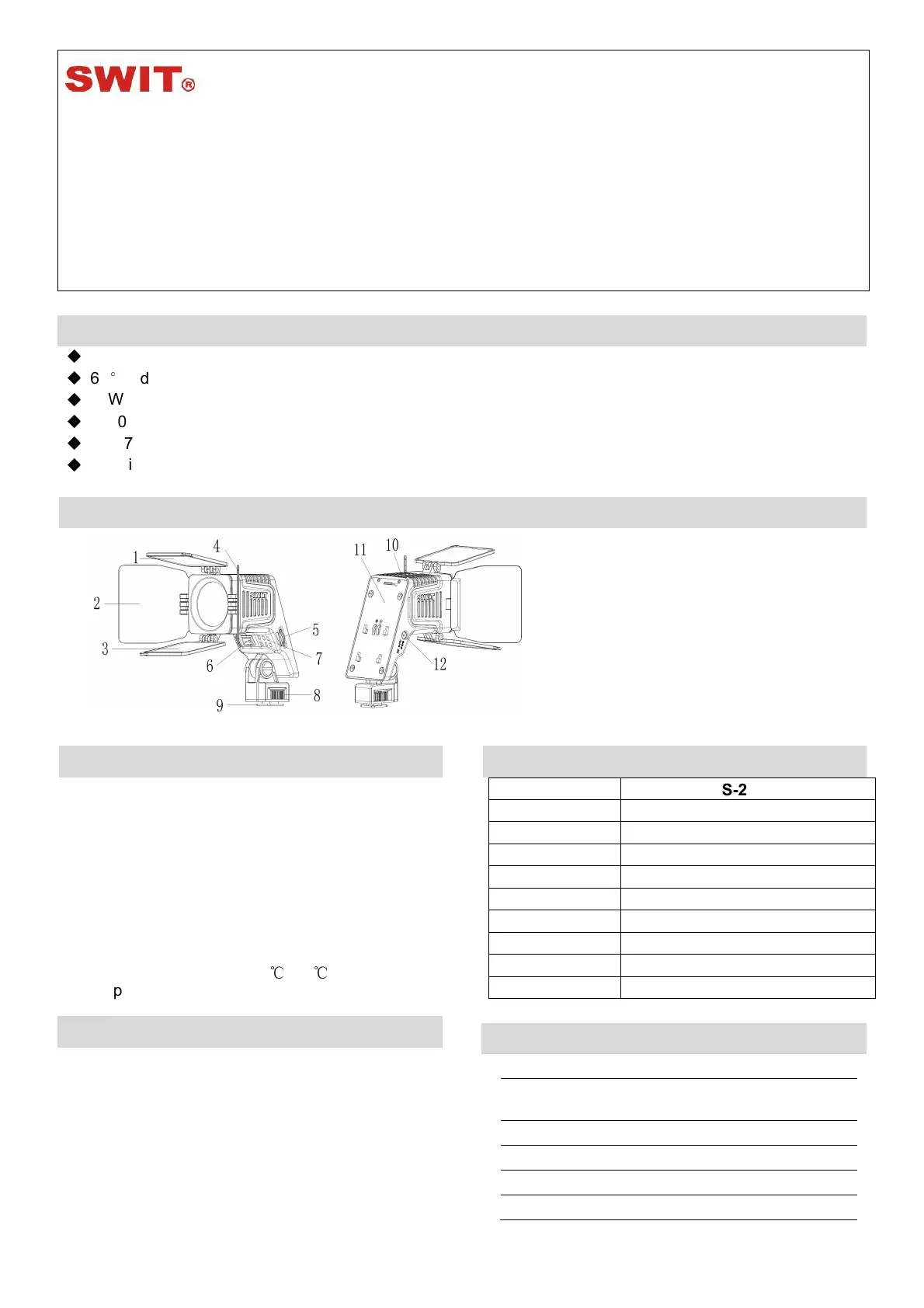

Product view

Fig1 Fig2

Caution

1. Never attempt to open the device. Refer all

servicing to qualified personnel.

2. Never insert anything into the cooling vent to

avoid damage or short circuit.

3. Keep the light away from rain or moisture.

4. Please do not stare at the turned on LED light.

5. Keep the filters clean.

6. When powering through DC-IN socket by D-tap

cable, please make sure the power supply's

voltage and power meet the light input

requirements.

7. Working temperature: -10 ~40

8. Keep the cooling vent clear to avoid damage.

Clean

Use a soft, dry cloth to clean the LED light. If you

clean the light with soft cloth slightly moistened with

neutral detergent, please dry the surface of the

light with a soft, dry cloth. Do not use a damp cloth

or alcohol, gasoline and other solvents of any kind.

Specification

Model

Input DC 6V-17V

Power Approx. 13W

Beam angle Approx. 60°

Illuminance 800 lux @ 1 meter

Color temperature

5000K itself, with 5600K&3200K filter

Working temp. -10°C~+40°C

Storage temp. -20°C ~+55°C

Dimension 108×80×133mm

Mass Approx. 274g

Package

S-2070 light x1

S-7004 snap-on DV battery plate

(Optional types for different batteries) x1

DC cable (D-tap or Pole-tap optional) x1

User manual x1

Warranty card x1

Portable bag x1

Chip-Array LED Camera Light S-2070

USER MANUAL

SWIT Electronics Co., Ltd.

Tel:+86-25-85805753

Fax:+86-25-85805296

http://www.swit.cc

mail: contact@swit.cc

1 5600K filter

7 Cooling vent

2 Barn door 8 Fasten knob

3 3200K filter 9 Cold shoe

4 Barn door 10 Cooling vent

5 Dimmer knob 11 DV plate install

6 Switch on/off 12 DC-IN socket

Ver:V1.0.0V01

Usage

Power the light

S-2070 is 6-17V voltage input and offers various power supply methods.

By special slim battery S-8040 (Optional purchase)

Make sure there’s no power lead connected into DC-IN socket and the

light is switched off (turn the switch to “ ”).

Align a fully charged S-8040 battery to the DV mount slot to same side,

and press tightly in. Slide the battery downward to snap together. See

Fig 3

By various standard DV camera batteries

Align the S-7004 series battery plate to the DV mount slot to same side,

and press tightly in. Then slide the S-7004 downward to snap together.

See Fig 4

Fix the DV mount with two screws.

Make sure the light is switched off (turn the switch to “ ”). Mount a

fully charged battery to the S-7004 mount. Fig 4

Remark: Select a compatible S-7004 battery plate to match your DV battery:

Model Compatible battery Recommended SWIT

7004F

SONY NP

F770/970

8972, S

8970, S

8770

7004

Panasonic

D54

/VW

VBD58

8D62, S

D58

7004J

JVC BN

V428U

8428

7004C

Canon BP

930/945

8945, S

8845

7004U

SONY BP

U60/30

8U62

7004E

Canon DSLR LP

8PE6

7004B

Panasonic VW

VBG6

8BG6

7004V

JVC BN

VF823

8823

7004I

JVC SSL

JVC50

8I50

By DC cable

Make sure the light is switched off (turn the switch to “ ”). Plug the pole

end of package supplied DC cable into the DC-IN socket.

Plug the other end* of DC cable to camera auxiliary power tap or the

battery DC output socket.

*Remark: S-2070 supplied 2 kinds of DC cables, optional for different power

sources:

For third-party DC cables, please make sure the DC connector is

5.5/2.1mm pole and input voltage should be 6-17V; and inner: positive,

Outer: negative. See Fig 5.

Fix the LED light to the camera

● By Cold shoe

Anticlockwise revolve the fasten knob, till the screw bolt is back into the cold shoe slice.

Align the cold shoe slice with the cold shoe mount on the camera handle.

Clockwise revolve the fasten knob to install the light onto the camera.

● By 1/4” screw mount

Clockwise revolve the fasten knob, till the screw bolt is out of the cold shoe slice.

Align the screw bolt with the 1/4” screw thread on the camera handle.

Continuously clockwise revolve the fasten knob to install the light onto the camera.

Adjust the angle of the light:

Hold the light, and adjust the light upward or downward. See Fig 7.

4. Open barn doors and filters:

Open the barn doors and filters to about 45°. See Fig 1

5. Switch on: Turn the switch to “ I ”.

6. Adjust the illuminance:

Adjust the illuminance from 10% to 100% by the dimmer.

7. Adjust color temperature:

Output 5600K light by using 5600K filter(See Fig1 - );

Output 3200K light by using 3200K filter(See Fig1 – )

Cable Model

Connector description

Length

S-7104 Battery D-tap output→Pole-tap input to S-2070 0.6m

S-7108 Battery Pole-tap output→Pole-tap input to S-2070
