S-4600 SDI to HDMI converter

USER MANUAL

SWIT Electronics Co., Ltd.

Tel:+86-25-85805753

Fax:+86-25-85805296

http://www.swit.cc

E-mail: contact@swit.cc

1. Characteristics

Portable 3G/HD/SD-SDI to HDMI converter

1 SDI input, 1 SDI loop through output, 1 HDMI output,

Embed SDI audio to HDMI output

SDI embedded audio output (3.5mm socket)

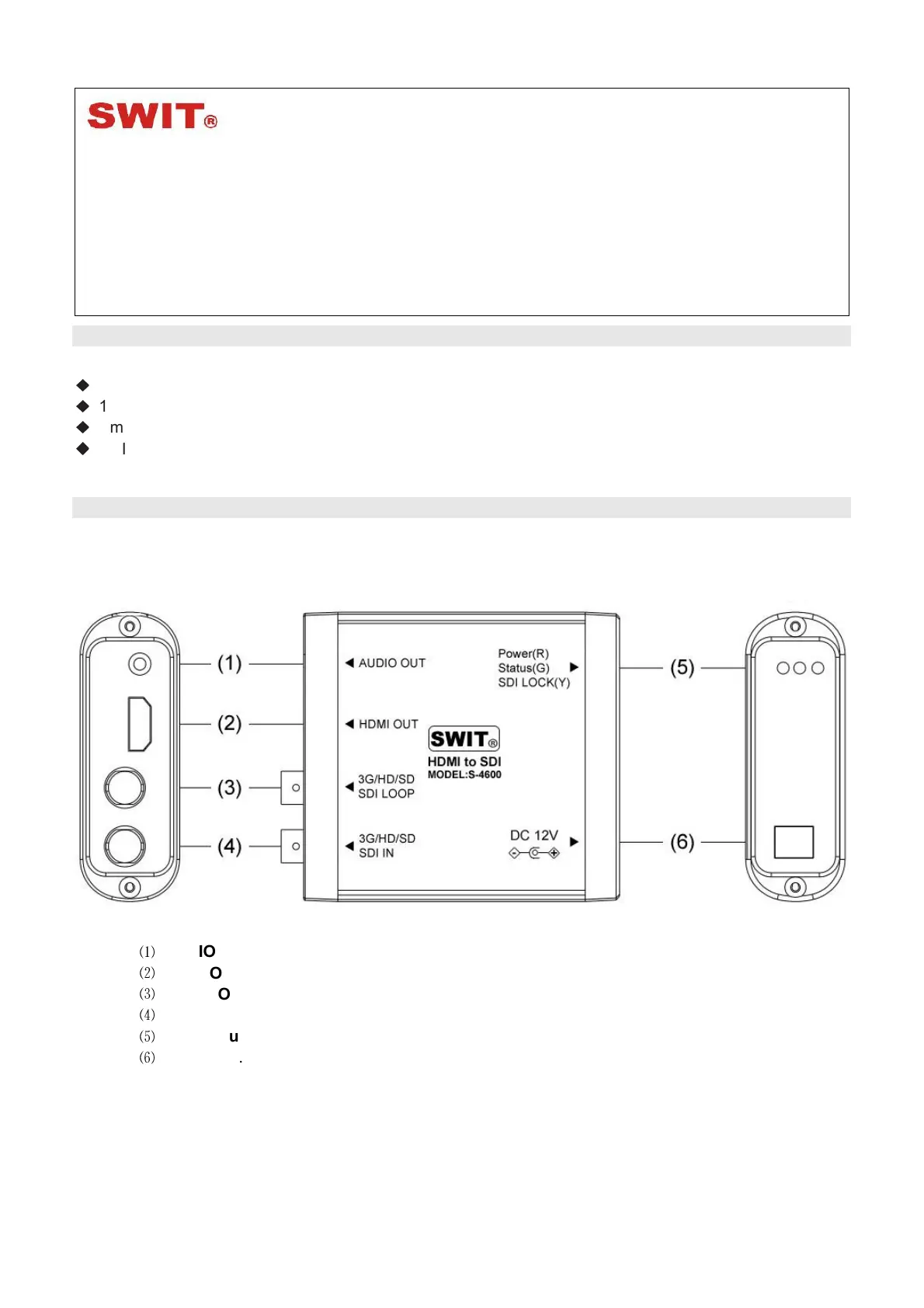

2. Product View

Left side view Front view Right side view

AUDIO OUT: Analog audio output (3.5mm)

HDMI OUT: HDMI output

3G/HD/SD-SDI loopthrough output (BNC) SDI LOOP:

3G/HD/SD-SDI input (BNC) SDI IN:

LED status indicator

DC 12V: 5.5mm pole DC input

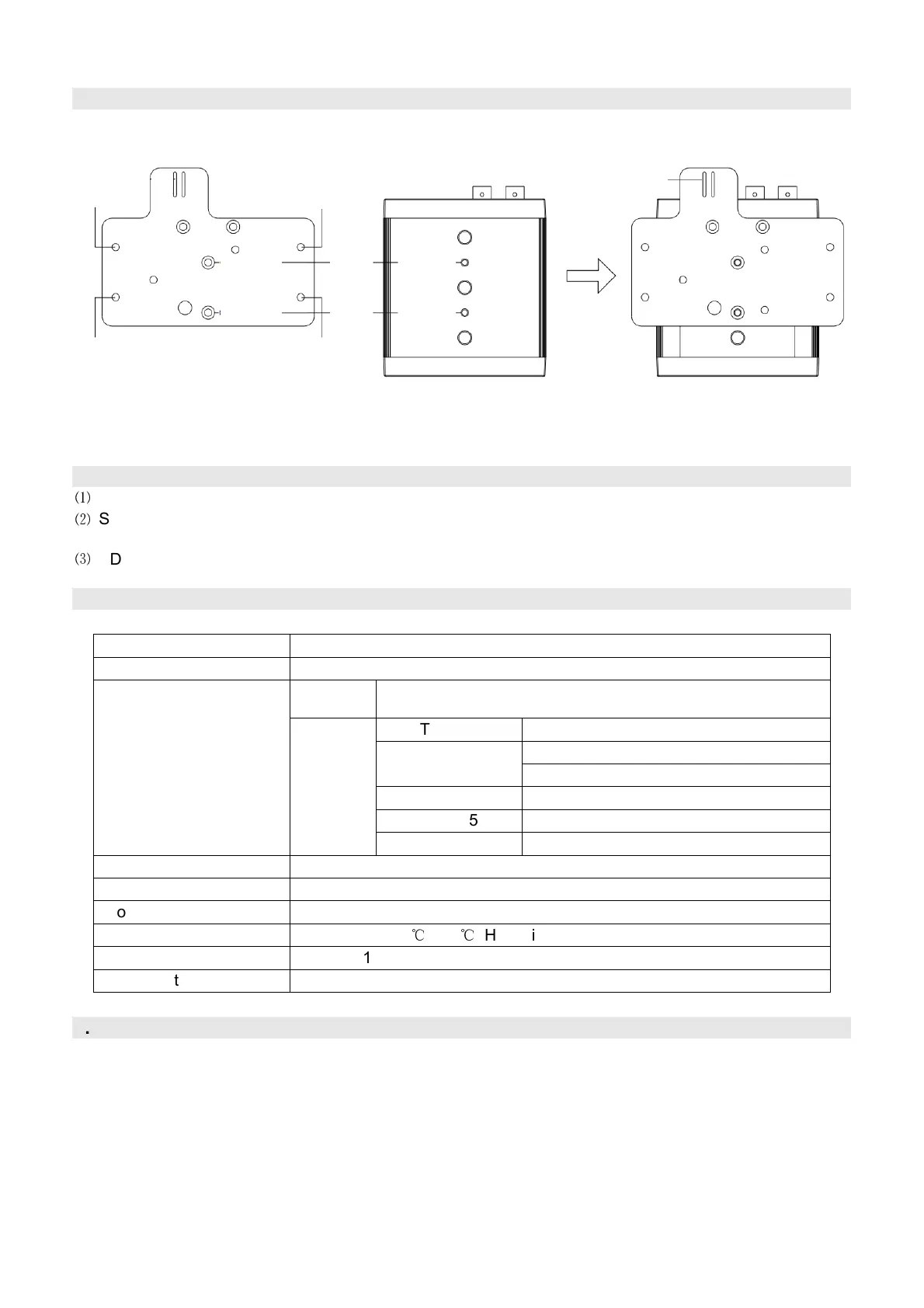

3. Installation Plate

Installation Plate Rear View of S-4600 Installed

Screw hole 3 Screw hole 4

Screw

hole 1

Screw

hole 2

Screw hole 5 Screw hole 6

Match the screw holes 1&2 with the threads 1&2 of S-4600, and fix the installation plate to the S-4600 by the

supplied screws. HDMI cable can be bundled onto the installation plate. The screw holes 3, 4, 5, 6 are used

to install S-4600 to wall or racks.

4. Indicators and Switchers

Power (Red): Power indicator

Status (Green): Status indictor, lights on when there’s HDMI output and connected to HDMI input devices

in well condition.

SDI LOCK (Yellow): SDI indicator, lights on when there’s SDI input recognized.

5. Specifications

Input 3G/HD/SD-SDI×1

Output 3G/HD/SD-SDI×1, HDMI×1, Analog audio (3.5mm)×1

HDMI

480i / 576i / 720p (60 / 59.94 / 50) / 1080i (60 / 59.94 / 50) /

1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

SMPTE-425M 1080p (60 / 59.94 / 50)

1080p (30 / 29.97 / 25 / 24 / 23.98)

SMPTE-274M

1080i (60 / 59.94 / 50)

SMPTE-296M 720p (60 / 59.94 / 50)

ITU-R

BT.656 576i (50)

Video Format

SDI

SMPTE-125M 480i (59.94)

Audio Format 48KHz sync

Power

≤3W

Working Voltage DC 6-18V

Working Environment

Temperature: 0

-+70

, Humidity:10%-90%

Dimension

98.5×84.15×29 mm

Net weight

200g

6. Maintenance

1. Please do not disassemble the product by yourself.

2. Keep the product away from rain or moisture.

3. Please use the provided power adapter and if you use third party power adapter, please make sure the

voltage range, supplied power, and polarity of power lead are fit.

Match thread 1

Match thread 2

Bundle the

HDMI cable
