S-4611 SDI to DVI converter

USER MANUAL

SWIT Electronics Co., Ltd.

Tel:+86-25-85805753

Fax:+86-25-85805296

http://www.swit.cc

E-mail: contact@swit.cc

1. Characteristics

◆ Portable 3G/HD/SD-SDI to DVI converter

◆ 1 SDI input, 1 SDI loop through output, 1 DVI output,

◆ SDI embedded audio ch-1 & ch-2 output via 3.5mm socket

◆ Heavy duty aluminium housing and bottom screw threads for installation

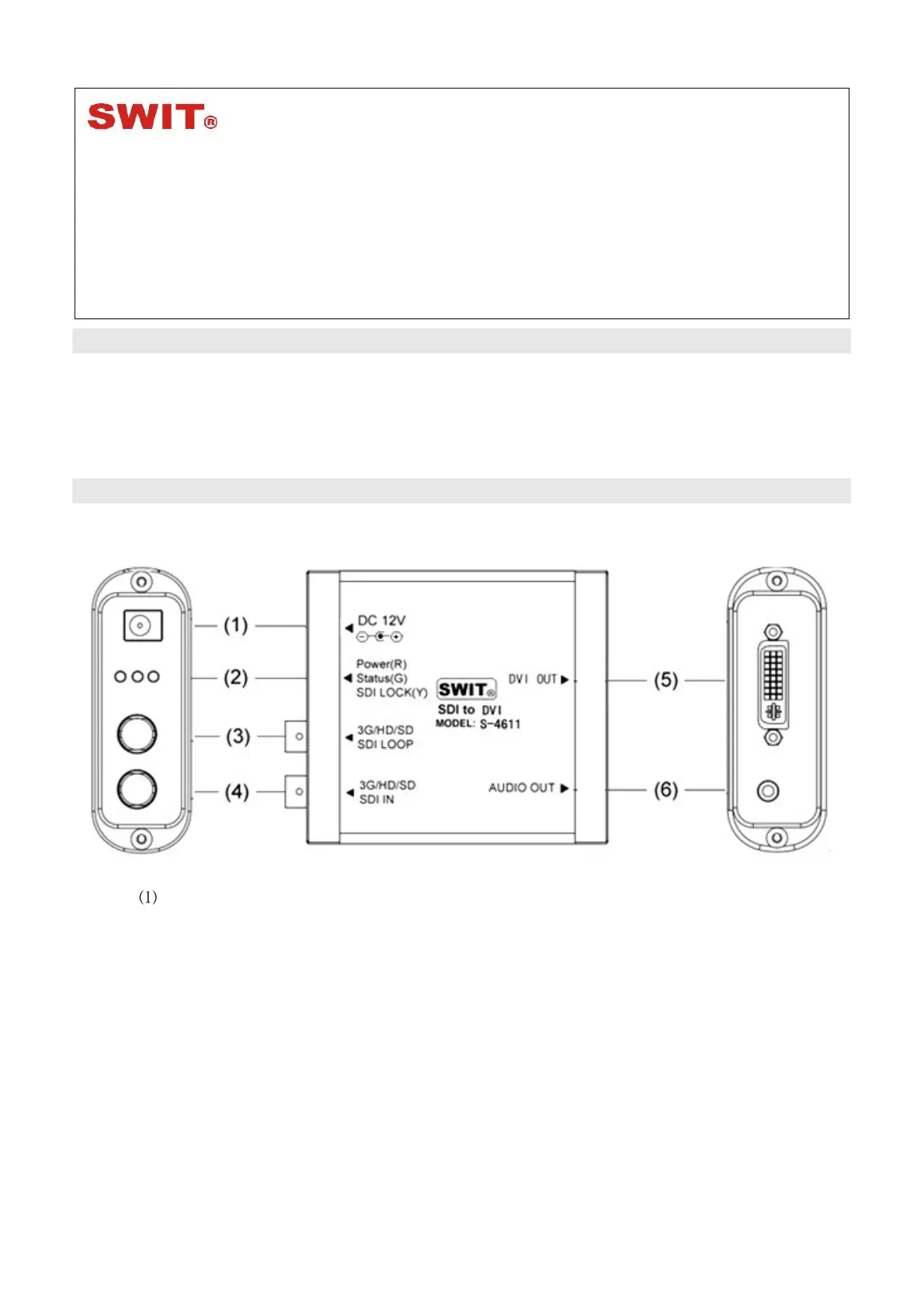

2. Product View

Left side view Front view Right side view

⑴ DC 12V: 5.5mm pole DC input

⑵ LED status indicator

Power (red): light up when power is connected

Status (green): light up when DVI port connected and output signal is recognized

SDI LOCK (Yellow): light up when SDI input signal is recognized

⑶ SDI loop through output (BNC) 3G/HD/SD SDI LOOP:

⑷ SDI input (BNC) 3G/HD/SD SDI IN:

⑸ DVI OUT: DVI output (DVI-I, 24+5)

⑹ AUDIO OUT: Analog audio output (3.5mm)

Ver:V1.0.0V00

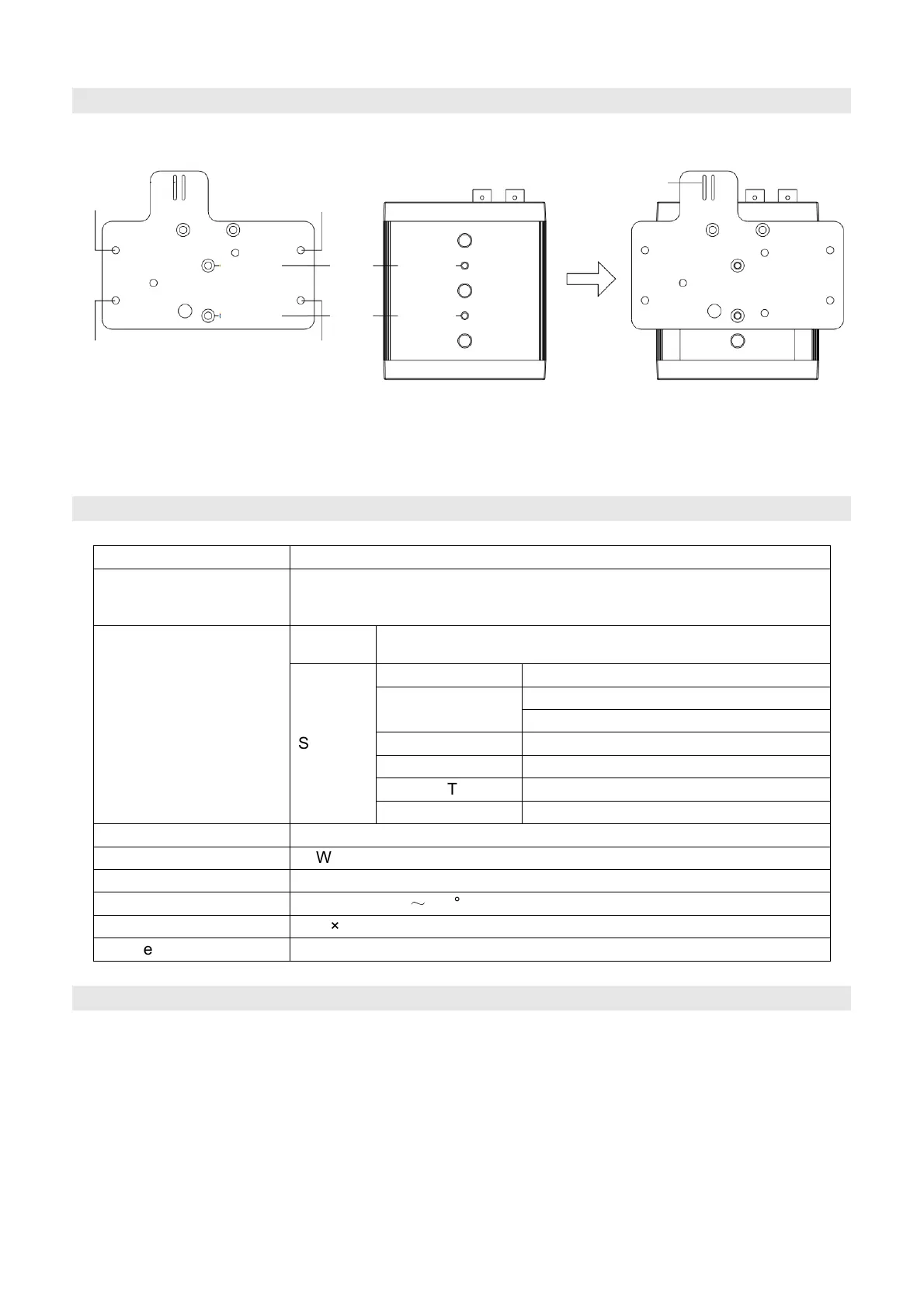

3. Installation Plate

Installation Plate Rear View of S-4611 Installed

Screw hole 3 Screw hole 4

Screw

hole 1

Screw

hole 2

Screw hole 5 Screw hole 6

Match the screw holes 1&2 with the threads 1&2 of S-4611, and fix the installation plate to the

S-4611 by the supplied screws. The screw holes 3, 4, 5, 6 are used to install S-4611 to wall or

racks.

4. Specifications

Input 3G/HD/SD-SDI×1

Output

3G/HD/SD-SDI×1,

DVI×1,

Analog audio (3.5mm)×1

Video Format

DVI 480i / 576i / 720p (60 / 59.94 / 50) / 1080i (60 / 59.94 / 50) /

1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

SDI

SMPTE-425M 1080p (60 / 59.94 / 50)

SMPTE-274M 1080p (30 / 29.97 / 25 / 24 / 23.98)

1080i (60 / 59.94 / 50)

SMPTE-RP211 1080psf (30 / 29.97 / 25 / 24 / 23.98)

SMPTE-296M 720p (60 / 59.94 / 50)

ITU-R BT.656 576i (50)

SMPTE-125M 480i (59.94)

Audio Format 48KHz sync

Power ≤3W

Working Voltage DC 6-18V

Working Environment Temperature: 0 +70°C, Humidity:10%-90%

Dimension 98.5×84.2×29 mm

Net weight 209g

5. Maintenance

1. Please do not disassemble the product by yourself.

2. Keep the product away from rain or moisture.

3. Please use the provided power adapter and if you use third party power adapter, please

make sure the voltage range, supplied power, and polarity of power lead are fit.

Match thread 1

Match thread 2
