S-4601 HDMI to SDI converter

USER MANUAL

SWIT Electronics Co., Ltd.

Tel:+86-25-85805753

Fax:+86-25-85805296

http://www.swit.cc

E-mail: contact@swit.cc

1. Characteristics

Portable HDMI to 3G/HD/SD-SDI converter

1 HDMI input, 1 analog audio (3.5mm) input and 2 SDI output

Embed HDMI audio to SDI output

Embed analog audio to SDI output

HDCP 1.1 supported

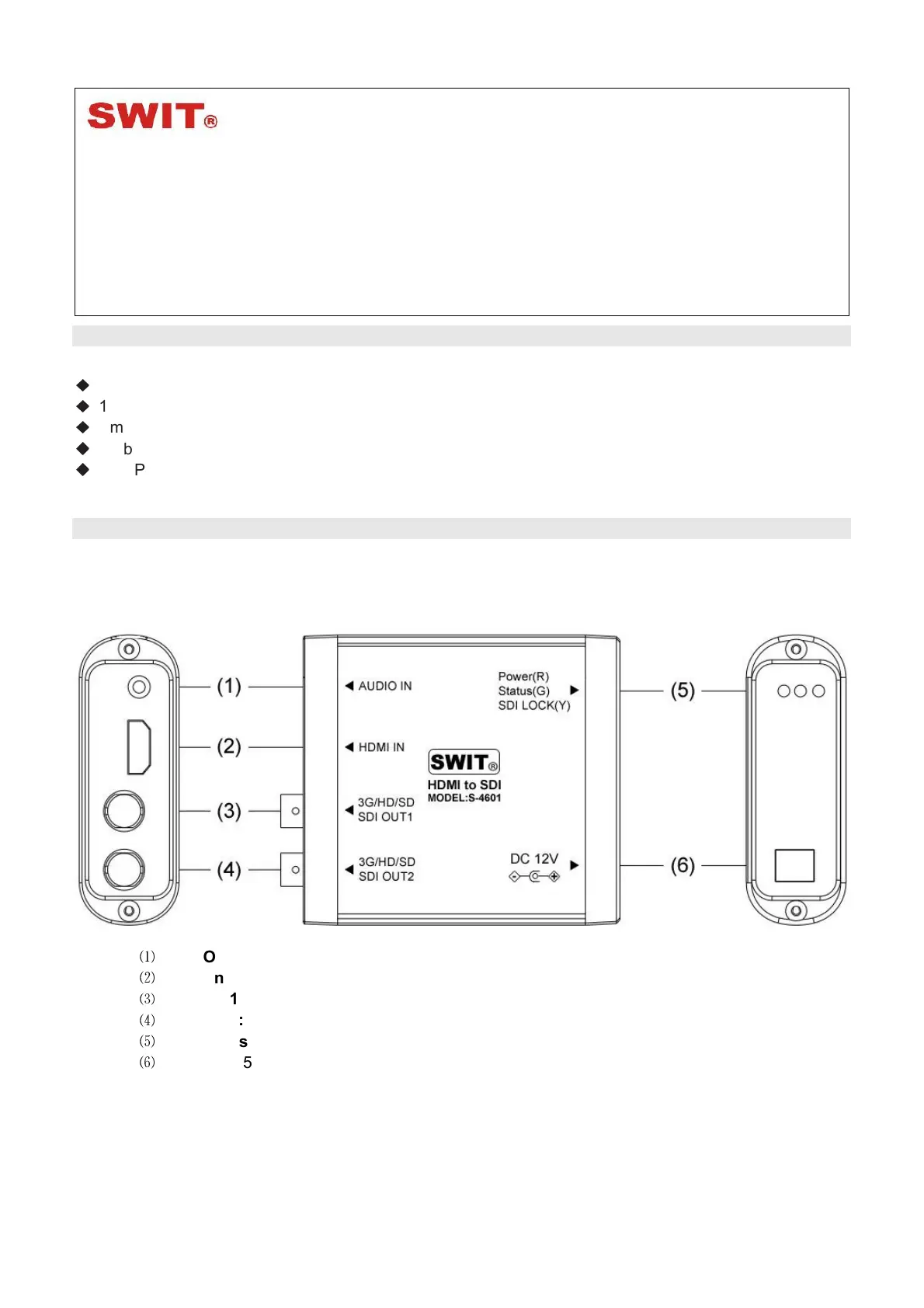

2. Product View

Left side view Front view Right side view

AUDIO IN: Analog audio input (3.5mm)

HDMI input

3G/HD/SD-SDI output (BNC) SDI OUT1:

3G/HD/SD-SDI output (BNC) SDI OUT2:

LED status indicator

DC 12V: 5.5mm pole DC input

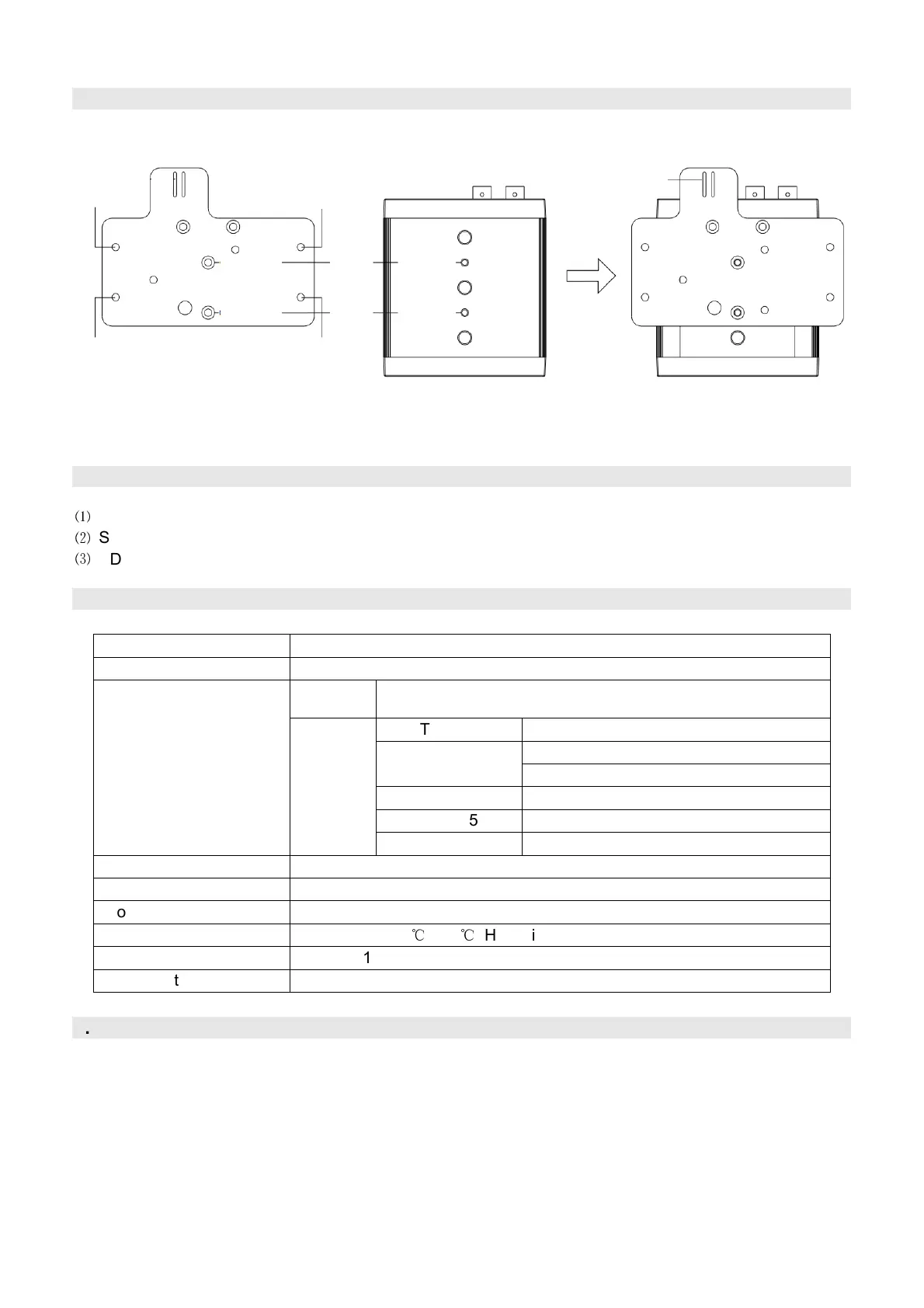

3. Installation Plate

Installation Plate Rear View of S-4601 Installed

Screw hole 3 Screw hole 4

Screw

hole 1

Screw

hole 2

Screw hole 5 Screw hole 6

Match the screw holes 1&2 with the threads 1&2 of S-4601, and fix the installation plate to the S-4601 by the

supplied screws. HDMI cable can be bundled onto the installation plate. The screw holes 3, 4, 5, 6 are used

to install S-4601 to wall or racks.

4. Indicators and Switchers

Power (Red): Power indicator

Status (Green): Status indictor, lights on when there’s HDMI input recognized

SDI LOCK (Yellow): SDI indicator, lights on when there’s SDI output

5. Specifications

Input HDMI(1.3)×1, Analog audio (3.5mm)×1

Output 3G/HD/SD-SDI×2

HDMI 480i / 576i / 720p (60 / 59.94 / 50) / 1080i (60 / 59.94 / 50) /

1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

SMPTE-425M 1080p (60 / 59.94 / 50)

1080p (30 / 29.97 / 25 / 24 / 23.98)

SMPTE-274M 1080i (60 / 59.94 / 50)

SMPTE-296M 720p (60 / 59.94 / 50)

ITU-R BT.656 576i (50)

Video Format

SDI

SMPTE-125M 480i (59.94)

Audio Format 48KHz sync

Power ≤3W

Working Voltage DC 6-18V

Working Environment Temperature: 0 -+70 , Humidity:10%-90%

Dimension 98.5×84.15×29 mm

Net weight 210g

6. Maintenance

1. Please do not disassemble the product by yourself.

2. Keep the product away from rain or moisture.

3. Please use the provided power adapter and if you use third party power adapter, please make sure the

voltage range, supplied power, and polarity of power lead are fit.

Match thread 1

Match thread 2

Bundle the

HDMI cable
