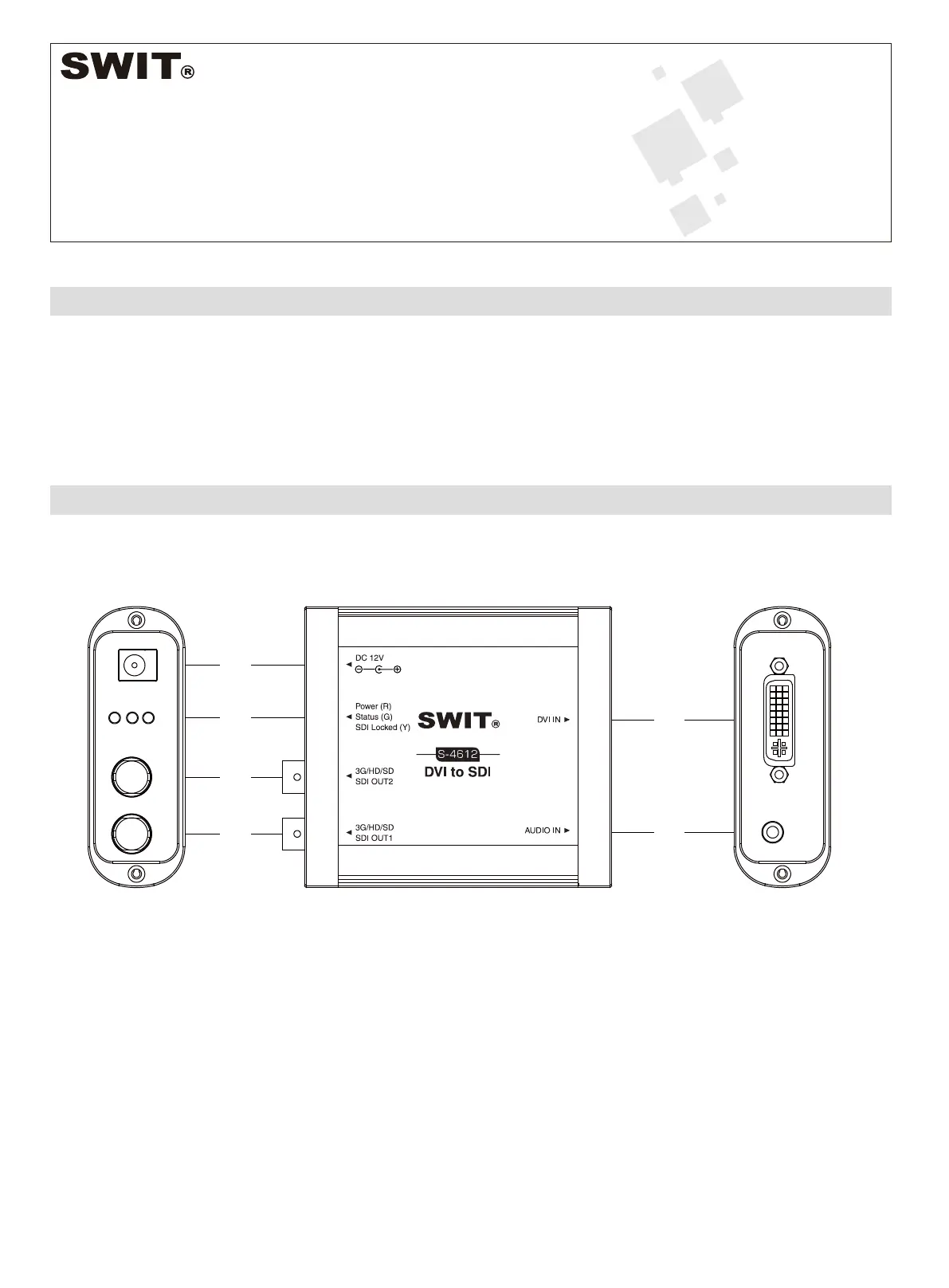

S-4612 DVI to SDI converter

Ver:V1.0V02

Tel:+86-25-85805753

Fax:+86-25-85805296

http://www.swit.cc

E-mail: contact@swit.cc

USER MANUAL

S W I T E l e c t r o n i c s Co. , LT D .

Congratulations on your purchase of this product. Please read this user manual carefully.

Characteristics

Product View

Portable DVI to 3G/HD/SD-SDI converter

1 DVI input, 1 analog audio (3.5mm) input and 2 SDI output

Embed analog audio to SDI ch-1 & ch-2 audio output

Heavy duty aluminium housing and bottom screw threads for installation

◆

Left side view Front view Right side view

⑴ : 5.5mm pole DC input DC 12V

⑵ LED status indicator

Power (red): light up when power is connected

Status (green): light up when DVI port connected and input signal is recognized

SDI Locked (Yellow): light up when SDI output signal is recognized

⑶ : SDI output (BNC)3G/HD/SD SDI OUT2

⑷ : SDI output (BNC)3G/HD/SD SDI OUT1

⑸ : DVI input (DVI-D, 18+1)DVI IN

⑹ AUDIO IN: Analog audio input (3.5mm)

(1)

(2)

(3)

(4)

(5)

(6)

Installation Plate

Specifications

Maintenance

Installation Plate Rear View of S-4612 Installed

Screw hole 3

Screw

hole 1

Screw hole 4

thread 1

thread 2

Match

Screw hole 6Screw hole 5

Match the screw holes 1&2 with the threads 1&2 of S-4612, and fix the installation plate to the S-4612 by

the supplied screws. The screw holes 3, 4, 5, 6 are used to install S-4612 to wall or racks.

1. Please do not disassemble the product by yourself.

2. Keep the product away from rain or moisture.

3. Please use the provided power adapter and if you use third party power adapter, please make sure the

voltage range, supplied power, and polarity of power lead are fit.

Screw

hole 2

Input

Output

Video Format

Audio Format

Power

Working Voltage

Working Environment

Dimension

Net weight

DVI×1, Analog audio (3.5mm)×1

3G/HD/SD-SDI×2

DVI

SDI

480i / 576i / 720p (60 / 59.94 / 50) / 1080i (60 / 59.94 / 50) /

1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

SMPTE-425M

SMPTE-274M

SMPTE-296M

ITU-R BT.656

SMPTE-125M

1080p (60 / 59.94 / 50)

1080p (30 / 29.97 / 25 / 24 / 23.98)

1080i (60 / 59.94 / 50)

720p (60 / 59.94 / 50)

576i (50)

480i (59.94)

48KHz sync

≤3W

DC 6-18V

Temperature: 0 +70°C, Humidity:10%-90%～

98.5×84.2×29 mm

207g
