Side 1/21
p/n 725.0023 REV 1.8 © 2021 TCW Technologies, LLC.
1

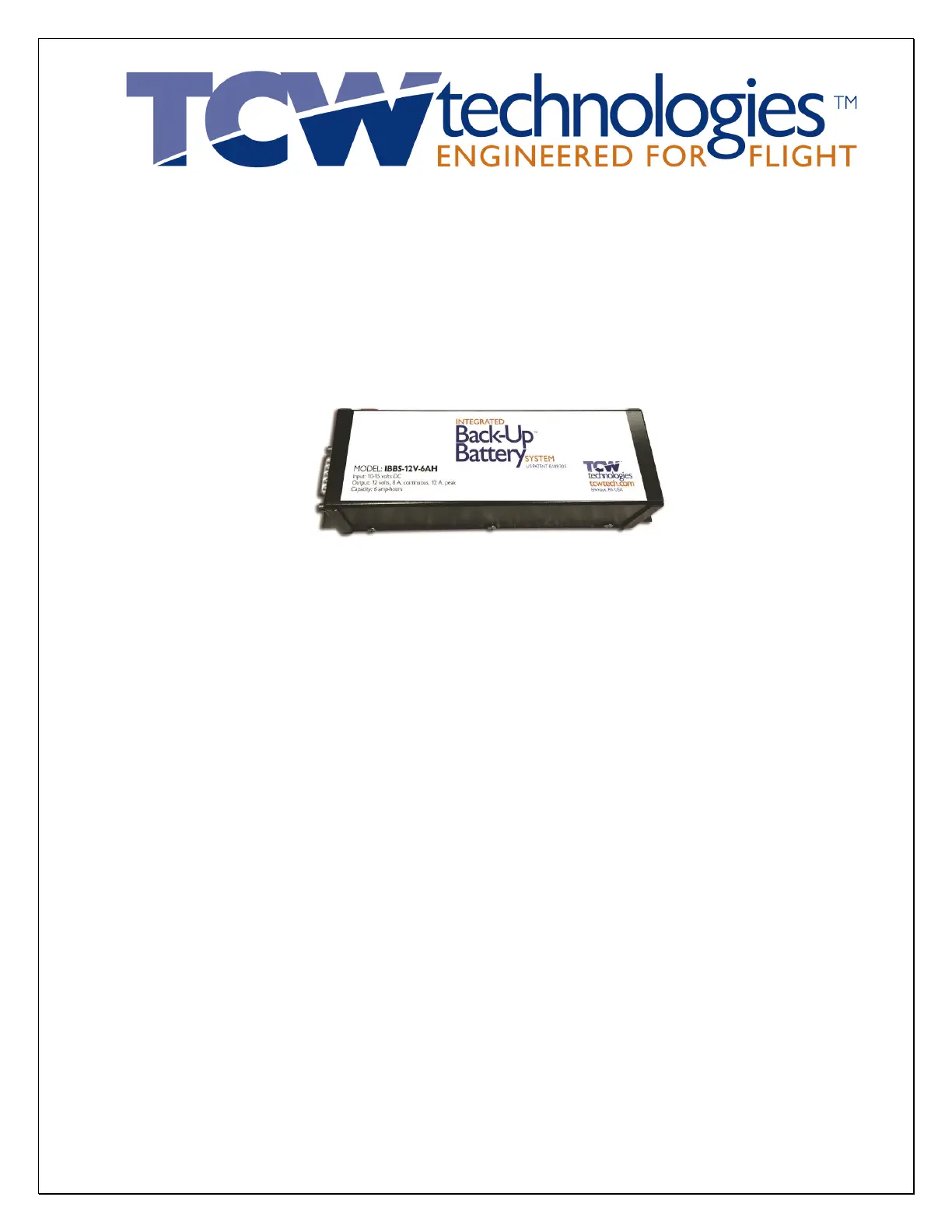

Integrated Back-up Battery System
Model: IBBS-12v-6ah
The Integrated Back-up Battery System, IBBS, is an electronic system
that combines a Lithium-Iron-Phosphate (Li-Fe-PO4) battery pack, a
charger and switching logic in one convenient package. The IBBS
provides an engineered solution to enable an endurance bus for critical
loads found in aircraft. It simplifies the wiring and installation of a source
of back-up power by integrating all of the key elements into a single
enclosure. The IBBS system provides back-up power to critical
electronic loads such as EFIS, GPS, Autopilots and engine monitor
systems.
Integral to the IBBS is a lithium-iron-phosphate battery pack and a
matched charging system to ensure the battery is properly charged and
maintained. The system also includes switching circuitry to provide a
stable source of output power during normal and emergency operations.
The IBBS system also provides signals to other equipment such as EFIS
systems to communicate the operating state of the main aircraft bus as
well as the state of the battery.
The IBBS system connects to the standard aircraft power bus and
provides an output to critical equipment that require back-up power.
Additionally, the IBBS system provides surge and sag protection for
connected equipment, allowing operation of critical equipment during
engine starting.
p/n 725.0023 REV 1.8 © 2021 TCW Technologies, LLC.
2
The IBBS system is suitable for use with equipment such as Garmin
GNS and GTN series navigators, G3X series of avionics, Grand Rapids
Technologies EFIS systems, Advanced Flight Systems EFIS, Dynon
EFIS, and MGL EFIS, TruTrak Autopilots and EFIS, Trio Autopilots.
No other uses of the IBBS system are permitted except for those
identified in this installation manual.
IBBS must be installed using the current aircraft standards and practices
as shown in AC 43.13-2A/1B. The installer/builder is solely responsible
for determining the suitability of the installation and use of this product.
IBBS products are protected by US Patent 8,189,305
Table of Contents
Installation Information: pg. 3
General Product info: pg. 5
Battery Capacity details: pg. 7
Product Operation: pg. 8
Instructions for Continued Airworthiness: pg. 9
Specifications pg. 12
Connector Pin-out pg. 13
Mounting plate drawing pg. 14
General Wiring diagram pg. 15
Example Wiring diagrams pg. 16-20
Warranty information pg. 21
Service and Support information:
610-928-3420 TCW Technologies, LLC.
www.tcwtech.com 2955 Main Road East
email: support@tcwtech.com Emmaus, PA 18049
