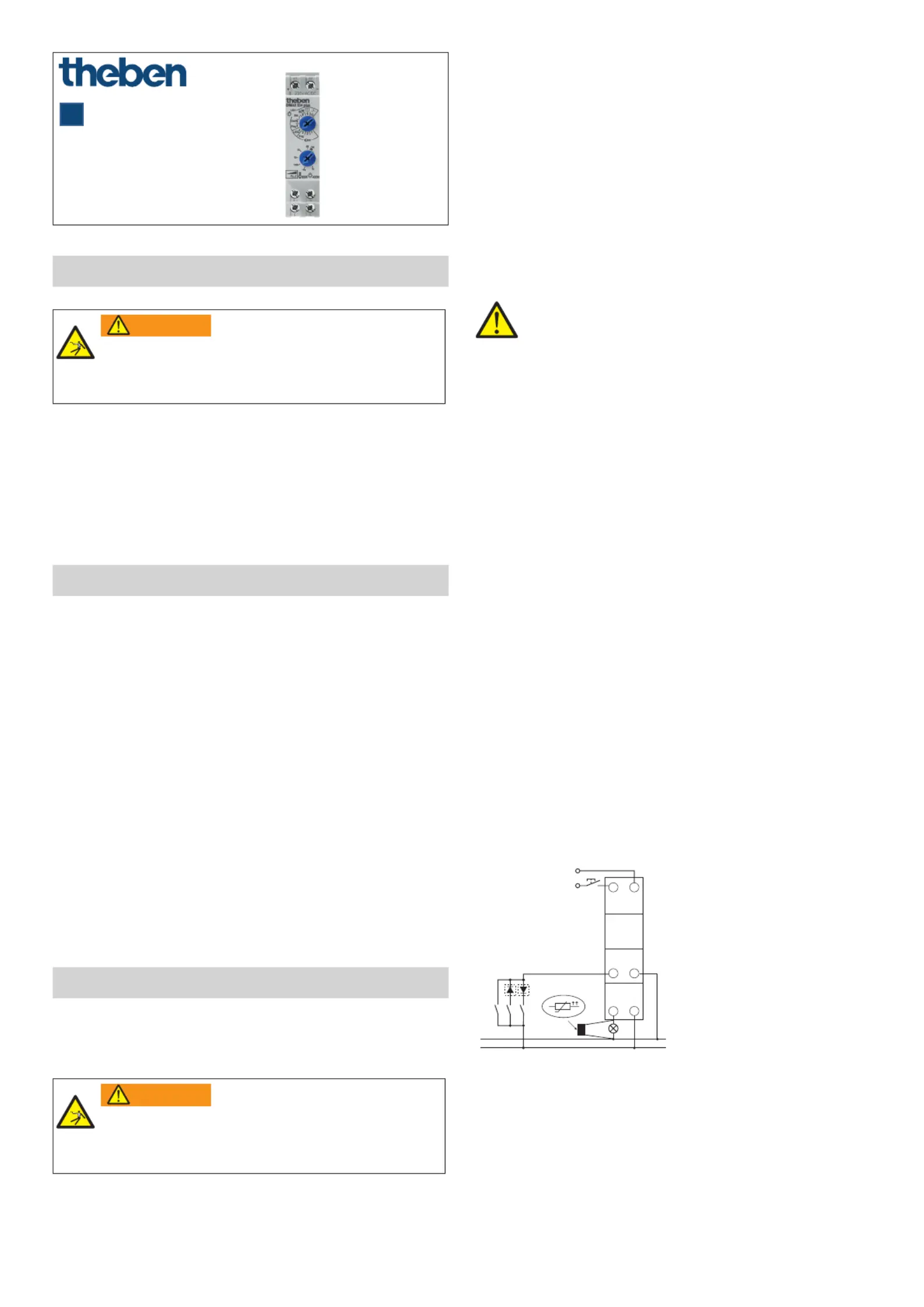

Side 1/5

DIMAX 534 plus

5340001

307171 02

Universal dimmer

1. Basic safety information

Danger of death through electric shock or fire!

¾ Installation should only be carried out by a

qualied electrician!

WARNING

LDue to increasing technical progress, conspicuous features

in dimming behaviour or malfunctions cannot be ruled out

for dimmed lamps (in particular LEDs)

•

The dimmer is designed for installation on DIN top hat

rails (in accordance with EN 60715)

•

It conforms with IEC/EN 60669-2-1 if correctly installed

2. Proper use

•

The dimmer switches and dims the brightness of diffe-

rent lamps such as bulbs, high-voltage halogen lamps,

low-voltage halogen lamps (conventional or with elect-

ronic transformer), dimmable compact uorescent lamps

(energy saving lamps) or dimmable lamps for 230 V as

well as for fans

•

The setting for brightness is carried out using the

dimmer on the button connected

•

The universal dimmer has a lamp-friendly "soft" on and

off system, automatic detection of the load type (not

in the case of ESL2 and LED2), overheating protection

against overload as well as a short-circuit protection.

•

For use in private and public buildings, in closed rooms

Disposal

Dispose of device in environmentally sound manner

3. Installation and connection

Mounting the dimmer

Danger of death through electric shock or fire!

¾ Installation should only be carried out by a

qualied electrician!

WARNING

Disconnect power source

Ensure device cannot be switched on

Check absence of voltage

Earth and bypass

Cover or shield any adjacent live components

Mount the dimmer in the lower part of the distributor to

avoid an excessively high temperature during use.

In the case of a service line of >300 W keep an 8 mm dis-

tance to the right and left of the device.

Connecting the dimmer

¾ Always operate electrical and conventional transformers

with the minimum load specied by the manufacturer.

¾ Use only dimmable compact uorescent lamps / LED lamps

as normal compact uorescent lamps / LED lamps may be

destroyed.

¾ When changing the lamps, switch off the power supply

(at the fuse box) so that the automatic load detection is

reactivated.

¾ Do not connect dimmer load connections (L´) in parallel.

¾ Do not by-pass or short-circuit the dimmer.

¾ Do not install any isolating or variable transformers before

the dimmer.

¾ Do not mix wound and electronic transformers in the

installation.

¾ Do not install wound transformers and compact uorescent

lamps / LED lamps mixed.

¾ Do not connect push button with glow lamp.

¾ Correct, automatic load detection is only possible with a

connected load.

¾ Only use transformers approved by the manufacturer for

dimmer operation.

Connection with 8 ... 230 V

Push buttons A1/A2 On/Off/Dim

LS 1 = Lighting scenario 1

LS 2 = Lighting scenario 2

LS 3 = Lighting scenario 3

9070825

A2A1

–

AC/DC

8 ... 230 V

L‘

LS 1

LS 2

LS 3

Use compensation module 9070825 to prevent the LEDs

from afterglow or ickering.

Install the compensation module parallel to the

consumer.

Component can get hot!

Connection with 230 V

L´

A2A1

LS 1

LS 2

LS 3



Connection with Booster DMB 1 T (4930279)

DMB 1 T

L´

A2A1

LS 1

LS 2

LS 3

Performance upgrade (see technical data for DMB 1 T

booster)

4. Description of functions

The dimmer is equipped with a rotary switch with 10 posi-

tions in order to set the operating mode:





Rotary switch for setting 10 func-

tions

Potentiometer for setting the dim-

ming time from 1 s to 60 min (for

wake-up and snooze function, stair-

case time switch and switch function)

ON = Dimmer is always on



Functions for dimmable compact uorescent

lamp (CFL) (ESL)

Position 1

With automatic load detection (usually trailing edge),

•

always start with 100% to ignite the CFL

•

Dimming down only possible after 3 sec.

Position 2

No automatic load detection (always with )leading edge

•

Always start with at least 50% to ignite the CFL

•

Dimming down only possible after 2 sec.

Position 3 Prog

Teach in light settings and minimum brightness (only for CFL)

LWith several compact uorescent lamps, an annoying

ickering may occur when dimming in position 1.

In this case, use position 2.

Carry out settings only with warm compact uorescent

lamps (after approx. 5 minutes).

LSeveral compact uorescent lamps may cause an overload

in position 2 that automatically leads to the load dimming.

Select position 1 in order to avoid this

Function for LEDs

Position 4: LED 2

No automatic load detection (always with edge) (ideal leading

for dimming problems with LEDs)

LSeveral LED types may cause an overload in position 4

that automatically leads to the load dimming.

Select position 6 or 7 in order to avoid this

LED1

Functions for standard lamps (e.g., bulbs, halogen

lamps, transformer, LEDs)

Position 5 Prog

Teach in light settings and minimum brightness

Position 6 Comf

Comfort function

With automatic load detection for the conventional lamp

types

Position 7 Strd

Standard function

With automatic load detection for the conventional lamp

types

Position 8

2-push button function using diode module with double

switch or rocker button

Position 9

Staircase time switch function

Position 10

Switch function (e.g., for presence and motion detector)

5. Setting the functions

1. Wake-up function (comfort function)

•

active in position 1, 2, 4, 6, 10

The dimmer dims from the minimum brightness up to the

switch-on brightness taught-in within the set dimming time

(activation via double click).
