INSTRUCTION MANUAL

MEGAPHONES ER-1215

ER-1215S

Thank you for purchasing TOA's Megaphones.

Please carefully follow the instructions in this manual to ensure

long, trouble-free use of your equipment.

• Before installation or use, be sure to carefully read all the

instructions in this section for correct and safe operation.

• Be sure to follow all the precautionary instructions in this

section, which contain important warnings and/or

cautions regarding safety.

• After reading, keep this manual handy for future

reference.

1. SAFETY PRECAUTIONS

CAUTION

Indicates a potentially hazardous situation which,

if mishandled, could result in moderate or minor

personal injury, and/or property damage.

• Cautions on Use

Be sure to observe the following instructions. Failing to

observe may cause hearing impairment.

· Reduce the volume to its lowest setting before use.

· Never use the megaphone in close proximity to a

person's ear.

· Point the megaphone toward the ground when

conducting operational tests.

• Make sure to observe the following handling precautions

so that a fire or personal injury does not result from

leakage or explosion of the battery.

· Do not short, disassemble, heat nor put the battery into

a fire.

· Avoid using both new and old batteries together.

· Never charge batteries of the type which are not

rechargeable.

· Do not solder a battery directly.

· Be sure to use the specified type of batteries.

· Note correct polarity (positive and negative orientation)

when inserting a battery in the unit.

· Avoid locations exposed to the direct sunlight, high

temperature and high humidity when storing batteries.

2. GENERAL DESCRIPTION

15 W megaphones.

The ER-1215S is equipped with a siren switch.

Handle and mouthpiece with anti-bacteria treatment improve

hygiene and safety during use.

4. SPECIFICATIONS

Sounds at 5 seconds intervals.

Battery life estimates assume 30 minutes of continuous use

per day.

Audible range estimates assume use on a relatively quiet

street using new batteries and will vary depending on

remaining battery capacity, surrounding noise, wind direction,

obstacles and other environmental conditions.

Notes

• No accessory batteries are supplied.

• The design and specifications are subject to change without

notice for improvement.

3. HANDLING PRECAUTIONS

• The ER-1215/1215S megaphones are not waterproof.

Avoid exposure to rain or environments where it may be

splashed by water or other liquids.

• Immediately contact your TOA dealer if the following

irregularities should occur. To avoid unit failure, make no

further attempt to use the unit in these conditions.

· Smoke coming from the unit or a strange smell detected.

· Water or other foreign objects get inside the unit.

· No sound heard (after checking to be sure that the batteries

are loaded in correct orientation, and satisfactorily charged).

• Avoid storing the unit in humid or dusty locations, in locations

exposed to direct sunlight, near heaters, or exposed to sooty

smoke, as these conditions may result in unit failure.

• When batteries are left installed in the megaphone for extended

periods of time, be sure to check them periodically for charge

and leakage.

• Do not use the unit for extended periods of time with a distorted

sound output. This could cause the inner parts to become hot

and possibly result in unit failure.

• Noise may be produced when a mobile phone is used near the

unit. However, this is not a failure. Use the mobile phone as far

as possible from the unit.

• Use a tightly wrung-out damp cloth to clean the unit. If the unit

becomes extremely dirty, use a cloth moistened in a neutral

detergent and tightly wrung-out. Never use volatile liquids such

as benzene, thinner, or alcohol to clean the unit, as these may

deform or discolor its case.

Model No. ER-1215 ER-1215S

Power Source C (R14P) battery x 6 (9 V DC)

Output Rated 15 W, Max. 23 W

Signal

–

Siren*

Battery Life*

Voice: 14 hours Voice: 14 hours

(approx.) Signal: 20 minutes

Audible Range*

Voice: 315 m Voice: 315 m

(approx.) Signal: 500 m

Diaphragm Polyimide film (voice coil, bobbin)

Anti-bacteria Treatment

Mouth and handle

Operating Temperature

–10°C to +40°C

Finish Horn

ABS resin, light gray

ABS resin, red

Others ABS resin, gray

Dimensions 210 (w) x 291 (h) x 346 (d) mm

Weight 1.1 kg 1.2 kg

(without batteries) (without batteries)

Step 1. Using the volume control, adjust the volume to an

appropriate level that does not generate feedback when

holding down the talk switch.

Howling is more likely to occur when using the

megaphone indoors or in other reverberant places.

Particularly when the batteries are new, it may be

impossible to adjust the volume to maximum without

causing howling. In such cases, set the volume to about

mid-level.

Step 2. Speak into the mouthpiece at a distance of about 1 cm.

Notes

• Speaking too far from the mouthpiece or in too soft

voice may result in insufficient volume.

• Moisture droplets collecting in the hole on the

mouthpiece may cause noticeably insufficient volume.

Wipe the droplets away with a cloth or other material

and allow the area to dry sufficiently before resuming

use.

[For ER-1215S]

When using the siren, pressing the talk switch will cause the

siren to stop sounding so that the voice announcement can be

heard. Releasing the talk switch allows the siren to resume.

7. HOW TO USE

Polarity diagram

Tab

Slot

Battery case

Mouth

Open

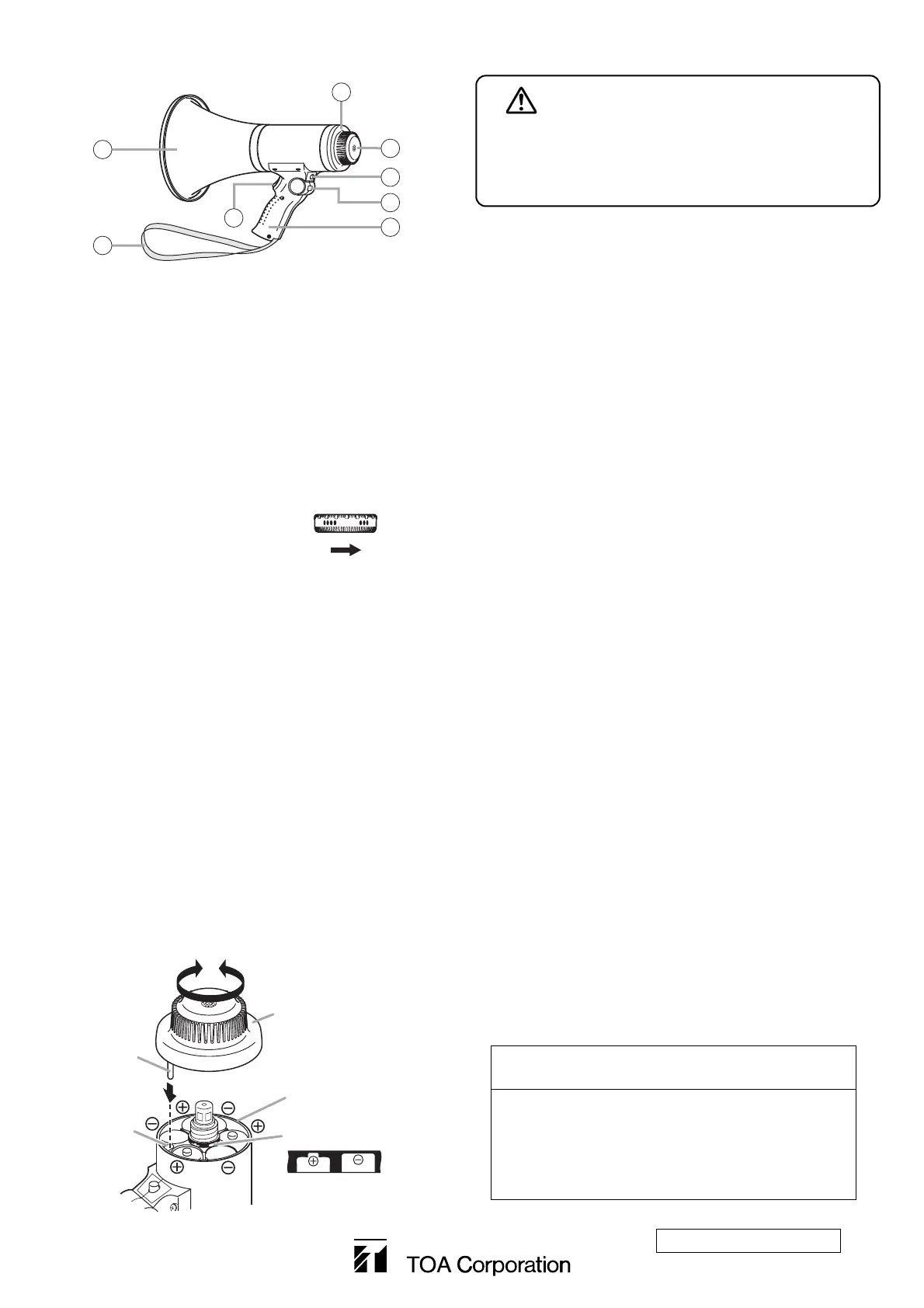

5. NOMENCLATURE AND FUNCTIONS

1. Speaker (outer horn)

2. Shoulder strap

Use this strap to hang the

unit from the shoulder for

transport or use.

(Length: approx. 50 cm)

3. Mouth

The battery compartment is

built inside. Turn the cover

counterclockwise to open it

and clockwise to close it.

4. Mouthpiece

Speak into the mouthpiece

at a distance of about 1 cm.

Anti-bacteria treated, the

mouthpiece helps make

such close contact during

use hygienic and safe.

5. Talk switch

Press to talk (power turns

ON). Release to turn the

power OFF.

6. Signal tone switch

(ER-1215S only)

A siren tone sounds when

this switch is pressed, and

stops when pressed again.

Note

Output volume is fixed, and

cannot be adjusted with the

volume control.

7. Volume control

Rotate right to increase

output volume.

8. Handle

The handle with anti-bacteria

treatment improve hygiene

and safety during use.

Volume high

Step 1. Rotate the mouth counterclockwise to remove it.

Note

If the megaphone is at all wet, be sure to dry it

thoroughly before opening it to replace the batteries.

Step 2. Insert six C batteries referring to the polarity diagram on

the inside of the battery compartment.

Step 3. Insert the tab on the inside of the battery cover into the

slot in the battery compartment as shown and turn the

battery cover clockwise until tight.

6. REPLACING THE BATTERIES

CAUTION

• Before pressing the talk switch, fully turn down the

volume.

• Point the megaphone toward the ground when conducting

operational tests.

533-03-029-5B

URL: http://www.toa.jp/

Traceability Information for Europe

(EMC directive 2004/108/EC)

Manufacturer:

TOA Corporation

7-2-1, Minatojima Nakamachi, Chuo-ku, Kobe, Hyogo, Japan

Authorized representative:

TOA Electronics Europe GmbH

Suederstrasse 282, 20537 Hamburg, Germany

Produkt Specifikationer

Mærke:	TOA
Kategori:	Megafon
Model:	ER-1215S
Vægt:	1200 g
Velegnet til:	Udendørs
Produktfarve:	Rød
Udgangseffekt:	23 W
Strømkilde type:	Batteri
Batteritype:	R14P
Antal understøttede batterier:	6
Længde:	346 mm
Maks. rækkevidde:	500 m
Megafontilstande:	Siren, Talk
