Inner horn

Holder

SP-1100

Dustproof cover

URL: http://www.toa.jp/

133-03-00009-00

Step 1. Install a self-tapping screw temporarily into the

wall.

Notes

• Use the screw that is appropriate for the

construction of the wall.

• Two 4 x 16 self-tapping screws are supplied

with the SP-1100 bracket.

Step 2. Hook the bracket's slotted hole over the screw

head. Slide the bracket down in the direction

indicated by the arrow.

Step 3. Align the bracket vertically, then fix the bottom part

of the bracket with another self-tapping screw.

Step 4. Tighten both the top and bottom screws to

securely mount the bracket to the wall.

5. INSTALLATION

Two mounting pitches are

made available for selection:

192.5 mm or 242.5 mm.

7. FOLDING THE BRACKET

The holder and dustproof cover can fold if the megaphone

is removed.

Fold the holder first, and then the dustproof cover.

When mounting the megaphone, open the dustproof

cover first, and then the holder.

Step 1. Raise the bracket's dustproof cover.

Step 2. Place the megaphone on the holder with its front

down.

Step 3. Lower the dustproof cover of the bracket.

6. MOUNTING THE MEGAPHONE

When detaching the megaphone from the bracket,

reverse the above procedures.

Note: Lift the megaphone to detach. The dustproof

cover opens if the megaphone is lifted.

Holder

SP-1100

Dustproof cover

Wall

242.5 mm

192.5 mm

4 x 16 self-tappimg screws (supplied)

Stay

(mm)

Slotted hole dimensions

ø10

4. SPECIFICATIONS

NOMENCLATURE AND DIMENSIONAL DIAGRAM

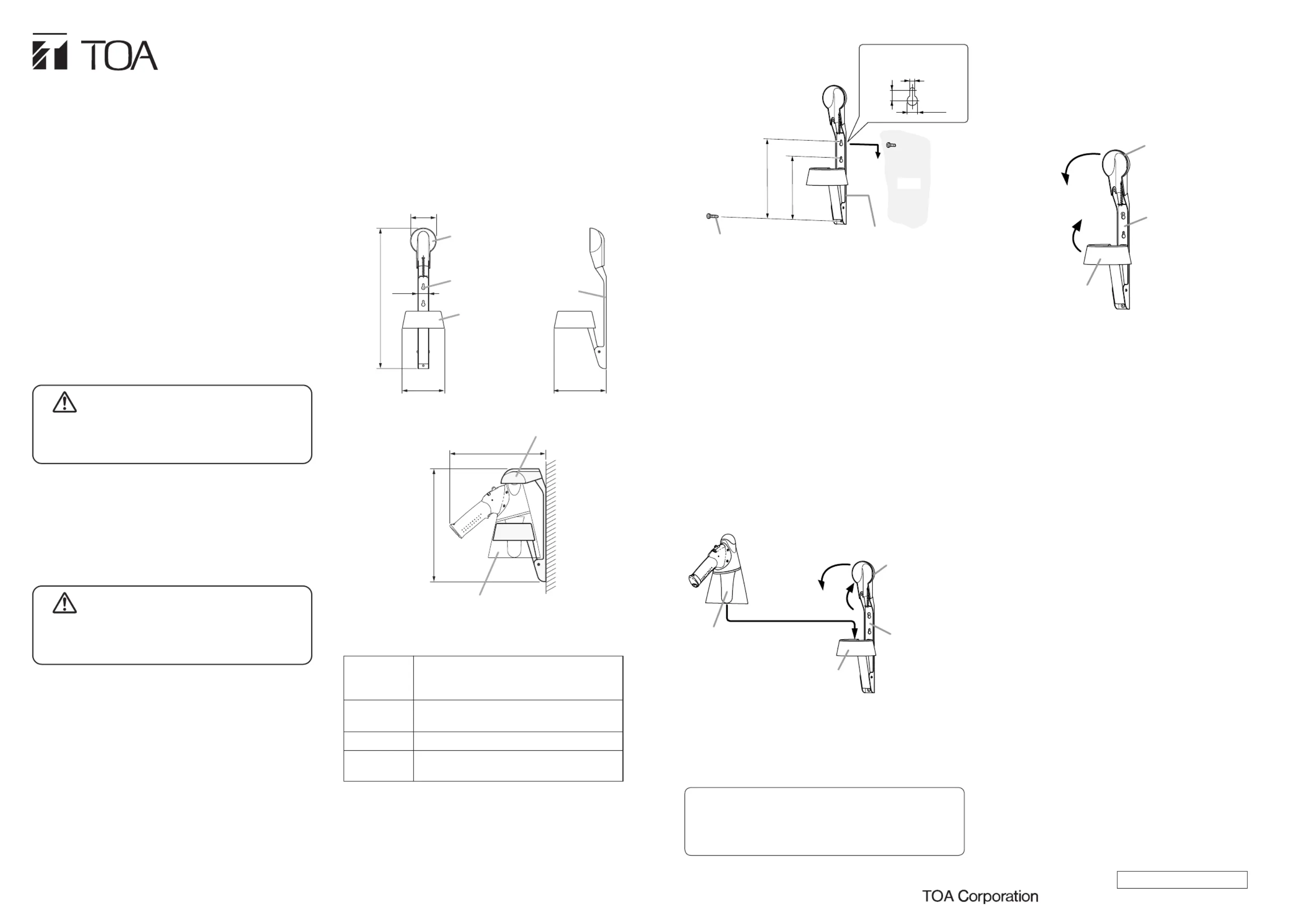

INSTRUCTION MANUAL

WALL MOUNTING BRACKET

SP-1100

Thank you for purchasing TOA's Wall Mounting Bracket.

Please carefully follow the instructions in this manual to

ensure long, trouble-free use of your equipment.

420

333

126

156

282

Dustproof cover

Stay

Slotted hole

Holder

]ediS[]tnorF[

[Megaphone mounted view]

SP-1100

Megaphone

Unit: mm

Wall

Note: The s n d s f t s e s ct tode ig an peci ica ion ar ubje

change without notice for improvement.

• Accessories

4 x 16 tapping screws ................................ 2

•Before installation or use, be sure to carefully read all

the t t s in t s t n for t d safeins ruc ion hi sec io correc an

operation.

•Be s e to f w l the c t y s inur ollo al pre au ionar in ru ionst ct

t s se , ch c t n t t s /orhi ction whi on ai impor an warning and

cautions regarding safety.

•After , p t s l y for futurereading kee hi manua hand

reference.

1. SAFETY PRECAUTIONS

WARNING

Indicates a potentially hazardous situation which,

if s , d s t in th or s usmi handled coul re ul dea erio

personal injury.

•In l the t y in a t n t t n st t lystal uni onl loca io ha ca ruc ural

support the weight of the unit and the mounting bracket.

Doing otherwise may result in the unit falling down and

causing personal injury and/or property damage.

•Avoid t g the ket in t s e lemoun in brac loca ion wher peop

could accidentally bump into it. Failure to observe this

could result in personal injury.

CAUTION

Indicates a potentially hazardous situation which,

if mishandled, could result in moderate or minor

personal injury, and/or property damage.

•Since the unit is designed for indoor use, do not install it

ou doors ins alle ou doors agin part . If t d t , the g of ts

c s the t to f l o , t g in s l y.ause uni al ff resul in per ona injur

A , n it ts t th , t e is a r oflso whe ge we wi rain her dange

electric shock.

•Use the cif d e in t . ngspe ie megaphon combina ion Doi

otherwise may cause the unit or component to fall off,

resulting in personal injury.

•Do not stand or sit on, nor hang down from the unit as

t s y c se it to f l n or , t g inhi ma au al dow drop resul in

personal injury and/or property damage.

2. GENERAL DESCRIPTION

The SP-1100 bracket is designed to be used exclusively

to mount the ER-1203 and ER-1206 series megaphones

on a . It ts the e to be t d inwall permi megaphon ins alle

easy-to-see locations, and the megaphone can be easily

mounted and detached. The dustproof cover protects the

megaphone's mouthpiece while the megaphone is placed

in the bracket, offering improved hygienic safety.

Finish Stay: Stainless steel (SUS304)

Holder, dustproof cover: ASA resin,

dark gray clear

Dimensions [With dustproof cover and holder open]

126 (w) x 420 (h) x 156 (d) mm

Weight 410 g

Usable ER-1203,

Megaphone ER-1206, ER-1206S, ER-1206W
