Side 1/4

• Before installation or use, be sure to carefully read all the

instructions in this section for correct and safe operation.

• Be sure to follow all the precautionary instructions in this

section, which contain important warnings and/or

cautions regarding safety.

• After reading, keep this manual handy for future

reference.

1. SAFETY PRECAUTIONS

CAUTION

Indicates a potentially hazardous situation which,

if mishandled, could result in moderate or minor

personal injury, and/or property damage.

• Cautions on Use

Be sure to observe the following instructions. Failing to

observe may cause hearing impairment.

· Reduce the volume to its lowest setting before use.

· Never use the megaphone in close proximity to a

person's ear.

· Point the megaphone toward the ground when

conducting operational tests.

• Make sure to observe the following handling precautions

so that a fire or personal injury does not result from

leakage or explosion of the battery.

· Do not short, disassemble, heat nor put the battery into

a fire.

· Avoid using both new and old batteries together.

· Never charge batteries of the type which are not

rechargeable.

· Do not solder a battery directly.

· Be sure to use the specified type of batteries.

· Note correct polarity (positive and negative orientation)

when inserting a battery in the unit.

· Avoid locations exposed to the direct sunlight, high

temperature and high humidity when storing batteries.

2. GENERAL DESCRIPTION

The ER-2230W and ER-2930W are 30 W shoulder-type

megaphones featuring a built-in whistle. Designed to house an

optional wireless tuner module, the ER-2930W can be used to

make announcements from remote locations using a wireless

microphone when so equipped.

3. FEATURES

• The microphone attached to the megaphone is equipped with a

talk switch and volume control that offer easy operation.

• An optional wired microphone can be connected to the external

microphone input to make public address announcements and

an audio player to the auxiliary input terminal to play music.

• A 12 V storage battery can be connected to the external power

input terminal for extended operation.

• The operation panel's power indicator permits easy checks of

the remaining battery voltage level (either continuously lit or

flashing)

• Can be mounted on the optional ST-16A speaker stand.

• Microphone with anti-bacteria treatment improve hygiene and

safety during use.

• Though not waterproof constructed, the megaphones can be

used in locations exposed to light rain or a spray of water with

use of the supplied splash-proof cover.

4. HANDLING PRECAUTIONS

• Immediately contact your TOA dealer if the following

irregularities should occur. To avoid unit failure, make no

further attempt to use the unit in these conditions.

· Smoke coming from the unit or a strange smell detected.

· Water or other foreign objects get inside the unit.

· No sound heard (after checking to be sure that the batteries

are loaded in correct orientation, and satisfactorily charged).

• Avoid storing the unit in humid or dusty locations, in locations

exposed to direct sunlight, near heaters, or exposed to sooty

smoke, as these conditions may result in unit failure.

• Do not use the unit in heavy rains or strong winds, or in

locations where the unit is directly exposed to water even using

with the supplied splash-proof cover.

• When batteries are left installed in the megaphone for extended

periods of time, be sure to check them periodically for charge

and leakage.

• Do not use the unit for extended periods of time with a distorted

sound output. This could cause the inner parts to become hot

and possibly result in unit failure.

• Noise may be produced when a mobile phone is used near the

unit. However, this is not a failure. Use the mobile phone as far

as possible from the unit.

• Use a tightly wrung-out damp cloth to clean the unit. If the unit

becomes extremely dirty, use a cloth moistened in a neutral

detergent and tightly wrung-out. Never use volatile liquids such

as benzene, thinner, or alcohol to clean the unit, as these may

deform or discolor its case.

ER-2230W

ER-2930W

MEGAPHONE

WIRELESS MEGAPHONE

INSTRUCTION MANUAL

Thank you for purchasing TOA's Megaphones.

Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

Traceability Information for Europe (EMC directive 2004/108/EC)

Manufacturer:

TOA Corporation

7-2-1, Minatojima Nakamachi, Chuo-ku, Kobe, Hyogo, Japan

Authorized representative:

TOA Electronics Europe GmbH

Suederstrasse 282, 20537 Hamburg,Germany

Battery cover

Body

Dented portion

in the battery case

Polarity indications

Battery polarity indication

CHANNEL

CHANGE

10. Wireless/Aux input volume control

Adjusts the volume of the wireless microphone or other

equipment connected to the AUX input.

Notes

• The wireless function cannot be used with the ER-2230W.

• This volume control is for both a wireless microphone and

external equipment connected to the AUX input. Properly

pre-adjust the output level of external equipment.

11. Auxiliary input terminal

Connect the output of other external equipment such as an

audio player to this terminal using the supplied 3.5 mm mini

plug.

12. External microphone volume control

Adjusts the volume of microphone connected to the rear-

mounted external microphone input terminal (13).

13. External microphone input terminal

Connect the optional wired microphone to this terminal. This

terminal is unbalanced and permits connection of a 6.3 mm

phone plug.

14. Power indicator

Lights when the External input power switch (15) is set to the

ON position, and also indicates the remaining battery voltage

as follows:

Steady ON: Remaining battery voltage is sufficient.

Flashing: Batteries need replacement .

Note: Use this indicator for basic reference, since manganese

batteries feature a voltage return phenomenon.

15. External input power switch

Press this switch when using the wireless microphone, AUX

input-connected equipment, or the external microphone.

Pressing the switch turns the power ON, and pressing it

again turns the power OFF.

16. External power input terminal

Connect this terminal to a 12 V battery with the supplied

external power plug cord.

Note: Inserting the plug into the External power input terminal

disconnects the internal power (dry battery), permitting

the external power supply to take precedence.

17. Talk switch

Press to talk (power turns ON).

Release to turn the power OFF.

18. Volume control

Rotate upward to increase output volume.

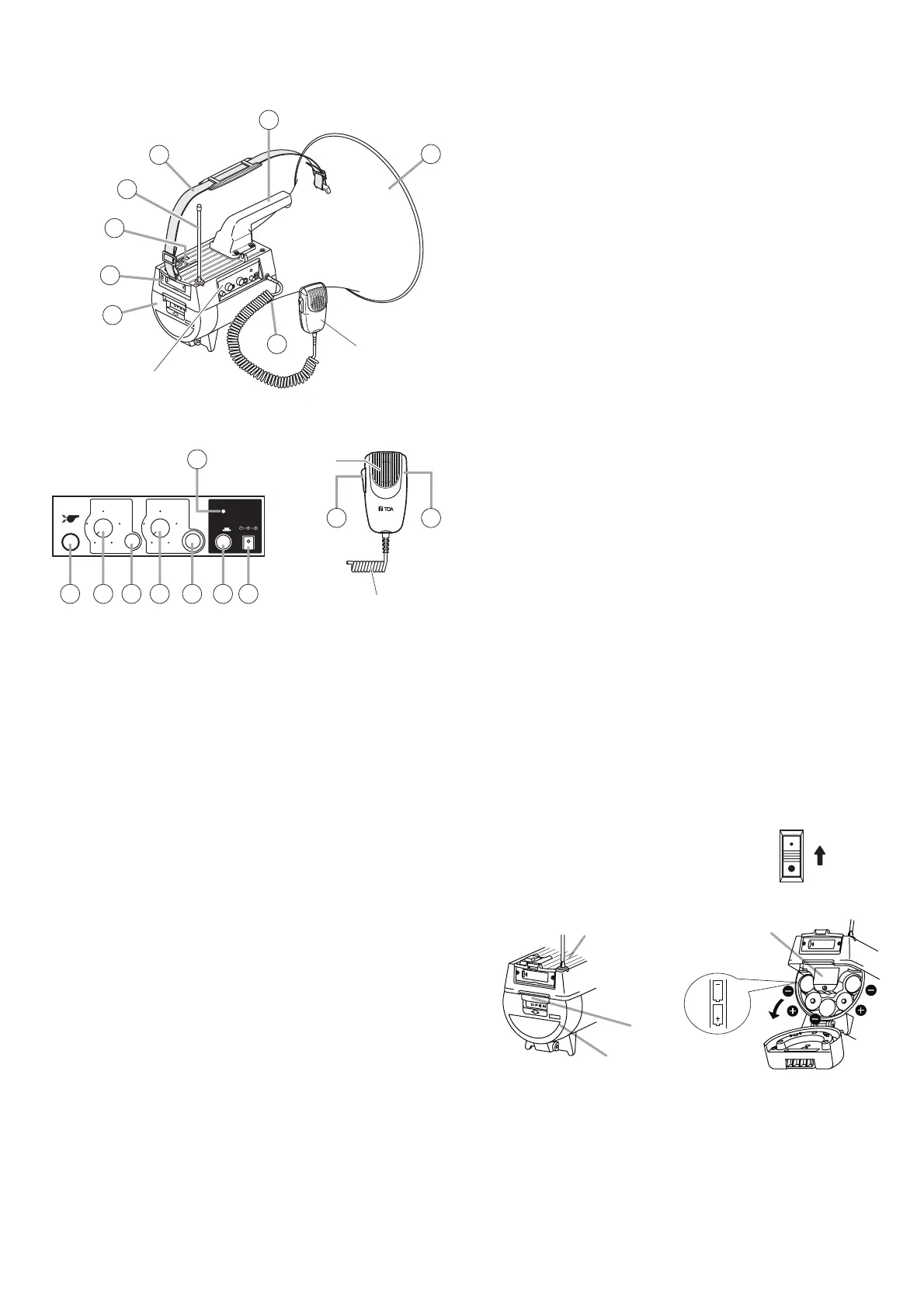

5. NOMENCLATURE AND FUNCTIONS

6. REPLACING THE BATTERIES

MAX

WIRELESS/AUX

PUSH-ON

WHISTLE

MIN

EXT. MIC

MIN MAX

BATTERY

EXT.

BATTERY

12V 30W

POWER

Microphone

Operation panel

[Microphone] [Operation panel]

40 cm curl cord

(extends to 1.8 m)

Mouthpiece

9 10 11 12 13 15 16

17 18

Step 1. Open the battery cover by pushing its dented portion in

the direction indicated by the white arrow.

Step 2. Remove the battery case and insert ten D batteries into

the case, carefully noting the battery polarity indications.

Step 3. Replace the battery case in the megaphone and

securely close the battery cover.

Note: If sound is not output through the megaphone, check to be

sure that the batteries are inserted into the battery

compartment according to the battery polarity indications.

Volume

high

The figure shows the ER-2930W.

1. Battery Cover

The battery compartment is built inside.

Open and close the battery cover when replacing the

batteries.

2. Tuner cover (ER-2930W only)

Open and close the tuner cover when mounting the optional

WTU-3800/4800 Wireless Tuner Module.

3. Microphone hanger

Hook the microphone onto this hanger when not using it.

Note: To avoid damage, do not use excessive force when

hooking the microphone.

4. Antenna (ER-2930W only)

A fold-down antenna. Set it upright when using the wireless

microphone.

5. Shoulder strap

Use this strap to hang the unit from the shoulder for transport

or use. (Length: approx. 1 m)

6. Handle

7. Speaker (outer horn)

8. Stand socket

The megaphone can be mounted on the optionally available

ST-16A Speaker Stand using the threaded hole on its bottom.

For mounting details, refer to the ST-16A instruction manual.

Note: For the mounting, do not use the spacer supplied with

the ST-16A.

9. Signal tone switch

A whistle tone sounds while this switch is pressed, and stops

when released.

Note: Output volume is fixed, and cannot be adjusted with the

volume control.

Produkt Specifikationer

Mærke:	TOA
Kategori:	Megafon
Model:	ER-2930W
Vægt:	3800 g
Produktfarve:	Grey, White
Strøm:	45 W
Volumenkontrol:	Ja
Materiale:	ABS, Aluminium, Nylon
Impedens:	600 ohm (Ω)
Udgangseffekt:	30 W
Strømkilde type:	Battery, DC
Diameter:	351 mm
Batteritype:	R20P
Længde:	512 mm
Driftsspænding:	12 V
