INSTRUCTION MANUAL

MEGAPHONES ER-2215

ER-2215W

Thank you for purchasing TOA's Megaphones.

Please carefully follow the instructions in this manual to ensure

long, trouble-free use of your equipment.

• Before installation or use, be sure to carefully read all the

instructions in this section for correct and safe operation.

• Be sure to follow all the precautionary instructions in this

section, which contain important warnings and/or

cautions regarding safety.

• After reading, keep this manual handy for future

reference.

1. SAFETY PRECAUTIONS

CAUTION

Indicates a potentially hazardous situation which,

if mishandled, could result in moderate or minor

personal injury, and/or property damage.

• Cautions on Use

Be sure to observe the following instructions. Failing to

observe may cause hearing impairment.

· Reduce the volume to its lowest setting before use.

· Never use the megaphone in close proximity to a

person's ear.

· Point the megaphone toward the ground when

conducting operational tests.

• Make sure to observe the following handling precautions

so that a fire or personal injury does not result from

leakage or explosion of the battery.

· Do not short, disassemble, heat nor put the battery into

a fire.

· Avoid using both new and old batteries together.

· Never charge batteries of the type which are not

rechargeable.

· Do not solder a battery directly.

· Be sure to use the specified type of batteries.

· Note correct polarity (positive and negative orientation)

when inserting a battery in the unit.

· Avoid locations exposed to the direct sunlight, high

temperature and high humidity when storing batteries.

2. GENERAL DESCRIPTION

Shoulder-held 15 W megaphones with a removable microphone.

In addition, the ER-2215W is equipped with a whistle switch.

The megaphones can be mounted on the optionally available

ST-16 Speaker Stand.

Microphone with anti-bacteria treatment improve hygiene and

safety during use.

3. HANDLING PRECAUTIONS

• The ER-2215/2215W megaphones are not waterproof.

Avoid exposure to rain or environments where they may be

splashed by water or other liquids.

• Immediately contact your TOA dealer if the following

irregularities should occur. To avoid unit failure, make no

further attempt to use the unit in these conditions.

· Smoke coming from the unit or a strange smell detected.

· Water or other foreign objects get inside the unit.

· No sound heard (after checking to be sure that the batteries

are loaded in correct orientation, and satisfactorily charged).

• Avoid storing the unit in humid or dusty locations, in locations

exposed to direct sunlight, near heaters, or exposed to sooty

smoke, as these conditions may result in unit failure.

• When batteries are left installed in the megaphone for extended

periods of time, be sure to check them periodically for charge

and leakage.

• Do not use the unit for extended periods of time with a distorted

sound output. This could cause the inner parts to become hot

and possibly result in unit failure.

• Noise may be produced when a mobile phone is used near the

unit. However, this is not a failure. Use the mobile phone as far

as possible from the unit.

• Use a tightly wrung-out damp cloth to clean the unit. If the unit

becomes extremely dirty, use a cloth moistened in a neutral

detergent and tightly wrung-out. Never use volatile liquids such

as benzene, thinner, or alcohol to clean the unit, as these may

deform or discolor its case.

4. SPECIFICATIONS

Model No. ER-2215 ER-2215W

Power Source C (R14P) battery x 6 (9 V DC)

Output Rated 15 W, Max. 23 W

Signal

–

Whistle

(1,600 to 2,400 Hz)

Battery Life*

Voice: 9 hours Voice: 9 hours

(approx.) Signal: 20 minutes

Audible Range*

Voice: 400 m Voice: 400 m

(approx.) Signal: 500 m

Diaphragm Polyimide film (voice coil, bobbin)

Anti-bacteria Treatment

Microphone

Operating Temperature

–10ºC to +40°C

Finish Horn: ABS resin, light gray

Others: ABS resin, gray

Dimensions ø210 x 336 (length) mm

Weight (Body)*

1.1 kg 1.2 kg

Weight (Microphone) 150 g (cable excluded)

Battery life estimates assume 30 minutes of continuous use

per day.

Audible range estimates assume use on a relatively quiet

street using new batteries and will vary depending on

remaining battery capacity, surrounding noise, wind direction,

obstacles and other environmental conditions.

Without microphone and batteries

Notes

• No accessory batteries are supplied.

• The design and specifications are subject to change without

notice for improvement.

• Optional products

Speaker stand: ST-16

3 4 5

7 8

[Microphone]

40 cm curl cord

(extends to 1.8 m)

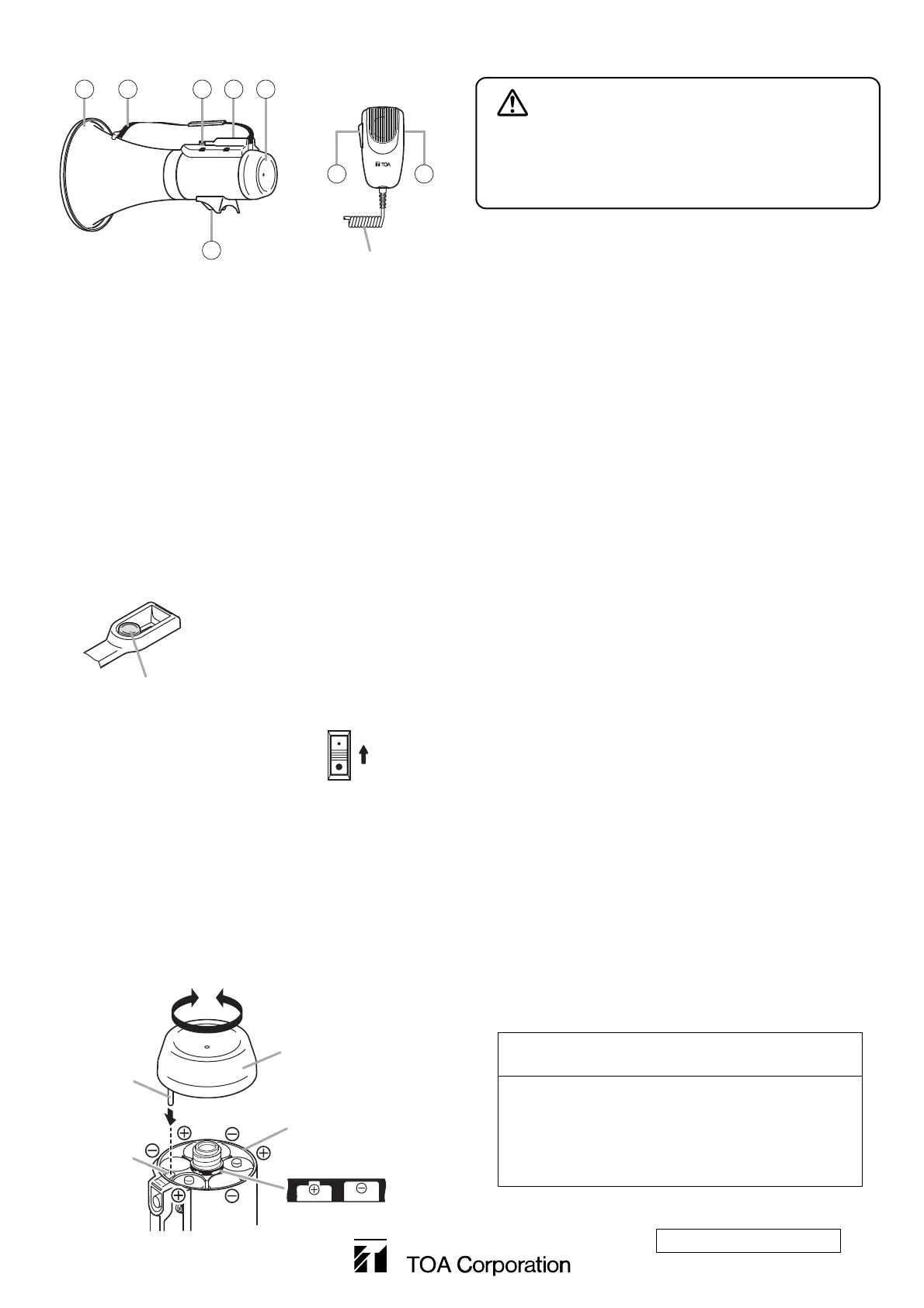

5. NOMENCLATURE AND FUNCTIONS

Step 1. Rotate the battery cover counterclockwise to remove it.

Step 2. Insert six C batteries referring to the polarity diagram on

the inside of the battery compartment.

Step 3. Insert the tab on the inside of the battery cover into the

slot in the battery compartment as shown and turn the

battery cover clockwise until tight.

6. REPLACING THE BATTERIES

1. Speaker (outer horn)

2. Shoulder strap

Use this strap to hang the

unit from the shoulder for

transport or use.

(Length: approx. 1 m)

3. Microphone hanger

Hook the microphone onto

this hanger when not using

it.

4. Signal tone switch

(ER-2215W only)

A whistle tone sounds while

this switch is pressed, and

stops when released.

Note

Output volume is fixed, and

cannot be adjusted with the

volume control.

5. Battery Cover

The battery compartment is

built inside.

When replacing the batteries,

turn counterclockwise to open

the cover, and clockwise to

close it.

6. Stand socket

The megaphone can be

mounted on the optionally

available ST-16 Speaker

Stand using the threaded

hole on its bottom.

For mounting details, refer

to the ST-16 instruction

manual.

7. Talk switch

Press to talk (power turns

ON). Release to turn the

power OFF.

8. Volume control

Rotate upward to increase

output volume.

Volume

high

Signal tone switch

Polarity diagram

Tab

Slot

Battery case

Battery cover

Open

Step 1. Detach the microphone from the microphone hanger.

Step 2. Using the volume control, adjust the volume to an

appropriate level that does not generate feedback when

holding down the talk switch.

Howling is more likely to occur when using the

megaphone indoors or in other reverberant places.

Particularly when the batteries are new, it may be

impossible to adjust the volume to maximum without

causing howling. In such cases, set the volume to about

mid-level.

Step 3. Speak into the microphone while holding it about 1 cm

away from the mouth.

Note

Speaking too far from the microphone or in too soft

voice may result in insufficient volume.

[When Attaching the Microphone]

Reduce the volume to its lowest setting, then press the

microphone onto the hanger. Leaving the volume set higher can

cause howling if the talk switch is accidentally pressed when

attaching or removing the microphone.

7. HOW TO USE

CAUTION

• Before pressing the microphone's talk switch, fully turn

down the volume.

• Point the megaphone toward the ground when conducting

operational tests.

533-03-031-2B

URL: http://www.toa.jp/

Traceability Information for Europe

(EMC directive 2004/108/EC)

Manufacturer:

TOA Corporation

7-2-1, Minatojima Nakamachi, Chuo-ku, Kobe, Hyogo, Japan

Authorized representative:

TOA Electronics Europe GmbH

Suederstrasse 282, 20537 Hamburg, Germany
