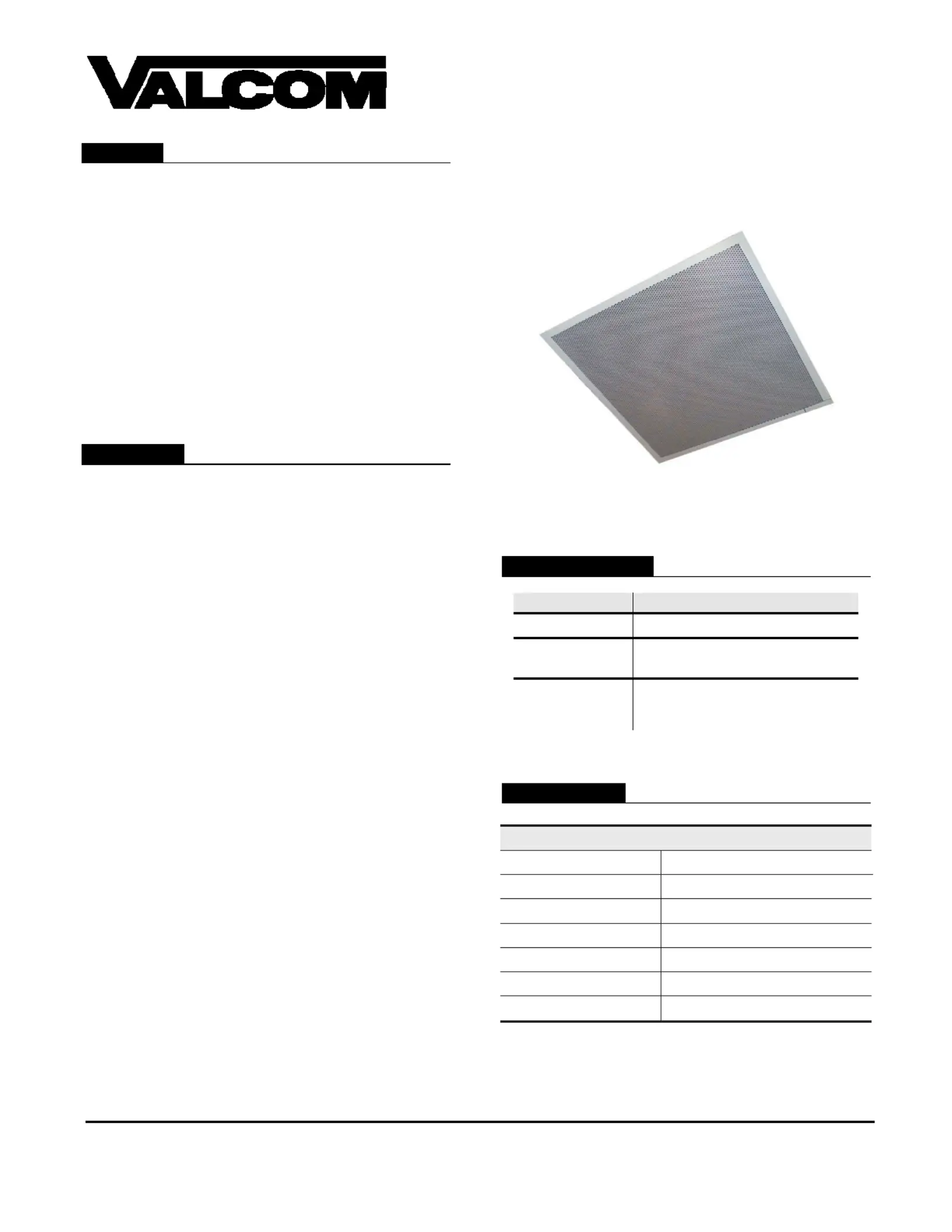

Features

• Exceptional Voice & Music Performance

• Excellent talkback reproduction

• Directly replaces 2x2 Ceiling Tile

• Durable white acrylic baked enamel finish

• Time saving installation

• Multiple volume control Inputs

Description

These 25/70-volt Lay-In Ceiling Speaker assemblies

provide a quick and easy solution to speaker installations.

The S-422 and S-522 are complete speaker assemblies A-2 A-2

including baffle and back box. This integral design meets

or exceeds ASTM E84 Flame & Smoke Test with a 3-

hour burn rating (UL 181), which allows this integrated

package to be used in plenum type drop ceilings.

Several inputs are provided on the S-422 assembly to A-2

provide the proper volume level when used in different

acoustical environments. The S-522 assembly provides A-2

a rotary tap volume control accessible from the front on the

speaker. Both of these assemblies are well suited to be

used in classrooms, offices, meeting rooms and other

applications where high quality sound reproduction is

required.

Both the S-422 and the S-522 eliminate the mess A-2 A-2

and broken tiles that often accompany installations using

standard speaker assemblies. These dynamic all in one

packages eliminate cutting circular holes in tiles,

mounting backboxes and mounting speaker grilles to

backbox assemblies. The white finish of the perforated

grille blends easily with mos décors and provides an t

unobtrusive speaker installation.

Product Selection

Model Description

S-422 ay-In Ceiling Speaker A-2 L

S-522A-2

Lay-In Ceiling Speaker w/Volume

Control

Specifications

Model S-422A-2 / S-522A-2

Dimensions

23.75”X 23.75”X 3.75”

Weight 5.5 lbs.

Speaker 8”, 25/70 Volt

Voice Coil 8 Ohm, ¾”

Frequency Range 70 HZ to 17kHZ

SPL 95 dB @ 1 Meter, 1 Watt @ 1 KHz

Transformer Taps .35, .75, 1.25, 2.5, 5 Watts

VDS422 _522 7/20A-2 A-2 10

Valcom Communications Systems

Speakers & Accessories

S-422A-2, S-522A-2 Speakers

This literature does not cover all the variations in the equipment described, nor does it provide for every possible contingency to be

met in connection with installation, operation, and maintenance. All specifications and listings are subject to change without notice.

For installations in a 2’ x 4’ ceiling grid, an optional trim bar

(V-TBAR*) may be ordered. The V-TBAR provides support

and a finished appearance to one edge of the speaker grille.

These assemblies are also an excellent choice for all applications

requiring intercom capabilities. They are specifically designed for

applications involving the 5100 Communications System to provide

superb talkback quality.

*The V-T is available separately and must be ordered in packs of 10. BAR

NOTE: The S-422A-2 or S-522A-2

is a single unit, but must be ordered in

quantities of two.

Produkt Specifikationer

Mærke:	Valcom
Kategori:	Højttaler
Model:	S-522A-2
Bredde:	603.2 mm
Dybde:	95.2 mm
Højde:	603.2 mm
Vægt:	2930 g
Wi-Fi:	Ingen
Bluetooth:	Ingen
Udgangseffekt (RMS):	- W
Ethernet LAN:	Ingen
Anbefalet brug:	Andet
Frekvensområde:	- Hz
Forbindelsesteknologi:	Ledningsført
Højttaler, type:	1-vejs
Lyd-output kanaler:	1.0 kanaler
Højttaler, placering:	Kan monteres i loftet
Peak Music-Udgangseffekt (PMPO):	5 W
iPod/iPhone dock:	Ingen
USB påkrævet:	Ingen
