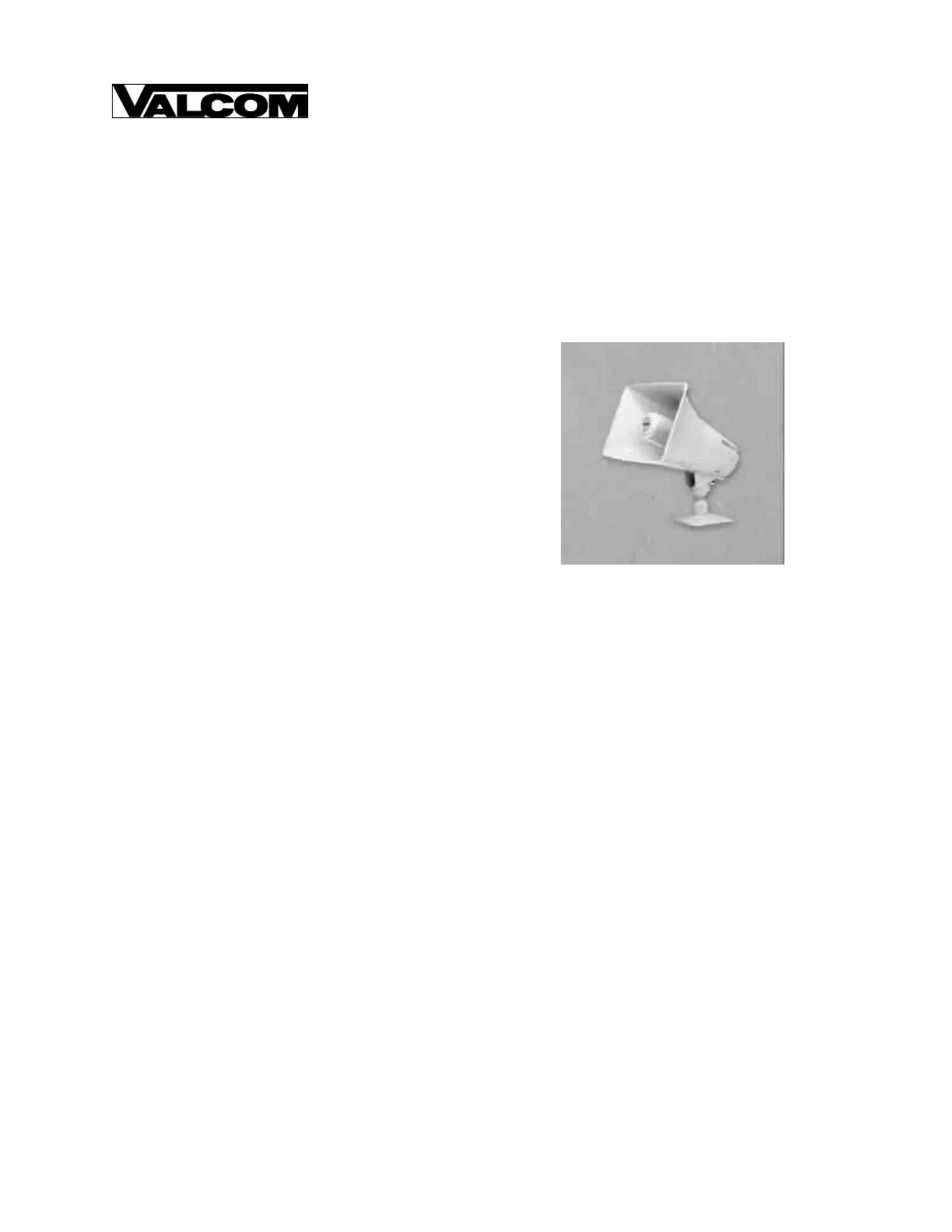

Side 1/5

VSP V- -1030M/1036M/1048M

Issue 6

1 947032

MARINE HORNS

V- -1030M 5 WATT PAGING HORN AMPLIFIER ASSEMBLY

V- -1036M 15 WATT PAGING HORN AMPLIFIER ASSEMBLY

V- -1048M 45 OHM TALKBACK HORN

INTRODUCTION

This instruction contains the specifications and

information necessary to install, operate and maintain

the V- -1030M and V 1036M Paging Horn Assemblies

and the V-1048M 45 Ohm Talkback Horn.

This equipment has received FCC type KX registration,

designed to be used with FCC registered Key

Telephone Systems. In accordance with FCC Rules

with applicable tariffs, this Paging Unit may be

installed with the authorization of the host system.

Installations may be made by Valcom, Inc., an

authorized agent of the same, equipment

manufacturers, telephone companies, registered

telephone refurbishers, and those qualified for

installation of FCC registered systems under FCC

Rules Section 68.215.

The FCC Registration Number, BAF9I7- - -69358 KX N,

will be listed in the affidavits filed with the telephone

company; it will also be recorded in the system log kept

by installation and maintenance personnel. The local

telephone company is to be notified of the FCC

Registration Number when this Paging Unit is

installed.

DESIGN

These horns are designed for marine use and can be

used for interior or exterior paging applications. They

are enclosed in a white, no fade, high impact, sealed

plastic housing. They are fully adjustable 360 degrees

horizontal and 90 degrees vertical. They are supplied

with stainless steel hardware and a beam mount clamp.

Environment

• Temperature: -20 to +55°C

• Humidity: 0 - - 95% (non precipitating)

Dimensions/Weight

• V- -1030M/V 1036M

7.38"H x 10.00"W x 10.40"D

(18.75cm x 25.40cm x 26.42cm)

3.7 lbs. (1.68kg)

• V-1048M

7.38"H x 10.00"W x 10.40"D

(18.75cm x 25.40cm x 26.42cm)

3.5 lbs. (1.59kg)

SPECIFICATIONS/

CONNECTIONS FOR THE

V- -1030M/V 1036M

The V- -1030M and V 1036M are Paging Horn/

Amplifier Assemblies. The V- -1030M is a self

contained 5 Watt paging system with a 5 Watt

amplifier; the V- -1036M is a self contained 15 Watt

paging system with a 15 Watt amplifier. Both units

incorporate a high efficiency horn with a volume

control.

Applications of the V-1030M and

V-1036M

• Use with Valcom page control

• Expanding the capability of telephone systems

which contain limited paging capabilities

• Loud ringer application in systems where

loud-speaker tone signaling is employed.

V- -1030M Nominal Specifications

Input Impedance: 600 Ohm nominal

Input level: -15dBm to +10dBm

Current at -24VDC: 300mA

V- -1036M Nominal Specifications

Input Impedance: 600 Ohm n ominal

Input level: -15dBm to +10dBm

Current at -24VDC: 900mA

Horn Spacing for the

V- -1030M/V 1036M

(coverage shown in parenthesis)

Example: In a quiet environment, V-1030M 5 Watt

horns would be spaced 110 feet apart side to side and

would provide good quality sound 110 feet in front of

each horn approximately 12,000 sq. ft. of coverage.

Definitions:

Quiet: 50-65dB. This would include stock areas, etc.

Moderate: 65-80dB. This includes areas such as

warehouses, shipping areas or light manufacturing.

Noisy: 80-90dB. This includes machine shops or

heavy manufacturing.

Very Noisy: Greater than 90dB. This would include

any areas where talking to another person is very

difficult. Workers may be required to wear earplugs.

Audio Wire Runs (V- -1030M/V 1036M)

When a remote power unit is used, the audio pair run

should be limited to 5000 feet and a maximum of 4

horns when using 24AWG wire. A V-1094A may be

added to increase the number of horns and/or distance.

Twisted pair wire (standard telephone wire) should be

used for connections.

Power Wire Run (V- -1030M/V 1036M)

For good quality sound, the distance recommended

between the power supply and horns should be adhered

to.

Number of Horns

per Power Run

Wire Run Length

(feet)

15 Watt 5 Watt

V V-1036M -1030M 24AWG 22AWG

1 4 125 200

0 2 250 400

0 1 500 800

See the Valcom power run gauge guide for additional

wire gauges and distances.

Wiring Connections

(V- -1030M/V 1036M)

Twisted pair wire (standard telephone wire) should be

used for connections.

Audio In

Green - Tip

Red - Ring

Power In

Black - Ground

White - - ( 24VDC)

Brown - Not Used

SPECIFICATIONS/

CONNECTIONS FOR THE

V-1048M

Application

The V-1048M talkback horn is designed to be used

with "handsfree" talkback control units. In combination

with these units, the speaker provides both loudspeaker

and talkback functions.

A standard talkback paging system is comprised of

three basic components:

1. Talkback page control unit

2. Speakers

3. Power Supply

Location

V-1030M

5 Watt

V-1036M

15 Watt

Quiet

110'

(12,000 sq. ft.)

N/A

Moderate

80'

(6,400 sq. ft.)

N/A

Noisy

50'

(2,500 sq. ft.)

75'

(5,600 sq. ft.)

Very Noisy

30'

(900 sq. ft.)

45'

(2,000 sq. ft.)
