VSP- -V 1092

Issue 9

1 947092

V-1092

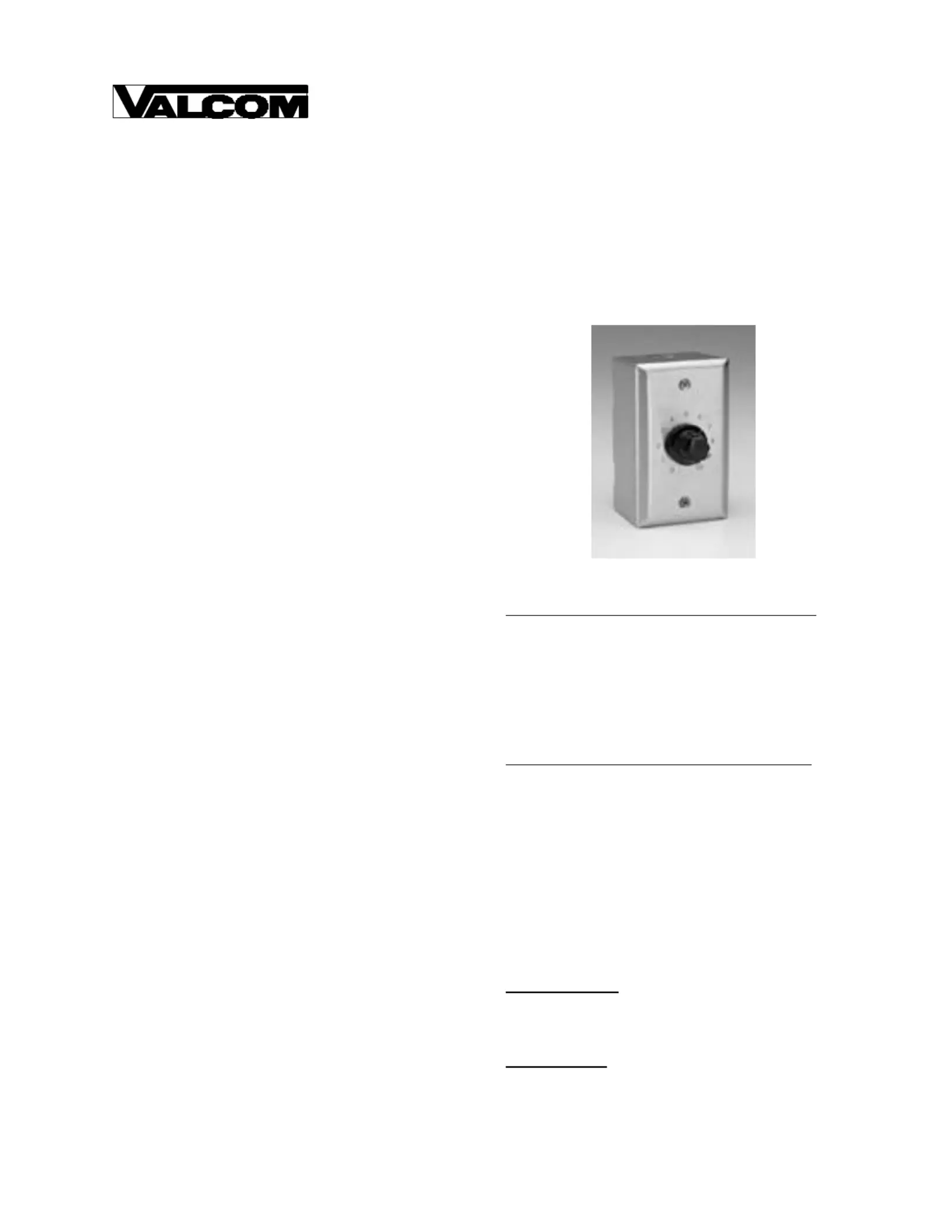

WALL MOUNT VOLUME CONTROL

INTRODUCTION

These instructions contain the specifications and

information necessary to install, operate and maintain

the V-1092, Wall Mount Volume Control.

SPECIFICATIONS

Purpose

The V-1092, Wall Mount Volume Control, is a volume

control unit which can be mounted into a single-gang

electrical box. The V-1092 comes with its own surface

mount box which provides 1/2" conduit access. This

unit is compatible with all Valcom one-way and

two-way speakers.

NOTE: The V-1092 is not designed to connect

directly to the output of high powered amplifiers.

Applications

• To control volume of one-way amplified

speaker assemblies in inaccessible areas

• To control large groups of one-way amplified

speaker assemblies

• To control volume of Valcom talkback speakers

• Volume control for Valcom V-1039A, Explosion

Proof Horn

Dimensions/Weight

• 4.50"H x 2.75"W x 2.80"D

(11.43cm H x 6.99cm W x 7.11cm D)

• Weight: .8 lbs. (.36 kg)

INSTALLATION

These instructions cover only the installation

procedures for the Valcom V-1092. Consult the

installation instructions of other equipment for

information relative to each piece of equipment.

Audio Connections

"D" type station wire or other suitable pairs may be

used for audio connections.

Connections when using a One-Way Control Unit

(Refer to Figure 1)

a. Connect wall mount volume control input tip

and ring to desired zone output leads from

page control.

b. Connect wall mount volume control output

tip and ring to speakers.

Connections when using a Talkback Control Unit

(Refer to Figure 2)

a. Connect wall mount volume control tip input

terminal to tip output lead of talkback page

control unit.

b. Connect wall mount volume control tip

output terminal to tip lead of talkback

speaker.

c. Connect ring output of talkback page control

to ring of talkback speaker.

Mounting

Surface Mounting - Mount the V-1092 on any suitable

surface. Two screws are used to fasten the box to the

surface.

Flush Mounting - Remove faceplate assembly and

install in standard single-gang electrical box.

TECHNICAL ASSISTANCE

When trouble is reported, verify the unit is properly

connected and there are no broken connections

leading to this unit.

If trouble still exists, using two clip leads, short tip in

to tip out and ring in to ring out and test page. If the

page works, replace the V-1092. If the system still

does not work continue troubleshooting. If a spare

unit is available, substitute the spare unit for the

suspected unit.

If the trouble has not been located, refer to Table 1.

Identify the symptoms and perform the actions

indicated.

Assistance in troubleshooting is available from the

factory. When calling, you should have a VOM

available and be calling from the job site. Call (540)

563-2000 and ask for Technical Support, or call (540)

767- -1555 for Valcom 24 hour Faxback System or visit

our website at http://www.valcom.com.

VALCOM equipment is not field repairable. Valcom,

Inc. maintains service facilities in Roanoke, VA.

Should repairs be necessary, attach a tag to the unit

clearly stating your company name, address, phone

number, contact person and the nature of the problem.

Send the unit to:

Valcom, Inc.

Repair and Return Dept.

5614 Hollins Road

Roanoke, VA 24019-5056

TABLE 1 - TROUBLESHOOTING CHART

Problems Possible Causes Verifications Possible Solutions

No audio output to

speaker.

Open input path.

Open output path.

Place handset across V-1092 input

terminals; No audio present.

Place handset across speaker

terminal; No audio present.

Check cabling and cross-

connections to V-1092.

Check cabling and cross-

connections from V-1092 to

speaker.

VALCOM LIMITED WARRANTY

Valcom, Inc. warrants its products to be free from defects in materials and workmanship under conditions of normal use and service

for a period of one year from the date of shipment. The obligation under this warranty shall be limited to the replacement, repair or

refund of any such defective device within the warranty period, provided that:

1. inspection by Valcom, Inc. indicates the validity of the claim;

2. the defect is not the result of damage, misuse or negligence after the original shipment;

3. the product has not been altered in any way or repaired by others and that factory sealed units are unopened (A service

charge plus parts and labor will be applied to units defaced or physically damaged);

4. freight charges for the return of products to Valcom are prepaid;

5. all units ‘out of warranty’ are subject to a service charge. The service charge will cover minor repairs (Major repairs will be

subject to additional charges for parts and labor).

This warranty is in lieu of and excludes all other warranties, expressed or implied and in no event shall Valcom, Inc. be liable

for any anticipated profits, consequential damages, loss of time or other losses incurred by the buyer in connection with the

purchase, operation or use of the product.

This warranty specifically excludes damage incurred in shipment. In the event a product is received in damaged condition, the

carrier should be notified immediately. Claims for such damage should be filed with the carrier involved in accordance with the

F.O.B. point.

Headquarters: In Canada

Valcom, Inc. CMX Corporation

5614 Hollins Road 35 Van Kirk Drive #11 and 12

Roanoke, VA 24019-5056 Brampton, Ontario L7A 1A5

Phone: (540) 563-2000 Phone: (905) 456-1072

FAX: (540) 362-9800 FAX: (905) 456-2269

Produkt Specifikationer

Mærke:	Valcom
Kategori:	Controller
Model:	V-1092
Type:	Roterende volumenkontrol
Vægt:	360 g
Produktfarve:	Rustfrit stål
Dimensioner (BxDxH):	69.9 x 71.1 x 114.3 mm
Effekthåndtering:	150 W
Dæmpningstrin:	10
