ASSEMBLY AND INSTALLATION

INSTRUCTIONS

181206

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

C0219

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

Hardware Package (included):

Mounting Strap (A)

Mounting Screw (B)

Wire Connector (C)

Hex Nut (D)

Washer (E) Threaded Pipe (F)

House Grounding Wire

Hex Nut (D)

Washer (E)

Wire Connector (C)

Mounting Strap (A)

Mounting Screw (B)

Fixture Grounding Wire

Threaded Pipe (F)

Fixture Wire

Outlet Box

House

Grounding Wire

Mounting Ball (G)

Green Grounding Screw

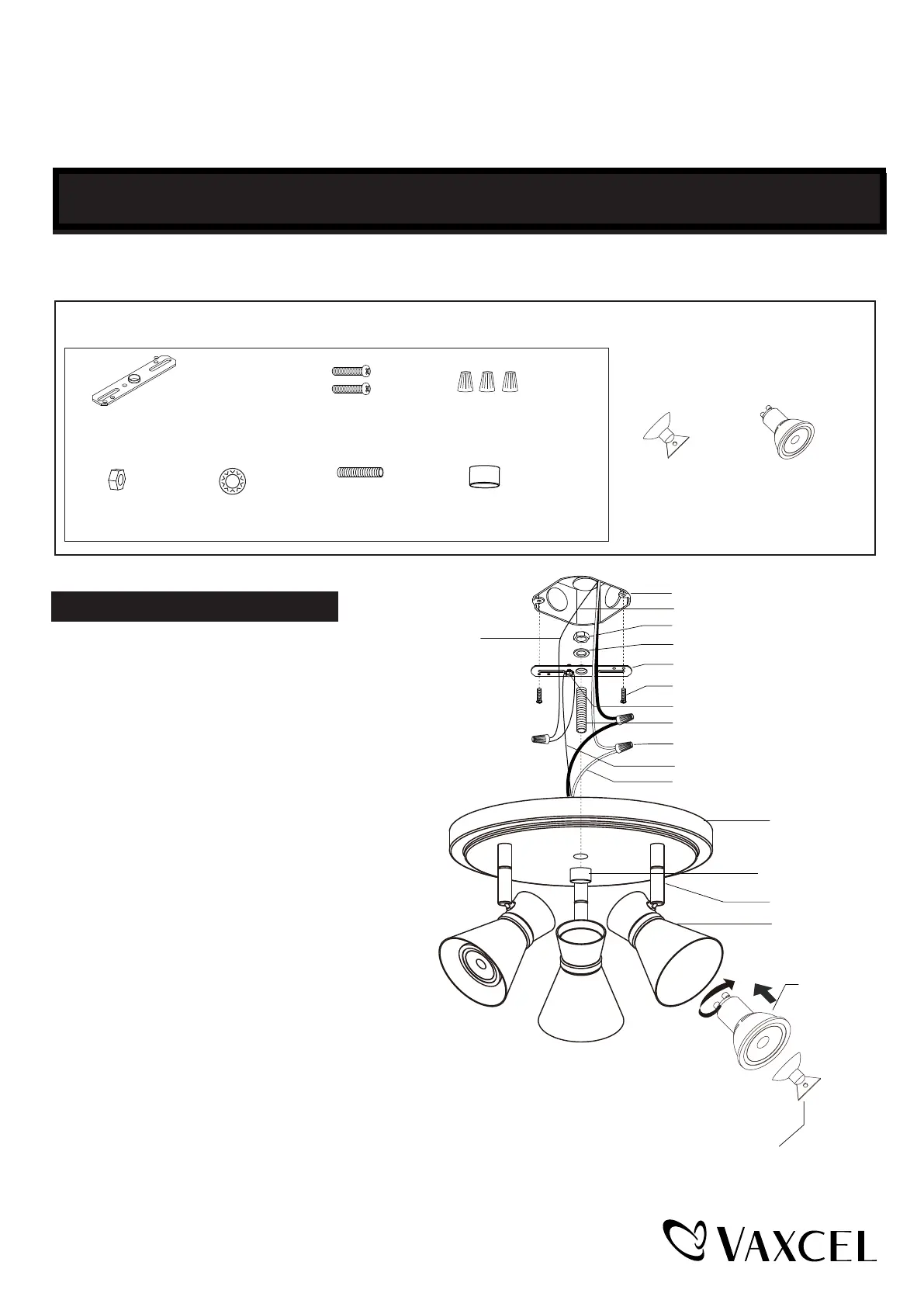

1. Attach the nipple (F) thread the mounting

strap (A), and then secure it with a washer

(E) and hex nut (D), then tighten them.

2. Attach the mounting strap (A) to the outlet box

by inserting two mounting screws (B) in both

side of mounting strap (A) and tighten the screws.

3. Pull out the source wires from the outlet box.

Make wire connections using wire connectors (C)

as follows:

--Connect the black (hot) wire from the fixture to

the black (hot) wire from the power source.

---Connect the white (neutral) wire from the fixture

to the white (neutral) wire from the power source.

---Attach the fixture grounding wire to the mounting

strap (A) with the green grounding screw.

Then connect it to the house grounding wire with

a wire connector (C).

Carefully put the wires back into the outlet box.

4. Attach the ceiling pan to the mounting strap (A) by

inserting threaded pipe (F) through the center hole

of the ceiling pan, and then secure it with mounting ball (G).

Turn off the power at fuse or circuit box

Installation Steps

Mounting Ball (G)

GU10 LED Max.7W (I)

(included)

Cupule (H)

GU10 LED Bulb

Max.7W X 3 (I)

Light Head

Ceiling Pan

Swivel

Cupule (H)
