1. Unscrew the bolt nuts (D), take out the mounting strap
unit (A) and then attach to the outlet box by using two
mounting screws
(B)
.
2. Rod Connections:
a. Thread the fixture wire from the fixture through the lower rod,
then secure the lower rod onto fixture using the threaded pipe.
b. Thread the fixture wire through the middle rod,
and then secure the middle rod onto the lower
rod using the threaded pipe.
c. Thread the fixture wire through the
upper rod, and then secure the upper
rod onto the middle rod using the
threaded pipe.
Note: Length adjustable from 17-3/4" to
77-1/4". Use fewer rods if shorter length
is desired.
3.
Thread the fixture wire through the
canopy kit then secure the rod assembly
to the set threaded pipe of the canopy kit.
4. Secure the tubes to the fixture.
5. Pull out the source wires from the outlet box.
Make wire connections using wire
connectors (C) as follows:
---Connect the smooth-coated wire (marked)
from the fixture to the black wire from the
power source.
---Connect the ribbed-coated wire (unmarked)
from the fixture to the white wire from the power source.
---Attach the fixture ground wire to the mounting strap unit (A) with the green ground screw, then connect it
to the house ground wire with a wire connector (C).
Carefully put the wires back into the outlet box.
6. Attach the canopy kit to the mounting strap unit (A) by inserting the fixture mounting screws, then secure it with
two bolt nuts (D).

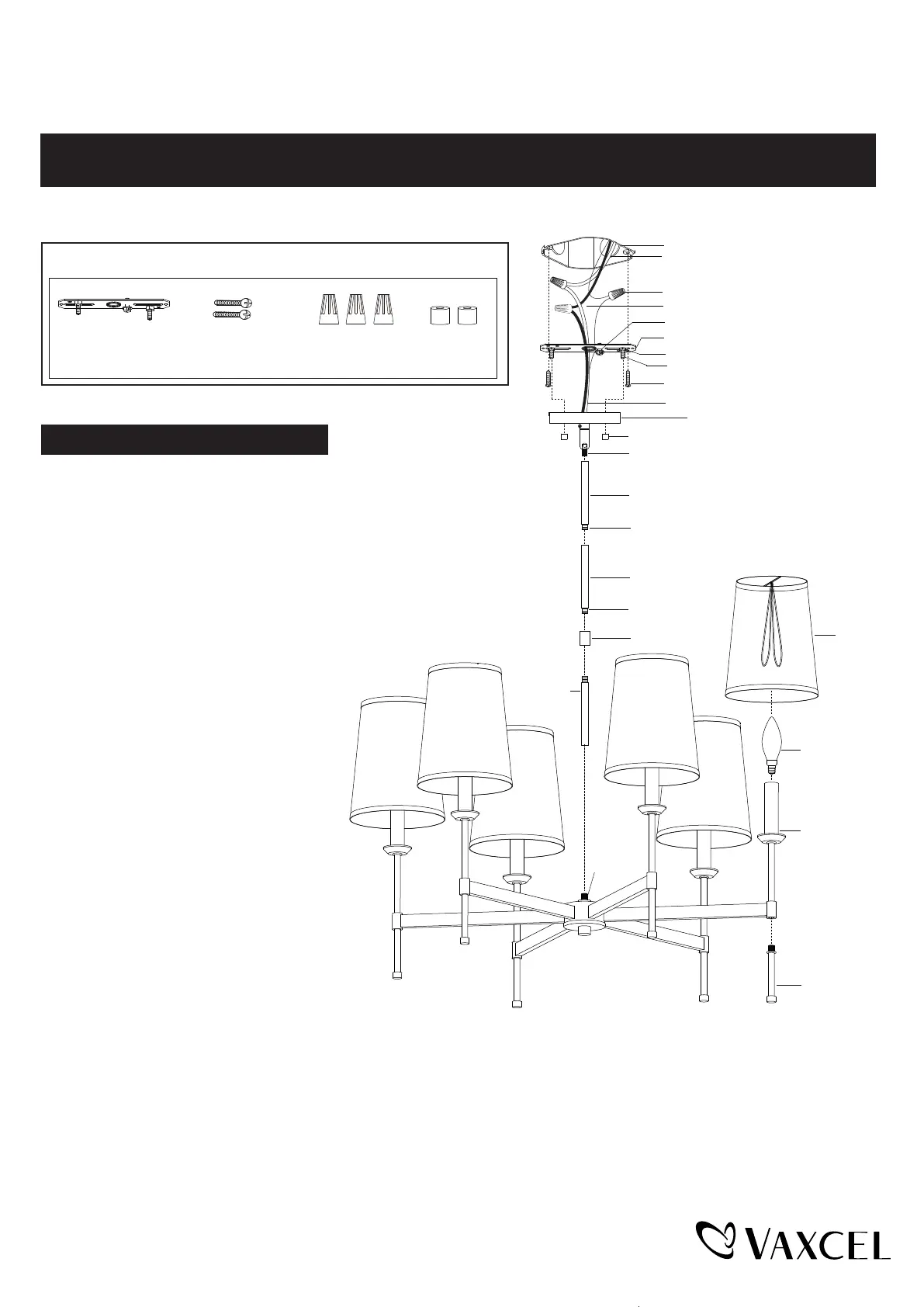

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save this instruction.
H0288
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Turn off the power at fuse or circuit box.
Installation Steps
Canopy Kit
Outlet Box
House Ground Wire
Wire Connector (C)
Lock Nut
Mounting Strap Unit (A)
Green Ground Screw
Mounting Screw (B)
Upper Rod
Middle Rod
Middle Rod-1
Threaded Pipe
Threaded Pipe
Threaded
Pipe
Fixture Wire
Fixture Mounting Screw
Fixture Ground Wire
Tube
Fixture
Shade
Max. 60W
Candelabra Bulb
(not included)
Lower Rod
Set Threaded Pipe
Bolt Nut (D)
Bolt Nut (D)
Mounting Screw (B)
Mounting Strap Unit (A)
Wire Connector (C)
Page 1 / 2
230628
