ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THIS INSTRUCTION.
P0382
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Turn off the power at fuse or circuit box.
Installation Steps
Hardware Package(inculded):
1. Attach the mounting strap unit (A) to the outlet box using two
mounting screws (B).
2. Choose the length of the chain (F) you needed, then weave the
fixture wire and the fixture ground wire through the chain (F) ,
collar (G) and canopy (D).
3. Connect the chain (F) to the loop and the top loop on mounting
strap unit (A) with two quick links (E).
4. Thread the fixture wire and fixture ground wire through the top
loop, threaded pipe of the mounting strap unit (A).
5. Pull out the outlet wires and house ground wire from the outlet box.
Make wire connections using the wire connectors (C):
---The smooth wire (marked) from the fixture to the black wire
from the power source.
---The ribbed wire (unmarked) from the fixture to the white wire
from the power source.
---Attach the fixture ground wire to the mounting strap unit (A)
with the green ground screw, then connect it to the house
ground wire with a wire connector (C). Carefully put the
wires back into the outlet box.
6. Attach the canopy (D) to the mounting strap unit (A) by inserting the top loop,
then tighten the collar (G) to secure it.
7.
Screw threaded pipe-2 (I) into the couple, and secure it with a hex nut (H).
Then attach the cap (J) upward to the fixture, secure it with the finial (K).

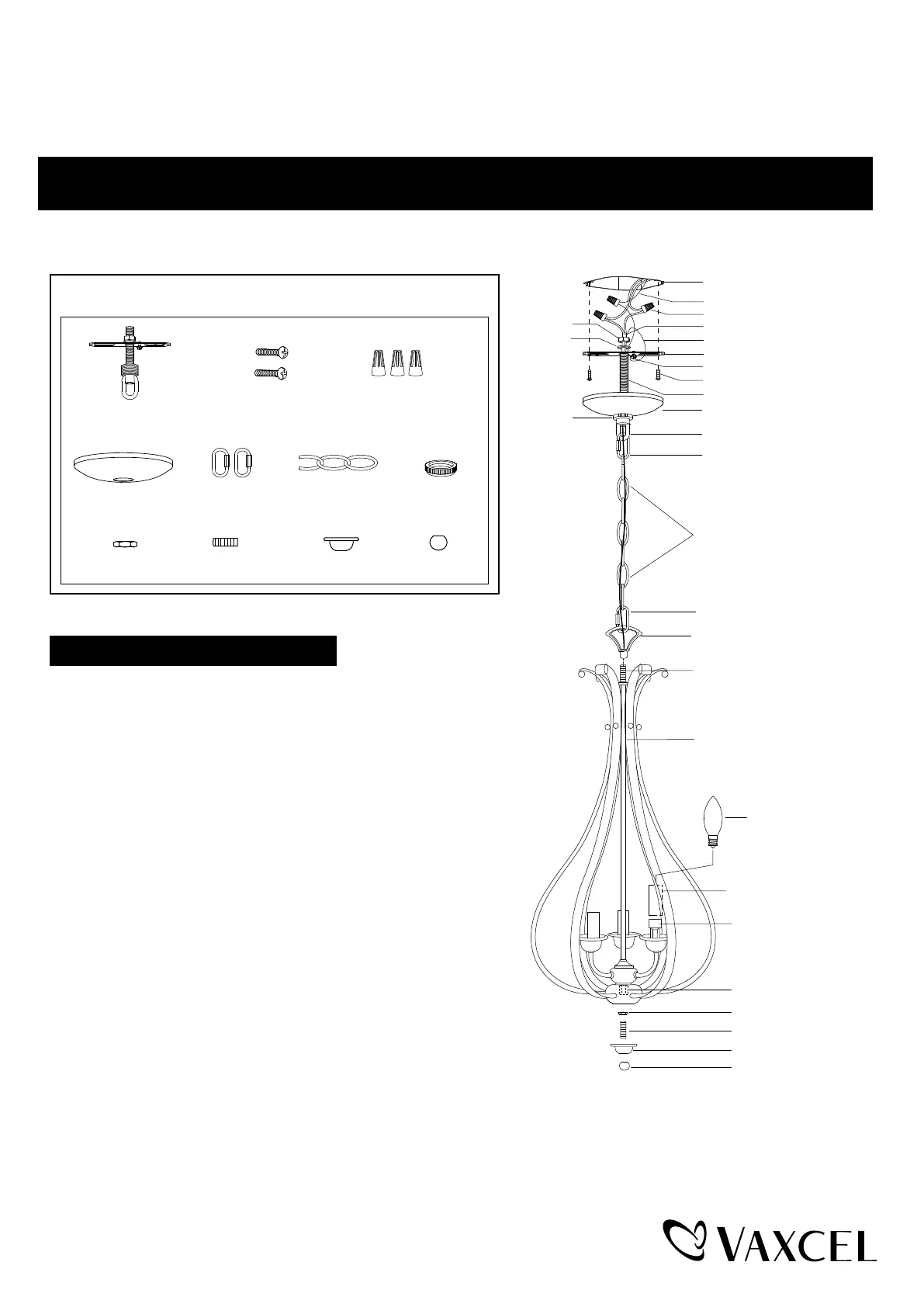

Mounting Strap Unit (A) Wire Connector (C)Mounting Screw (B)
Canopy (D)
Quick
Link (E)
Chain (F)
Collar (G)
Hex Nut (H) Threaded Pipe-2 (I) Cap (J) Finial (K)
Quick Link
(E)
Quick Link
(E)
Chain (F)
Canopy
(D)
Outlet Box
Housing Ground Wire
Wire Connector (C)
Fixture Wire
Fixture Ground Wire
Mounting Strap Unit (A)
Green Ground Screw
Mounting Screw (B)
Threaded Pipe
Hex Nut
Washer
Top Loop
Collar (G)
Max. 60W Type B Bulb
(not included)
Stem
Fixture
Loop
Candle Cover
Socket
Couple
Threaded Pipe
-2 (I)
Cap (J)
Finial (K)
Hex Nut (H)
