Features Applications

Specifications

Provide Reliable and Intelligent

Handsfree Communication!

• Automatic Noise Canceling (ANC) feature for clear audio - even in noisy

environments

• Vandal Resistant Features: 14 gauge louvered 316 brushed stainless steel

faceplate with permanent laser etched graphics, speaker/mic screen, heavy duty

metal “Call” button and T-10 Torx security mounting screws and drive bit

• Marine grade 316 stainless steel faceplate, screws Weather Resistant Features:

and push button switch. Switch internally sealed per IP67. Mylar speaker. Self-

draining mic mount. Faceplate, mic and speaker gaskets. Weather resistant

powder paint on optional ( ). VE-5x5 DOD 424

• Telephone line powered

• Non-volatile memory (no batteries required)

• Programmable to dial up to 5 numbers on busy / ring no answer

• Blue off-hook LED indicator

• Volume adjustments for microphone and speaker

• Advanced call progress detection: disconnects on busy signal, return to dial tone,

CPC, reorder tone, maximum call time out and programmable silence time out

• Selectable auto-answer feature for monitoring

• Extended temperature range (-30°F to 170°F)

• Flush mounts using the included rough-in box or surface mount using an E-30

optional surface mount box, sold separately ( ) VE-5x5 DOD 424

• and are designed to meet IP66 Ingress Protection Rating E-30-EWP E-32-EWP

(see for more information) DOD 859

• flush mounts in a standard double gang box (not included) E-32

• Optional Panic Button Kit ( ) PB-1 DOD 233

• Also available with VoIP interface, see for more informationDOD 248

Power: Telephone line powered. Minimum 24V DC talk battery voltage, with a

minimum loop current of 20mA loop. Loop current may be boosted on low current

lines with a Viking Talk Battery Booster ( ).TBB-1B DOD 632

Minimum Ring Voltage: 25VAC RMS

REN #: 0.5A

Dimensions: Overall: 5” x 5” x 2.25” (127mm x 127mm x 57mm)

Plastic Electrical Box: 4” x 4” x 2.12” (102mm x 102mm x 54mm)

Shipping Weight: 2.2 lbs (1 Kg)

Operating Temperature: -30°F to 17 0°F (-34°C to 77°C)

Humidity - E-30 / E-32: 5% to 95% non-condensing

Humidity - E-30-EWP / E-32-EWP: Up to 100% condensing

Connections: Gel-filled butt connectors

The andE-30 E-32 handsfree phones are

designed to provide quick and reliable

handsfree communication and can be

connected directly to a C.O. line or analog

PABX/KSU station.

The andE-30 E-32 feature non-volatile

memory, built in dialers, and intelligent call

progress detection for automatic hang-up when

a call is completed. They can be programmed

to dial up to 5 different numbers on ring no

answer or busy and can be configured to dial

these numbers until answered.

Models E-30-EWP and E-32-EWP add Enhanced Weather Protection (EWP) for outdoor installations where the unit is exposed

to precipitation or condensation. EWP products feature foam rubber gaskets, sealed connections, gel-filled butt connectors, as

well as urethane or thermal plastic potted circuit boards with internally sealed, field-adjustable trim pots and DIP switches for easy

on-site programming. For more information on Enhanced Weather Protection, see . DOD 859

E-30 / E-30-EWP

Flush mount with the

included rough-in box

E-30 shown with optional

VE-5x5 Surface Mount Box

(sold separately)

CAUTION - When installing on an analog extension of a phone system: Some phone systems do

not conform to analog telecom standards and might not be compatible with the speakerE-30 or E-32

phones. For a detailed description of the telephone line specifications required for any of the E-30 or

E-32 DOD 869 phones, see .

Note: E-30-PT E-30-PT-EWPAreas with loud background noise may require the push to talk version: or .

• ATM machines

• Convention centers

Non-ADA Hot-Line Phone for:

• Elevators

• Parking lots

• Stadiums

• Parking ramps

• Residences

• Businesses

Gate and Door Entry Phone for:

• Building lobbies

• Pedestrian gates

• Silent holdup alarm dialer

using optional Viking PB-1

E-32 / E-32-EWP

Flush mount in a standard

double gang electrical box

(not included)

www.VikingElectronics.com

PRODUCT

MANUAL

Designed, Manufactured and Supported in the USA E-30 / E-30-EWP

E-32 / E-32-EWP

Handsfree Speaker

Phones with Dialers

September 7, 2022

SECURITY & COMMUNICATION

VIKING

IMPORTANT: Electronic devices are susceptible to lightning and power station electrical surges from both the AC outlet and the

telephone line. It is recommended that a surge protector be installed to protect against such surges.

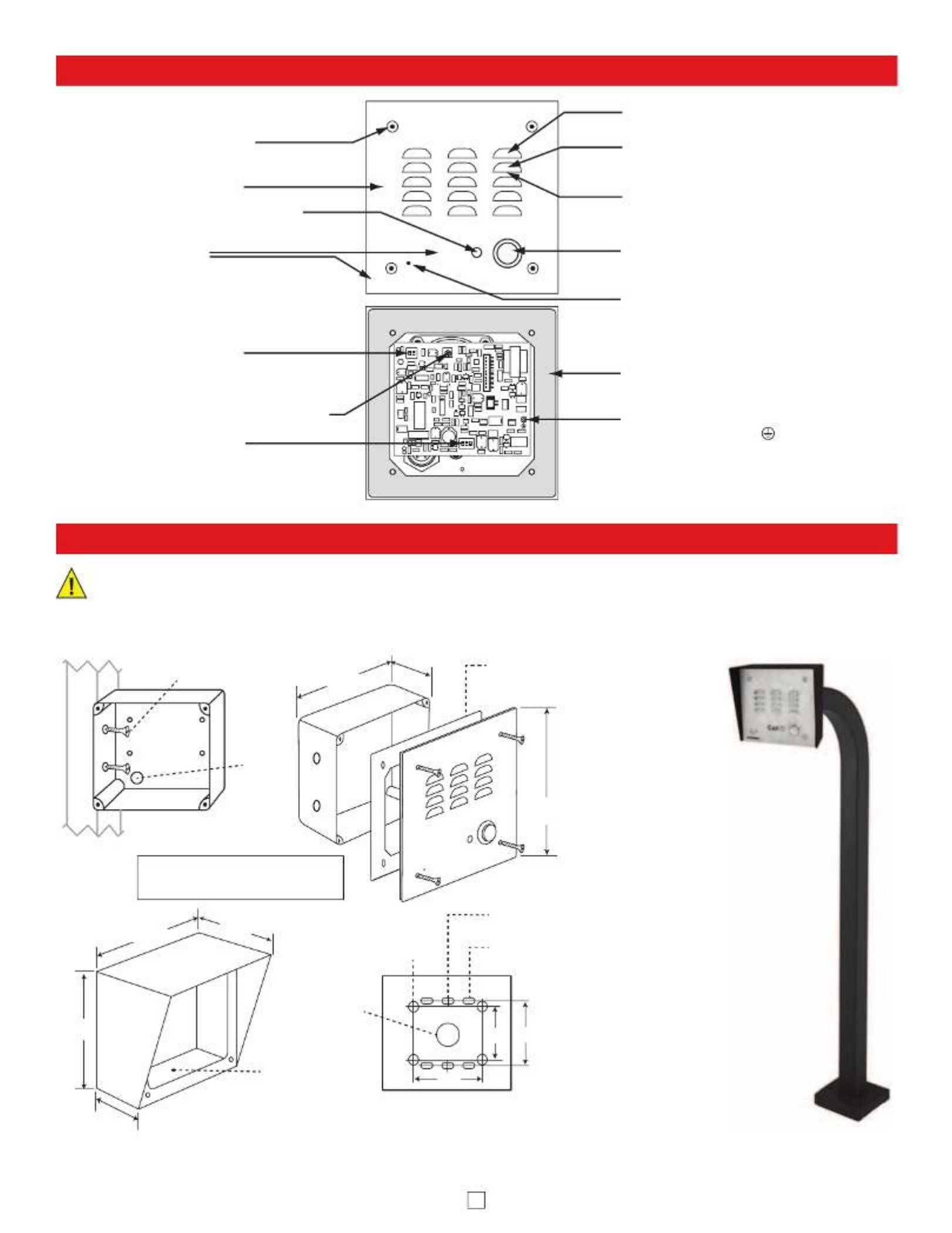

Features Overview

Call

VIKING ©

1 32

1 2

Push Button Switch: Push to initiate call,

push again to disconnect. Solid 316

stainless steel internally sealed per IP67.

Speaker Screen: Stainless steel speaker

screen with 0.018" diameter holes to

prevent punctures from paperclips, etc.

Faceplate: Heavy duty 14 gauge Marine grade

316 stainless steel faceplate.

Speaker: Mylar speaker with rubber gasket

to maintain water-tight seal and eliminate

water deterioration.

Condensation Drain Hole

Mounting Screws: (4) 6-32 x 3/4" Marine grade

316 stainless steel, flat head, T-10 Torx security

screws and drive bit (included).

LED: Lights blue for "In-Use" indication.

Microphone: Omni-directional microphone

with protective water-resistant cloth.

Faceplate Gasket: 1/8" thick closed cell

PVC to provide a water-tight seal.

Speaker Volume

DIP Switches (see page 6):

1: Push Button Feature (connect / disconnect)

2: Auto Answer Feature (on/off)

3: Programming Switch (normal/programming)

DIP Switches (see page 6):

1: Normal Audio Detection

2: Increased Audio Detection

Laser Etched Graphics: For long lasting

easy to read graphics.

Earth Ground: To increase surge protection,

loosen the screw labeled (as shown) and

fasten a wire with ring terminal (included)

from the mounting screw to Earth Ground

(grounding rod, water pipe, etc.)

Installation

Optional VE-5x5 Surface

Mount Box (not included)

2.25”

Condensation

Drain Hole

5.14”

5.22” 3.25”

4.0"

Rear View of VE-5x5

(not included)

5.0”

Typical

(2) 0.2 x 0.43 slots for

single gang box

(4) 0.2 x 0.43 slots for

double gang box

(1) 0.74"

diameter

3.0” 3.3”

3.0”

2.1”

Wall Stud

*Plastic Rough-In

Box (included)

VI K

Cal

(4) 0.38” diameter

(for gooseneck

pedestal mounting)

Peel paper liner and adhere gasket to back

of panel, centering over mounting holes.

Model E-30-EWP shown

in an optional VE-5x5

Surface Mount Box

mounted to a VE-GNP

Gooseneck Pedestal

Other pedestal options

available, see DOD 424

The optional VE-5x5 Surface Mount Box (left) is

designed to be surface mounted to a single gang

box, double gang box or VE-GNP Gooseneck

Pedestal (shown right). For more information on

the VE-5x5 and VE-GNP, see DOD 424.

Wire

knock out

(2) Standard flat head dry wall

(sheet rock) screws (not included)

IMPORTANT: The E-30 will NOT mount to a

standard double gang box. If your application

requires a double gang box, see model E-32.

* Note: The plastic rough-in box (part # 259576)

may be purchased separately in advance. Go to

www.vikingelectronics.com and click “Spare Parts”.

Note: When mounting out-

side to rough or uneven

surfaces (brick, stucco, etc.)

apply a bead of clear silicone

around the top edge and

sides of faceplate or VE-5X5.

Caution: When warm air comes in contact with cold surfaces, such as outside walls and conduits, it causes condensation. To prevent condensation from accumulating

inside the always bring conduit into the bottom of the unit. If this is not possible, drill a 1/4” diameter hole in the bottom of the gray plastic box.E-30/32

A. E-30 / E-30-EWP
