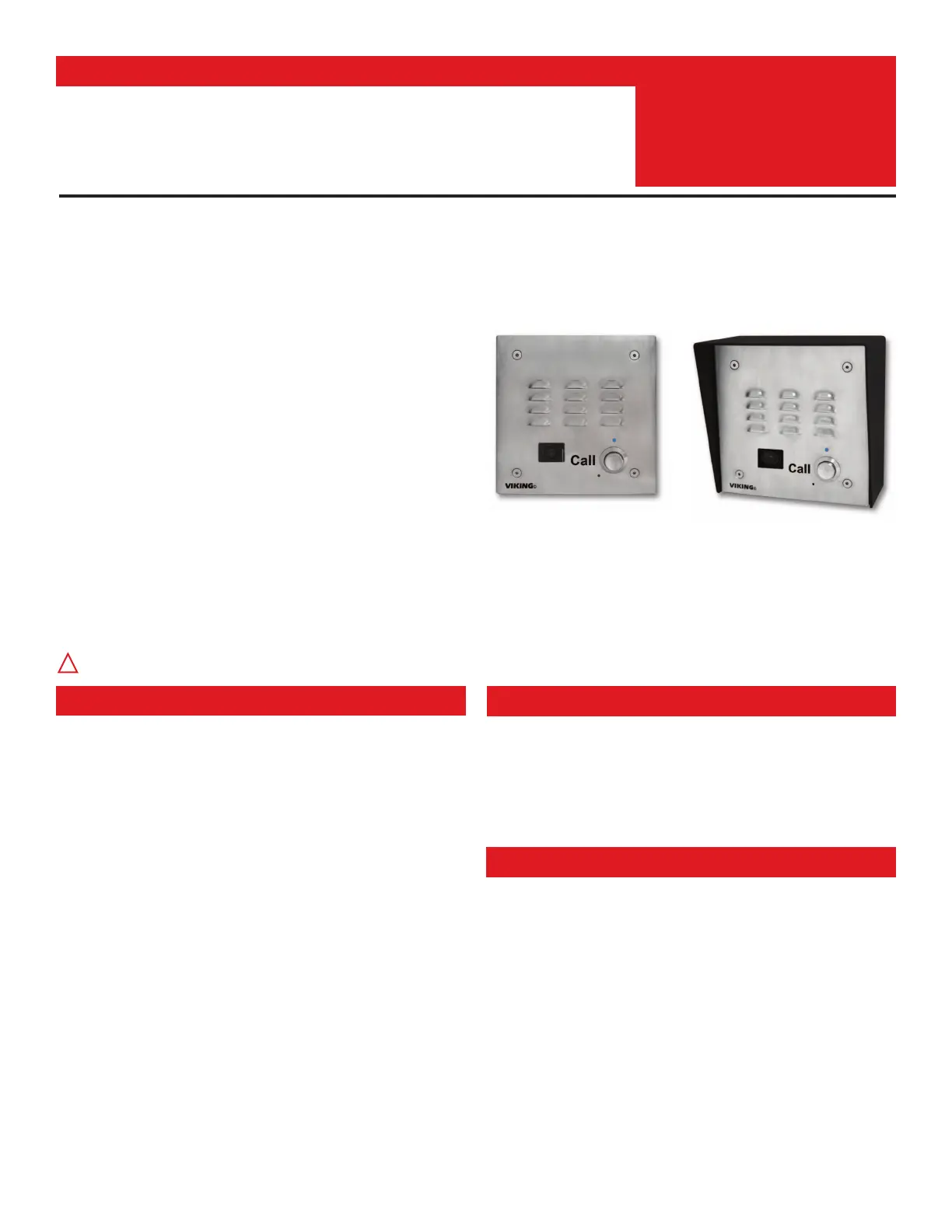

The E-35-IP VoIP Entry Phone is designed to provide quick and reliable

handsfree communication for SIP VoIP phone systems with PoE. The E-

35-IP Entry Phone can be programmed from any Touch Tone phone, PC,

or remotely using a static IP address. The Entry phones can dial up to 5

programmable numbers. On-board 2 Amp relay contacts are provided for

activating doorstrikes or gate controllers. An optional RC-4A Secure Relay

Controller can also be used.The E-35-IP Entry Phone will flash the “Call”

LED during dialing and automatically light the LED when the call is

answered. All programming parameters, including phone numbers and

location numbers, are stored in non-volatile memory, requiring no batteries.

The unit is PoE powered.

The E-35-IP-EWP shares all the features of the E-35-IP in addition to

Enhanced Weather Protection (EWP) for outdoor installations where the

unit is exposed to precipitation or condensation. EWP products are

designed to meet IP66 standards and may feature foam rubber gaskets,

Features

Applications

Specifications

VoIP Entry Phones with

Built-In Analog Color Video Camera

• Built-In high resolution analog NTSC color video camera with wide viewing

angle, tilt/swivel adjustments and wide operating temperature

• Automatic polling and programming software included

• 2 Amp relay contacts for door/gate or SL-2 strobe light control

• Blue “Call” LED indicator

• SIP compliant (see page 2 for compatible SIP servers and IP phone systems)

• Outbound Proxy, Authentication ID, Peer to Peer, VLAN Tagging

• PoE powered (class 1, <4 watts)

• Automatic Noise Canceling (ANC) feature for proper operation in noisy

environments

• VoIP eliminates the need for “Push to Talk” mode

• T-10 Torx security screws for added security

• Can be used with optional RC-4A Secure Relay Controller (DOD 582)

• Handsfree operation

• Marine grade 316 stainless steel prevents corrosion

• Laser Etched graphics on stainless steel models

• Programmable to dial up to 5 numbers on busy or ring no answer

• Cycles through backup phone numbers on busy or no-answer

• Optional Enhanced Weather Protection (EWP), EWP products are

designed to meet IP66 Ingress Protection Rating, see DOD 859

• Hangs up on busy signal, time-out or touch tone command

• Remotely programmable

• Extended temperature range (-40°F to 140°F)

• Replacement board available

• Volume adjustments for microphone and speaker

• E-35-IP is flush mountable using the included rough-in box or can be

surface mounted using an optional VE-5x5 Surface Mount Box (DOD 424)

• Optional PB-100 Polling System available (DOD 232)

• Optional SL-2 or BLK-4-EWP strobe light kit available (DOD 242/653)

• Diagnostics (for testing mic, speaker & relay)

Power: PoE class 1 (<4 watts)

Maximum Sound Pressure: 95 dB SPL @ 1m.

Dimensions: Overall-5” x 5” x 2.25” (127mm x 127mm x 57mm),

Plastic Electrical Box-4” x 4” x 2.12” (102mm x 102mm x 54mm)

Shipping Weight: 2 lbs (0.9 Kg)

Operating Temperature: -40°F to 140°F (-40° C to 60° C)

Humidity - Standard Products: 5% to 95% non-condensing

Humidity - EWP Products: Up to 100%

Audio Codecs: G711u, G711a, G722

Network Compliance: IEEE 802.3 af PoE, SIP 2.0 RFC3261,

100BASE-TX with auto cross over

Regulatory Compliance: FCC Part 15 and Canada ICES-3 Class A

Connections: (1) RJ45 10/100 Base-T, (6) gel-filled butt

connectors (3M Scotchlok UR2)

(See page 3 for camera specifications)

• Gate Entrance

• Parking ramps/lots

• ATM machines

• Medical centers

• Lobbies

• Entryways

• Stadiums

• Convention centers

• Public access areas

Standard

Flush Mount

Shown in Optional

VE-5x5 Surface Mount Box

sealed connections, gel-filled butt connectors, as well as potted circuit

boards with internally sealed, field-adjustable trim pots and DIP switches

for easy on-site programming. For more information on EWP, see DOD 859.

Installation requires the assistance of a Network Administrator / IT Technician.

PRODUCT

MANUAL

Designed, Manufactured and Supported in the USA

E-35-IP/EWP

VoIP Entry Phones with

Analog Color Video Camera

September 28, 2021

SECURITY & COMMUNICATION

VIKING

VoIP SIP System Compatibility

For compatibility and vendor specific detailed configuration instructions, see the Viking VoIP

SIP System Compatibility List, DOD 944. To open and download this PDF file:

1. Go to www.vikingelectronics.com

and enter 944 in the search box

2. Click Application Note (DOD 944)

to open and download the PDF

Scan the QR code below to open

and download the Viking VoIP

SIP System Compatibility List

- OR -

Important: Exclusion from this list means only that compatibility has not been verified, it does not mean

incompatibility. If you have questions, please call Viking Electronics at 715-386-8861.
