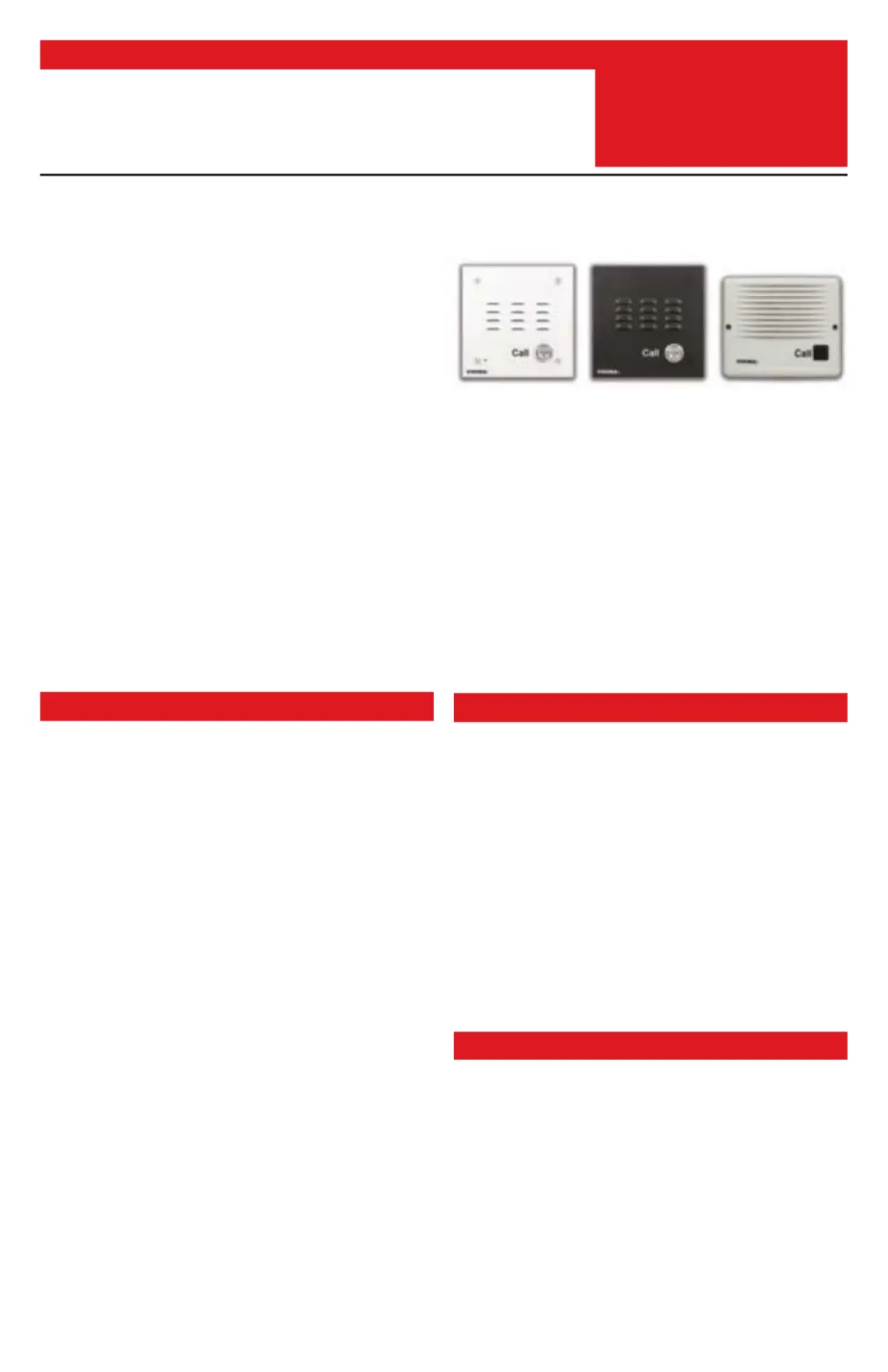

Provide Convenient Handsfree Communication

Features

The E-10A, E-10-WHA E-20B and are telephone line

powered speaker phones that provide straightforward

two-way handsfree communication. All units function

identically, but are available in different housings to

better suit the application. When the “Call” button is

pressed, the speaker phone will come off-hook and

will remain off-hook until one of the following happens:

a CPC signal is detected, the programmed timeout

has elapsed, a busy signal is detected, or the call goes

silent, making the unit automatically disconnect.

The speaker phone can be connected directly to a

C.O. line or analog PABX/KSU station when

programmed as a ringdown circuit, or used with a

Viking Dialer. If a line or station is not available,

Viking’s DLE-200B ring down circuit can be used.

One to four speaker phones can share an existing

phone line in a house or small business when used

with a Viking or C-200, C-250, C-500, C-2000B

Controller.

For outdoor installations models E-10A-EWP,

E-10-WHA-EWP and E-20B-EWP come eqipped with

Enhanced Weather Protection (EWP). EWP products

are designed to meet IP66 standards and may feature

foam rubber gaskets and boots, sealed connections,

gel-filled butt connectors, as well as potted circuit

boards with internally sealed, field-adjustable trim pots

and DIP switches for easy on-site programming. For

more information, see . DOD 859

• Alternate action call button to place or cancel a call

• Intelligent call progress detection for automatic hang-

up on CPC, silence, busy signal, or time out

• Telephone line powered

• Weather resistant features: mylar speaker, gaskets,

internally sealed push button switch, UV stable

exterior, enamel coated PCB

• E-10A-EWP, E-10-WHA-EWP E-20B-EWP and are

designed to meet IP66 Ingress Protection Rating

• Adjustable microphone and speaker volume

• Programmable maximum call length

• Selectable auto-answer feature allows remote

monitoring

• Two way handsfree communication

• Programmable VOX (mic/speaker) switching speed

E-10A, E-10WHA Features:

- Vandal resistant, black or white powder painted,

aluminum face plate with heavy duty 316 stainless

steel call button and mounting gasket

- Flush mountable using included plastic rough-in box

part number - 259576

- Surface mount with optional ( ) VE-5x5 DOD 424

- T-10 Torx Security Screws

E-20B/E-20B-EWP Features:

- Light gray colored, impact resistant, U.V. stable,

plastic chassis

- Surface mountable only

Power: Telephone line powered (18 VDC/20mA minimum)

Dimensions: E-10A: Overall: 5” x 5” x 2.25” (127mm x 127mm

x 57.2mm), Rough-in box: 4” x 4” x 2.25” (102mm x 102mm x

57mm) 5.5” x 4.5” x 1.7” (140mm x 115mm x 43mm)E-20B:

Shipping Weights:

E-10A: 2 lbs (0.91 kg), E-20B: 1.5 lbs (.75 kg)

Operating Temperature:-30° F to 150° F (-34° C to 65° C)

Humidity - Standard Models: 5% to 95% non-condensing

Humidity - EWP Models: up to 100% condensing

Speaker Volume: Approximately 70db maximum @ 1m

Ring Voltage: 25V AC RMS minimum

CPC Disconnect Time: 300ms minimum

REN: 0.8A

Connections: (2) gel-filled butt connectors

Applications

Specifications

www.VikingElectronics.com

Information: 715-386-8861

Use as a Handsfree Speaker Phone for:

• Courtesy communication

• Delivery entrances

• Parking lots and ramps

• ATM machines

• Convention centers

• Stadiums

• Building lobbies

• Pedestrian gates

• Residences

• Businesses

DESIGNED, MANUFACTURED AND SUPPORTED IN THE USA

E-10A/EWP Series

E-20B/EWP

Speaker Phones

February 9, 2021

PRODUCT

MANUAL

SECURITY & COMMUNICATION

VIKING

E-10-WHA

E-10-WHA-EWP

Flush Mount, White or Black

Powder Painted Aluminum

E-10A

E-10A-EWP

E-20B / E-20B-EWP

Surface Mount,

Light Grey UV Stable

Plastic Chassis

E-10A shown with

Viking Model

VE-GNP

Gooseneck

Pedestal

Red

(Ring)

Green (Tip)

* Gel-Filled Butt

Connectors

LED3

LED1 LED2

LED4

LED5

LED6

LED7

CCCC

C C

J11-

J10-

1 2

J9-

J8-

J7-

11 2

22 3

44 5

VIKING

MODEL C-2000B

VIKING

ELECTRONICS

HUDSON, WI 54016

ADVANCED DOOR/GATE AND

ENTRY PHONE CONTROLLER

1 2 3 4 5 6 7

8 9

10 11 12 13 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

PWR 13.8 VACEARTH GND

ENTRY PHONE 1

DOOR STRIKE 1

ENTRY PHONE 2

DOOR STRIKE 2

ENTRY PHONE 3

DOOR STRIKE 3

ENTRY PHONE 4

DOOR STRIKE 4

DOORBELL SWITCH /

AUX. INPUT

AUX. CONTACTOUTPUT

PHONE LINE

INPUT

LINE OUT

TO PHONES

ANALOG STATION

INPUT

VIKING©

DLE-200B

RES

RINGDOWN

BUSY

VIKING

Programmable

Tone Dialer

MODEL: K-1900-5

Quick Programming Guide

1. Call the phone connected to the dialer.

2. Answer phone. Enter

∗

& security code.

(Factory set to 845464) Write your

security code below:

3. Enter your spped dial number & #00.

Note: For additional programming see

K-1900-5 Technical Practice.

Viking Electronics, Inc.

Hudson, WI 54016

LINE IN PHONE

Viking C-2000B 1-4 Entry Phone

Controller (not included)

** Optional Viking

K-1900-5 Dialer or

K-1900-30 Multi-

Number Dialer

(not included)

*** C.O. Line or Analog

PABX/KSU Station

(programmed for ringdown)

Viking DLE-200B

Two Way Ringdown

Circuit (not included)

To dedicated phone, unused trunk/line input of a phone system, or Viking C-1000B Doorbox Controller

SINGLE ENTRY PHONE

CONTROLLER

VIKING

MODEL C-200

PWR 13.8 VAC

AUX RELA

CONTACTS

1 2 3 4 5 6 7 8 9

EARTH

GND

PHONE LINE

INPUT

LINE OUT

TO PHONES

TO ENTRY

PHONE

VIKING

ELECTRONICS

HUDSON, WI 54016

EARTH

GND

C.O. LINE

INPUT

OUT TO

PHONES

ENTRY

PHONE

N.O. COM N.C.

AUX CONTACTS

1 2 3

Viking C-200 or C-250 Single Entry

Phone Controller (not included)

-or-

To C.O. Line or

PABX/KSU station

**** Wires from

E-10A/E-10A-EWP

E-20B/E-20B-EWP

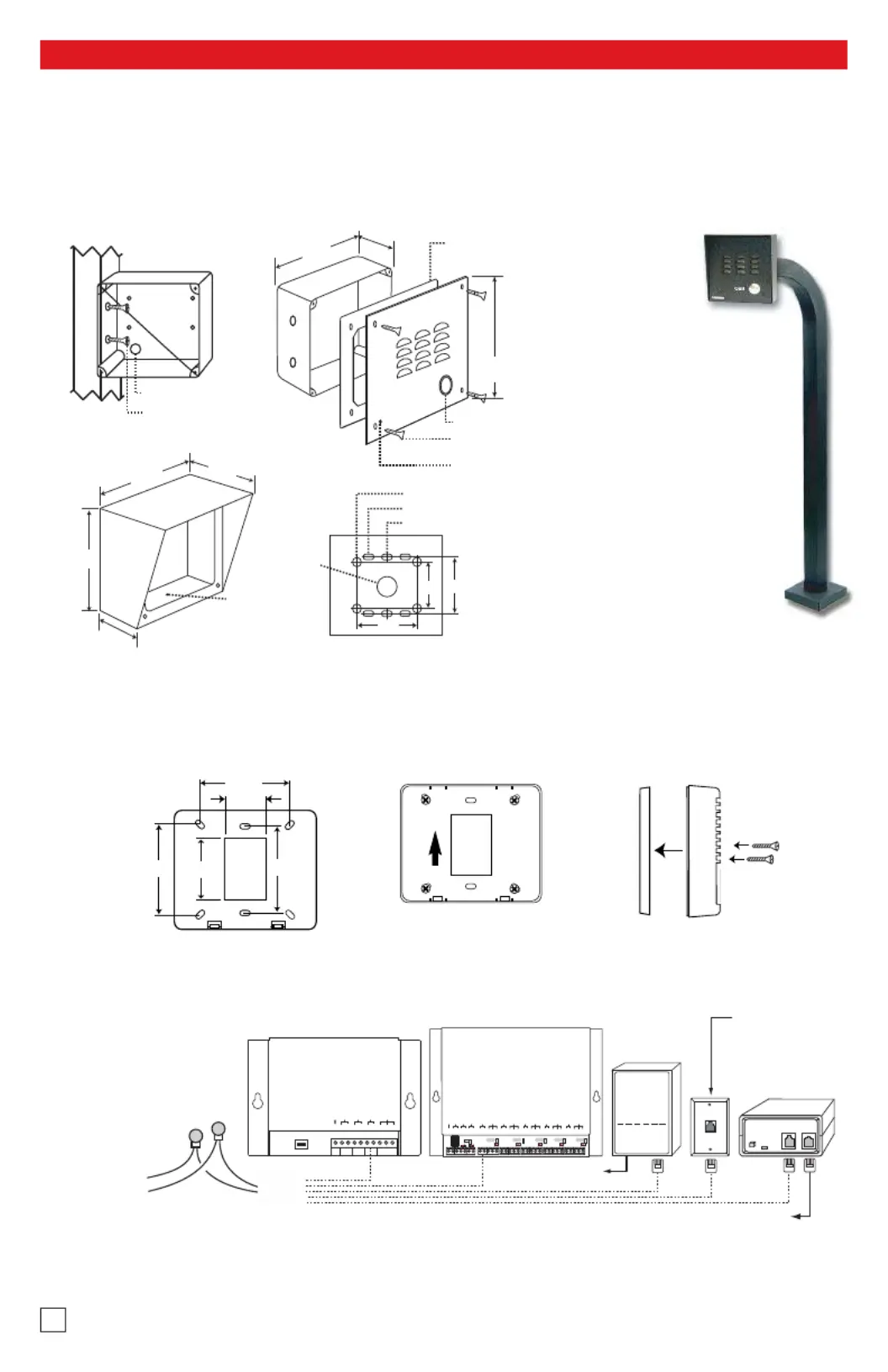

Installation

Front View of Optional

VE-5x5 (not included)

2.25”

Condensation

Drain Hole

* 1/8" thick foam

gasket (included)

5.14”

5.22”

3.25”

Call

4.0"

Rear View of VE-5x5 (not included)

Push to Call Button

(4) 6-32 X 3/4” stainless steel, flat

head, T-10 Torx, security screws (included)

Condensation Drain Hole

5.0”

Typical

(4) 0.38” diameter (for gooseneck mounting)

(4) 0.2 x 0.43 slots for double gang box

(2) 0.2 x 0.43 slots for single gang box

(1) .74" dia

3.0” 3.3”

3.0”

2.1”

Wall Stud

Front View of Plastic

Rough-In Box (included)

Wire knock out

(2) Standard flat head dry wall

(sheet rock) screws (not included)

IMPORTANT: Electronic devices are susceptible to lightning and power station electrical surges from both the AC

outlet and the telephone line. It is recommended that a surge protector be installed to protect against such surges.

The E-10 Series is designed to be flush mounted to the included 4” x 4” x 2” deep plastic rough in box or surface

mounted using an optional Viking model VE-5x5. Note: The E-10 Series will NOT mount to a standard double

gang box. The plastic rough in box (part # ) may be purchased separately. Go to 259576

www.vikingelectronics.com Spare Partsand click on “ ”.

A. Mounting the E-10A, E-10-WHA, E-10A-EWP or E-10-WHA-EWP

The optional Surface Mount Box is de-VE-5x5

signed to be surface mounted to a single gang

box, double gang box or gooseneck VE-GNP

pedestal (shown right). For more information

on the and , see .VE-5x5 VE-GNP DOD 424

* Note: Peel off paper

liner and adhere gasket to

the back of the faceplate,

centering it over the four

corner mounting holes.

The E-20B and are designed to be surface mounted to a single gang box (not included), a standard E-20B-EWP

4” x 4” electrical junction box (not included), or directly to a wall or flat sided post. Caution: For rough surfaces

(ie: brick, stucco, etc.) additional caulking may be required.

B. Mounting the E-20B and E-20B-EWP

3.40"

1.55"

3.40"

2.35"

3.30"

Back Panel of the

E-20B and E-20B-EWP

Side view of the

E-20B and E-20B-EWP

Mount back panel to a wall, a single

gang box or a 4”x4” junction box with

the arrow pointing up. Note: For

outdoor applications apply a bead of

caulk between back panel and wall.

Attach the cover to the

base with the two included

screws as shown.

C. Wiring

* Note: The gel-filled (water-tight) butt connectors are designed for insulation displacement on 19-26 gauge wire with a maximum

insulation of 0.082 inches. Cut off stripped wire ends before terminating.

** Note: Talk battery must be a minimum of 28V DC when using the speaker phone with a Viking Dialer ( ) or K-1900-5 DOD# 317

K-1900-30 Multi-Number Dialer ( ). DOD 300

*** Note: TBB-1B When installing a line powered phone on a low voltage and/or low loop current phone system extension, a Viking

Talk Battery Booster may be required, see .DOD 632

**** Note: When wires are routed

from above, a “drip loop” is recom-

mended to keep water away from the

circuit board.

Caution: For rough sur-

faces (ie: brick, stucco,

etc.) additional caulking

may be required.
