PRODUCT MANUAL

Designed, Manufactured and Supported in the USA

C O M M U N I C AT I O N & S E C U R I T Y S O L U T I O N S

Gooseneck Pedestal Mounting Kit for the

E-1600A, E-1600-45A, E-1600-60A and E-1600-65A

Features

The model is a mounting kitE-1600A-MK-GNP

for attaching the E-1600A E-1600-45A E-, ,

1600-60A or E-1600-65A Emergency Phone to

a Viking gooseneck pedestal.VE-GNP

The kit includes stainless steel mounting hard-

ware, two gaskets to seal the back of the Emer-

gency Phone and a durable powder coated 12

gauge steel mounting plate.

• allows the ,E-1600A-MK-GNP E-1600A

E-1600-45A E-1600-60A E-1600-65A, or

Emergency Phone to be mounted directly

to a Viking gooseneck pedestalVE-GNP

• Durable 12 gauge steel mounting plate

• Plate is powder coat primed then top

coated with a UV stable black textured

powder coat

• Stainless steel mounting hardware is in-

cluded

• Two gaskets are included for sealing the

back of the Emergency Phone to the

gooseneck pedestal

• For mounting the following Viking Emer-

gency Phones to a Viking VE-GNP

gooseneck pedestal for emergency pool

phone applications etc.

- Red Emergency PhoneE-1600A

- Yellow Emergency PhoneE-1600-45A

- “Police” Emergency PhoneE-1600-60A

- Blue Emergency PhoneE-1600-65A

For more information on Viking Emer-

gency Phones, see DOD# 215

Dimensions: 5.37” x 3.40” x 0.105” (136.4mm x

86.4mm x 2.67mm)

Shipping Weight: 1.2 lbs (0.544 kg)

Environmental: -40°F to 150°F (-40°C to 65°C)

with up to 100% humidity

Included Hardware: (4) #10-24 x 5/8 stainless

steel truss head screws, (4) 10-24 stainless steel

nylock nuts

E-1600A-MK-GNP

E-1600A Gooseneck

Pedestal Mounting Kit

December 20, 2016

Applications

Specifications

www.vikingelectronics.com

Information: (715) 386-8861

VIKING

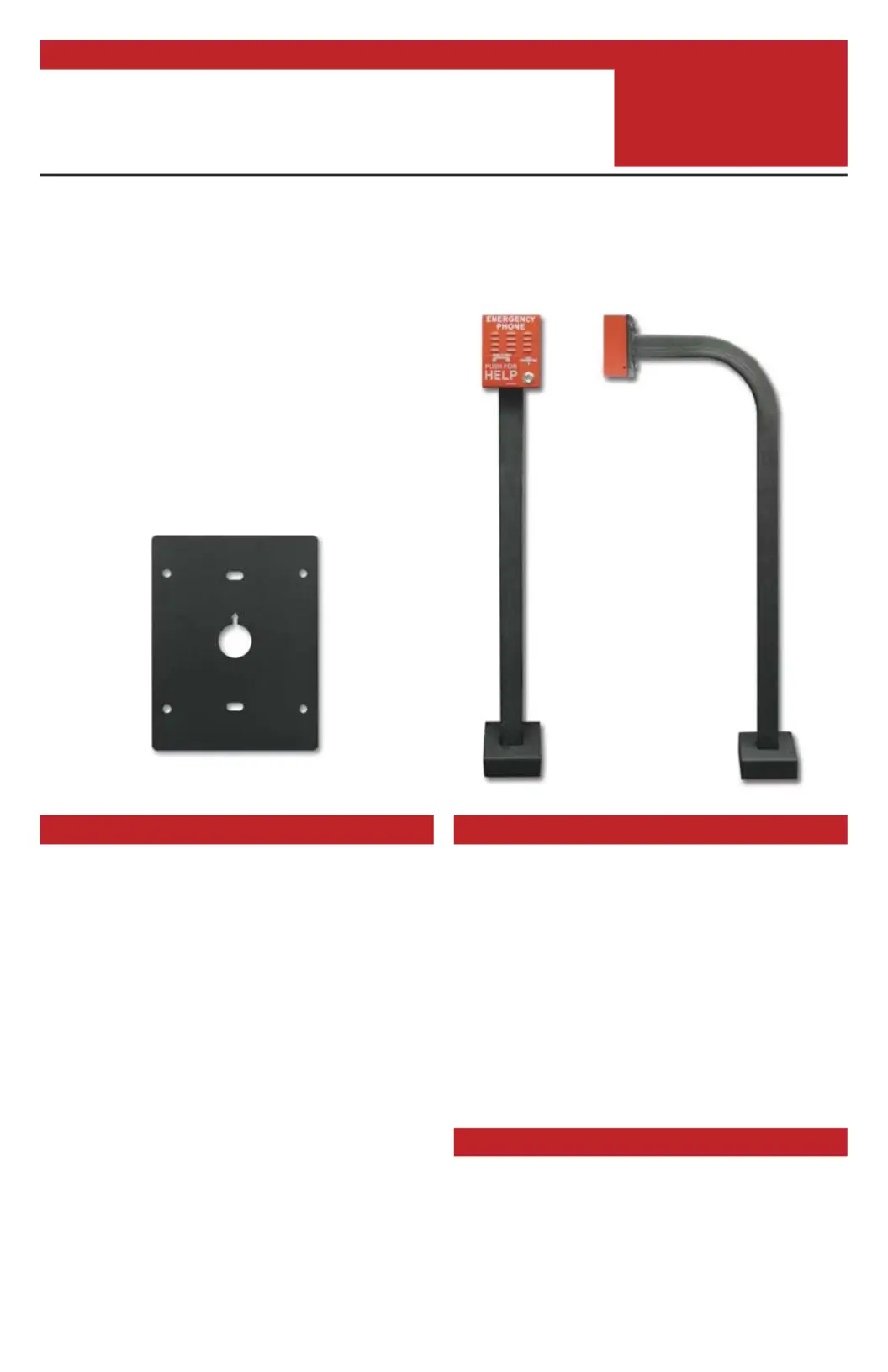

E-1600A-MK-GNP Mounting Plate

Model E-1600A

Emergency Phone

shown with VE-GNP

Pedestal and

E-1600A-MK-GNP

Mounting Kit

Square Gasket

(included)

Rectangle Gasket

(included)

E-1600A-MK-GNP

Mounting Plate

(included)

Installation

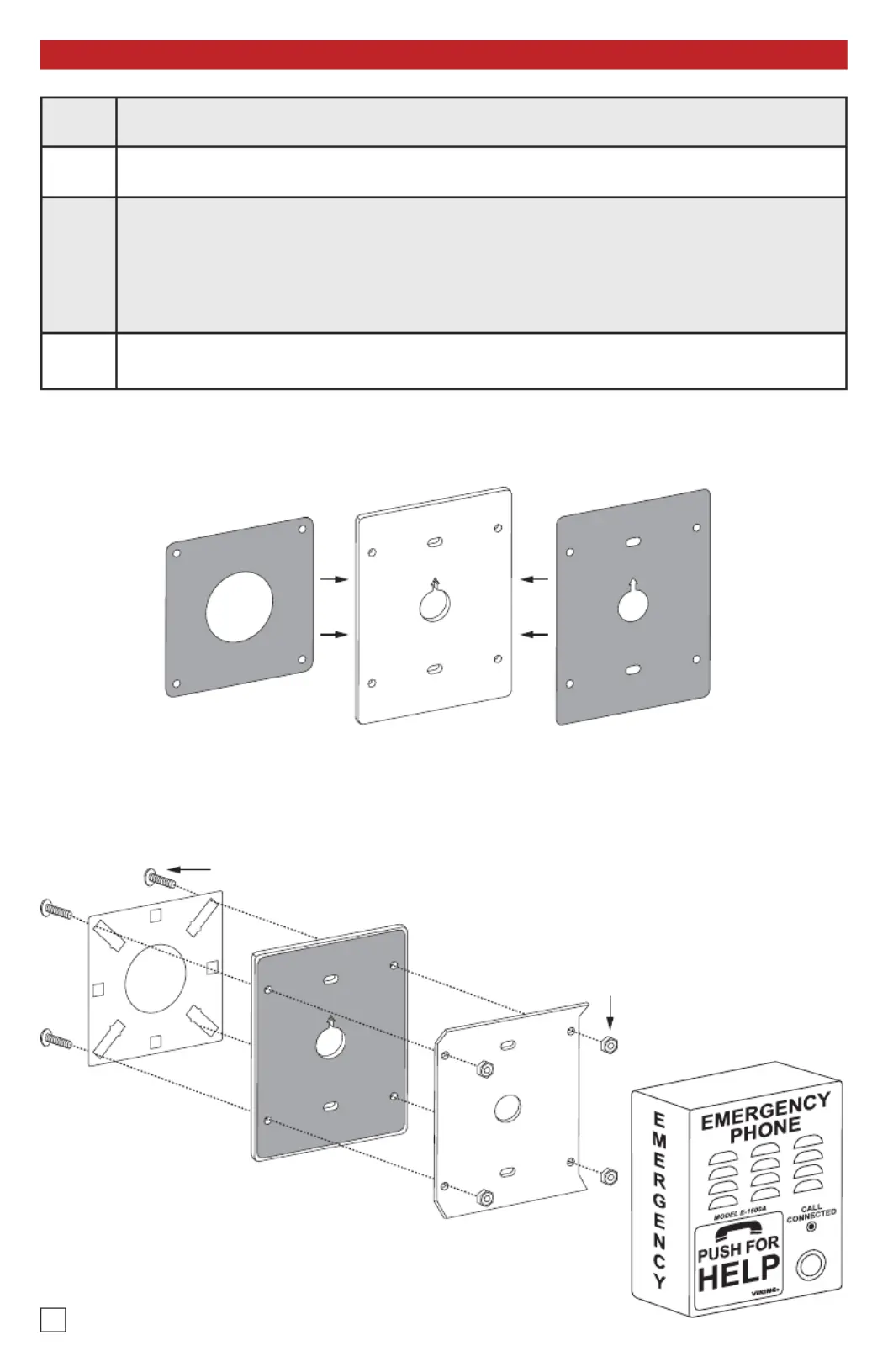

Step 1.

Adhere the square gasket to the mounting plate. Make sure gasket isE-1600A-MK-GNP

centered and holes align. (Figure 1)

Step 2.

Adhere the rectangular gasket to the other side of the mounting plate.E-1600A-MK-GNP

Make sure gasket is centered and holes and arrow symbol align. (Figure 1)

Step 3.

Place the back plate on the rectangular gasket side of the E-1600A E-1600A-MK-GNP

mounting plate. Pull the wires through the center hole on the plates. Make sure the arrow

symbol on the E-1600A-MK-GNP mounting plate is pointing UP then attach the

square gasket side of the plate to the pedestal mounting plate with the 4 trussVE-GNP

head screws and nylock nuts as shown. Do not tighten screws until all 4 screws are in-

serted and plate is aligned. (Figure 2)

Step 4.

Attach the wires from the pedestal to the with provided butt connectors then fas-E-1600A

ten the to mounting plate by tightening the set screw on the bottom of the unit.E-1600A

Model E-1600A

(not included) see DOD# 215

(4) 10-24 Nylock nuts

included with mounting kit

E-1600A-MK-GNP Mounting Plate

with both gaskets adhered

(4) #10-24 x 5/8 Truss Head screws

included with mounting kit

VE-GNP

mounting plate

(not included)

see DOD# 424

E-1600A back plate,

included with model E-1600A

Figure 1

Figure 2
