PRODUCT MANUAL

Designed, Manufactured and Supported in the USA

S E C U R I T Y & C O M M U N I C AT I O N S O L U T I O N S

Provide Reliable and Intelligent

Communication In Noisier Locations

Features

The E-30-PT is designed to provide quick and reliable

communication in noisier areas. The mic sensitivity is set

to a low level until the TALK button is pressed then it is

raised to a normal level. In this way, the assuresE-30-PT

that the called party’s voice will be broadcast over the

speaker. In applications where the background noise

can be louder than the person calling, a handset type

phone is recommended.

The E-30-PT features non-volatile memory, a built in

dialer, and intelligent call progress detection for automatic

hang-up when the call is completed. The can beE-30-PT

programmed to dial up to 5 different numbers on ring no

answer or busy and can be configured to dial these

numbers until answered.

The E-30-PT-EWP shares all of the features of the

E-30-PT in addition to Enhanced Weather Protection

(EWP) for outdoor installations where the unit is exposed

to precipitation or condensation. EWP products feature

foam rubber gaskets and boots, silicon sealed

connections, gel-filled butt connectors, as well as

urethane or thermal plastic potted circuit boards with

internally sealed, field-adjustable trim pots and DIP

switches for easy on-site programming.

• Vandal Resistant Features: 14 gauge louvered 316

stainless steel faceplate with permanent laser etched

graphics, speaker/mic screen, heavy duty metal “Call”

button and T-10 Torx security mounting screws

• Marine grade 316Weather Resistant Features:

stainless steel faceplate, T-screws and push button

switch. Switch internally sealed per IP67. Mylar

speaker. Self-draining mic mount. Faceplate, mic and

speaker gaskets. Weather resistant powder paint on

optional ( ).VE-5x5 DOD 424

• E-30-PT-EWP is designed to meet IP66 Ingress

Protection Rating (see for more information)DOD 859

• Push to talk button

• Telephone line powered

• Non-volatile E

memory (no batteries required)

• Programmable to dial up to 5 numbers on busy or ring

no answer

• Blue off-hook LED indicator

• Volume adjustments for microphone and speaker

• Advanced call progress detection: disconnects on

busy signal, return to dial tone, CPC, reorder tone,

maximum call time out and programmable silence

time out

• Selectable auto-answer feature for monitoring

• Selectable push button disconnect

• Extended temperature range (-30°F to 150°F)

• Flush mountable using included plastic rough-in box

• Optional surface mount back box ( )VE-5x5 DOD 424

Non-ADA Hot-Line Phones for:

• Terminals • Parking lots/ramps

• Stadiums • Convention centers

• ATM machines

Gate and Door Entry Phones for:

• Business lobbies • Residences

• Vehicular and Pedestrian gates

Power: Telephone line powered. Minimum 24V DC talk

battery voltage, with a minimum loop current of 20mA

loop. Loop current may be boosted on low current lines

with a Viking Model talk battery booster (seeTBB-1B

DOD 632).

Minimum Ring Voltage: 90VAC RMS

Dimensions: Overall-5” x 5” x 2.25” (127mm x 127mm x

57mm), Plastic Electrical Box-4” x 4” x 2.12” (102mm x

102mm x 54mm )

Shipping Weight: 2.2 lbs (1 Kg)

Operating Temperature: -30°F to 150°F (-34°C to 65° C)

Humidity - E-30-PT: 5% to 95% non-condensing

Humidity - E-30-PT-EWP: Up to 100% condensing

Connections - E-30-PT: RJ11 jack

Connections - E-30-PT-EWP: Gel-filled butt connectors

E-30-PT/EWP

Speaker Phone with

Push to Talk Button

February 5, 2018

Applications

Specifications

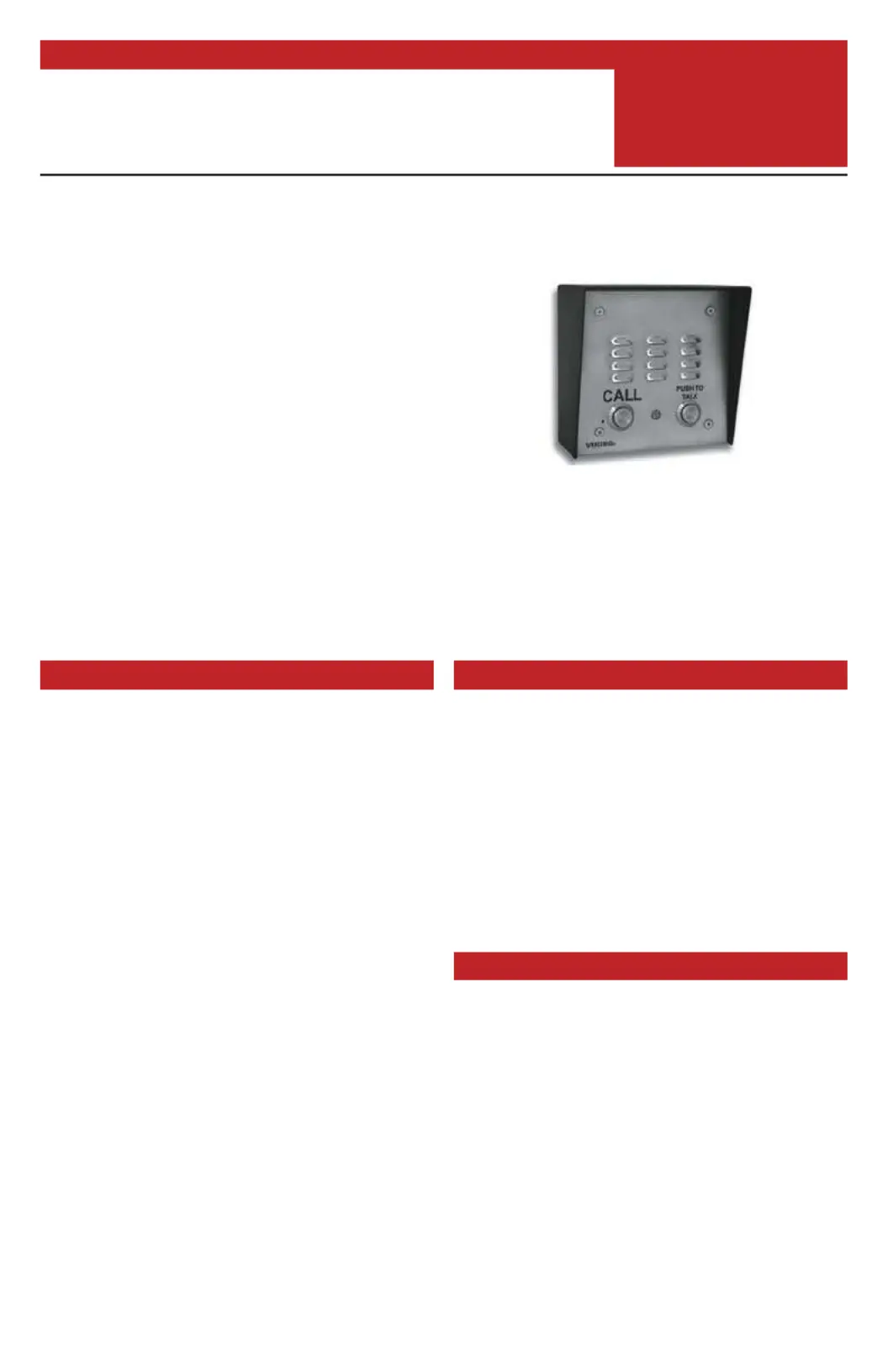

VIKING

E-30-PT/E-30-PT-EWP

Brushed 316 Stainless steel

shown with optional VE-5x5

CAUTION - When installing on an analog extension of a phone

system: Some phone systems do not conform to analog telecom

standards and might not be compatible with the E-30-PT speaker

phones. For a detailed description of the telephone line

specifications required for any of the E-30-PT phones, see DOD#

869.

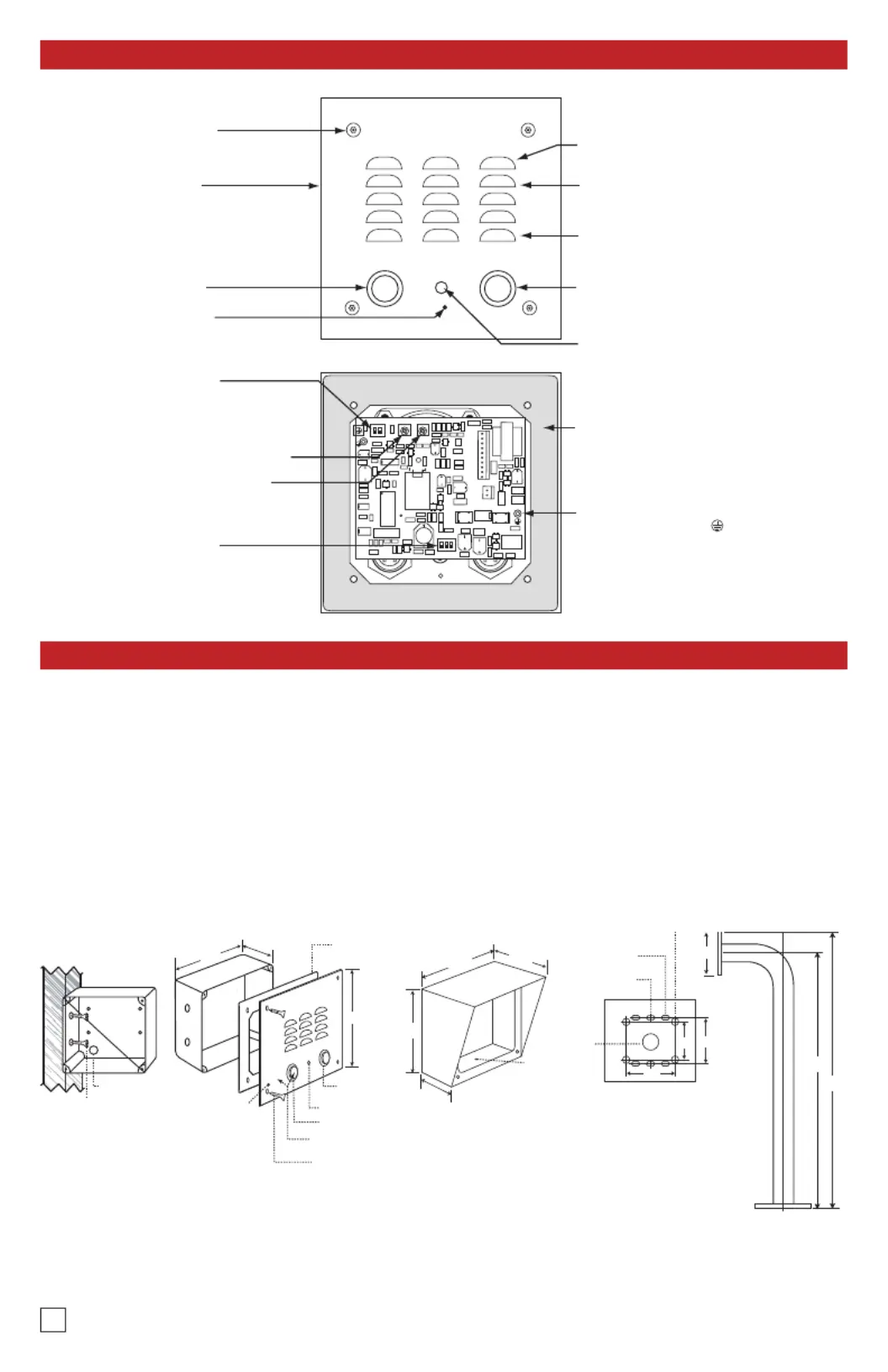

Features Overview

Installation

IMPORTANT: Electronic devices are susceptible to lightning and power station electrical surges from both the AC

outlet and the telephone line. It is recommended that a surge protector be installed to protect against such surges.

Caution: When warm air comes in contact with cold surfaces, such as outside walls, it causes condensation. To help

prevent condensation from accumulating inside the , bring conduit into the bottom of the unit. If this is notE-30-PT

possible, drill a 1/4” diameter hole in the bottom of the plastic rough-in box.

*Note: Peel off paper liner and adhere gasket to the back of the faceplate, centering it over the four corner mounting

holes. Be careful to position the modular jack inside the chassis as not to damage the components on the circuit

board.

A. Mounting

CALL

VIKING

PUSH TO TALK BUTTON: Raises microphone

volume to normal level when pressed.

Speaker Screen: Stainless steel speaker

screen with 0.018" diameter holes to prevent

punctures from paperclips, etc.

Faceplate: 14 gauge Marine grade 316

stainless steel faceplate and push button

switch (sealed per IP67).

Speaker: Mylar speaker with rubber gasket to

maintain water-tight seal and eliminate water

deterioration.

Condensation Drain Hole

Mounting Screws: (4) 6-32 x 3/4" Marine

grade 316 stainless steel, flat head, 5/64"

hexdrive, screws (included).

LED: Lights Blue for "In-Use" indication.

Faceplate Gasket: 1/8" thick closed cell PVC

to provide a water-tight seal.

Earth Ground: To increase surge protection,

loosen the screw labeled (as shown) and

fasten a wire with ring terminal (included) from

the mounting screw to Earth Ground (grounding

rod, water pipe, etc.)

Microphone Volume

Speaker Volume

DIP Switches (see page 7):

1: Push Button Feature (connect / disconnect)

2: Auto Answer Feature (on/off)

3: Programming Switch (normal/programming)

Microphone: Omni-directional microphone

with protective water-resistant cloth.

DIP Switches (see page 7):

1: Normal Audio Detection

2: Increased Audio Detection

PUSH TO

TALK

CALL Button: Push to initiate call, push again

to disconnect. Solid 316 stainless steel

internally sealed per IP67.

Front View of Optional

VE-5x5 (not included)

2.25”

Condensation

Drain Hole

5.14”

5.22”

3.25”

Rear View of VE-5x5

(not included)

(4) 0.38” diameter

(for gooseneck mounting)

(4) 0.2 x 0.43 slots

for double gang box

(2) 0.2 x 0.43 slots

for single gang box

(1) .74" dia

3.0” 3.3”

3.0”

Wall Stud

Front View of

Plastic Rough-In

Box (included)

Wire knock out

39.5”

41.41”

3.81”

* Adhere gasket to front panel,

centering over mounting holes

CALL

PUSH TO

TALK

CALL

CONNECTED

4.0"

"Push to Talk"

Button

Call Connected Red LED

"Call" Button

5.0”

2.1”

Marine grade 316 stainless steel faceplate

and push button switches (sealed per IP67)

(4) 6-32 X 3/4” Marine grade 316 stainless steel, flat

head, 5/64" T-10 Torx Security Screws (included)

Side View of

VE-GNP

(not included)

(2) Standard flat head dry wall

(sheet rock) screws (not included)

Condensation

Drain Hole

Important: E-30-PTThe will

NOT mount to a standard

double gang box.

Note: The plastic rough-in box (part # ) may be purchased separately in advance. Go to259576

www.vikingelectronics.com and click on “ ”. Spare Parts
