Side 1/23

Features

Applications

Specifications

www.VikingElectronics.com

Information: 715-386-8861

Touch-Free VoIP Entry Phones

• Touch-Free motion sensor with adjustable range from one to four inches

• Motion Sensor’s Ring LED is lit Blue when idle, flashes Green during dialing and lit steady

Green when call is answered

• Automatic polling and programming software included

• 2 Amp relay contacts for door/gate or SL-2 strobe light control

• SIP compliant (see page 2 for list of compatible IP-PBX phone systems)

• Outbound Proxy, Authentication ID, Peer to Peer, VLAN Tagging

• PoE powered (class 1, <4 Watts)

• Automatic Noise Canceling (ANC) feature for proper operation in noisy environments

• VoIP eliminates the need for “Push to Talk” mode

• Network downloadable firmware

• T-10 Torx security screws for added security

• Can be used with optional RC-4A Secure Relay Controller (DOD 582)

• Marine grade 316 stainless steel prevents corrosion on the stainless steel models

• Laser etched graphics on stainless steel models

• Programmable to dial up to 5 numbers on busy or ring no answer

• Cycles through backup phone numbers on busy or no-answer

• Optional Enhanced Weather Protection (EWP), EWP products are designed to meet IP66 Ingress

Protection Rating, see DOD 859

• Hangs up on busy signal, time-out or touch tone command

• Remotely programmable

• Extended temperature range (-40°F to 140°F)

• 3 different chassis

• Volume adjustments for microphone and speaker

• E-20TF-IP surface mounts to a wall or flat sided post

• E-30TF-IP is flush mountable using the included rough-in box or can be surface mounted using

an optional VE-5x5 Surface Mount Box (DOD 424)

• E-32TF-IP flush mounts in a standard double gang electrical box (not included)

• Diagnostics for testing microphone, speaker, and relay

Power: PoE class 1 (<4 watts)

Maximum Sound Pressure: 90 dB SPL @ 1m.

Dimensions: See Installation and Specifications

Operating Temperature: -40°F to 140°F (-40° C to 60° C)

Humidity - Standard Products: 5% to 95% non-condensing

Humidity - EWP Products: Up to 100%

Audio Codecs: G711u, G711a, G722

Network Compliance: IEEE 802.3 af PoE, SIP 2.0 RFC3261,

100BASE-TX with auto cross over

Regulatory Compliance:

FCC Part 15, Canada ICES-3 Class A, CE

(except for E-20TF-IP and E-20TF-IP-EWP)

Connections: (1) RJ45 10/100 Base-T, (3) gel-filled butt

connectors

Installation requires the assistance of a Network Administrator / IT Technician.

The E-20TF-IP, E-30TF-IP and E-32TF-IP Touch-Free VoIP Entry Phones are equipped

with Vikings touchless motion sensor. A simple wave over the sensor will activate a call.

Touch-Free calling eliminates the exposure to germs and bacteria from typical push button

switches.

The Entry Phones are designed to provide quick and reliable handsfree communication

for SIP VoIP phone systems with PoE. They can be programmed from any Touch Tone

phone, PC, or remotely using a static IP address. The Entry phones can dial up to 5

programmable numbers. On-board 2 Amp relay contacts are provided for activating

doorstrikes or gate controllers. An optional RC-4A Secure Relay Controller can also be

used.

The E-20/30/32TF-IP entry phone’s motion sensor LED lights blue when idle, flashes

green during dialing and automatically lights solid green when the call is answered.

The E-20/30/32TF-IP-EWP shares all the features of the standard E-20/30/32TF-IP in

addition to Enhanced Weather Protection (EWP) for outdoor installations where the unit

is exposed to precipitation or condensation. EWP products are designed to meet IP66

standards and may feature foam rubber gaskets, sealed connections, gel-filled butt

connectors, as well as potted circuit boards with internally sealed, field-adjustable trim

pots and DIP switches for easy on-site programming. For more information on EWP, see

DOD 859.

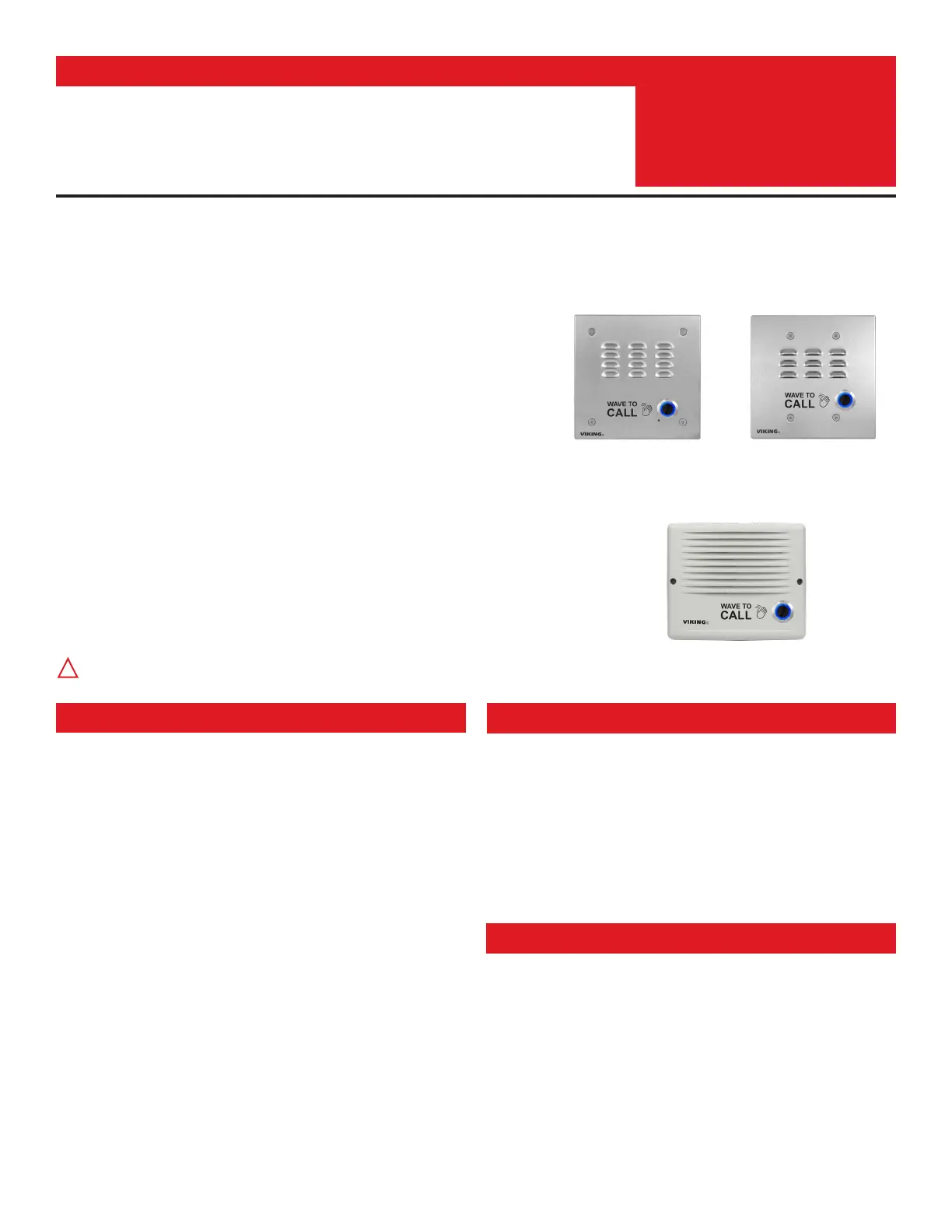

E-20TF-IP / E-20TF-IP-EWP

Surface Mount, Light Grey

UV Stable Plastic Chassis

E-32TF-IP / E-32TF-IP-EWP

Flush Mount in a Standard Double

Gang Electrical Box, Brushed 316

Stainless Steel

• Contactless way to initiate a call, reducing the spread of germs

and bacteria

• Gesture Activated Calling

• Gate Entrance

• Parking ramps/lots

• ATM machines

• Medical centers

• Lobbies

• Entryways

• Stadiums

• Convention centers

• Public access areas

E-30TF-IP / E-30TF-IP-EWP

Flush Mount, Brushed 316

Stainless Steel

PRODUCT

MANUAL

Designed, Manufactured and Supported in the USA

E-20/30/32TF-IP

Touch-Free

VoIP Entry Phones

May 12, 2022

SECURITY & COMMUNICATION

VIKING

VoIP SIP System Compatibility

For compatibility and vendor specific detailed configuration instructions, see the Viking VoIP

SIP System Compatibility List, DOD 944. To open and download this PDF file:

1. Go to www.vikingelectronics.com

and enter 944 in the search box

2. Click Application Note (DOD 944)

to open and download the PDF

Scan the QR code below to open

and download the Viking VoIP

SIP System Compatibility List

- OR -

Important: Exclusion from this list means only that compatibility has not been verified, it does not mean

incompatibility. If you have questions, please call Viking Electronics at 715-386-8861.
