PRODUCT MANUAL
Designed, Manufactured and Supported in the USA
S E C U R I T Y & C O M M U N I C AT I O N S O L U T I O N S
Features
The K-1200 Entry Phone is a two-way, handsfree
telephone with 12 buttons for calling individual
residences in an apartment building. The rugged
stainless steel faceplate has a printed directory
housed in a waterproof, scratch-resistant lens.
Each button is beside the tenants name in the
directory so there are no confusing codes to deal
with. Calling a particular tenant is as easy as
pressing a single button. The has a built inK-1200
speed dialer that can handle up to 12 primary
phone numbers, each with 22 digits. If there is no
answer at the first number, a second number can
be called automatically. Once the tenant answers
their phone, a single touch tone command can
activate the door strike relay. For “no phone line”
applications, the is compatible with theK-1200
C-3000 no CO (phone line) controller.
The K-1200-EWP shares all of the features of the
K-1200 in addition to Enhanced Weather
Protection (EWP) for outdoor installations where
the unit is exposed to precipitation or
condensation. EWP products feature foam rubber
gaskets and boots, sealed connections, gel-filled
• Vandal Resistant Features: 14 gauge louvered 316
stainless steel faceplate with permanent laser etched
graphics, heavy duty metal keypad and T-10 Torx
Security mounting screws.
• Marine grade 316Weather Resistant Features:
stainless steel faceplate and screws. Internally sealed
keypad. Mylar speaker. Self-draining mic mount.
Faceplate, keypad, mic and speaker gaskets.
• is designed to meet IP66 IngressK-1200-EWP
Protection Rating (see for more info)DOD 859
• Operates on 12 to 24 volts AC/DC
• 12 speed dial buttons (22 digits each)
• 12 alternate number positions (22 digits each)
• One button operation (no call button)
• Hang up on CPC, busy, silence, time-out or dial tone
• Touch tone restriction from microphone
• Integral relays for camera control and door strike
• Works with for increased securityC-1000B
• Works with for “No CO” (phone line) operationC-3000
• 50 keyless entry codes
• See model for integral cameraK-1205
• Postal lock input
• Optional surface mount box ( )VE-5x10 DOD 424
• Small apartment buildings
• Professional buildings
• Gated communities
Power: 12 to 24 Volts AC or DC, 12VDC adapter provided
Note: To assure operation during a power outage, a UPS
should be used.
Dimensions: 5" x 10" x 2.5"(127mm x 254mm x 63.5mm)
Shipping weight: 4.8 lbs. (2.2 kg)
Standard K-1200 Environment: -30° F to 150° F (-34° C
to 65° C) with 5% to 95% non-condensing humidity
K-1200-EWP Environment: -30° F to 150° F (-34° C to
65° C) with up to 100% condensing humidity
Relay Contact Rating:
Door Strike: 5A @ 30VDC/250VAC maximum
Camera: 0.5A @ 125 VAC, 1.0A @ 30VDC
Connections: (8) gel-filled butt connectors (3M Scotchlok
UR2)
K-1200/EWP
Multi-Button
Handsfree Entry Phone
July 15, 2019
Applications
Specifications
www.VikingElectronics.com
Information: 715-386-8861
VIKING
butt connectors, as well as urethane or thermal
plastic potted circuit boards with internally sealed,
field-adjustable trim pots and DIP switches for easy
on-site programming.
(shown in optional
VE-5x10-SS, not included)
12 Button Apartment Entry Phone with
Built-In Door Strike Relay
Installation
IMPORTANT: Electronic devices are susceptible to lightning and power station electrical surges from both the AC
outlet and the telephone line. It is recommended that a surge protector be installed to protect against such surges.

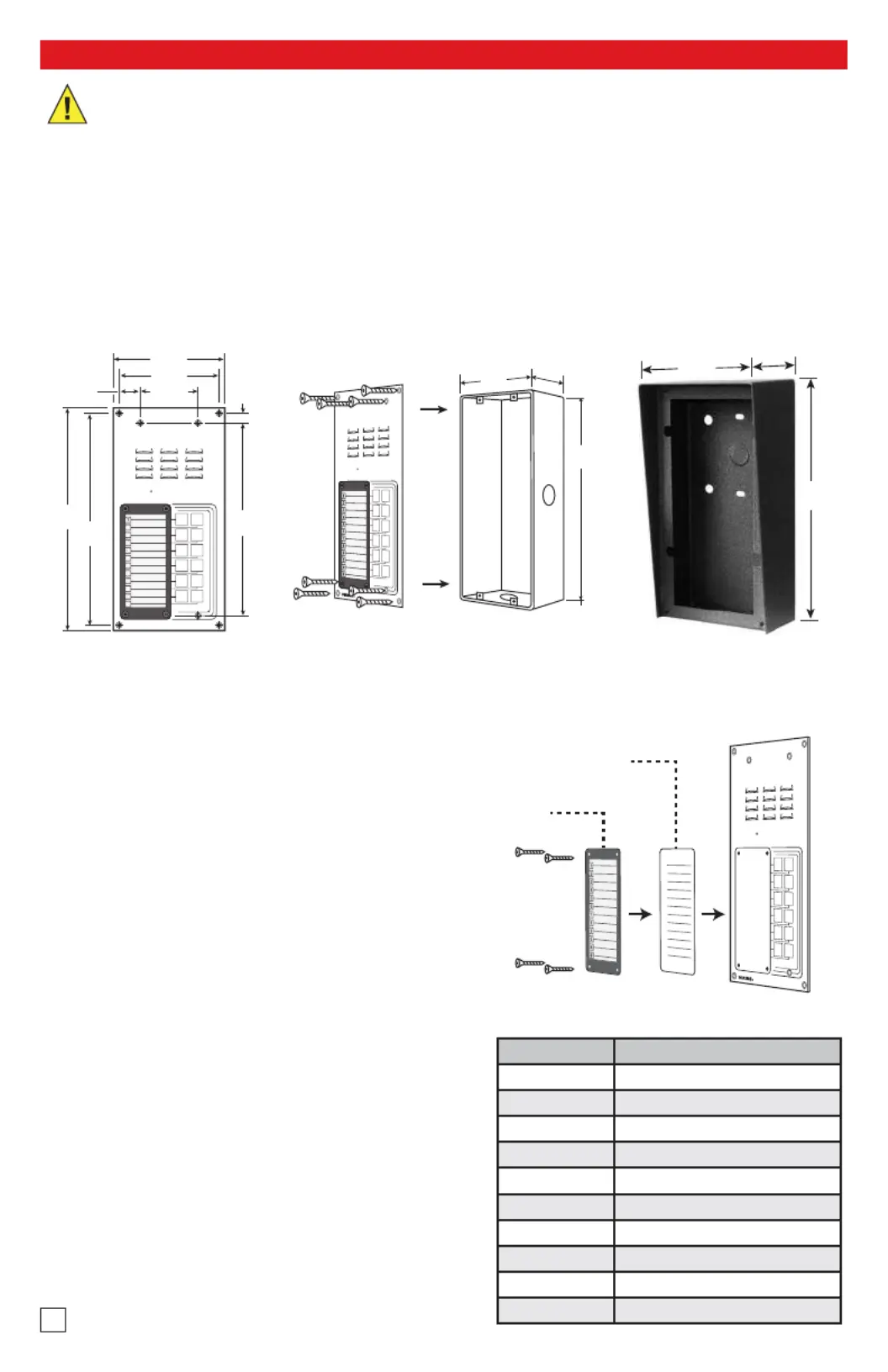

A. Mounting
2
The K-1200 is designed to be installed in a sheltered location, and is not meant to be used outdoors. For outdoor
applications use the can either be installed as a flush mount unit using the includedK-1200-EWP. The K-1200
rough in box, or as a surface mount unit using an optional . The rough in box uses the inner set of fourVE-5x10
holes on the face plate while the uses the outside set of holes. A set of dummy screws and nuts areVE-5x10
provided to fill the unused mounting holes.
VIK ING
©
0
#
*
9
8
7
6
5
4
3
2
Optional VE-5x10 Surface Mount
Box (not included), see DOD# 424
10.0"
9.5"
4.50"
2.596"
5.00"
8.65"
0.425"0.952"
Front View
of the K-1200
9.12"
2.5"
4.5"
Zinc-Plated Steel
Rough-In Box
(included)
Side View
of the K-1200
(8) #6-32 x 1/2" Stainless
Steel, 5/64" T-10 Torx
Security Screws
(included)
14 Gauge Marine
Grade 316 Stainless
Steel Faceplate
10.14"
3.69"
5.22"
- OR -
B. Changing the Directory
To install a directory, remove the four screws that
mount the directory lens to the front of the K-1200
using the included Allen wrench. Insert a paper
directory behind the lens and secure the two back onto
the front panel being careful to align the names with the
front panel graphics. For your convenience, the back
of this document has pre-printed directory forms.
Note: To print directory forms for the , go toK-1200
www.vikingelectronics.com and enter “930” in the DOD
field at the top of the page for a direct link to the PDF.
Paper Directory
Directory
Lens
C. Wiring
The K-1200 can be powered from any source
supplying 12 to 24 volts, AC or DC. A 12 volt DC
adapter is supplied with the product. When using the
included adapter, the plug on the adapter cord will have
to be removed. The power connections to the K-1200
(black wires) are not polarity sensitive.
There are also 8 more wires connected to the K-1200
controller board. Two wires are for the incoming phone
line, three are from the high current door strike relay
and the last three are from the camera relay. Gel filled
butt connectors are provided for easier connection to
building wiring. The table at the right describes each
wire’s function.
Color Function
Black Power In
Black Power In
Green Phone Line In
Red Phone Line In
Brown Door Strike Relay common
Orange Door Strike Relay NC
Yellow Door Strike Relay NO
Blue Camera Relay common
Violet Camera Relay NC
White Camera Relay NO
