Side 1/8

Vandal Resistant Entry Phones with Built-In

Keypad and 125KHz Proximity Card Reader

The K-1770-3 Series entry phones provide a tough and

attractive handsfree phone for commercial, apartment, and

residential door entry or applications requiring a vandal

resistant speaker phone with built-in 125 KHz Proximity Card

Reader. The card reader outputs industry standard 26-bit

Wiegand data, allowing it to be used with a doorViking ES-1

controller or any controller compatible with 26-bit Wiegand

format. The K-1770-3 Series entry phones are available in

two attractive finishes: “brushed stainless steel” and “oil

rubbed bronze”.

When the “Call” button is pressed, the returns dialK-1770-3

tone. The keypad may then be used to dial any number. If

no Touch Tone is entered within 8 seconds, CPC is detected,

a busy signal is detected, or the programmable maximum call

time has elapsed, the will automatically disconnect.K-1770-3

Alternatively, the may be disconnected by pressingK-1770-3

the “Call” button again. The comes complete withK-1770-3

a standard, flush mount, rough-in box. In addition, an optional

VE-6x7 weather resistant, surface mount box is available (see

DOD 424).

The K-1770-3-EWP K-1770 shares all of the features of the -3

in addition to Enhanced Weather Protection (EWP) for outdoor

installations where the unit is exposed to precipitation or

condensation. EWP products feature foam rubber gaskets

and boots, sealed connections, gel-filled butt connectors, as

well as urethane or thermal plastic potted circuit boards with

internally sealed, field-adjustable trim pots and DIP switches

for easy on-site programming. For more info, see . DOD 859

K-1770-3

“Brushed Stainless Steel”

(similar to brushed nickel)

K-1770-3-BN

“Oil Rubbed Bronze”

(satin dark brown powder paint

with fine copper metallic)

Features

• Apartment entry phone when used with the Apartment Entry Dialer K-1900-3

or Apartment/Office Entry Controller or C-4000 C-3000 Apartment Entry

Controller

• Use with a to control 1 or 2 (expandable to 8) ( ) Viking C-500 DOD 177

K-1770’s and door/gate control on a single phone line

• Use with a to control 1 to 4 s and door/gate control Viking C-2000B K-177 0’

on a single phone line ( ) DOD 156

• Courtesy and customer assistance phone

• Automated teller (ATM) phone

• Use with a for proximity card reader door control Viking ES-1

• Provide unique front and back door chimes and paging when use with a

Viking SLP-1 SLP-4 C-2000Bor and

• Kiosk phone with (100 number speed dialing) when used with the K-1900-9

Multi-Number Dialer ( ) DOD 321

• Use with Viking’s Proximity Cards: , , PRX-C PRX-C-ISO PRX-FOB (DOD 198)

Entry Phone Power: Telephone line powered 20V DC/20mA minimum

Proximity Card Reader Power: 5 to 14V DC @ 60mA maximum

Dimensions: Overall: 5.5” x 6.5” x 2.6” (140mm x 165mm x 66mm),

Rough-in box: 4.5” x 5.5” x 2.5” (114mm x 140mm x 64mm)

Shipping Weight: 3.5 lbs (1.6 kg)

Environmental: -30°F to 150°F (-34°C to 65°C)

Humidity - K-1770-3: 5% to 95% non-condensing

Humidity - K-1770-3-EWP: Up to 100% condensing

Speaker Volume: Approximately 70 db maximum @1m

CPC Disconnect Time: 500ms minimum

REN #: 0.5 A

Connections: Gel-filled tip and ring connectors

Applications

Specifications

• Built-in 125KHz 26-bit Wiegand proximity card reader with LED,

beep card read confirmation, and EWP board protection

• Compatible with the following Viking Proximity Cards and Fobs:

PRX-C PRX-C-ISO PRX-FOB (DOD 198), and

• Vandal Resistant Features: 14 gauge louvered 316 stainless

steel faceplate with permanent laser etched graphics, stainless

steel “Call” button, heavy duty metal keypad and T-10 Torx

security mounting screws, scratch resistant powder coating

(K-1770-3-BN)

• Marine grade 316 stainless steel Weather Resistant Features:

faceplate, screws and and push button switch. Switch internally

sealed per IP67. Mylar speaker. Self-draining mic mount.

Faceplate, mic and speaker gaskets. Weather Resisant powder

paint (K-1770-3-BN)

• is designed to meet IP66 Ingress Protection K-1770 -3-EWP

Rating (see for more information) DOD 859

• Available in 2 standard faceplate finishes: 316 brushed stainless

steel or oil rubbed bronze powder paint

• Blue “in use” LED

• Telephone line powered

• Volume adjustments for microphone and speaker

• Advanced call progress detection: disconnects on busy signal,

return to dial tone, CPC, reorder tone, maximum call time out and

40 second silence time out

• Selectable auto-answer feature for monitoring

• Selectable push button disconnect

• Zinc plated steel rough-in box with (2) 3/4” conduit knockouts

• Optional Surface Mount Box available ( ) VE-6x7 DOD 424

• Optional to illuminate the front panel at night (VE-LIGHT DOD 428)

DESIGNED, MANUFACTURED AND SUPPORTED IN THE USA

K-1770-3 Series

Entry Phones with Keypads

and Proximity Card Readers

September 29, 2023

PRODUCT

MANUAL

SECURITY & COMMUNICATION

VIKING

Optional Instruction Label (included):

Clean surface and adhere label when

using a K-1770-3 with a K-1900-3

Apartment Entry Dialer.

(4) 6-32 X 3/4”

Stainless steel,

flat head, T-10

Torx security

screws (included)

(1) .74”

diameter Rear View of

the Optional

VE-6x7 Surface

Mount Box

3.0” 3.3”

3.0”

2.25”

Condensation

Drain Hole

5.64”

6.72” 3.25”

(2) 0.2 x 0.43 slots

Optional VE-6x7

Surface Mount Box

(not included)

The optional VE-6x7 Surface Mount Box (above) is designed

to be surface mounted to a single gang box, double gang box,

or VE-GNP Gooseneck Pedestal (shown right). For more

information on the VE-6x7 VE-GNPand , see DOD 424.

Peel paper liner and adhere gasket to back of

panel, centering over mounting holes. Caution:

For rough surfaces (ie: brick, stucco, etc.)

additional caulking may be required.

4.5”

2.5”

3/4” Conduit

Knockouts

5.5”

Rough-In

Box

(included)

(4) 0.38” diameter

K-1705-3-EWP

shown with VE-6x7

Surface Mount Box

and VE-GNP

Gooseneck

Pedestal

(not included)

VIK IN G

DE F

JKL

MN O

TUV

WXY

OPE R

ress "Ca

ll"b utt o

th en

en t er ten

t code

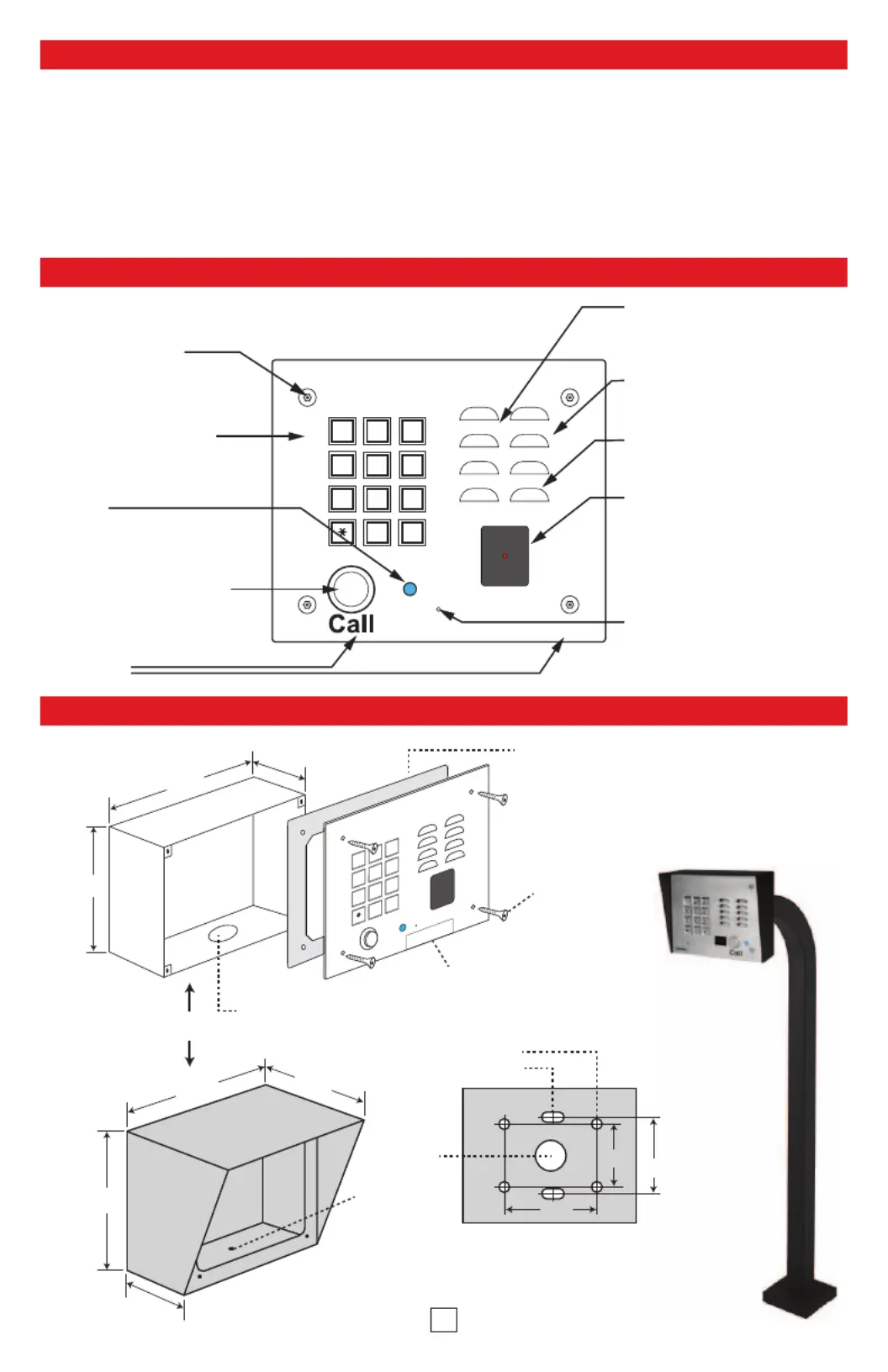

Features Overview

Push Button Switch: Push to

initiate call, push again to

disconnect. Solid 316 stainless

steel internally sealed per IP67.

Speaker Screen: Speaker screen

with 0.018" diameter holes to prevent

punctures from paperclips, etc.

Faceplate Material: 14 gauge 316

stainless steel. The SS model has

a #4 brushed finish, the BN models

have a powder painted finish.

Speaker: Mylar speaker with

rubber gasket to maintain

water-tight seal and eliminate water

deterioration.

Blue Call LED: Flashes during

dialing, then lights steady when

answered.

Microphone: Omni-directional

microphone with protective

water-resistant cloth.

Condensation Drain Hole

Mounting Screws: (4) 6-32 X 3/4”

Marine grade 316 stainless steel,

flat head, T-10 Torx security screws

and drive bit (included)

Laser Etched Graphics: For long

lasting easy to read graphics.

(copper metallic lettering on model

K-1770-BN-3)

Proximity Card Reader: 26-bit

Wiegand, 125KHz, red LED turns

off and transducer will beep during

card read. Fully potted EWP. Read

range 1.25" to 2.0". Impact resistant

polycarbonate lens with water-tight

gasket.

ABC

JKL

TUV

OPER

GHI

PRS

DEF

MNO

WXY

VIKING

VIKINGVIKING

Power: 5 to 14V DC @ 60mA maximum

Maximum Cable Length: 500 ft 24 Awg stranded shielded

(Belden 9537)

Frequency: 125KHz

Format: 26 bit Wiegand

Read Range: 1.25” to 2.0”

Technologies Supported: Viking , PRX-C PRX-C-ISO,

PRX-FOB, certain legacy HID® proximity protocols* and

certain AWID 125Khz proximity protocols**

Transducer: Beeps during card read

LED: Red, turns off during card read

Humidity: Up to 100% (fully potted EWP)

Operating Temperature: -34° C to 65° C (-30° F to 150° F)

* HID and the HID logo are registered trademarks of HID

Global Corporation, an ASSA ABLOY company. All other

trademarks are the property of their respective owners.

** AWID is a trademark of Applied Wireless Identification Group.

Proximity Card Reader Specifications

Installation

A. Mounting
