Vandal Resistant VoIP Entry Phone System with

Integrated Keypad and Analog Color Video Camera

Features

Applications

Information: 715-386-8861

www.VikingElectronics.com

• Vandal Resistant Features: 14 gauge louvered 316 stainless steel faceplate with

permanent laser etched graphics. Speaker/mic screen. Heavy duty metal keypad

and “Call” button. Scratch resistant powder coating (K-1705-BN-IP). T-10 Security

Torx drive mounting screws.

• Weather Resistant Features: Marine grade 316 stainless steel faceplate, screws

and push button switch. Switch internally sealed per IP67. Mylar speaker. Self-

draining mic mount. Faceplate, mic and speaker gaskets. Weather resistant

powder paint (K-1705-BN-IP)

• Available in 2 standard finishes: 316 brushed stainless steel with laser etched

graphics or oil rubbed bronze powder paint with copper metallic graphics

• Built-in high resolution analog NTSC color video camera with wide viewing angle,

tilt/swivel adjustments and wide operating temperature: -40°F to 140°F

• Two sets of SPDT 2 Amp relay contacts for door/gate or camera control

• Optional RC-4A for Secure Remote Relay Control, see DOD 582

• Blue “Call /Status” LED indicator

• SIP compliant (see page 2 for compatible SIP servers and IP phone systems)

• PoE powered (class 2, <6.5 watts)

• Automatic Noise Canceling (ANC) feature for operation in noisy environments

• Viking’s proprietary VOX switching eliminates the need for “Push to Talk” mode

• Network downloadable firmware

Power: PoE class 2 (<6.5 watts)

Dimensions: Overall: 5.5” x 6.5” x 2.6” (140mm x 165mm x 66mm)

Rough-in box: 4.5” x 5.5” x 2.5” (114mm x 140mm x 64mm)

Shipping Weight: 1.5 kg (3.3 lbs)

Operating Temperature: -40°F to 140°F (-40° C to 60° C)

Humidity - Standard Products: 5% to 95% non-condensing

Humidity - EWP Products: Up to 100%

Audio Codecs: G711u, G711a, G722

Network Compliance: IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with

auto cross over

Regulatory Compliance: CE, FCC Part 15 and Canada ICES-003 Class A

Connections: (1) RJ45 10/100 Base-T, (14) gel-filled butt connectors

Installation requires the assistance of a Network Administrator / IT Technician.

The K-1705-IP Series entry phones provide a durable and attractive hands-free phone for

apartment and residential door entry or applications requiring a vandal resistant VoIP speaker

phone with an integrated analog Color Video Camera. The K-1705-IP phone is designed to

provide quick and reliable hands-free communication for SIP VoIP phone systems with PoE.

The unit can be programmed from any PC on the same LAN or remotely using a Static IP

Address. The K-1705-IP entry phone can dial up to 250 programmable numbers and another

250 rollover numbers and provide CCTV video of the entry area. They are available in two

attractive finishes: “Brushed Stainless Steel” and “Oil Rubbed Bronze”.

When the K-1705-IP phone is connected to an apartment or business tenant, a built-in contact

closure may be activated to control an electric gate or door strike. Up to 1,000 keyless entry

codes may be programmed, providing tenants with keyless entry. A 26 Bit Wiegand input is

provided for adding an optional proximity card reader with capacity to program up to 1,000 card

numbers. Keyless entry codes and card numbers can be programmed to only allow access at

specific times and/or day of the week. The K-1705-IP includes a request for exit (REX) input and

also offers activity logging.

• Apartment Entry Phone

• Residential Gate Entrance

• Door Entry Phone

• Courtesy Assistance Phone

• Customer Service Phone

• Automated Teller (ATM) Phone

The K-1705-IP-EWP shares all of the features of the K-1705-IP in addition to

Enhanced Weather Protection (EWP) for outdoor installations where the unit

is exposed to precipitation or condensation. EWP products are designed to

meet IP66 standards and may feature foam rubber gaskets, sealed

connections, gel-filled butt connectors, as well as potted circuit boards. For

more information on EWP, see DOD 859 .

• 26 Bit Wiegand input for optional proximity card readers, see DOD 221 and 228

• 26 Bit Wiegand output connect to card reader input of an Access Control System

• Programmable to speed dial up to 250 numbers

• Cycles to roll over phone number on busy or no-answer

• Program up to 1,000 keyless entry codes and/or proximity card numbers

• Keyless entry codes and proximity card numbers can be programmed to only allow

access at specific times and day of week

• Event logging with time and date stamp

• Optional Enhanced Weather Protection (EWP) available - EWP products are designed

to meet IP66 Ingress Protection Rating, see DOD 859

• Hangs up on busy signal, time-out or touch tone command

• Remotely programmable

• Extended temperature range (-40°F to 140°F)

• Programmable volume adjustments for microphone and speaker

• Selectable auto-answer feature for monitoring

• Flush mount with included steel rough-in box, or use an optional VE-6x7 surface

mount box (not included, see DOD 424)

• Optional VE-LIGHT kit to illuminate the front panel at night, see DOD 428

• Diagnostics (for testing mic, speaker and relays)

• Security or Emergency

Phone

• Hot-Line Phone

• Kiosk Phone with up to

250 number speed dialing

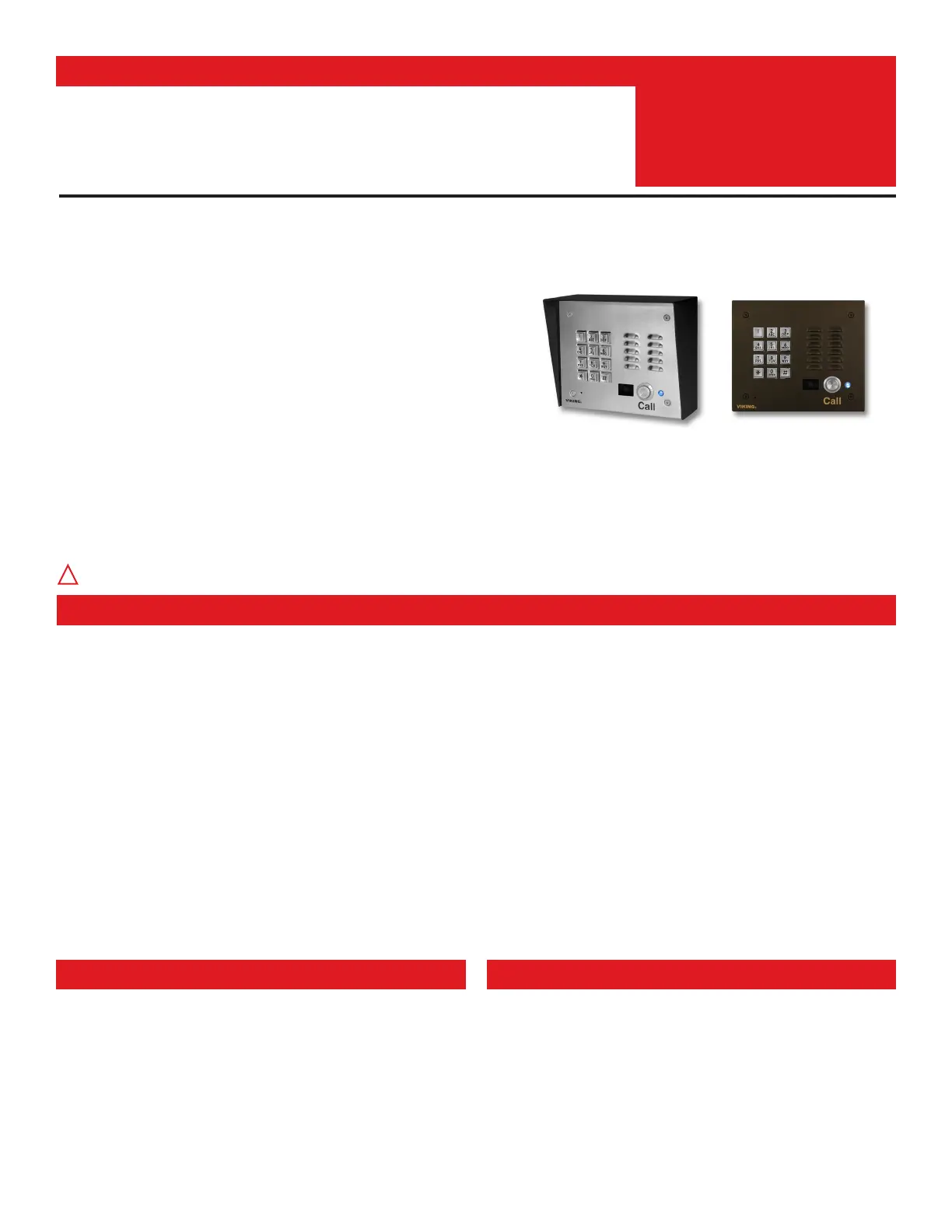

K-1705-IP

“Brushed 316 Stainless Steel”

(similar to brushed nickel,

shown in optional surface mount box)

K-1705-BN-IP

“Oil Rubbed Bronze”

(satin dark brown powder paint

with fine copper metallic)

Specifications

PRODUCT

MANUAL

Designed, Manufactured and Supported in the USA

K-1705-IP Series

VoIP Entry Phone System

with Built-In Color Camera

September 28, 2021

SECURITY & COMMUNICATION

VIKING

VoIP SIP System Compatibility

For compatibility and vendor specific detailed configuration instructions, see the Viking VoIP

SIP System Compatibility List, DOD 944. To open and download this PDF file:

1. Go to www.vikingelectronics.com

and enter 944 in the search box

2. Click Application Note (DOD 944)

to open and download the PDF

Scan the QR code below to open

and download the Viking VoIP

SIP System Compatibility List

- OR -

Important: Exclusion from this list means only that compatibility has not been verified, it does not mean

incompatibility. If you have questions, please call Viking Electronics at 715-386-8861.

Produkt Specifikationer

Mærke:	Viking
Kategori:	Adgangskontrolsystem
Model:	K-1705-IP-EWP
Kode for international beskyttelse (IP):	IP66
Type:	Intelligent adgangskontrollæser
Bredde:	140 mm
Dybde:	64 mm
Højde:	114 mm
Produktfarve:	Børstet stål
Indbygget skærm:	Ingen
Pakkevægt:	1500 g
Relativ luftfugtighed ved drift (H-H):	5 - 95 %
Antal højttalere:	1
Ethernet LAN-porte (RJ-45):	1
Driftstemperatur (T-T):	-40 - 60 °C
Husmateriale:	Rustfrit stål
Forbindelsesteknologi:	Ledningsført
Certificering:	EWP\nIP66\nCE\nCanada ICES\nFCC Part 15\nSIP
Placering:	Væg
Kabelteknologi:	10/100
Netværksstandarder:	IEEE 802.3af
Nem at installere:	Ja
Antal knapper:	13
Strøm over Ethernet (PoE):	Ja
Power over Ethernet (PoE) effekt pr. port:	6.5 W
Tastatur antal taster:	12
Stiktype:	RJ-45
Integreret tastatur:	Ja
Godkendelsestype:	Access chip/card, Password
Kodelæsning, adgang:	Ja
Chip/kortlæser, adgang:	Ja
