Side 1/8

PRODUCT MANUAL

Designed, Manufactured and Supported in the USA

C O M M U N I C AT I O N & S E C U R I T Y S O L U T I O N S

Vandal Resistant Handsfree Doorbox with

Built-In Color Video Camera

Answer your door or gate from the safety of your telephone!

Features

The W-3005 is a weather resistant, handsfree

video doorbox designed to provide quick and

reliable handsfree communication and CCTV

video of who is at your door or gate. The W-3005

can interface directly with the unused telephone

line input of nearly any phone system. One or two

doorboxes can also share an existing residential

phone line when used with a doorboxC-1000B

controller.

When the “ “ button is pressed, the doorboxCall

generates a standard or custom ring cadence of

an adjustable number of rings. For noisy

environments, the doorbox’s new louder speaker

output and “Push-to-Talk” feature can be used.

The W-3005-EWP shares all of the features of the

W-3005 in addition to Enhanced Weather

Protection (EWP) for outdoor installations where

the unit is exposed to precipitation or

condensation. EWP products feature foam rubber

gaskets and boots, sealed connections, gel-filled

butt connectors, as well as urethane or thermal

plastic potted circuit boards with internally sealed,

field-adjustable trim pots and DIP switches for easy

on-site programming. For more information, see

DOD 859.

• Ideal for noisy locations in “Push-to-Talk” mode

• Commercial, industrial or residential door security

• Door or gate communication

• Truck stop/gas station fuel island communication

• Use with the controller for single lineC-1000B

residential systems or when the operation of door

strikes or gate openers is necessary (see )DOD 155

Power: 120V AC/13.8V AC 1.25A UL listed adapter pro-

vided

Dimensions: Overall - 5.0” x 5.0” x 2.25” (127mm x

127mm x 57.2mm) Plastic Rough-In Box - 4.0” x 4.0” x

2.12” (102mm x 102mm x 54mm)

Shipping Weight: 3.2 lbs (1.45 Kg)

Operating Temperature: -15°F to 130°F (-26°C to 54°C)

Humidity: W-3005 - 5% to 95% non-condensing humidity,

W-3005-EWP - Up to 100% condensing humidity

Connections: (7) Gel filled butt connectors (3M Scotchlok

UR2)

(See page 2 for complete specifications)

W-3005/EWP

Vandal Resistant

Handsfree Video Doorbox

January 4 , 2019

Applications

Specifications

www.VikingElectronics.com

Information: 715-386-8861

VIKING

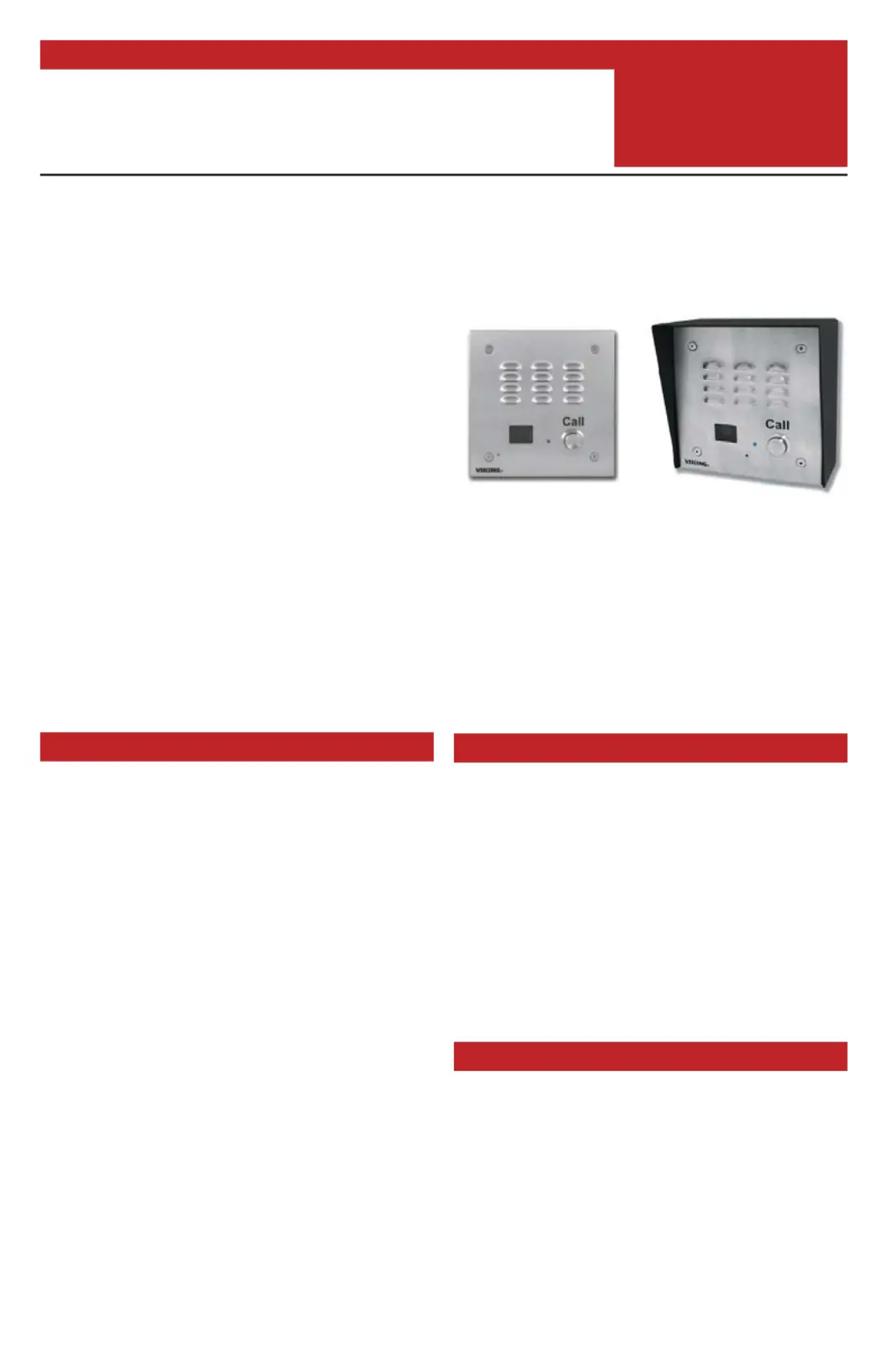

W-3005

Brushed 316

Stainless Steel

W-3005 shown

with optional VE-5x5

Surface Mount Box

• Built-in high resolution color video camera with wide viewing

angle, tilt/swivel adjustments and wide operating temperature

• Audio and video transmission on one CAT5E cable

• Vandal Resistant Features: 14 gauge louvered 316 marine

grade stainless steel faceplate with permanent laser etched

graphics, stainless steel speaker/mic screen, heavy duty metal

“Call” button,scratch resistant powder coating (optional )VE-5x5

and hexdrive mounting screws

• Marine grade 316 stainless steelWeather Resistant Features:

faceplate, screws and and push button switch. Switch internally

sealed per IP67. Mylar speaker. Self-draining mic mount. Face-

plate, mic and speaker gaskets. Weather resistant powder paint

on optional .VE-5x5

• Volume adjustments for microphone and speaker

• Blue call progress / night light LED

• High output speaker amplifier with volume adjustment POT

• 40 volt talk battery

• 20 Hz ring generator (6.0 REN ring load maximum)

• Selectable ring cadence (standard, double, short/short/long, or

short/long/short)

• Selectable number of rings (2, 3, 10 or 30)

• Selectable “Push-to-Talk” feature for noisy environments

• is designed to meet IP66 Ingress Protection RatingW-3005-EWP

(see for more information)DOD 859

• Connect to a phone system’s unused trunk input, FXO port or a

Viking ControllerC-1000B

Specifications

Camera Specifications-

Power: 6-22V DC 150mA (12V DC UL Listed adapter included)

Image Sensor: 1/4” color CMOS

Video Output: 1 VP-P composite, NTSC, 75 ohms

Resolution: 420 lines (640 x 480 @ 30fps / 307,200 pixels)

Sensitivity: 0.025 LUX (50 IRE) F 1.2 3200K

Lens: 2.1mm, conical pinhole

FOV (Field of View):

80° Horizontal, 60° Vertical,100° Diagonal

Tilt/Swivel Adjustment: Vertical +/- 20°, horizontal +/- 30° (see Diagram A below)

IR Compatibility: This camera is equipped with an OLP (Optical Low Pass) filter to maintain correct

video color in outside applications. The standard camera is compatible with IR illuminators. If IRNOT

illumination is required, you will need to replace the exisiting camera with a Viking model .VCAM-1IR

For more information, see .DOD# 190

Maximum Wire Run Length: 1000 ft with *RG59/RG6 for video and CAT5 for power (1 pair) and entry

phone audio (1 pair). 150 ft with CAT5E for video, power and entry phone audio (longer video runs are

possible by using video balun transceivers, see section , page ). Installation F 5

* Note: RG59 or RG6 with solid center conductor and 95% bare copper braid shield.

Doorbox Specifications

Power: 120V AC/13.8V AC 1.25A UL listed adapter provided

Dimensions: Overall - 127mm x 127mm x 57.2mm (5.0” x 5.0” x 2.25”) Plastic Rough-In Box - 102mm

x 102mm x 54mm (4.0” x 4.0” x 2.12”)

Shipping Weight: 1.81 Kg (4 lbs)

Ringer Output: 20 Hz, 6.0 REN load maximum

Maximum Loop Length: 1.9 Km (6300 ft) - 24 AWG twisted pair

Maximum Power Run with CAT5E Wire: 1 pair = 150 ft, 2 pair = 300 ft, 3 pair = 450 ft

Note: WiringPower run length may be increased, see section.

Doorbox / Camera Specifications

Operating Temperature: -26° C to 54° C (-15° F to 130° F)

Humidity: Standard model: 5% to 95% non-condensing, EWP model: Up to 100%

Connections: (5) gel-filled butt connectors (3M Scotchlok UR2)

Recommended Surface Mount Box: VE-5x5Viking model (DOD# 424)

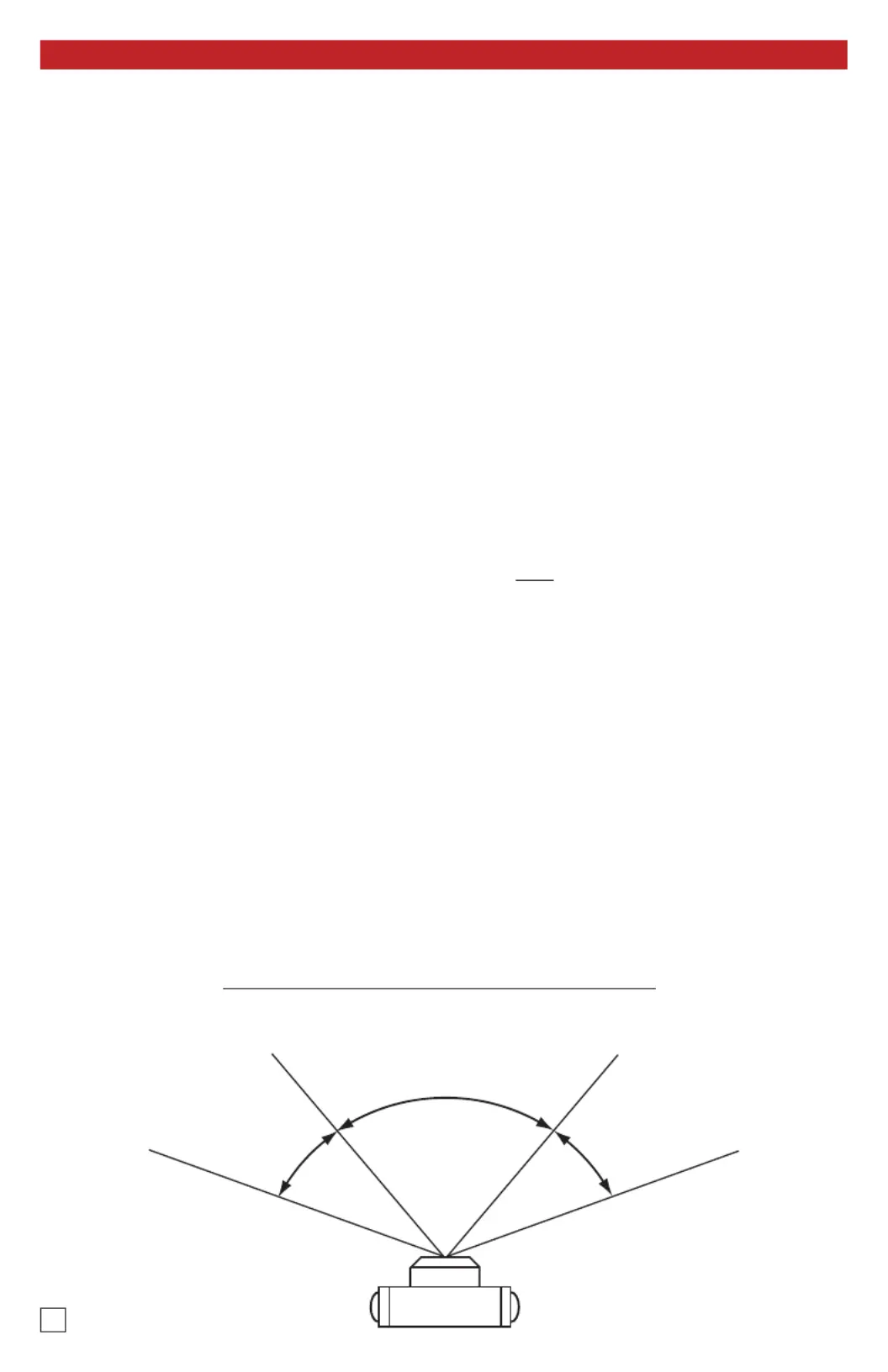

80° Lens FOV

Rotate

Left 30°

Rotate

Right 30°

Camera Lens

Diagram A

Camera Horizontal Field of View:
