Side 1/8

PRODUCT MANUAL

Designed, Manufactured and Supported in the USA

S E C U R I T Y & C O M M U N I C AT I O N S O L U T I O N S

Features

The K-1200 Entry Phone is a two-way, handsfree

telephone with 12 buttons for calling individual

residences in an apartment building. The rugged

stainless steel faceplate has a printed directory

housed in a waterproof, scratch-resistant lens.

Each button is beside the tenants name in the

directory so there are no confusing codes to deal

with. Calling a particular tenant is as easy as

pressing a single button. The has a built inK-1200

speed dialer that can handle up to 12 primary

phone numbers, each with 22 digits. If there is no

answer at the first number, a second number can

be called automatically. Once the tenant answers

their phone, a single touch tone command can

activate the door strike relay. For “no phone line”

applications, the is compatible with theK-1200

C-3000 no CO (phone line) controller.

The K-1200-EWP shares all of the features of the

K-1200 in addition to Enhanced Weather

Protection (EWP) for outdoor installations where

the unit is exposed to precipitation or

condensation. EWP products feature foam rubber

gaskets and boots, sealed connections, gel-filled

• Vandal Resistant Features: 14 gauge louvered 316

stainless steel faceplate with permanent laser etched

graphics, heavy duty metal keypad and T-10 Torx

Security mounting screws.

• Marine grade 316Weather Resistant Features:

stainless steel faceplate and screws. Internally sealed

keypad. Mylar speaker. Self-draining mic mount.

Faceplate, keypad, mic and speaker gaskets.

• is designed to meet IP66 IngressK-1200-EWP

Protection Rating (see for more info)DOD 859

• Operates on 12 to 24 volts AC/DC

• 12 speed dial buttons (22 digits each)

• 12 alternate number positions (22 digits each)

• One button operation (no call button)

• Hang up on CPC, busy, silence, time-out or dial tone

• Touch tone restriction from microphone

• Integral relays for camera control and door strike

• Works with for increased securityC-1000B

• Works with for “No CO” (phone line) operationC-3000

• 50 keyless entry codes

• See model for integral cameraK-1205

• Postal lock input

• Optional surface mount box ( )VE-5x10 DOD 424

• Small apartment buildings

• Professional buildings

• Gated communities

Power: 12 to 24 Volts AC or DC, 12VDC adapter provided

Note: To assure operation during a power outage, a UPS

should be used.

Dimensions: 5" x 10" x 2.5"(127mm x 254mm x 63.5mm)

Shipping weight: 4.8 lbs. (2.2 kg)

Standard K-1200 Environment: -30° F to 150° F (-34° C

to 65° C) with 5% to 95% non-condensing humidity

K-1200-EWP Environment: -30° F to 150° F (-34° C to

65° C) with up to 100% condensing humidity

Relay Contact Rating:

Door Strike: 5A @ 30VDC/250VAC maximum

Camera: 0.5A @ 125 VAC, 1.0A @ 30VDC

Connections: (8) gel-filled butt connectors (3M Scotchlok

UR2)

K-1200/EWP

Multi-Button

Handsfree Entry Phone

July 15, 2019

Applications

Specifications

www.VikingElectronics.com

Information: 715-386-8861

VIKING

butt connectors, as well as urethane or thermal

plastic potted circuit boards with internally sealed,

field-adjustable trim pots and DIP switches for easy

on-site programming.

(shown in optional

VE-5x10-SS, not included)

12 Button Apartment Entry Phone with

Built-In Door Strike Relay

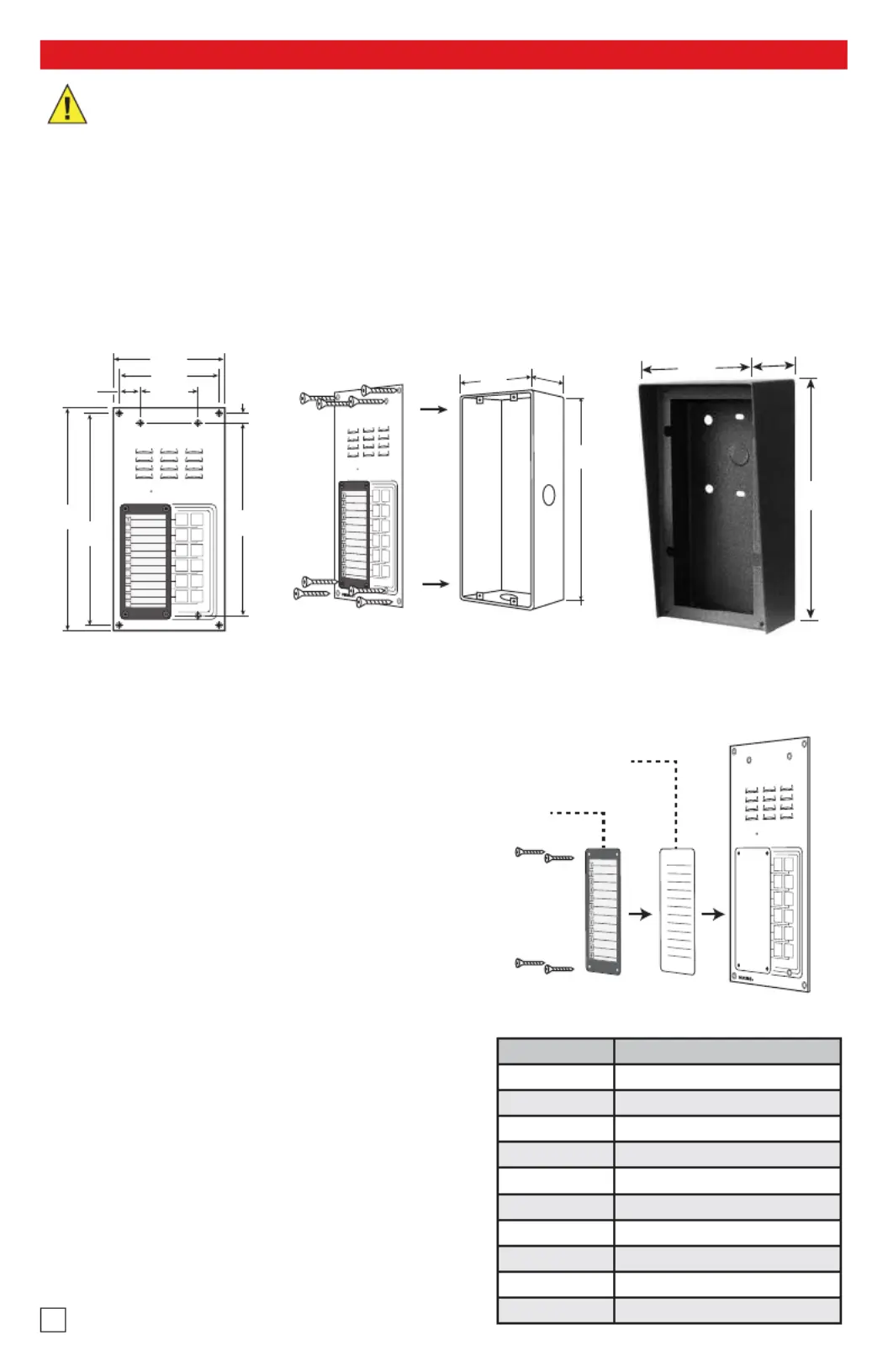

Installation

IMPORTANT: Electronic devices are susceptible to lightning and power station electrical surges from both the AC

outlet and the telephone line. It is recommended that a surge protector be installed to protect against such surges.

A. Mounting

The K-1200 is designed to be installed in a sheltered location, and is not meant to be used outdoors. For outdoor

applications use the can either be installed as a flush mount unit using the includedK-1200-EWP. The K-1200

rough in box, or as a surface mount unit using an optional . The rough in box uses the inner set of fourVE-5x10

holes on the face plate while the uses the outside set of holes. A set of dummy screws and nuts areVE-5x10

provided to fill the unused mounting holes.

VIKING

Optional VE-5x10 Surface Mount

Box (not included), see DOD# 424

10.0"

9.5"

4.50"

2.596"

5.00"

8.65"

0.425"

0.952"

Front View

of the K-1200

9.12"

2.5"

4.5"

Zinc-Plated Steel

Rough-In Box

(included)

Side View

of the K-1200

(8) #6-32 x 1/2" Stainless

Steel, 5/64" T-10 Torx

Security Screws

(included)

14 Gauge Marine

Grade 316 Stainless

Steel Faceplate

10.14"

3.69"

5.22"

- OR -

B. Changing the Directory

To install a directory, remove the four screws that

mount the directory lens to the front of the K-1200

using the included Allen wrench. Insert a paper

directory behind the lens and secure the two back onto

the front panel being careful to align the names with the

front panel graphics. For your convenience, the back

of this document has pre-printed directory forms.

Note: To print directory forms for the , go toK-1200

www.vikingelectronics.com and enter “930” in the DOD

field at the top of the page for a direct link to the PDF.

Paper Directory
