Features

Specifications

• Vandal Resistant Features: 14 gauge louvered 316 stainless steel faceplate with

permanent laser etched graphics. Speaker/mic screen. Heavy duty metal keypad

buttons and T-10 Security Torx drive mounting screws.

• Weather Resistant Features: Marine grade 316 stainless steel faceplate and screws.

Keypad internally sealed per IP67. Mylar speaker. Self-draining mic mount. Faceplate,

mic and speaker gaskets.

• Built-in high resolution analog NTSC color video camera with wide viewing angle,

tilt/swivel adjustments and wide operating temperature: -40°F to 140°F

• Two sets of SPDT 2 Amp relay contacts for door/gate or camera control

• Optional RC-4A for Secure Remote Relay Control, see DOD 582

• Blue “Call /Status” LED indicator

• SIP compliant (see page 2 for compatible SIP servers and IP phone systems)

• Outbound Proxy, Authentication ID, Peer to Peer, VLAN Tagging

• PoE powered (class 2, <6.5 Watts)

• Automatic Noise Canceling (ANC) feature for operation in noisy environments

• Viking’s proprietary VOX switching eliminates the need for “Push to Talk” mode

• Network downloadable firmware

• 26 bit Wiegand input for optional proximity card readers, see DOD 221 and 228

• 26 Bit Wiegand output connect to card reader input of an Access Control System

Power: PoE class 2 (<6.5 Watts)

Dimensions: Overall: 5” x 10” x 2.5” (127mm x 254mm x 63.5mm)

Rough-in box: 4.5” x 9.12” x 2.5” (114mm x 232mm x 64mm)

Shipping Weight: K-1205-IP: 4.3 lbs (1.95 kg), K-1205-IP-EWP: 4.5 lbs (2.04 kg)

Operating Temperature: -40°F to 140°F (-40°C to 60°C)

Humidity - Standard Products: 5% to 95% non-condensing

Humidity - EWP Products: Up to 100%

Audio Codecs: G711u, G711a, G722

Network Compliance:

IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with auto cross over

Regulatory Compliance: CE, FCC Part 15 and Canada ICES-003 Class A

Connections: (1) RJ45 10/100 Base-T, (16) gel-filled butt connectors

See Camera Specifications on page 3.

Installation requires the assistance of a

Network Administrator / IT Technician.

The K-1205-IP is a durable and attractive handsfree phone for apartment and residential door entry

applications requiring a vandal resistant VoIP speaker phone with integrated analog color video camera.

The K-1205-IP phone is designed to provide quick and reliable handsfree communication for SIP VoIP

phone systems or cloud based service providers. The K-1205-IP can be programmed from any PC on the

same LAN or remotely using a Static IP Address. The K-1205-IP entry phone can dial up to 12

programmable numbers and 12 rollover numbers. The brushed stainless steel faceplate has a built-in 12

resident directory with a waterproof, scratch resistant lens and 12 buttons for single push auto-dialing of a

tenant’s phone number or business extension.

When the K-1205-IP phone is connected to an apartment or business tenant, a built-in contact closure may

be activated to control an electric gate or door strike. Up to 1,000 keyless entry codes may be programmed,

providing tenants with keyless entry. A 26 bit Wiegand input is provided for adding an optional proximity

card reader with capacity to program up to 1,000 card numbers. Keyless entry codes and card numbers

can be programmed to only allow access at specific times and/or day of the week. The K-1205-IP includes

a request for exit (REX) input and also offers event logging with time and date stamp .

The K-1205-IP-EWP shares all of the features of the K-1205-IP in addition to Enhanced Weather Protection

(EWP) for outdoor installations where the unit is exposed to precipitation or condensation. EWP products

are designed to meet IP66 standards and may feature foam rubber gaskets, sealed connections, gel-filled

butt connectors, as well as potted circuit boards. For more information on EWP, see DOD 859.

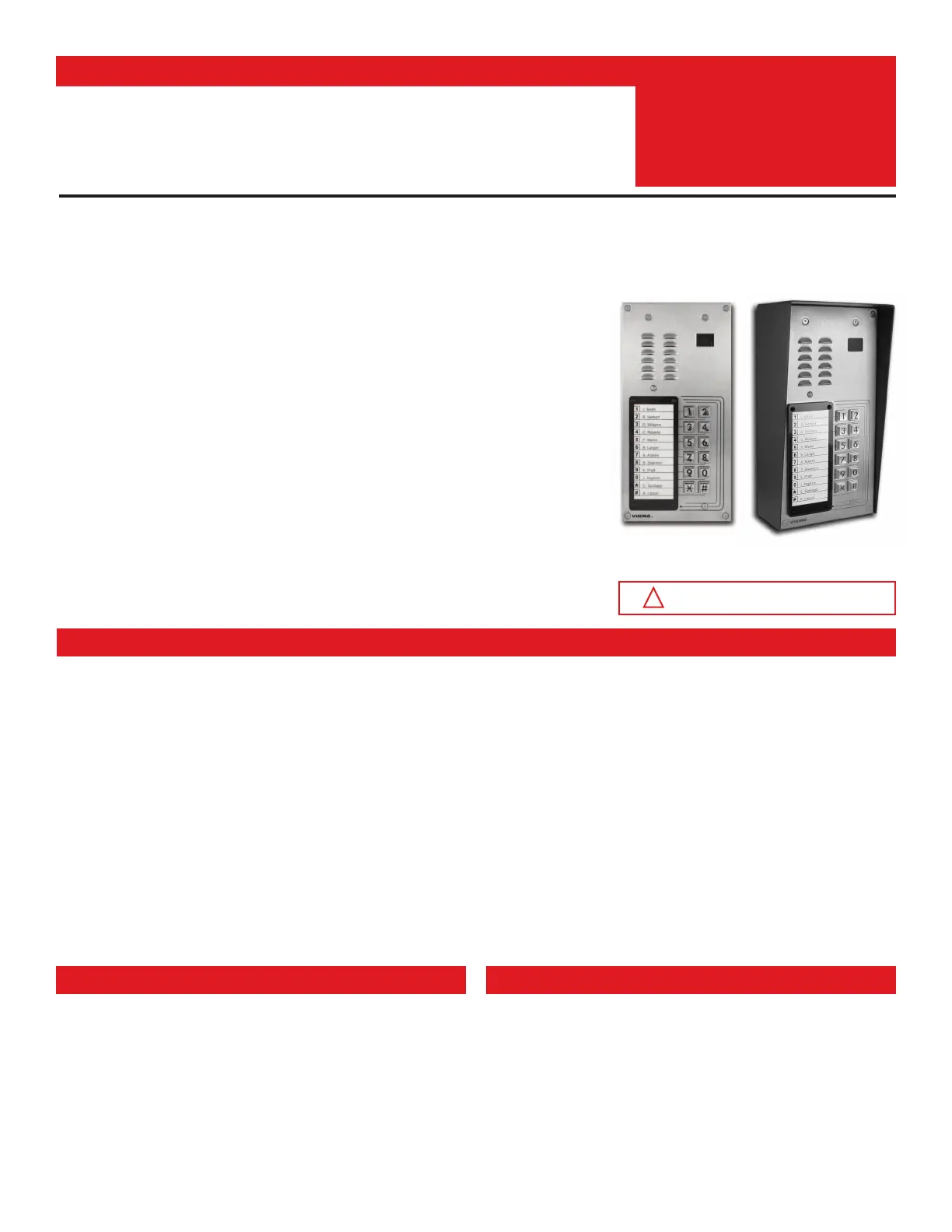

K-1205-IP

(shown in optional VE-5x10-SS

surface mount box)

• Programmable to speed dial up to 12 numbers

• Cycles to rollover phone number on busy or no-answer

• Program up to 1,000 keyless entry codes and/or proximity card numbers

• Keyless entry codes and proximity card numbers can be programmed to only allow

access at specific times and days of week

• Event logging with time and date stamp

• Optional Enhanced Weather Protection (EWP), EWP products are designed to meet IP66

Ingress Protection Rating, see DOD 859

• Hangs up on busy signal, time-out or touch tone command

• Remotely programmable

• Extended temperature range -40°F to 140°F

• Programmable volume adjustments for microphone and speaker

• Selectable auto-answer feature for monitoring

• Flush mount with included Zinc plated steel rough-in box,

• Surface mount using an optional VE-5x10 surface mount box (not included, see DOD 424)

• Optional LRR-4 Long Range RFID Receiver, see DOD 226

• Optional VE-LIGHT kit to illuminate the front panel at night, see DOD 428

• Diagnostics for testing microphone, speaker and relays

Vandal Resistant VoIP Entry Phone System with Built-In

Directory, 12 Button Auto Dialer and Analog Video Camera

K-1205-IP

“Brushed 316 Stainless Steel”

(similar to brushed nickel)

• Residential Gate Entrance

• Courtesy Assistance Phone

• Customer Service Phone

• Automated Teller (ATM) Phone

• Door Entry Phone

• Apartment Entry Phone

• Kiosk Phone

Applications

Information: 715-386-8861

www.VikingElectronics.com

PRODUCT

MANUAL

Designed, Manufactured and Supported in the USA

K-1205-IP Series

VoIP Entry Phone System with

12 Button Auto Dialer & Camera

September 28, 2021

SECURITY & COMMUNICATION

VIKING

VoIP SIP System Compatibility

For compatibility and vendor specific detailed configuration instructions, see the Viking VoIP

SIP System Compatibility List, DOD 944. To open and download this PDF file:

1. Go to www.vikingelectronics.com

and enter 944 in the search box

2. Click Application Note (DOD 944)

to open and download the PDF

Scan the QR code below to open

and download the Viking VoIP

SIP System Compatibility List

- OR -

Important: Exclusion from this list means only that compatibility has not been verified, it does not mean

incompatibility. If you have questions, please call Viking Electronics at 715-386-8861.

Produkt Specifikationer

Mærke:	Viking
Kategori:	Adgangskontrolsystem
Model:	K-1205-IP-EWP
Kode for international beskyttelse (IP):	IP66
Bredde:	127 mm
Dybde:	63.5 mm
Højde:	254 mm
Vægt:	1900 g
Produktfarve:	Rustfrit stål
Indbygget skærm:	Ingen
Front kamera:	Ja
Indbyggede højttaler(e):	Ja
Relativ luftfugtighed ved drift (H-H):	0 - 100 %
Ethernet LAN-porte (RJ-45):	1
Driftstemperatur (T-T):	-40 - 60 °C
Husmateriale:	Rustfrit stål
Certificering:	EWP\nIP66\nCE\nCanada ICES\nFCC Part 15\nSIP
Kabelteknologi:	10/100
LED-indikatorer:	Status
Strøm over Ethernet (PoE):	Ja
Power over Ethernet (PoE) effekt pr. port:	6.5 W
Tastatur antal taster:	12
Integreret tastatur:	Ja
Godkendelsestype:	Access chip/card, Password
Kodelæsning, adgang:	Ja
