Side 1/2

                                                                                                     

dweLED.com

Phone (800) 526.2588

Fax (800) 526.2585

Headquarters/Eastern Distribution Center

44 Harbor Park Drive

Port Washington, NY 11050

Central Distribution Center

1600 Distribution Ct

Lithia Springs, GA 30122

Western Distribution Center

1750 Archibald Avenue

Ontario, CA 91760

INSTALLATION INSTRUCTION

                     

WS-W44011/WS-W44014

                                                                                                  

• Read all instructions before installing.

• System is intended for installation by a licensed electrician in accordance with the National Electrical Code (NEC) and local regulations.

• When handling the xture, do not apply pressure to the LEDs. Hold the xture by the base only.

• Retain installation instructions for future maintenance reference.

       All parts must be used as indicated in these instructions. This product is designed for use only with the supplied parts and/or

accessories designated for use by dweLED. Substitution of parts or accessories not designated for use with this product by dweLED could

result in personal injury or property damage, and will void the warranty. Contact an authorized dealer or the manufacturer if any parts are

damaged or missing.

               Coastal conditions may cause mineral and residue build-up on the xture. We recommend that customers in coastal

areas clean all external surfaces of the xture once every two weeks with a wet cloth.

                                                                                                    

• Lisez toutes les instructions avant l’installation.

• Le système doit être installé par un électricien licensié conformément au code national de l’électricité (NEC), et également aux

règlements locaux.

• Lors de la manipulation du luminaire, n’appuyez pas sur les LED. Tenez-le uniquement par la base.

         Toutes les pièces doivent être utilisées comme indiqué dans ces instructions. Ce produit est conçu pour être utilisé seulement

avec les pièces et/ou accessoires fournis pour être utilisés avec les produits dweLED. Remplacer des pièces ou accessoires non conçus pour ce

produit dweLED pourrait causer des dommages corporels ou matériels et pourrait également causer l’annulation de la garantie. Veuillez

contacter un revendeur autorisé ou le fabricant si des pièces manquent ou sont endommagées.

              Les conditions côtières peut causer une accumulation de minéraux et de résidue sur le luminaire. Nous recommendons

aux clients qui resident dans les zones côtières de nettoyer toutes les surfaces externes du luminaire une fois toutes les deux semaines avec

un chion humide.

                

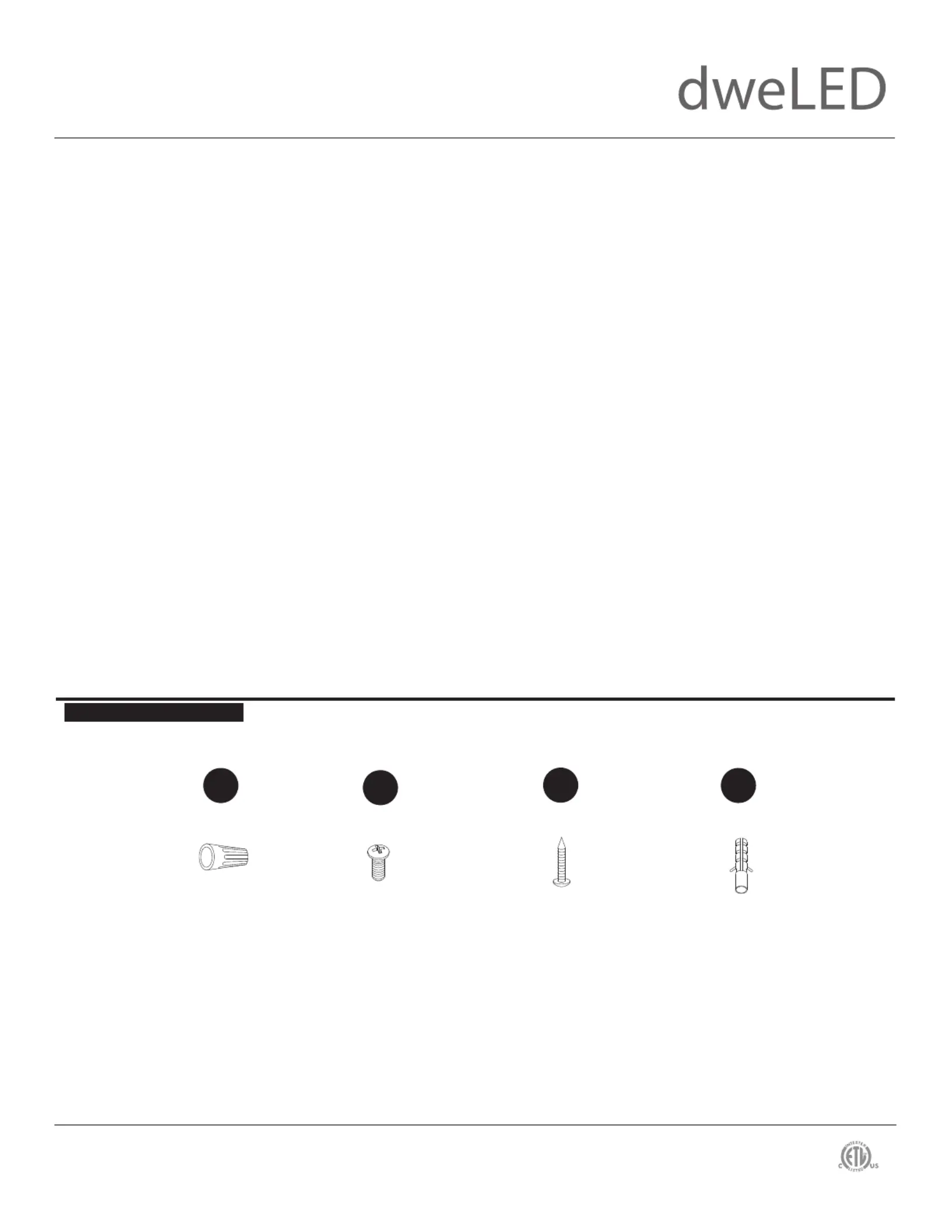

Plastic Anchor

Qty: 2pcs+1 Extra

Wood Screw

Qty: 2pcs+1 Extra

Wire Connector

Qty: 3pcs+1 Extra

Mounting Screw

Qty: 1 Extra

                                                                                               

dweLED.com

Phone (800) 526.2588

Fax (800) 526.2585

Headquarters/Eastern Distribution Center

44 Harbor Park Drive

Port Washington, NY 11050

Central Distribution Center

1600 Distribution Ct

Lithia Springs, GA 30122

Western Distribution Center

1750 Archibald Avenue

Ontario, CA 91760

INSTALLATION INSTRUCTION

                     

WS-W44011/WS-W44014

Fixture Wires

Black or

Smooth

Fixture Wires

White or

Ribbed

Fixture Wires

Bare wire

(Ground)

House Wires

Black

(Hot)

House Wires

White

(Neutral)

House Wires

Green or Bare Copper

(Ground)

        

   

         

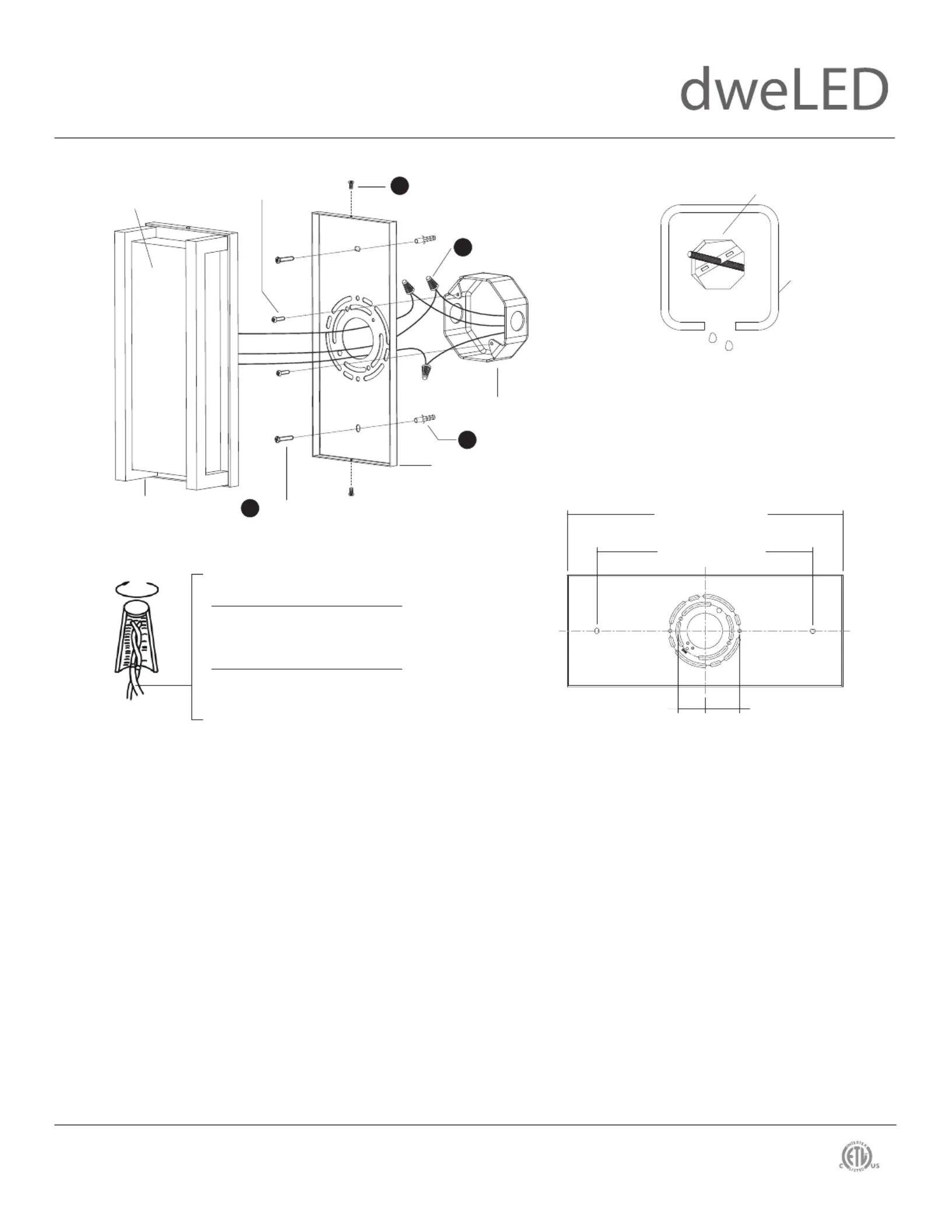

1. Shut o the power at the circuit breaker and remove existing xture, including the crossbar.

2. Carefully unpack your new xture and lay out all the parts on a clear area. Be careful not to lose any small parts necessary for installation.

                   

3. Remove the mounting screw (B) from the xture.

4. Drill holes in the wall aligned with the key holes located on the mounting back plate. Insert the plastic anchor (D).

5. Secure the mounting back plate to the junction box using standard junction box screws that comes with the junction box.

Fasten the mounting back plate to the wall with the plastic anchors using the wood screws (C) provided.

(i)using any other non-original-manufacturer provided junction box screw may result in safty issue.    

(ii) The side of the mounting plate marked “GND” must face out.

                      

6. Connect the xture’s input wires to junction box wires as shown (Fig. 2). Make sure that all wire connectors (A) are secure. If your outlet

box has a green or bare copper ground wire, connect the driver’s ground wire to it. Otherwise, connect the xture’s ground wire directly

to the back plate using the green screw provided. After wires are connected, tuck them carefully inside the junction box.

                       

7. Secure the xture to the mounting back plate using the mounting screw (B).

8. To prevent moisture from entering the outlet box and causing a short, use clear caulking (i.e. indoor/outdoor silicone sealant) to

outline the outside of xture back plate (Fig.3)

   

WS-W44011: 10 3/4"

WS-W44014: 14"

1 3/4"

1 3/8"

WS-W44011: 7 7/8"

WS-W44014: 11"

                          

Junction Box

Caulking

(Wall Sconce)

Mounting Screw

Mounting back plate

Junction Box

Wire Connector

Glass

(RPL-GLA-44011)

(RPL-GLA-44014)

Junction box Screw

Fixture

PlasticAnchor

WoodScrew
