INSTALLATION INSTRUCTION

WS-W21110 / WS-W21116/ WS-W21122

• Read all instructions before installing.
• System is intended for installation by a licensed electrician in accordance with the National Electrical Code (NEC) and local regulations.
• When handling the xture, do not apply pressure to the LEDs. Hold the xture by the base only.
• Retain installation instructions for future maintenance reference.
All parts must be used as indicated in these instructions. This product is designed for use only with the supplied parts and/or
accessories designated for use by dweLED. Substitution of parts or accessories not designated for use with this product by dweLED could
result in personal injury or property damage, and will void the warranty. Contact an authorized dealer or the manufacturer if any parts are
damaged or missing.
Coastal conditions may cause mineral and residue build-up on the xture. We recommend that customers in coastal
areas clean all external surfaces of the xture once every two weeks with a wet cloth.
Pour éviter tout choc électrique, assurez-vous que le disjoncteur soit mis hors tension avant de commencer.
• Lisez toutes les instructions avant l’installation.
• Le système doit être installé par un électricien licensié conformément au code national de l’électricité (NEC), et également aux
règlements locaux.
• Lors de la manipulation du luminaire, n’appuyez pas sur les LED. Tenez-le uniquement par la base.
Toutes les pièces doivent être utilisées comme indiqué dans ces instructions. Ce produit est conçu pour être utilisé seulement
avec les pièces et/ou accessoires fournis pour être utilisés avec les produits dweLED. Remplacer des pièces ou accessoires non conçus pour ce
produit dweLED pourrait causer des dommages corporels ou matériels et pourrait également causer l’annulation de la garantie. Veuillez
contacter un revendeur autorisé ou le fabricant si des pièces manquent ou sont endommagées.
Les conditions côtières peut causer une accumulation de minéraux et de résidue sur le luminaire. Nous recommendons
aux clients qui resident dans les zones côtières de nettoyer toutes les surfaces externes du luminaire une fois toutes les deux semaines avec
un chion humide.

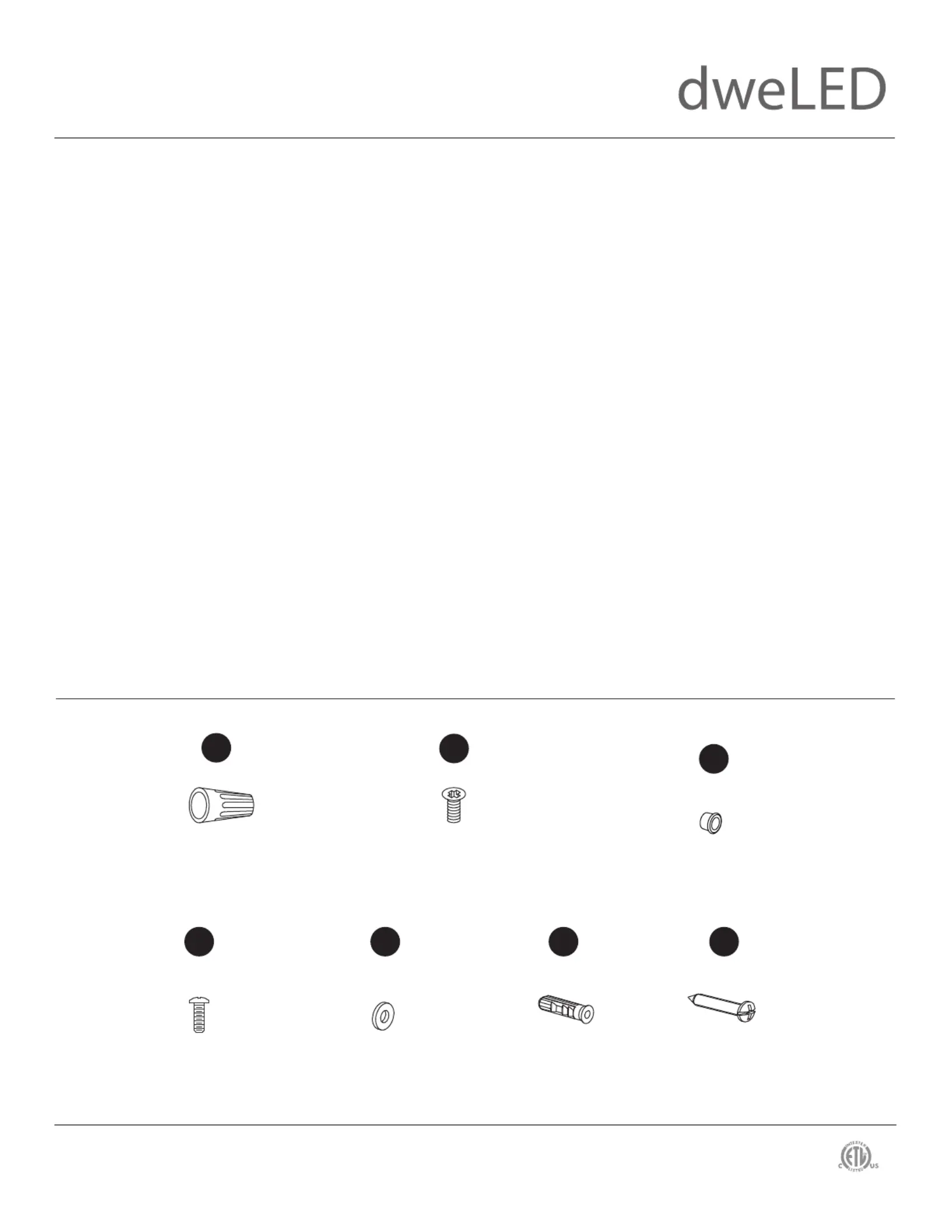

A
Wire Connector
Qty: 3 pcs +1 Extra
Mounting Screw
Qty: 1 Extra
5/32”-32X1/2
D
B
Silicone Gasket
Qty: 1 Extra
C
Locking Glass
Screw
Qty: 4 pcs + 1 Extra
Plastic Anchor
Qty: 3 pcs
G
Wood Screw
Qty: 3 pcs
Ø4x22
F
Sil cone ini R g
Qty: 4 pcs + 1 Extra
E
          Aug 2020
Phone (800) 526.2588
Fax (800) 526.2585
44 Harbor Park Drive
Port Washington, NY 11050
1600 Distribution Ct
1750 Archibald Avenue
Ontario, CA 91760
2
INSTALLATION INSTRUCTION

WS-W21110 / WS-W21116/ WS-W21122
Fixture Wires
Black or
Smooth
Fixture Wires
White or
Ribbed
Fixture Wires
Bare wire
(Ground)
House Wires
Black
(Hot)
House Wires
White
(Neutral)
House Wires
Green or Bare Copper
(Ground)

Junction Box
Caulking

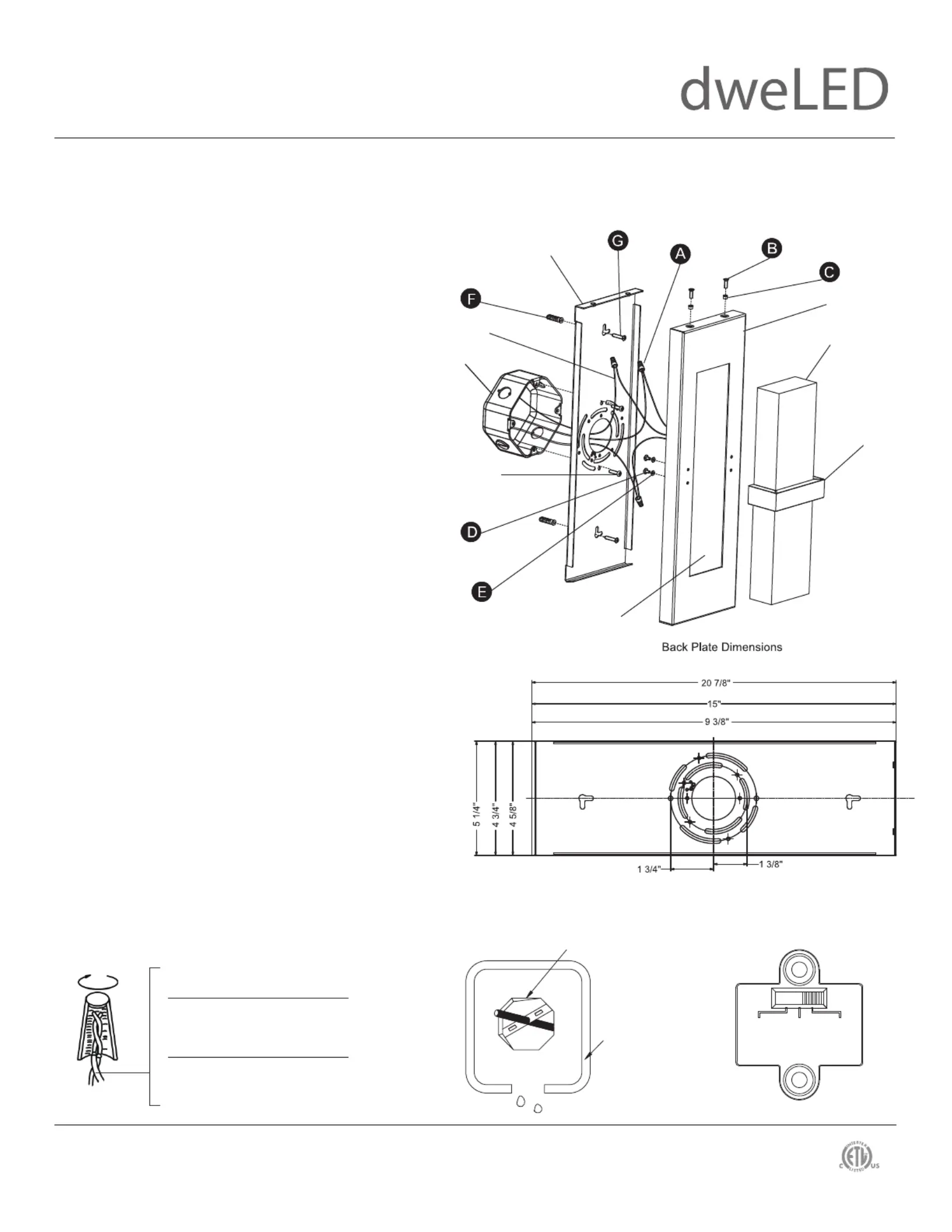

1. Shut o the power at the circuit breaker and remove existing
xture, including the crossbar.
2. Carefully unpack your new xture and lay out all the parts on a
clear area. Be careful not to lose any small parts necessary for
installation.

3. Remove the mounting screws (B) and the silicone gaskets (C)
from the xture.
4. The lamp can switch between three color temperatures
(3000k-3500k-4000k), which can be adjusted to your
preference with the switch in the canopy (Fig.4).
5. Drill holes in the wall aligned with the key holes located in the
mounting back plate, insert the plastic anchors (G).
6. Secure the mounting plate to the junction box using junction
box screws, fasten it to the wall using wood screws (F).
Note:
(i)using any other non-original-manufacturer provided junction
box screw may result in safety issue;
(ii) The side of the mounting plate marked “GND” must face out.
7. Take out the glass lamp cover and lock it on the lamp body with
the provided
locking glass
screw (D) and silicone ring (E).
 
8. Connect the xture’s wires to junction box wires as shown in
(Fig. 2), making sure that all wire connectors (A) are secured. If
your outlet box has a green or bare copper ground wire, connect
the xture’s ground wire to it. Otherwise, connect the xture’s
ground wire directly to the back plate using the screw provided.
After wires are connected, tuck them carefully inside the junction
box.
9. Secure the xture to the mounting back plate using the
mounting screws (B) and the silicone gaskets (C).
10. To prevent moisture from entering the outlet box and causing a
short, use clear caulking (i.e. indoor/outdoor silicone sealant) to
outline the outside of xture back plate where it meets the wall.
Leave a space at the bottom to allow moisture to escape (Fig. 3)
WS-W21122
WS-W21116
WS-W21110
WS-W21110
WS-W21122
WS-W21116
Outer Glass
(RPL-GLA-21110-OUT)
(RPL-GLA-21116-OUT)
(RPL-GLA-21122-OUT)
Mounting Screw
M ntingou
Backplate
Wire
C n ron ecto
Ground ire W
Locking Glass
Screw
Lamp Body
Plastic Anchor
(Only Use:
WS-W21116
WS-W21122 )
Wood Screw
(Only Use:
WS-W21116
WS-W21122 )
Sil cone ini R g
Silicone Gasket
Junction Box
Glass Lampshade
Junction Box
Screw
Inner Glass
(RPL-GLA-21110-IN)
(RPL-GLA-21116-IN)
(RPL-GLA-21122-IN)
3500K4000K
3000K
