INSTALLATION INSTRUCTION

420 - Outdoor Wall Sconce

WS-W42016 / WS-W42020

HARDWARE

CAUTION: To prevent electrical shock, ensure electricity has been turned off at the circuit breaker before beginning.

• Read all instructions before installing.

• System is intended for installation by a licensed electrician in accordance with the National Electrical Code (NEC) and local regulations.

• When handling the fixture, do not apply pressure to the LEDs. Hold the fixture by the base only.

• Retain installation instructions for future maintenance reference.

WARNING: All parts must be used as indicated in these instructions. This product is designed for use only with the supplied parts and/or

accessories designated for use by dweLED. Substitution of parts or accessories not designated for use with this product by dweLED could

result in personal injury or property damage, and will void the warranty. Contact an authorized dealer or the manufacturer if any parts are

damaged or missing.

MAINTENANCE NOTE: Coastal conditions may cause mineral and residue build-up on the fixture. We recommend that customers in coastal

areas clean all external surfaces of the fixture once every two weeks with a wet cloth.

MISE EN GARDE: Pour éviter tout choc électrique, assurez-vous que le disjoncteur soit mis hors tension avant de commencer.

• Lisez toutes les instructions avant l’installation.

• Le système doit être installé par un électricien licensié conformément au code national de l’électricité (NEC), et également aux

règlements locaux.

• Lors de la manipulation du luminaire, n’appuyez pas sur les LED. Tenez-le uniquement par la base.

ATTENTION: Toutes les pièces doivent être utilisées comme indiqué dans ces instructions. Ce produit est conçu pour être utilisé seulement

avec les pièces et/ou accessoires fournis pour être utilisés avec les produits dweLED. Remplacer des pièces ou accessoires non conçus pour ce

produit dweLED pourrait causer des dommages corporels ou matériels et pourrait également causer l’annulation de la garantie. Veuillez

contacter un revendeur autorisé ou le fabricant si des pièces manquent ou sont endommagées.

NOTE D’ENTRETIEN: Les conditions côtières peut causer une accumulation de minéraux et de résidue sur le luminaire. Nous recommendons

aux clients qui resident dans les zones côtières de nettoyer toutes les surfaces externes du luminaire une fois toutes les deux semaines avec

un chiffon humide.

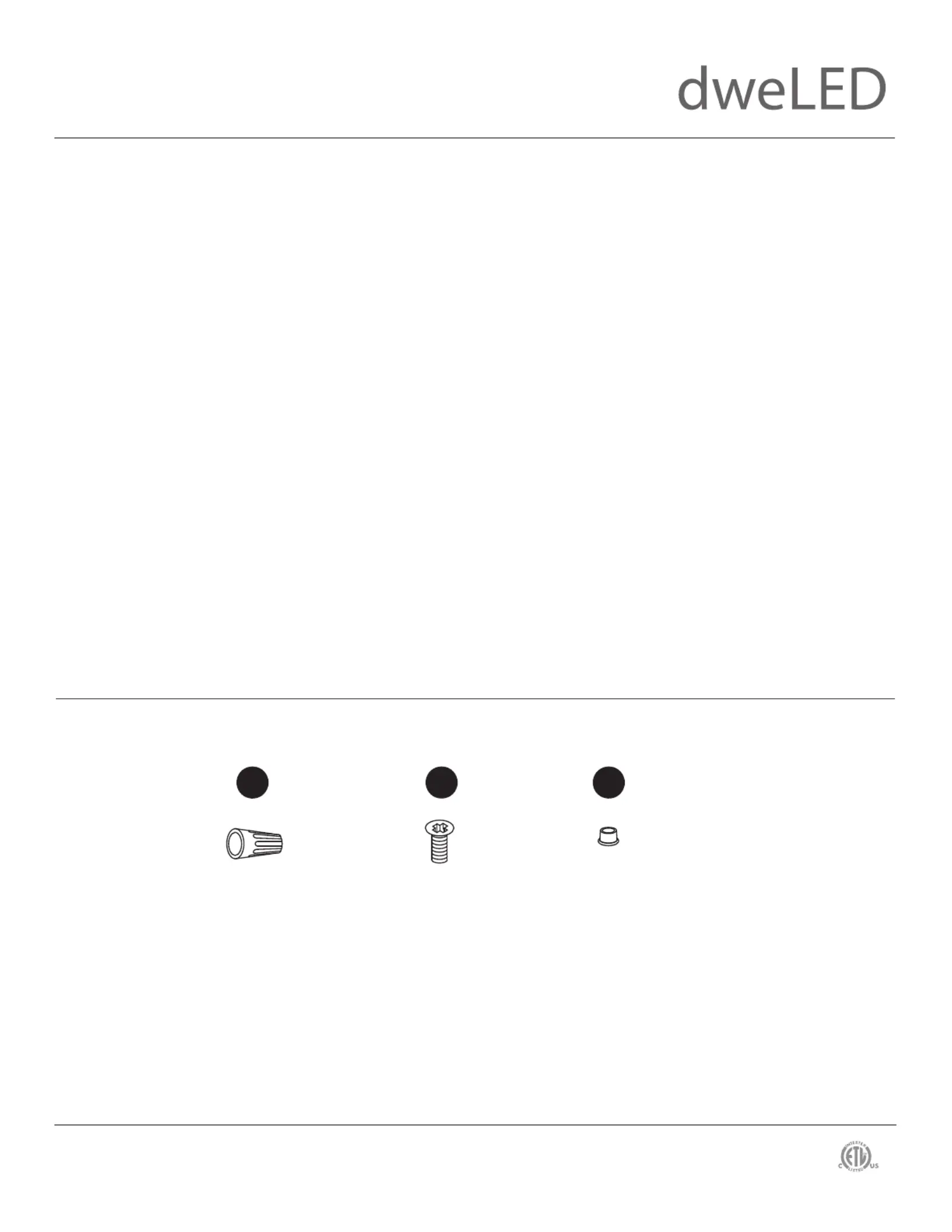

Wire Connector

Qty: 3pcs+1 Extra

Mounting Screw

Qty:1 Extra

Rubber Gasket

Qty:1 Extra

WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous imp vement program. ro Oct 2019

dweLED.com

Phone (800) 526.2588

Fax (800) 526.2585

Headquarters/Eastern Distribution Center

44 Harbor Park Drive

Port Washington, NY 11050

Central Distribution Center

1600 Distribution Ct

Lithia Springs, GA 30122

Western Distribution Center

1750 Archibald Avenue

Ontario, CA 91760

INSTALLATION INSTRUCTION

420 - Outdoor Wall Sconce

WS-W42016 / WS-W42020

PREPARATION

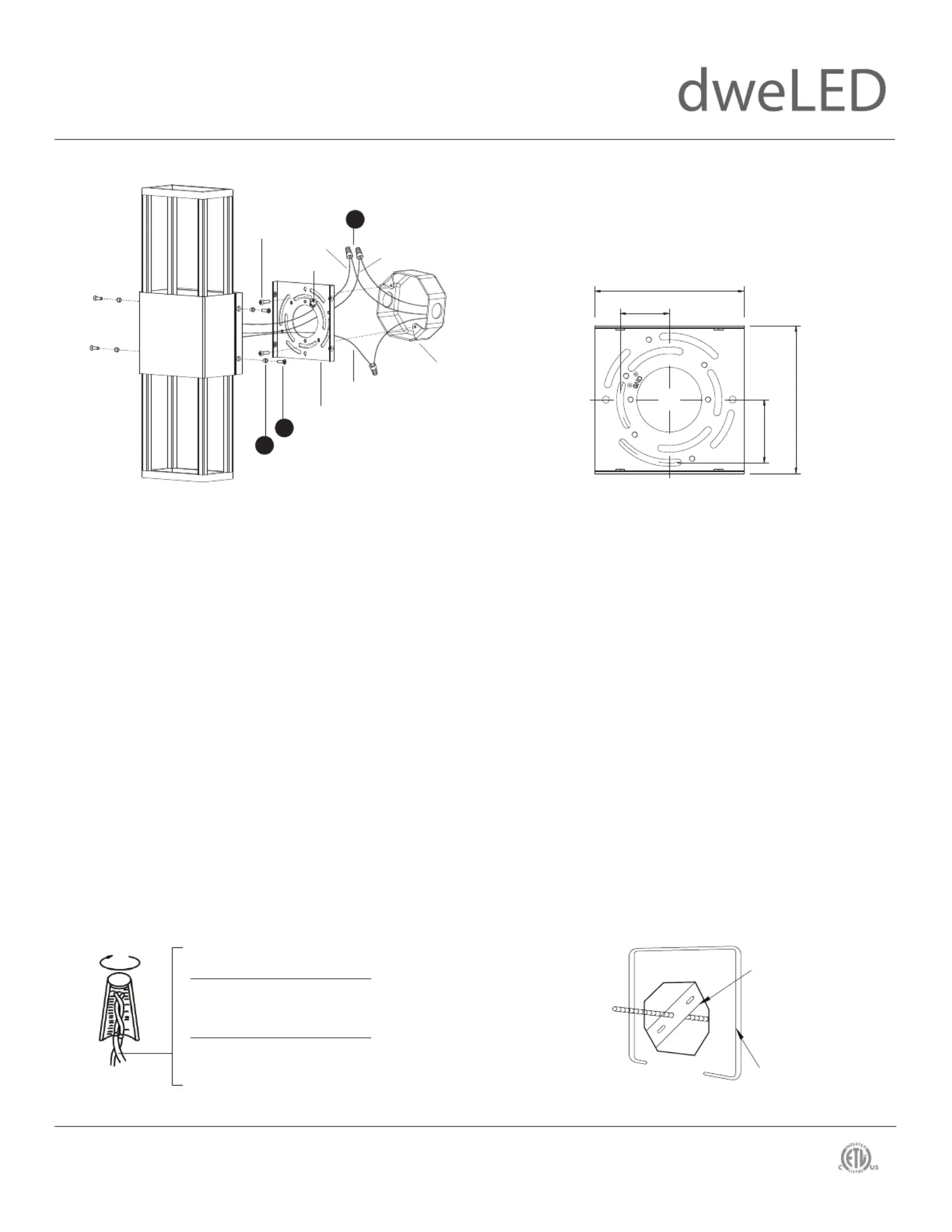

MOUNTING THE FIXTURE (Fig. 1)

CONNECTING THE WIRES (Fig. 2)

COMPLETING THE INSTALLATION

1. Shut off the power at the circuit breaker and remove existing fixture, including the crossbar.

2. Carefully unpack your new fixture and lay out all the parts on a clear area. Be careful not to lose any small parts necessary for installation.

3. Remove the mounting screw (B) and the rubber gasket (C) from the mounting back plate.

4. Secure the mounting plate to the junction box using junction box screws. The side of the mounting back plate marked “GND” must face out.

5. Connect the fixture’s wires to junction box wires as shown in Fig. 2, making sure that all wire connectors (A) are secured. If your outlet box has a

green or bare copper ground wire, connect the fixture’s ground wire to it. Otherwise, connect the fixture’s ground wire directly to the back plate

using the green screw provided. After wires are connected, tuck them carefully inside the junction box.

6. Secure the fixture to the mounting back plate using the mounting screw (B) and the rubber gasket (C).

7. To prevent moisture from entering the outlet box and causing a short, use clear caulking (i.e. indoor/outdoor silicone sealant) to outline the

outside of fixture back plate where it meets the wall. Leave a space at the bottom to allow moisture to escape Fig.3.

Fixture Wires

Black or

Smooth

Fixture Wires

White or

Ribbed

Fixture Wires
