INSTALLATION INSTRUCTIONS
486 - LED Outdoor
WS-W48612, WS- WS-W48620W48616,

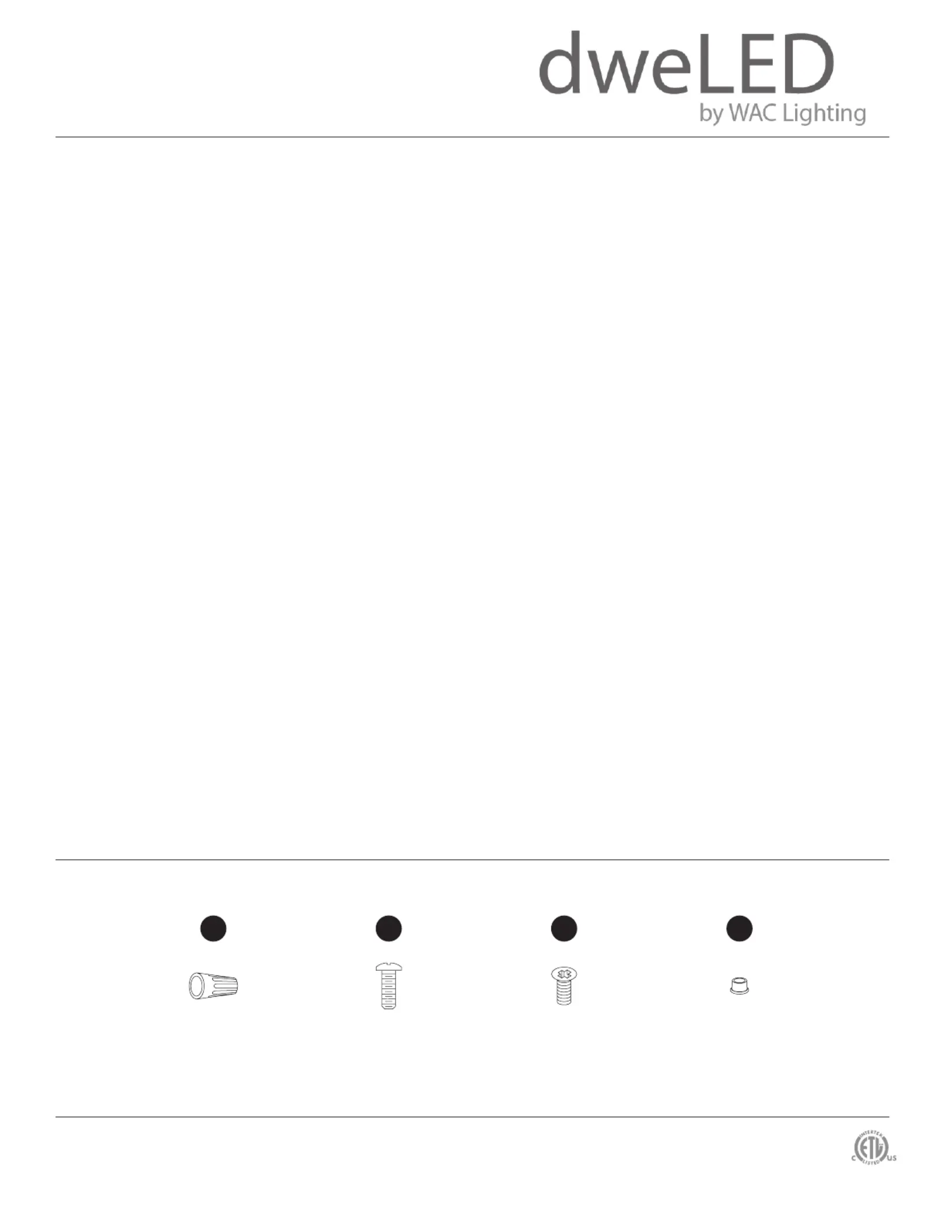

HARDWARE
Wire Connector
Qty: 3 pcs +1 Extra
7EAC112201
Rubber Gasket
Qty: 1 Extra
7TGD060301CL
Mounting Screw
Qty: 1 Extra
4MPF0412S2BW
Junction Box Screw
Qty: 2 pcs + 1 Extra
7MPF0415C2
A1 D1C1B1
CAUTION: TO PREVENT ELECTRICAL SHOCK, ENSURE ELECTRICITY HAS BEEN TURNED OFF AT THE CIRCUIT BREAKER BEFORE
BEGINNING.
-
Read all instructions before installing.
- System is intended for installation by a licensed electrician in accordance with the National Electrical Code (NEC) and local regulations.
- When handling the fixture, do not apply pressure to the LEDs. Hold the fixture by the base only.
- Retain installation instructions for future maintenance reference.
WARNING: All parts must be used as indicated in these instructions. This product is designed for use only with the supplied parts and/or
accessories designated for use by dweLED. Substitution of parts or accessories not designated for use with this product by dweLED could result
in personal injury or property damage, and will void the warranty. Contact an authorized dealer or the manufacturer if any parts are damaged
or missing.
MAINTENANCE NOTE: Coastal conditions may cause mineral and residue build-up on the fixture. We recommend that customers in coastal
areas clean all external surfaces of the fixture once every two weeks with a wet cloth.
MISE EN GARDE: Pour éviter tout choc électrique, assurez-vous que le disjoncteur soit mis hors tension avant de commencer.
- Lisez toutes les instructions avant l’installation.
- Le système doit être installé par un électricien licensié conformément au code national de l’électricité (NEC), et également aux
règlements locaux.
- Lors de la manipulation du luminaire, n’appuyez pas sur les LED. Tenez-le uniquement par la base.
ATTENTION: Toutes les pièces doivent être utilisées comme indiqué dans ces instructions. Ce produit est conçu pour être utilisé seulement
avec les pièces et/ou accessoires fournis pour être utilisés avec les produits dweLED. Remplacer des pièces ou accessoires non conçus pour ce
produit dweLED pourrait causer des dommages corporels ou matériels et pourrait également causer l’annulation de la garantie. Veuillez
contacter un revendeur autorisé ou le fabricant si des pièces manquent ou sont endommagées.
NOTE D’ENTRETIEN: Les conditions côtières peut causer une accumulation de minéraux et de résidue sur le luminaire. Nous recommendons
aux clients qui resident dans les zones côtières de nettoyer toutes les surfaces externes du luminaire une fois toutes les deux semaines avec un
chiffon humide.
2
dweLED Jan 2019 retains the right to modify the design of our products at any time as part of the company's continuous improvement program.
dweLED .com
Phone (800) 526.2588
Fax (800) 526.2585
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
INSTALLATION INSTRUCTIONS
486 - LED Outdoor
WS-W48612, WS- WS-W48620W48616,

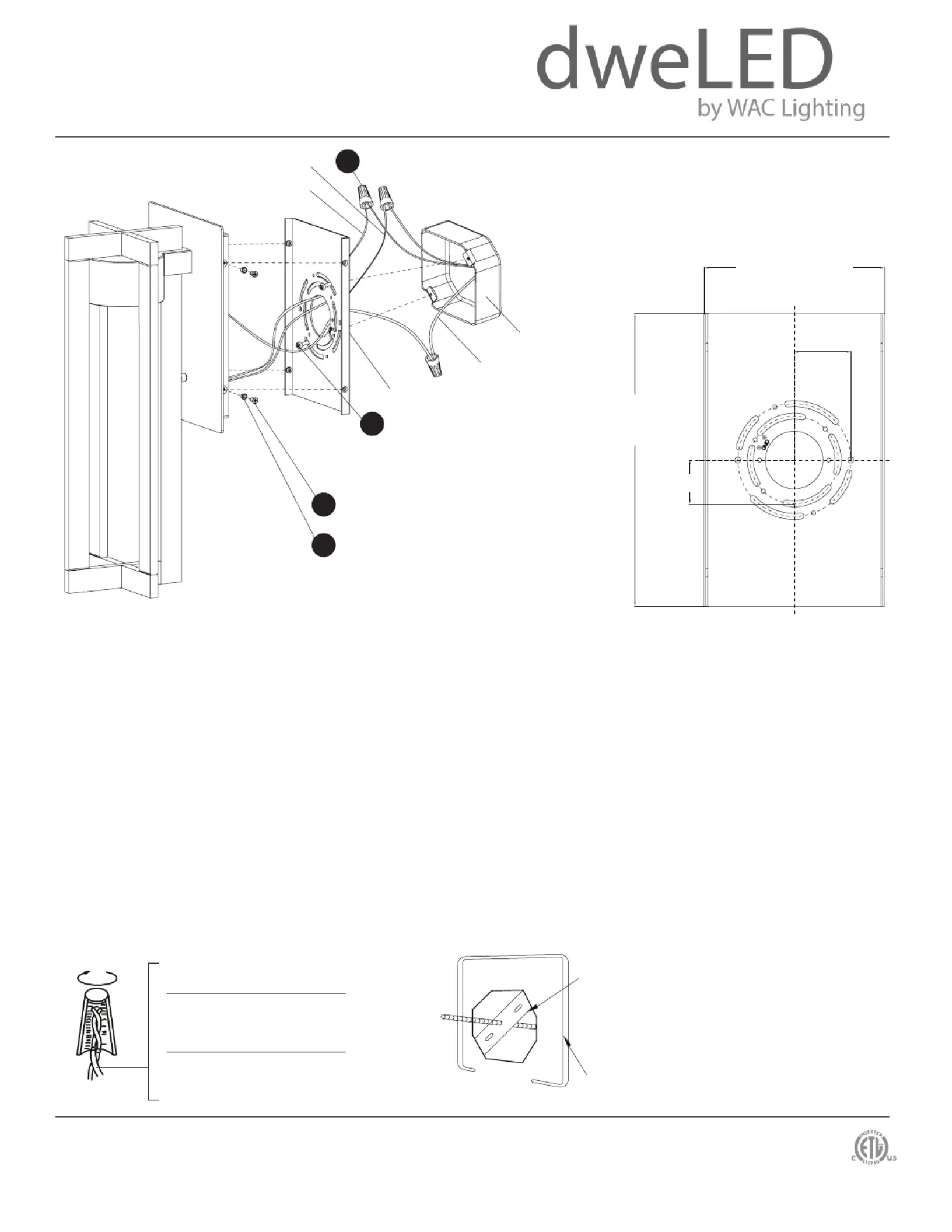

FIG.1
Junction Box Screw
Mounting Screw
Rubber Gasket
Junction Box
Ground Wire
Mounting Back Plate
Wire Connector
Back Plate Dimensions
White Wire
Black Wire
B1
C1
D1
A1
Fixture Wires
Black or
Smooth
Fixture Wires
White or
Ribbed
Fixture Wires
Bare wire
(Ground)
House Wires
Black
(Hot)
House Wires
White
(Neutral)
House W
ires
Green or Bare Copper
(Ground)
Fig. 2 Wiring
Junction Box
Caulking
Fig.3 Sealing
PREPARATION
1. Shut o the power at the circuit breaker and remove existing xture, including the crossbar.
2. Carefully unpack your new xture and lay out all the parts on a clear area. Be careful not to lose any small parts necessary for installation.
MOUNTING IXTURE THE F (Fig. 1)
3. Remove the mounting screw (C1) and the rubber gasket (D1) from the mounting back plate.
4. Secure the mounting back plate to the junction box using junction box screws (B1).
NOTE: The side of the mounting back plate marked “GND” must face out.
CONNECTING THE WIRES (Fig. 2)
5. Connect the fixture’s wires to junction box wires as shown
(Fig. 2). Make sure that all wire connectors (A1) are secure. If your outlet box
has a green or bare copper ground wire, connect the xture’s ground wire to it. Otherwise, connect the xture’s ground wire directly to the
back plate using the green screw provided. After wires are connected, tuck them carefully inside the junction box.
COMPLETING THE INSTALLATION (Fig. 1)
6. Secure the fixture to the mounting back plate using the mounting screw (C1) and the rubber gasket (D1).
7. To prevent moisture from entering the outlet box and causing a short, use clear caulking (i.e. indoor/outdoor silicone sealant) to outline
the outside of fixture back plate where it meets the wall. Leave a space at the bottom to allow moisture to escape (Fig. 3).
WS-W48612 5 3/4"
WS-W48616 7 5/8"
WS-W48620 9 1/4"
1 3/8"
1 3/4"
WS-W48612 4 1/8"
WS-W48616 5 1/8"
WS-W48620 5 5/8"
