dweLED retains the right to modify the design of our products at any time as part of the company's continuous improvement program. Feb 2019
dweLED.com
Phone (800) 526.2588
Fax (800) 526.2585
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
1
INS ALL TION INSTRUCTIONT A S
119-Outdoor Wall Sconce
WS-W11914/WS-W11920/WS-W11926
D
A
C
B
E

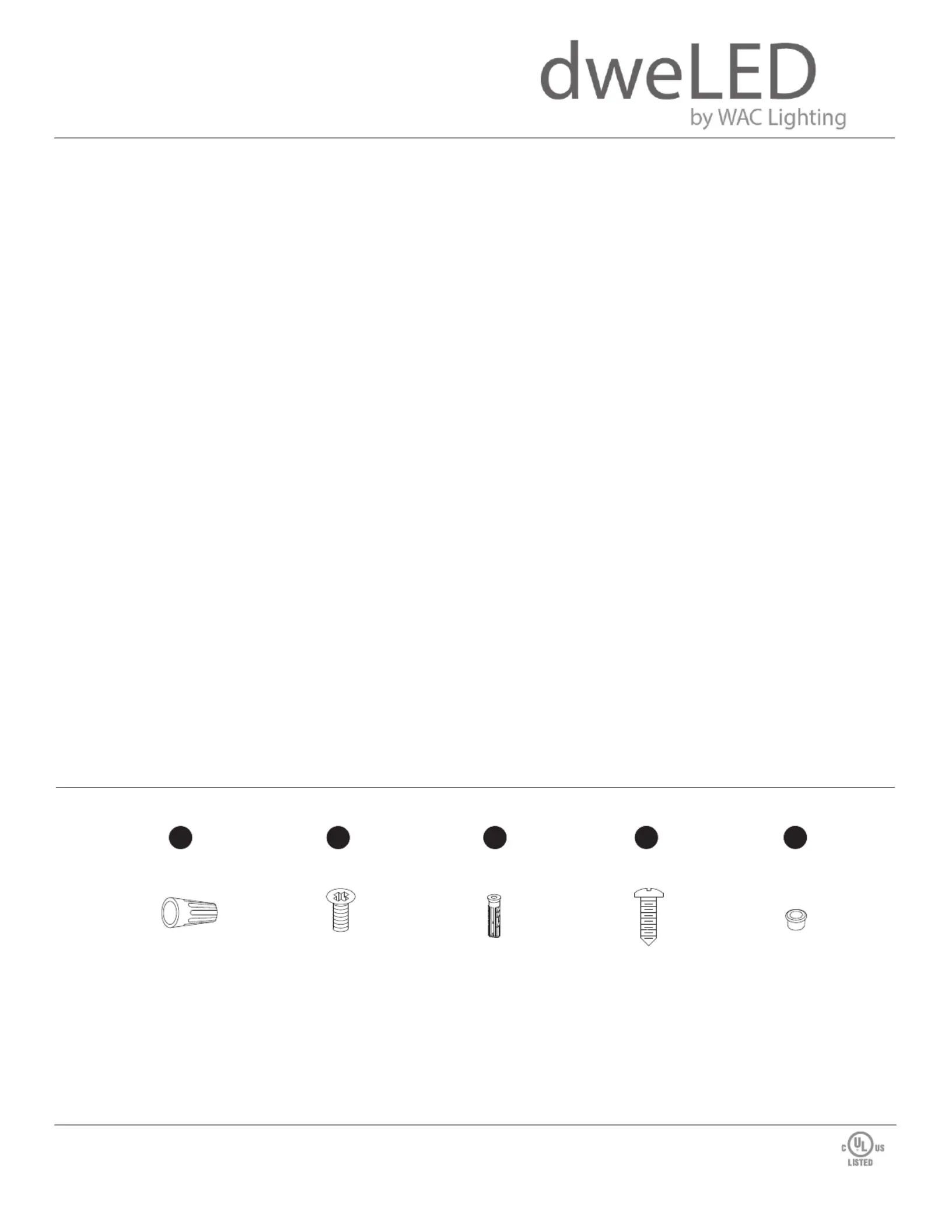

HARDWARE
Wire Connector
Qty: 3pcs + 1 Extra
Mounting Screw
Qty: 1 Extra
Plastic Anchor
Qty: 2pcs + 1 Extra
Wood Screw
Qty: 2pcs + 1 Extra
Gasket
Qty: 1 Extra
CAUTION: TO P
REVENT ELECTRICAL SHOCK, ENSURE ELECTRICITY HAS BEEN TURNED OFF AT THE CIRCUIT BREAKER BEFORE BEGINNING.
- Read all instructions before installing.
- System is intended for installation by a licensed electrician in accordance with the National Electrical Code (NEC) and local regulations.
- When handling the fixture, do not apply pressure to the LEDs. Hold the fixture by the base only.
- Retain installation instructions for future maintenance reference.
WARNING: All parts must be used as indicated in these instructions. This product is designed for use only with the supplied parts and/or
accessories designated for use by dweLED. Substitution of parts or accessories not designated for use with this product by dweLED could result in
personal injury or property damage, and will void the warranty. Contact an authorized dealer or the manufacturer if any parts are damaged or
missing.
MAINTENANCE NOTE: Coastal conditions may cause mineral and residue build-up on the fixture. We recommend that customers in coastal areas
clean all external surfaces of the fixture once every two weeks with a wet cloth.
MISE EN GARDE: Pour éviter tout choc électrique, assurez-vous que le disjoncteur soit mis hors tension avant de commencer.
- Lisez toutes les instructions avant l’installation.
- Le système doit être installé par un électricien licensié conformément au code national de l’électricité (NEC), et également aux
règlements locaux.
- Lors de la manipulation du luminaire, n’appuyez pas sur les LED. Tenez-le uniquement par la base.
ATTENTION: Toutes les pièces doivent être utilisées comme indiqué dans ces instructions. Ce produit est conçu pour être utilisé seulement avec
les pièces et/ou accessoires fournis pour être utilisés avec les produits dweLED. Remplacer des pièces ou accessoires non conçus pour ce produit
dweLED pourrait causer des dommages corporels ou matériels et pourrait également causer l’annulation de la garantie. Veuillez contacter un
revendeur autorisé ou le fabricant si des pièces manquent ou sont endommagées.
NOTE D’ENTRETIEN: Les conditions côtières peut causer une accumulation de minéraux et de résidue sur le luminaire. Nous recommendons aux
clients qui resident dans les zones côtières de nettoyer toutes les surfaces externes du luminaire une fois toutes les deux semaines avec un chiffon
humide.
dweLED retains the right to modify the design of our products at any time as part of the company's continuous impro
vement program. Feb 2019
dweLED.com
Phone (800) 526.2588
Fax (800) 526.2585
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
2
Fixture Wires
Black or
Smooth
Fixture Wires
White or
Ribbed
Fixture Wires
Bare wire
(Ground)
House Wires
Black
(Hot)
House Wires
White
(Neutral)
House Wires
Green or Bare Copper
(Ground)

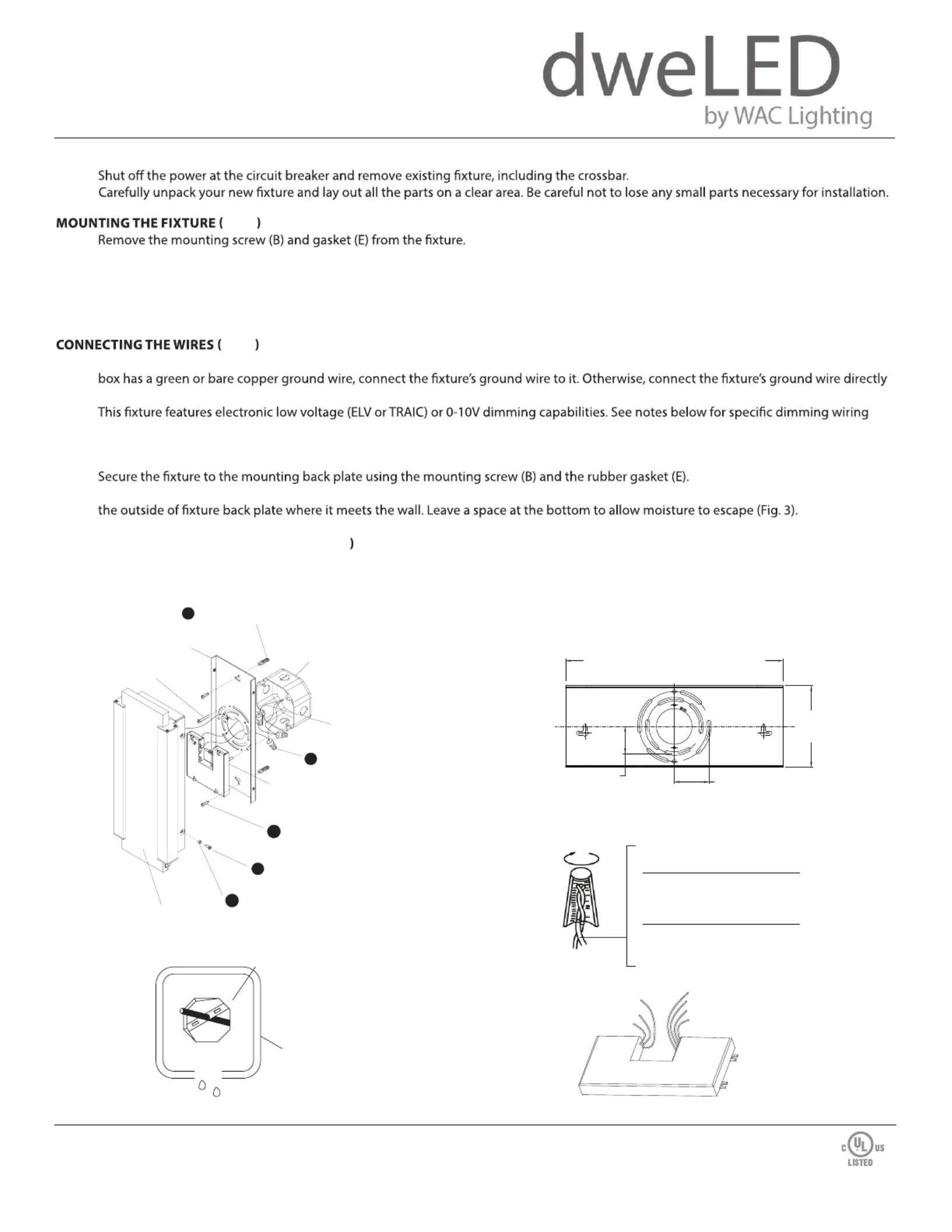

INSTALL TIONA INSTRUCTIONS
11
9-Outdoor Wall Sconce
WS-W11914/WS-W11920/WS-W11926
PREPARATION
1.
2.
Fig. 1
3.
4. Drill holes in the wall aligned with the key holes located on the back plate, insert the plastic anchor (C).
5. Secure the mounting back plate to the junction box using the screws provided with the junction box. Fasten the back plate to the wall
with the plastic anchors using the wood screws provided.
NOTE: The side of the mounting plate marked “GND” must face out.
Fig. 2
6. Connect the driver’s input wires to junction box wires as shown (Fig. 2). Make sure that all wire connectors (A) are secure. If your outlet
to the back plate using the green screw provided. After wires are connected, tuck them carefully inside the junction box.
7.
information.
C PLE G E TOM TIN TH INS ALLATION
8.
9. To prevent moisture from entering the outlet box and causing a short, use clear caulking (i.e. indoor/outdoor silicone sealant) to outline
Fig. 4
10. To utilize ELV or TRAIC dimming: use black (hot), white (neutral) and bare copper ground wires (ground).
11. To utilize 0-10V dimming: use purple (dim+), gray (dim-), black (hot), white (neutral) and bare copper ground wires (ground).
C
D
B
A
E
Fig. 1
Fig. 3 Sealing
Back Plate
Plastic Anchor
Junction Box
Ground Wire
Wood Screw
Mounting Screw
Gasket
Junction Box
Caulking
(Wall Sconce)
Fixture
Wire Connector
Driver: 3 ” L x 3 ” W x ” Hw w 2
Junction Box Screw
Fig. 4
WS-W11914 & WS-W11920 & WS-W11926 Back Plate
WS-W11914 11”
WS-W11920 15 ”w
WS-W11926 13 ”w
1 ”w
1 ”a
4 ”8
Fig. 2 Wiring
Black - Hot
White - Neutral
Blue - round G
Gray - Dim-
Purple - Dim+
Red
+
Black-
NOTE: DIMMING WIRING INSTRUCTIONS (
