INSTALLATION INSTRUCTION
Tube Architectural - LED Wall Mount
DS-WS05, WS06, WS08, DS-WD05, WD06, WD08
WARNING
IMPORTANT: NEVER attempt any work without shutting o the electricity.
- Read all instructions before installing.
- System is intended for installation by a qualied electrician in accordance with the National Electrical Code and local regulations.
- Go to the main fuse box, or circuit breaker. Place the main power switch in the “OFF” position and unscrew the fuse(s) or switch ”OFF”
the circuit breaker switch(es) that control the power to the xture or room that you are working on.
- Place the wall switch in the “OFF” position.
CAUTION
- All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts that are
worn out or broken. Failure to follow this instruction could invalidate the ETL/CETL listing of this xture.
CAUTION When handling the xture, do not apply pressure to the LEDs. Hold the xture by the base only.
AVERTISSEMENT
IMPORTANT : Coupez l’électricité avant TOUTE manipulation.
- Lisez toutes les instructions avant d’installer.
- Système est destiné à être installé par un électricien qualié en conformité avec le code national de l’électricité et les
règlements locaux.
- Accédez au panneau central de disjoncteurs ou de fusibles de votre demeure et placez l’interrupteur principal en position d’arrêt
(« OFF »).
- Placez l’interrupteur mural en position d’arrêt (« OFF »).
MISE EN GARDE
- Toutes les pièces doivent être utilisées tel qu’il est indiqué dans ces instructions. Ne remplacez pas les pièces, n’en laissez pas de côté
et ne les utilisez pas si elles sont usées ou brisées. Le non-respect de ces instructions peut annuler l’homologation ETL/CETL du
luminaire. MISE EN GARDE Ors de la manipulation de l’appareil, ne pas appliquer de pression à la LED, tenir l’appareil par la seule base.
ADVERTENCIA
IMPORTANTE: NUNCA intente hacer trabajos sin desconectar el suministro eléctrico.
- Lea y comprenda todas las instrucciones e ilustraciones por completo antes de proceder con el ensamblaje e insta lación de esta
lámpara.
- Sistema está disenado para ser instalado por un electricista calicado, de acuerdo con el código eléctrico nacional y las normas locales.
- Diríjase a la caja de fusibles o a la caja del interruptor de circuito principal en su hogar. Coloque el interruptor de ali mentación
principal en la posición “OFF” (APAGADO).
- Coloque el interruptor de la pared en la posición “OFF” (APAGADO).
PRECAUCIÓN
- Todas las piezas deben usarse como lo indican estas instrucciones. No reemplace las piezas, noomita piezas durante la instalación ni
utilice piezas gastadas o rotas. El incumplimiento de esta indicación podría invalidar la calicación
ETL/CETL esta lámpara. PRECAUCIÓN Al manipular el aparato, no aplique presión a los LED, mantenga el aparato en la base sólo.
HARDWARE
FIG.1

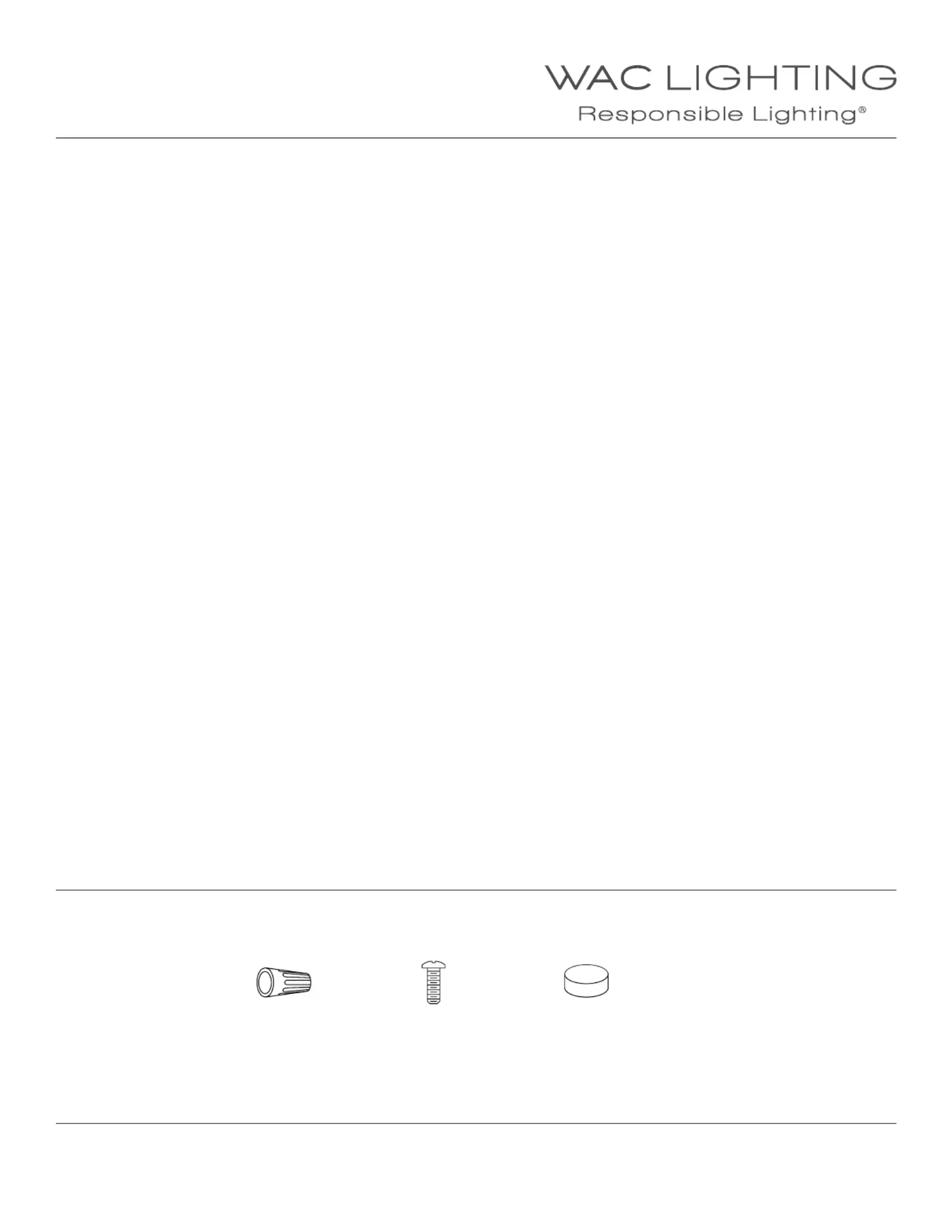

Wire Connector Junction Box Screw Gasket
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JULY, 2016
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
INSTALLATION INSTRUCTION
Tube Architectural - LED Wall Mount
DS-WS05, WS06, WS08, DS-WD05, WD06, WD08
OVERVIEW
It is surface mount down light, included ceiling mount, pendant mount, single direction wall wash and up-down direction wall wash.
Check catalog for various mount type, size, beam angle and color choices.
FIXTURE INSTALLATION
1. Carefully unpack your new xture and lay out all the parts on a clear area. Be carefully not to lose any small parts necessary for installation.
(See ) FIG.1
2. Remove the screw holding mounting plate to xture, and remove mounting plate from xture. (See ) FIG.2
3. Secure mounting plate to the junction box in wall provided by others. (See ) FIG.2
4. Pull power supply wires out of junction box through mounting plate. Connect black xture wire to hot wire, white xture wire to neutral
wire and green xture wire to ground. This xture oers 0-10V dimming capability. To utilize, connect purple xture wire to hot dimming
wire and gray xture wire to neutral dimming wire. If not utilizing dimming, terminate the dimming wires by capping them separately. After
wires are connected securely, tuck them carefully inside the junction box . (See ) FIG.2
5. Put the xture to the mounting plate, and secure with screws and gasket.(See ) FIG.2
Mount Plate
Ground Wire
ScrewGasket
Junction Box

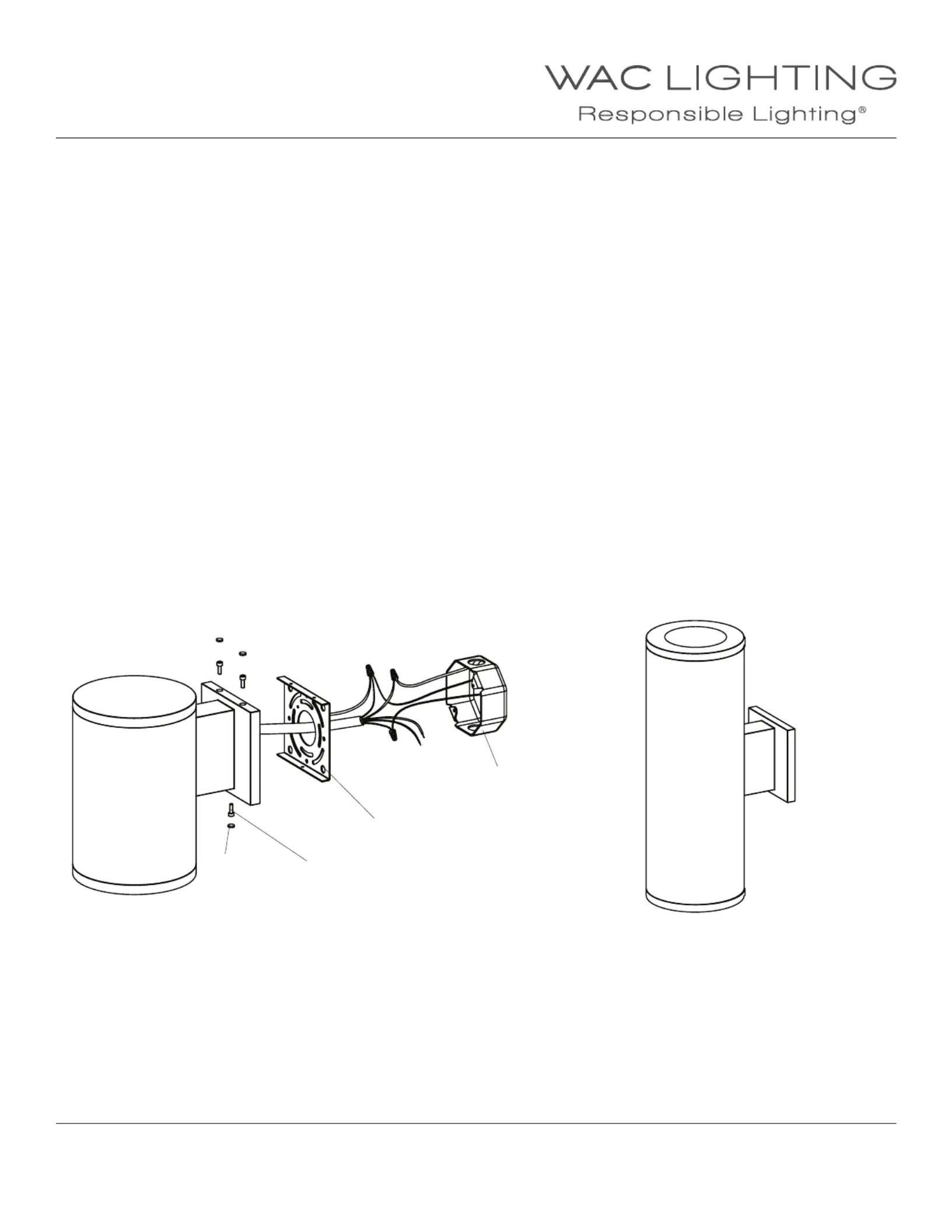

FIG.2
