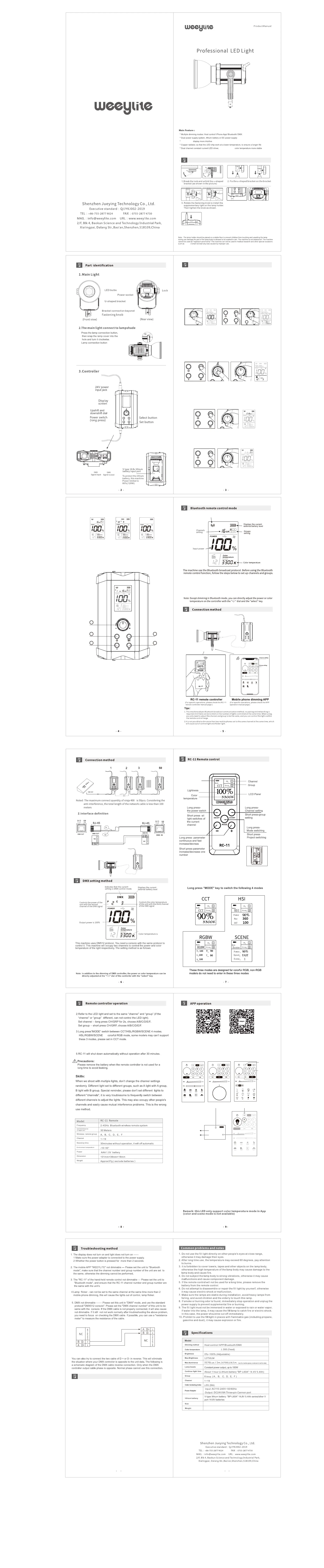

Side 1/1
Software upgrade
Note:The machine supports USB software upgrading
1.Enter WWW.Weeylite.com can upgrade software download to
my computer.
2.Insert Type-C line connet with controler.
3.Long press 10 seconds <QUIET> entering to upgrading mode.
4.Copy downloaded "upgrading document“ inside to this
controler,behind restarting nished updating system
Fill light interface
Scan QR codes to download
on your Apple devices
Scan QR codes to download on
your Android devices
1. Search "Weeylite" in the "APP Store" of Apple OS, find the dimming APP, and download
and install it to your phone.
2. For Android system, use browser/QQ to scan QR codes and download "Weeylite"
dimming APP.
800 0K 自定义
CH 4
Group A
Product interface
Channel No.
Group No.
Phone interface
(The light shall be consistent with the Channel No.
and Group No. of Bluetooth APP for mobile phones)
Channel
settings
Group
number setting
Dimming mode
1. Keep the Bluetooth on your mobile phone on, start the APP "Weeylite",
and set the channel number of the APP to be the same with the controlled
light. (If the channel of the controlled light is 1, the group number of APP will
be 1, otherwise it is out of control)
2. Set the APP group number to be the same wiht the controlled light. (If the
channel number of the controlled light is A, the channel number of the
mobile APP will be A, otherwise it is out of control)
Instructions
Bluetooth
Control Mode
DMX
Control Mode
Local
Control Mode
1.Lighting operation ：
2.Scene mode (FX)
Three control modes
4.Controller Keys Introduction
1. When connecting the mobile app with the remote control, short
press (set) key to switch the channel number and rotate left and right
Turn the (+,-) button to adjust the value.
Press the (SET) again to switch the group number,and rotate left
and right button (+,-) button to adjust the value.
Channel Adjustment
Group Adjustment
Channel adjustment
3.Channel and group number adjustment
1
2 4
5
3
Indicates that the current setting is
Bluetooth control method
ninja 400 II adopts high color rendering index double-color COB LED lamp beads,
with high luminous efficiency, accurate color temperatureand long life. It used for
photography, video, studio, exhibition hall and make-up and other high light
requirements of the scene.
4. Connect the fill light line to the lower left
hole of the controller (as shown in the picture)
5. Connect the fill light line to the lower left
hole of the controller (as shown in the picture)
1,Long press the "SET" key for 2 seconds to enter Bluetooth mode.
2,Short press "SET" key to set channel and group items, then select "+/-" to SET
channel/group number, (Select) Switch power and color temperature, (+, -) button to
adjust the value size, (no operation after 10 seconds will be automatically saved).
Hood button
1.Long press the on key to turn on the fill light, and the relevant parameters
of the fill light can be set.
2. Brightness adjustment: rotate the (+,-) button left and right to adjust the
brightness value (0% ~ 100%).
3.Color temperature adjustment: press the (select) button to switch the
color temperature adjustment, and then rotate the (+,-) button left and right
to adjust the color temperature value (2800K ~ 6800K).
Brightness adjustment
Color temperature adjustment
1. Fill light has 13 kinds of scenarios, which are (flash, firecrackers,
explosion, bad light bulb, bonfire,Paparazzi, TV, electric welding, curvilinear
light 1, curvilinear light 2, curvilinear light 3, etc.) operations are as follows:
Long press (select) button to switch to (FX) scene mode, and rotate left and
right (+,-) button to adjust the value, press (select) key again to switch the
flashing speed of the scene light (1 ~ 3).
1.Rotary knob: select adjustable calue on the left and right,and press down
to switch items.
2.On/Off button: long press to turn on/off.
3.Fan button: short press the fan icon flickers
(adjustable power 0%~50%)
Short press the fan icon stop flickering(adjustable power 0%~100%)
Long press: Software Upgrade Key(connect computer with USB to
firmware upgrade interface )
4.Scene mode: short press: switch power and color
temperature Long press: switch FX scene mode, Switch FX Mode,the
speed of light flashing in the mode.
5.Mode Button: long press switch mode(blue tooth,DMX, native mode),
short press switch project.
II
3300k
1. Long press the "SET" button for 2 seconds to enter the mode setting, short
press the "SET" button again to adjust to the (DMX) mode setting.
2. Short press the "SET" key to set the channel and group items, then select
the "+/-" dial to set the channel/group number, (select)
Switch the power and color temperature, (+, -) button to adjust the value ,
(after setting, no operation will be automatically saved for 10 seconds).
ninja 400 II
2800K~6800K
about 1770g
342x193x183mm
Note: This manual is for production test only. All interpretation rights belong to our
company.
10 11
Socket installation
Type-C
LCD screen,
no stroboscopic
space
battert
level
Battery compartment
1.Long press”on/o” for 2s, the RC-11 power on and display light up.
4.Press “+/-” to adjust power/color temperature. And press “Mode” to switch
between power/color temperature.
are
Controller
