MOUNTING AND WIRING INSTRUCTIONS

NOTE: Underwriters Laboratories (UL) does not require all fixtures to have ground wires. These fixtures

meet all UL specifications.

Turn off power at circuit box to avoid possible electric shock.

2. Thread mounting screws (A) into the cross bar (B).

3. Secure cross bar (B) to outlet box (C) with outlet box screws (D)

(if applicable)

(see fig. 1).

4. Affix the loop 1 (I1) to the canopy (F) by hex nut (K) and star washer (J).

Lace wires up through the glass tube (L), connect glass tube (L) to loop 3 (I3) on metal cap (V) and

chain (H) with quick links 3 (E3), and to chain (H) on loop 2 (I2) with quick link 2 (E2).

6. Lace wires up through every other link on chain (H) then through canopy loop 1 (I1), canopy (F)

nipple (G). Connect chain (H) to the loop 1 (I1) at the canopy (F) with quick link 1 (E1). and

7. Identify color coding of fixture wires (see fig. 3).

8. Connect the smooth wire with marking printed or molded from the fixture with the black wire from

outlet box (C)

by wire connector (N), and wrap the wire connector (N) with electrical tape for a

more secure connection.

9. Connect the ribbed wire from the fixture with the white wire from the outlet box (C)

by wire

connector (N), and wrap the wire connector (N) with electrical tape for a more secure connection.

10. Partially thread green grounding screw (O) into side hole (P) on cross bar (B).

11.

Wrap grounding wire from fixture around green grounding screw (O) leaving enough excess

wire, then connect the excess grounding wire from the fixture with the grounding wire from outlet

box (C) by wire connector (N) (if applicable), then wrap the wire connector (N) with electrical tape

for a more secure connection.

12. Tighten green grounding screw (O). Do not over tighten.

13. Tuck wires inside outlet box (C).

14. Raise canopy (F) to ceiling over mounting screws (A).

15. Secure into place with cap nuts (Q).

FIXTURE ASSEMBLY INSTRUCTIONS

Warning: This fixture is for indoor use only.

1. Install lamp(s). Do not exceed recommended wattage.

2. Turn power back on at circuit box.

WARNING

Turn off electricity to the mounting site before beginning installation.

Mounting instructions must be followed exactly as shown for the fixture to be safely supported.

CLEANING AND CARE

To clean, wipe fixture with soft cloth. Clean glass with mild soap. Spray from chemical cleaners can

discolor the finish of fixture. Do not use scouring pads, powders, steel wool or abrasive paper to

clean this fixture.

ORDERING PARTS

Keep this manual for future reference, and in case replacement parts are needed. Available parts can

be ordered from place of purchase. Use exact wording from diagrams when ordering parts.

FIGURE 2.

FIXTURE

WIRES:

Smooth

HOUSE

WIRES:

Black

(Hot)

HOUSE

WIRES:

White

(Neutral)

HOUSE

WIRES:

Bare

Copper

(Ground)

FIXTURE

WIRES:

Bare

Copper

(Ground)

FIXTURE

WIRES:

Ribbed

FIGURE 3.

W-756

042822

ASSEMBLY INSTRUCTIONS FOR INDOOR LIGHTING FIXTURE

Congratulations on your Westinghouse purchase. This fixture has been designed to give you many

years of beauty and service. For questions and comments, please visit www.westinghouselighting.

com/contact-us.

NOTE: Carefully unpack fixture and parts. Make sure all parts are included before discarding any pack-

ing materials (see figure 1).

Owner’s Manual

Indoor Lighting Fixture

Installation Instructions

FIXTURE WARRANTY

This Westinghouse lighting fixture is warranted against defects in material and workmanship for a period

of five years from purchase date. This warranty is in lieu of all other warranties expressed or implied.

This warranty does not cover acts of nature such as lightening damage, or corrosion and discoloration

of components, nor does it cover damages caused through abuse, improver installation, surges in

electric current, or acts of third parties.

This warranty does not cover the costs of removing and re-installing the lighting fixture.

If this product fails for any reason covered by this warranty, please contact us at www.westinghouse-

lighting.com/contact-us.

WARNING:

ELECTRICAL SHOCK CAN RESULT IN SERIOUS INJURY.

Read and follow instructions exactly as shown. If instructions are unclear, do not proceed.

Contact a qualified electrician. Read all instructions before beginning. Proper wiring is essen-

tial for safe operation of this fixture. When cutting or drilling into walls or ceilings, do not dam-

age electrical wiring, gas lines, or water lines. If any of the fixture or wiring components are

damaged, do not install fixture. Return to place of purchase.

For fixtures provided with 75° C or 90° C supply wire warning only. (These warnings are provid-

ed on the U.L. label and on the fixture carton.) Risk of fire. Most dwellings built before 1985

have supply wires rated 60° C. Consult a qualified electrician before installing.

*NOT SUPPLIED

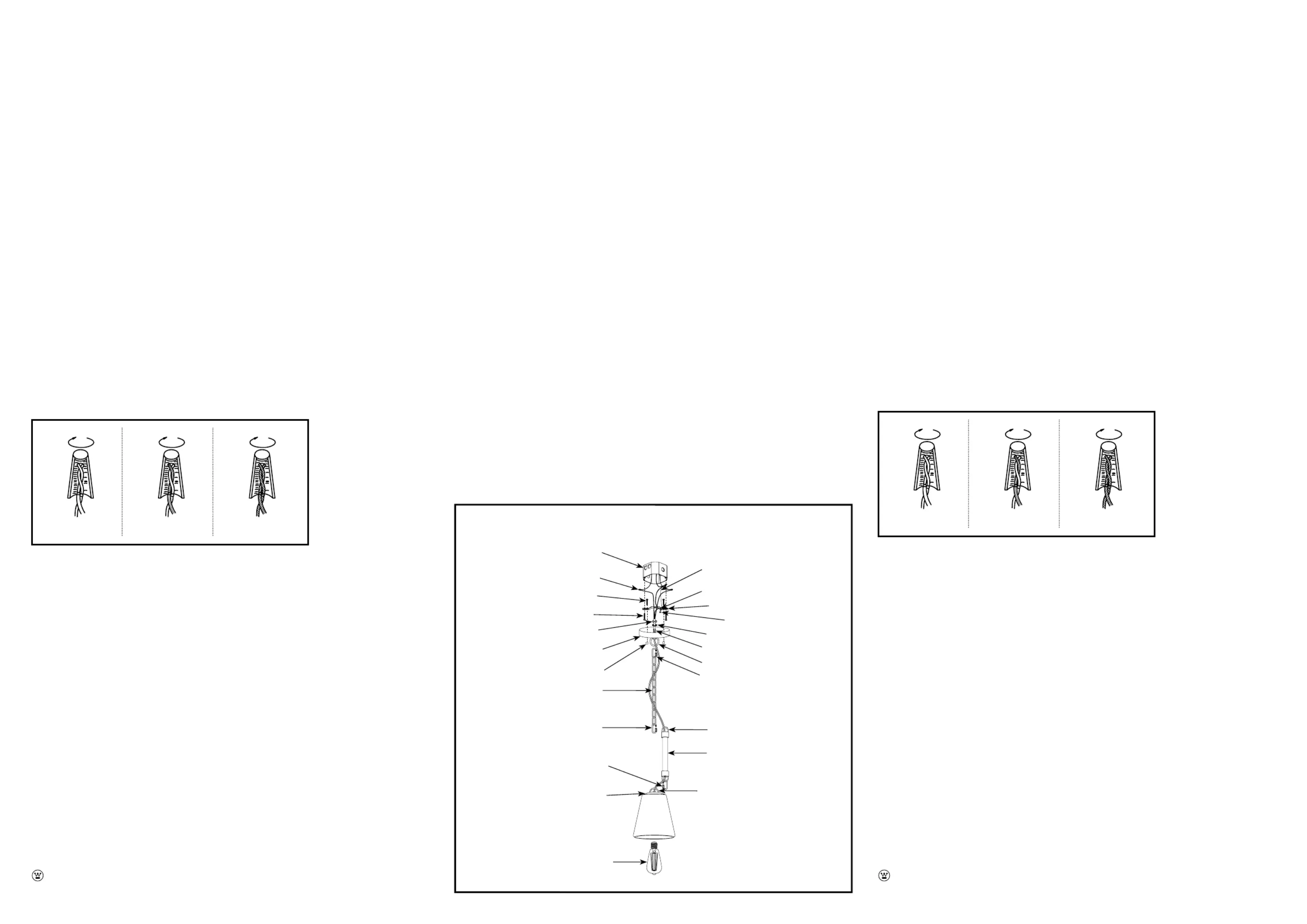

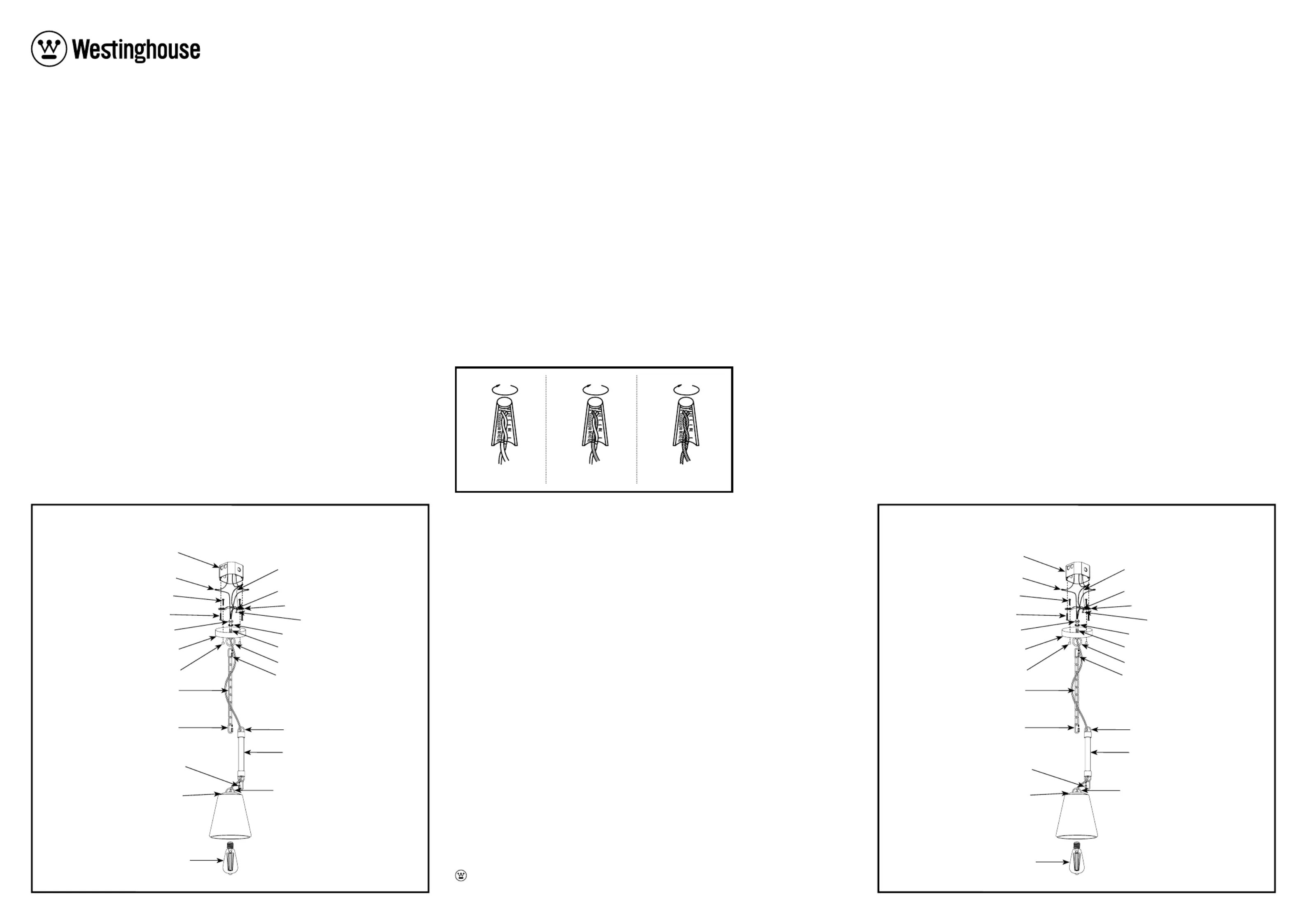

FIGURE 1.

*GROUND

WIRE

CONNECTORS (N)

SIDE HOLE (P)

STAR WASHER (J)

HEX NUT (K)

GREEN GROUNDING

SCREW (O)

LOOP 1 (I1)

QUICK LINK 1 (E1)

NIPPLE (G)

LOOP 2 (I2)

LOOP 3 (I3)

CAP NUTS (Q)

CANOPY (F)

CHAIN (H)

QUICK LINK 2 (E2)

GLASS TUBE (L)

QUICK LINK 3 (E3)

METAL CAP (V)

CROSS BAR (B)

MOUNTING

SCREWS (A)

*OUTLET BOX

SCREWS (D)

*OUTLET

BOX (C)

*LAMP

Line art shown may not exactly match the fixture enclosed.

However, the installation instructions do apply to this fixture.

Guide d’utilisation

Instructions d’installation

Appareil d’éclairage pour utilisation intérieure

LES INSTRUCTIONS D’ASSEMBLAGE DE L’APPAREIL D’ÉCLAIRAGE POUR UTILISATION INTÉRIEURE

Félicitations ! Vous avez acheté un produit de Westinghouse Lighting. Cet appareil d’éclairage a été

conçu pour durer de nombreuses années. Si vous avez des questions ou des commentaires à

nous communiquer, veuillez visiter www.westinghouselighting.com/contact-us.

NOTA : Déballez soigneusement l’appareil d’éclairage et les pièces. Assurez-vous que toutes les pièces

y sont avant de mettre l’emballage au rebut (voir fig. 1).

GARANTIE LIMITÉE DE CINQ ANS

Ce luminaire Westinghouse est garanti pièces et main-d’oeuvre pour une période de Cinq ans à compter

de la date d’achat. Cette garantie remplace toute autre garantie, explicite ou implicite.

Cette garantie ne couvre pas les phénomènes naturels comme les dommages de la foudre, ni la corro-

sion ou la décoloration des composants, pas plus qu’elle ne couvre les dommages causés par les abus,

une installation inappropriée, les surtensions électriques ou les actes de tiers.

Cette garantie ne couvre pas les coûts de dépose et de pose du luminaire.

En cas de défaillance du produit, pour une raison quelconque, couverte par cette garantie, veuillez

nous contacter via www.westinghouselighting.com/contact-us.

MISE EN GARDE: L’ÉLECTROCUTION POURRAIT CAUSER DE GRAVES BLESSURES PERSONNELLES.

Lisez ces instructions et suivez-les exactement comme illustré. En cas de doute, ne commencez

pas l’installation. Consultez un électricien qualifié. Lisez toutes les instructions avant de com-

mencer l’installation. Un câblage approprié est essentiel au bon fonctionnement de cet appareil

d’éclairage. Lorsque vous faites une entaille ou que vous percez un trou dans un mur ou un

plafond, n’endommagez pas les câbles électriques, les canalisations de gaz ou d’eau. Si l’un des

composants de raccordement ou de l’appareil d’éclairage est endommagé, n’installez pas cet

appareil d’éclairage. Retournez-le à l’endroit où vous l’avez acheté.

Convient uniquement aux appareils comportant un avertissement indiquant que l’appareil

d’éclairage est doté d’un fil supportant une chaleur de 75°C ou 90°C. (Ces avertissements se

trouvent sur l’étiquette U.L. et sur l’emballage de l’appareil d’éclairage.)

LIEN RAPIDE 1 (E1)

TUBE DE VERRE (L)

LIEN RAPIDE 2 (E2)

LIEN RAPIDE 3 (E3)

*FIL DE MISE

A LA TERRE

CONNECTEURS

DE FIL (N)

TROU LATERAL (P)

RONDELLE ETOILEE (J)

L’ECROU HEXAGONAL (K)

VIS DE MISE A LA

TERRE (VERTE) (O)

ECROUS CAPUCHONS (Q)

CHAPEAU (F)

RACCORD (H)

BARRE DE FIXATION (B)

VIS DE FIXATION (A)

*VIS DE LA BOITE DE

SORTIE DE COURANT (D)

*BOITE DE SORTIE

DE COURANT (C)

*NON FOURNI

FIGURE 1.

*AMPOULE

BOUCLE 1 (I1)

MANCHON FILETE (G)

BOUCLE 2 (I2)

BOUCLE 3 (I3)

Il est possible que le dessin illustré ici ne soit pas la reproduction exacte de l’appareil

d’éclairage contenu dans la boîte.

Les instructions d’installation demeurent cependant valables.

Westinghouse Lighting, Philadelphia, PA 19154-1029, U.S.A. www.westinghouselighting.com

and Westinghouse are trademarks of Westinghouse Electric Corporation.

CAPUCHON

MÉTALLIQUE (V)
