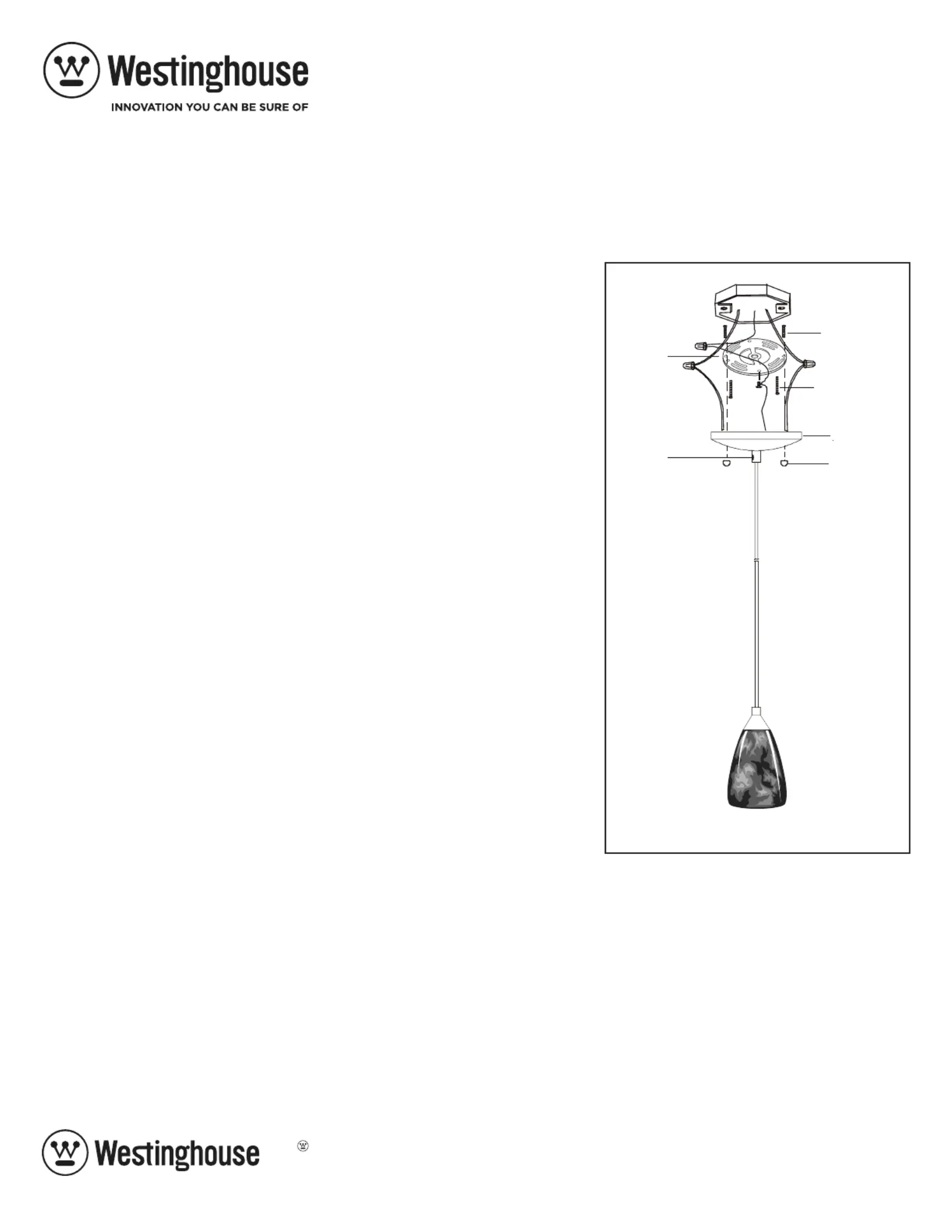

Mini-Pendant Kit

Installation and Safety Instructions

Warning: Be sure the electricity to the wires you are working on is shut off; either the fuse is removed or the circuit

breaker is shut off.

GENERAL

You don't need special tools to install this fixture. Be sure to follow the steps in the order given. Under no circumstances

should a fixture be hung on house electrical wires, nor should a swag type fixture be installed on a ceiling which contains a

radiant type heating system. Read instructions carefully. If you are unclear as to how to proceed, consult a qualified electrician.

WARRANTY

This fixture is warranted against defects in material and workmanship for a period of five years from purchase date. This warranty

is in lieu of all other warranties expressed or implied. This warranty does not cover acts of nature such as lightning damage, or

corrosion and discoloration of components, nor does it cover damages caused through abuse, improper installation, surges in

electric current, or acts of third parties. This warranty does not cover the costs of removing and re-installing the lighting fixture.

If this product fails for any reason covered by this warranty, please contact us at www.westinghouselighting.com/contact-us.

INSTALLATION

Important: Do not attach fixture directly to outlet box.

Step 1: Thread mounting screw (A) into the matching hole of mounting bar (B).

Step 2: Secure the mounting bar (B) to outlet box with outlet box screws (C) (if applicable).

ADJUSTING LENGTH OF CORD (IF NEEDED)

These steps should only be performed by someone familiar with working with electrical wiring. Care must be taken when

adjusting the length of the cord to ensure insulation on internal wires is not damaged. If not familiar with these steps, seek

the aid of a qualified electrician.

Step 1: Loosen the screw in strain relief (Q) until cord slides easily, being careful not to completely remove screw.

Slide canopy down cord until the fixture is the desired distance below the canopy. Tighten the screw in the

strain relief (Q) until cord does not slide.

Step 2: Cut excess cord approximately six to seven inches (6”-7”) above canopy.

Step 3: Leaving at least one inch (1”) of outer insulation above the canopy, carefully cut through outer insulation of

cord, being careful not to damage inner insulation. Remove outer insulation. Strip inner insulation from end of

both wires, leaving approximately 1/2 inch of wire exposed.

Step 4: For cords without differently colored inner insulation, identify the tracer lines on the new ends of the inner wires

to match the labels on the original ends and connect to house wiring as described in the appropriate step.

WIRING INSTRUCTIONS

WStep 1: rap grounding wire from fixture around green grounding screw stem leaving enough excess wire, then

connect the excess grounding wire from the fixture with the grounding wire from outlet box by wire

connector, then wrap the wire connector with electrical tape for a more secure connection.

Step 2: Connect the

black wire from the fixture with the black wire (live wire) from the outlet box by

wire connector,

and wrap the wire connector with electrical tape for a more secure connection.

Step 3: Connect the white wire from the fixture with the white wire (neutral wire) from the outlet box by wire

connector, and wrap the wire connector with electrical tape for a more secure connection.

Note: Try to gently pull the connectors off the wires. If you can pull the connector off, carefully repeat steps

1, 2 and 3 above, and check again for a firm connection. Make sure no bare wires can be seen outside wire

connectors.

Step 4: Tighten grounding screw. Do not over tighten.

FINAL ASSEMBLY

Step 1: After wires are connected, tuck them carefully inside outlet box. Raise canopy (D) allowing the mounting screw (A) to protrude through the hole in the canopy (D), and secure

with ball nut (E).

Step 2: Install lamp. (Please do not exceed the maximum capacity recommended on the socket).

CLEANING

To clean, wipe fixture with a soft cloth. Clean glass with a mild soap. Do not use abrasive materials such as scouring pads or powders, steel wool or abrasive paper.

W-401

102819

Westinghouse Lighting, Philadelphia, PA 19154-1029, U.S.A.

www.westinghouselighting.com

, WESTINGHOUSE, and INNOVATION YOU CAN BE SURE OF

are trademarks of Westinghouse Electric Corporation.

Used under license by Westinghouse Lighting.

Made in China
